ADL8140

PRE-RELEASE

10 GHz to 18 GHz Low Noise Amplifier

Data Sheet (Rev. 0)

Part Models: 4
1ku List Price: price unavailable

Viewing:

Part Details

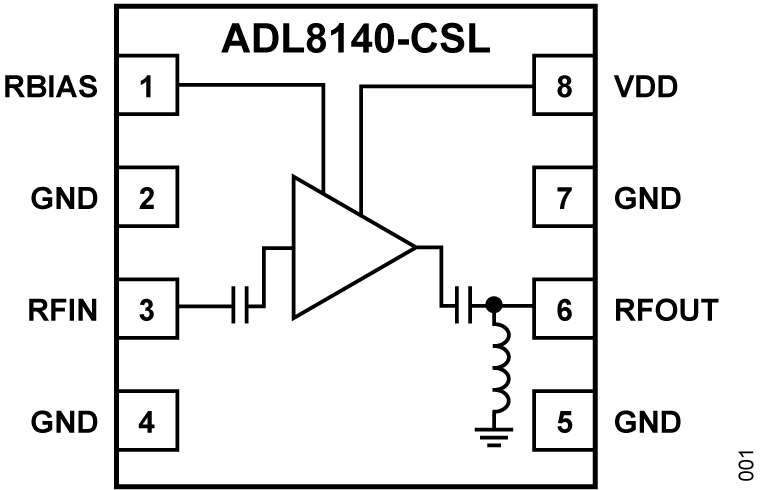

Self biased, single positive supply LNA
Resistor-adjustable bias current
Internally matched and AC-coupled
Frequency range: 10 GHz to 18 GHz
Noise figure: 1 dB from 12 GHz to 15 GHz
Gain: 27.5 dB from 12 GHz to 15 GHz

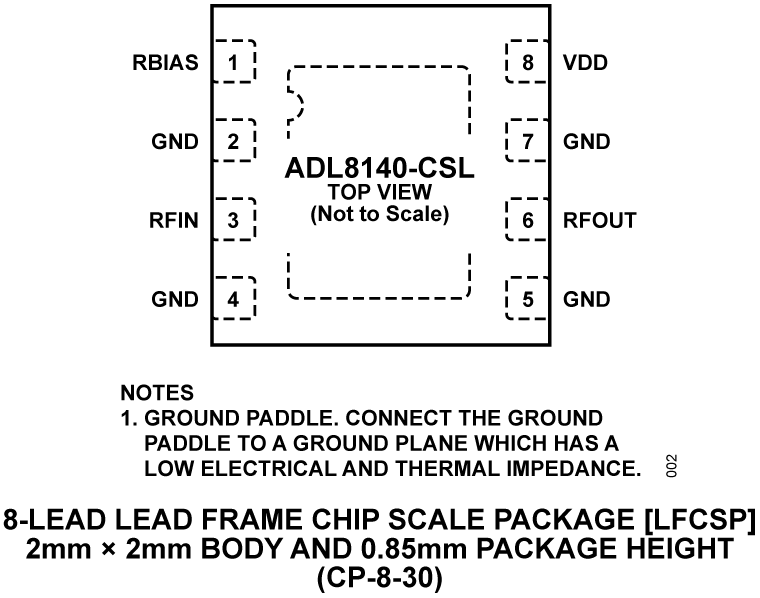

RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP

Part Models: 4
1ku List Price: price unavailable

Documentation

Data Sheet 2

ADL8140: 10 GHz to 18 GHz Low Noise Amplifier Data Sheet (Rev.0) 07/26/2024

ADL8140-CSL 10 GHz to 18 GHz Low Noise Amplifier Data Sheet (Rev.0) 11/25/2024

User Guide 1

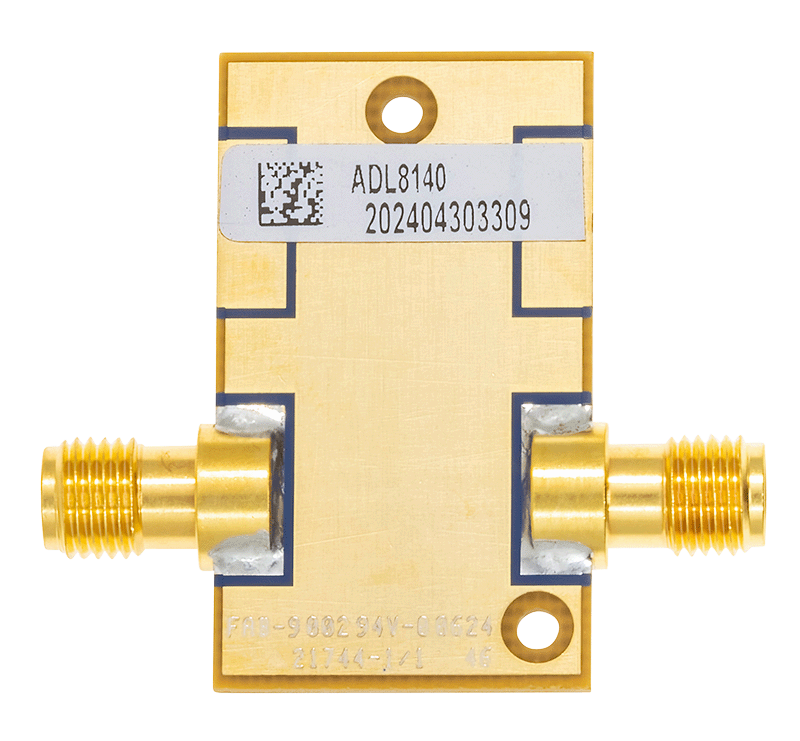

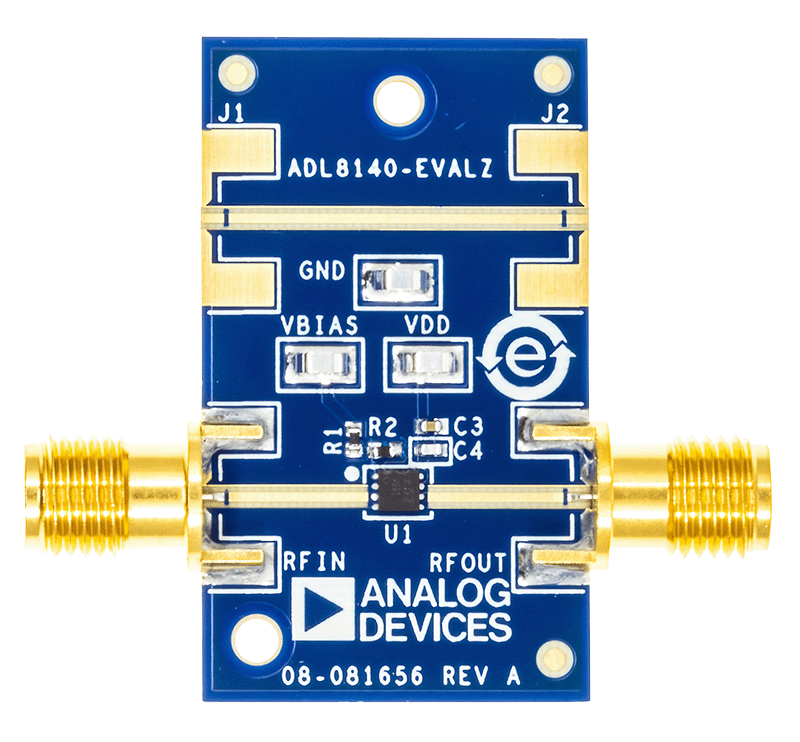

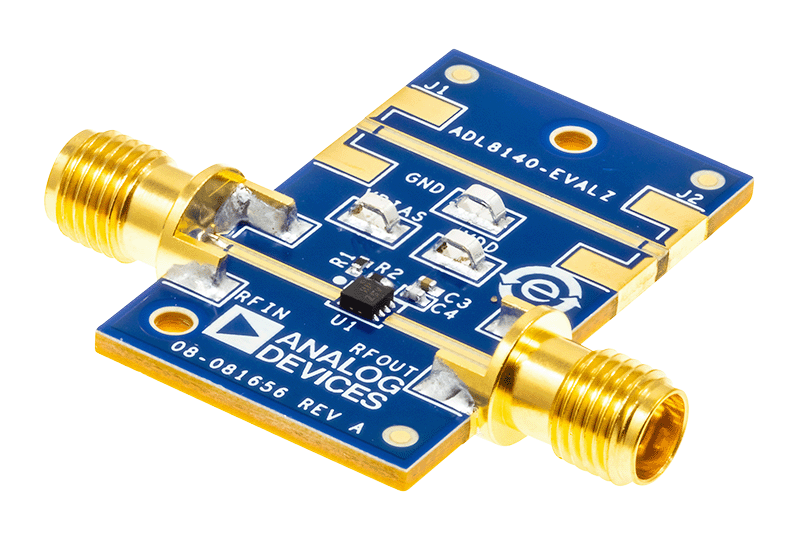

UG-2255: Evaluating the ADL8140 GaAs, pHEMT, MMIC, Low Noise Amplifier, 10 GHz to 18 GHz (Rev.0) 07/26/2024
