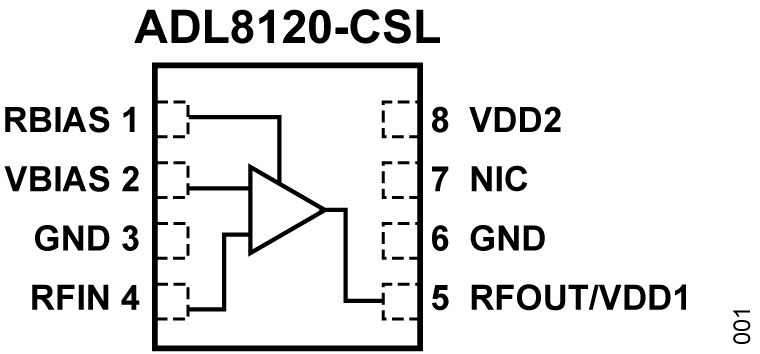

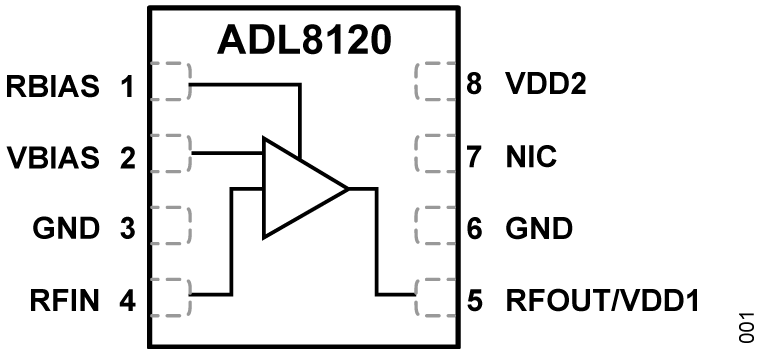

The ADL8120-EVALZ and ADL8120-EVAL1Z are 4-layer printed
circuit boards (PCBs) fabricated from 0.254 mm (10 mil) thick,
Isola 370HR, copper clad, forming a nominal thickness of 1.58
mm (62 mils). The ADL8120-EVALZ is designed to operate from
10 MHz to 20 GHz, whereas the ADL8120-EVAL1Z extends the
frequency range down to 30 kHz and still supports operation up
to 20 GHz. The RFIN and RFOUT ports on the ADL8120-EVALZ
and ADL8120-EVAL1Z are populated with 2.9 mm, female coaxial
connectors. The ADL8120-EVALZ and ADL8120-EVAL1Z are populated with components suitable for use over the entire −55°C to
+125°C operating temperature range.
To calibrate out board trace losses, a through calibration path
is provided between the J1 and J2 connectors. J1 and J2 must
be populated with RF connectors to use the through calibration
path. Refer to Figure 11 and Table 1 for the through calibration
path performance for both the ADL8120ACPZN-EVALZ and
ADL8120ACPZN-EVAL1Z.
To calibrate out board trace losses, a through calibration path is
provided between the J1 and J2 connectors. J1 and J2 must be
populated with RF connectors to use the through calibration path.
Refer to Figure 11 and Table 1 for the through calibration path
performance for both the ADL8120-EVALZ and ADL8120-EVAL1Z.

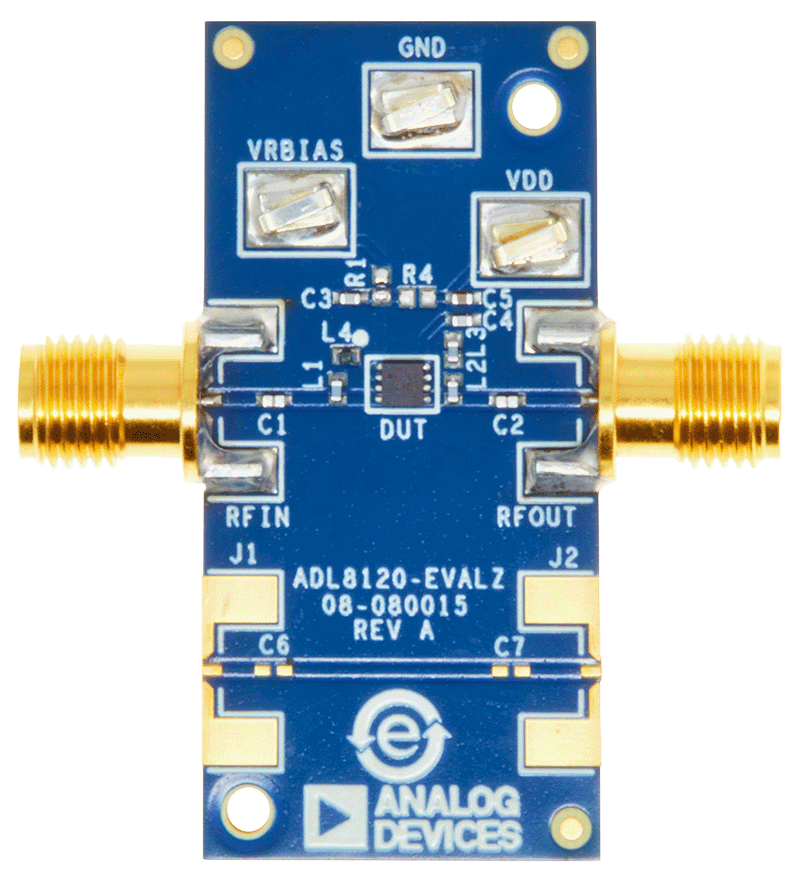

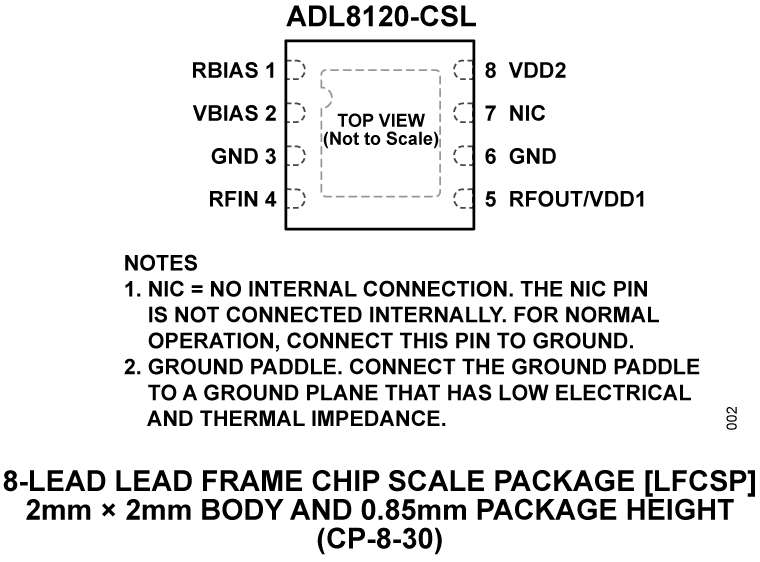

Access the ADL8120-EVALZ and ADL8120-EVAL1Z ground and
drain voltage through the surface-mount technology (SMT) test
point connectors, GND and VDD. A supplementary test point for
VRBIAS is included for simple access on the RBIAS pin (see Figure
12 and Figure 14 for the test point locations).

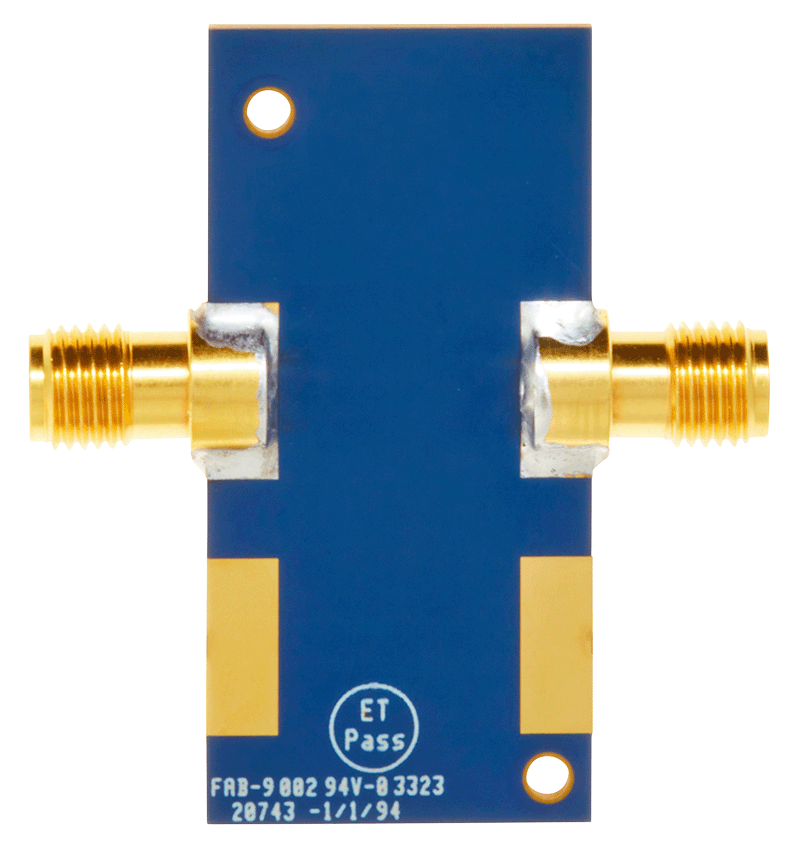

The RF traces on the ADL8120-EVALZ and ADL8120-EVAL1Z are
50 Ω, grounded, coplanar waveguide. The package ground leads
and the exposed pad connect directly to the ground plane. Multiple
vias connect the top and bottom ground planes with particular focus
on the area directly beneath the ground paddle to provide adequate
electrical conduction and thermal conduction.

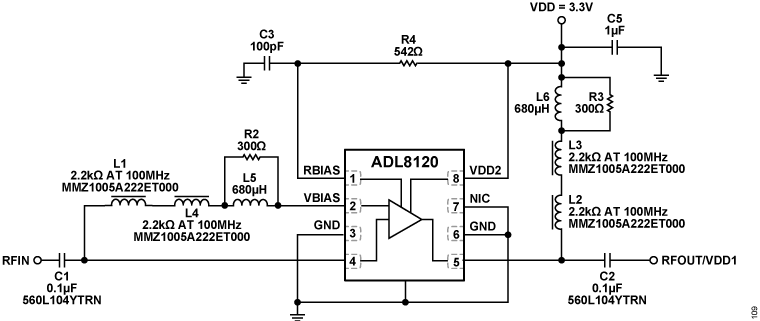

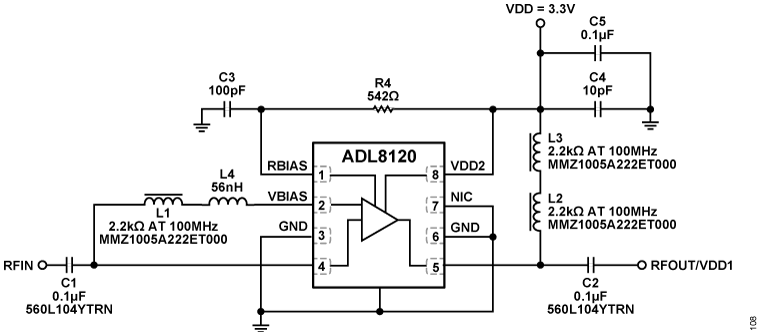

The power supply decoupling capacitors on the ADL8120-EVALZ
and ADL8120-EVAL1Z represent the configuration used to characterize and qualify the device.
For full details on the ADL8120, see the ADL8120 data sheet,
which must be consulted in conjunction with this user guide when
using the ADL8120-EVALZ and ADL8120-EVAL1Z.
