MAX96707

PRODUCTION

14-Bit GMSL Serializer with High Immunity/Bandwidth Mode and Coax/STP Cable Drive

1.6Gbps Serializer in 4mm × 4mm TQFN with Crosspoint and CRC Protection of Video and Control Data for ADAS Applications

Data Sheet (Rev. 1)

Part Models: 2
1ku List Price: Starting From $6.37

Viewing:

Part Details

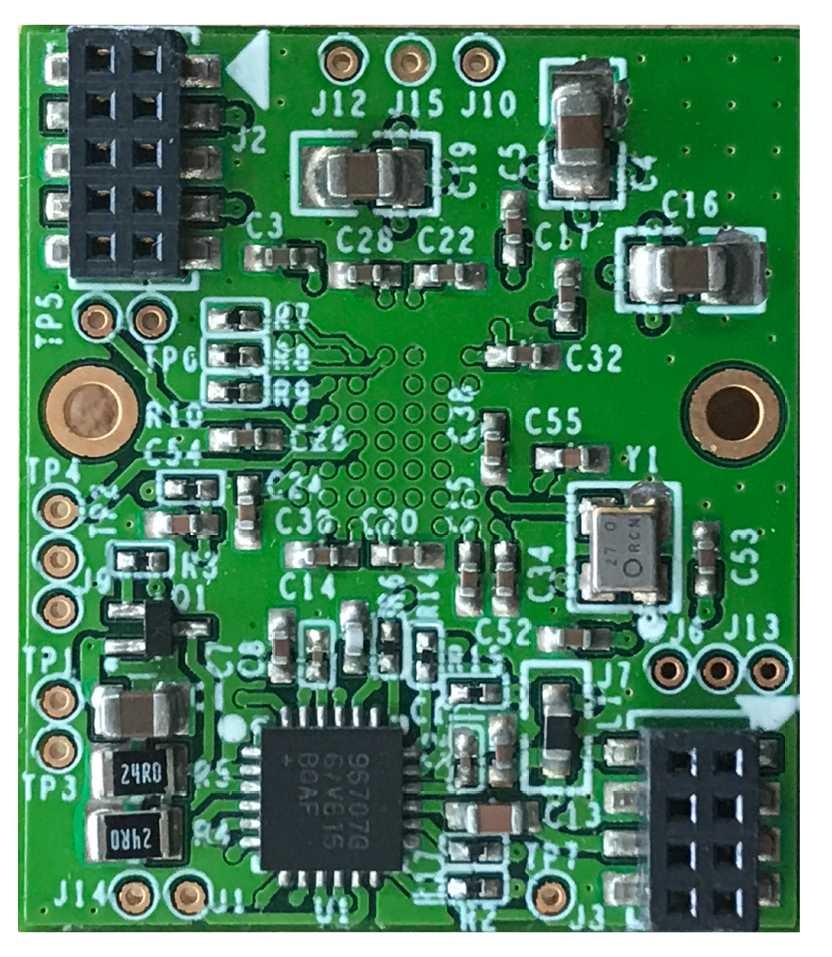

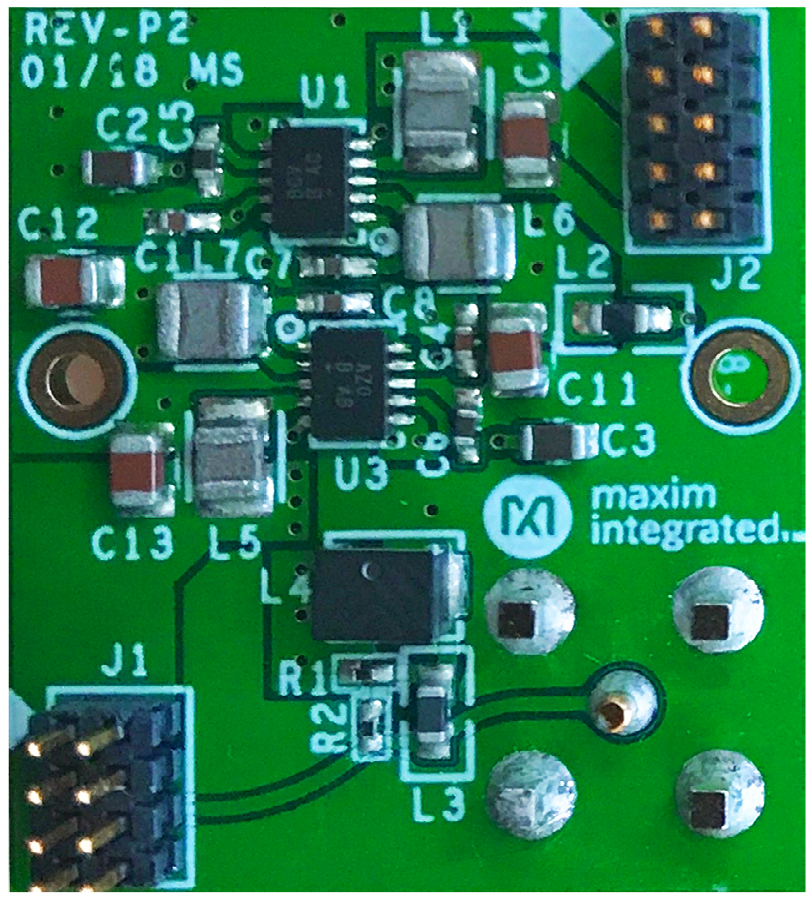

Ideal for Safety Camera Applications
- Works with Low-Cost 50Ω Coax (100Ω STP) Cables
- Error Detection of Video/Control Data
- High-Immunity Mode for Robust Control-Channel EMC Tolerance
- Retransmission of Control Data Upon Error Detection
- Best-in-Class Supply Current: 88mA (max)
- Pre/Deemphasis Allows 15m Cable at Full Speed
- 24-Pin (4mm × 4mm) TQFN Package with 0.5mm Lead Pitch
High-Speed Data Serialization for Megapixel Cameras
- Up to 1.74Gbps Serial-Bit Rate
- 12.5MHz to 87MHz × 12-Bit + H/V Data
- 36.66MHz to 116MHz × 12-Bit + H/V Data (through Internal Encoding)
Multiple Modes for System Flexibility
- 9.6kbps to 1Mbps Control Channel in I²C Mode (with Clock Stretch)
- Crosspoint Switch Accepts Any Input Bitmap
- Modes for Encoded VSYNC and HSYNC
Reduces EMI and Shielding Requirements
- Programmable Output Spread Spectrum
- Tracks Spread Spectrum Applied at the Parallel Input
- 1.7V to 1.9V I/O Supply
Peripheral Features for Camera Power-Up and Verification
- Built-In PRBS Generator for BER Testing
- Dedicated GPO for Camera Frame-Sync Trigger and Other Uses
- Remote/Local Wake-Up from Sleep Mode
Meets AEC-Q100 Automotive Specification
- -40°C to +115°C Operating Temperature
- ±8kV Contact and ±15kV Air IEC 61000-4-2 and ISO 10605 ESD Protection

Part Models: 2
1ku List Price: Starting From $6.37

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX96707GTG+	24-TQFN-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96707GTG+T	24-TQFN-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
