MAX22005

RECOMMENDED FOR NEW DESIGNS

12-Channel Factory-Calibrated Configurable Industrial-Analog Input

Fully-Calibrated SW Programmable HV Protected Configurable AI

Data Sheet (Rev. 0)

Part Models: 2
1ku List Price: Starting From $8.60

Viewing:

Part Details

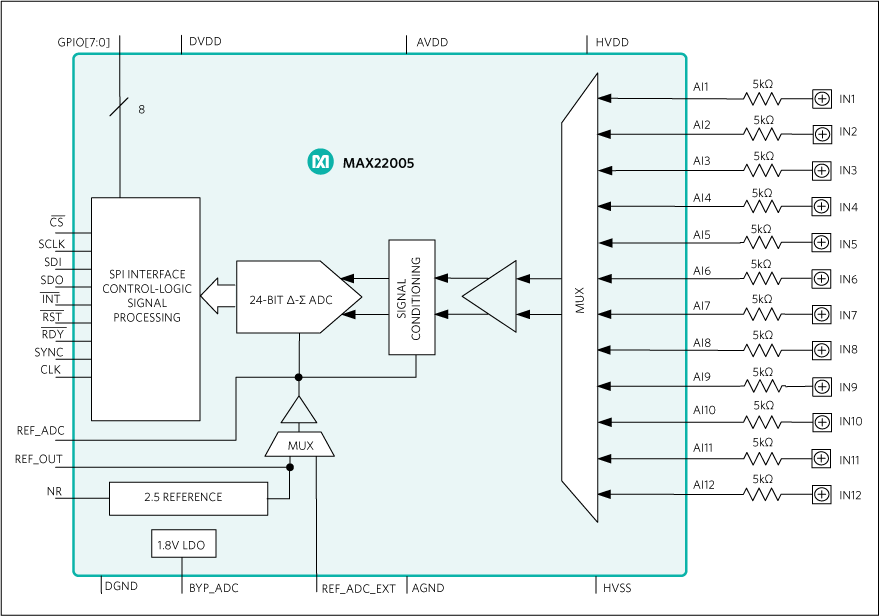

Enables More Robust and Reliable Systems
- ±36V High-Voltage Protection for All Input Ports
- 2kV HBM ESD Protection of All Pins
- ±2kV Surge Protection (with External 5kΩ Resistor)
- CRC Detection for Robust Serial Communication
- Watchdog Timer
Software Configurability
- ±12.5V Analog Input-Voltage Mode
- ±25mA Analog Input-Current Mode Using External Sense Resistor
- Configurable Inputs Using External Sense Resistor and Low-Cost Switches
Best-in-Class System Accuracy
- 0.02% FSR at 25°C Factory Calibrated
- 0.05% FSR over ±50°C from 25°C Factory Calibration
- Maximum of 30nA Input Leakage
- 5ppm/°C Internal Reference
Additional Features
- Internal or External ADC Reference
- Eight GPIO Ports
- 48.5mW Low Power Dissipation with ±5V Supply
- 30MHz SPI/QSPI/DSP-Compatible Serial Interface
Operating Temperature -40°C to +125°C
7.5mm × 7mm 48-pin LGA package

Part Models: 2
1ku List Price: Starting From $8.60

Documentation

Data Sheet 1

MAX22005: 12-Channel Factory-Calibrated Configurable Industrial-Analog Input Data Sheet (Rev.0) 09/03/2021

Design Note 1

MAX22005 Configurable Analog Input Enables Flexible Industrial Control Systems 09/21/2021

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX22005ALM+	48-LGA-7.5X7X1	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX22005ALM+T	48-LGA-7.5X7X1	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

Software Development 3

IBIS Model 1

MAX22005 IBIS Model

Evaluation Kits

Evaluation Kit for the MAX22005

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX22005
Configurable as 8 Single-Ended Analog Voltage Inputs, 4 Single-Ended Analog Current Inputs, 4 Differential Analog Voltage Inputs, 4 Multifunctional (Universal) Analog Inputs, or Combinations Thereof
Analog Input Voltage Range: ±12.5V
Analog Input Current Range: ±25mA
±1.5kV Input Surge Protection
Works with the USB2PMB2# Adapter and Munich GUI Software
Fully Assembled and Tested
Proven PCB Layout
RoHS Compliant

Product Details

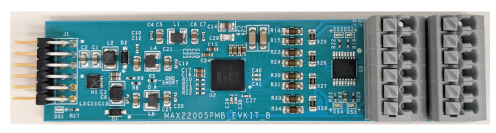

The MAX22005PMB# (peripheral module board) provides a Pmod™-compatible hardware solution to evaluate the MAX22005 Twelve-Channel Configurable Industrial Analog Input. Refer to the MAX22005 IC data sheet for more details on the operation of the IC and its register map.

The MAX22005PMB# is most easily evaluated by configuring four universal analog inputs with the Munich GUI software through the USB2PMB2# adapter board. Alternatively, any SPI-compatible microcontroller, adapter board, or FPGA can be used along with a custom driver to evaluate the board.

The PCB dimension is just 99mm long x 23mm wide, with the width determined by the size of the terminal block.

Note the module provides a subset of the MAX22005 features. For greater flexibility, refer to the MAX22005 Evaluation Kit.

Applications

Programmable Logic Controllers (PLC)
Programmable Automation Controllers (PAC)
Distributed Control Systems (DCS)

Evaluation Kit for the MAX22005

Buy Now View Details

Features and Benefits

Easy Selection and Configuration of Input Channels
On-the-Fly Configuration as Analog Input-Voltage Mode or Analog Input-Current Mode
- ±12.5V and 0V to +12.5V Ranges in Analog Input-Voltage Mode
- ±25mA and 0mA to 25mA Ranges in Analog Input- Current Mode
MAX22005 is Factory Calibrated
- EV Kit Does Not Require System Calibration for AIVM
CRC Detection for Robust Communication
Watchdog Timer for SPI Activity
Access to Eight GPIO Channels
Ability to Synchronize Multiple EV kits for Simultaneous ADC Conversion
-40°C to +125°C Temperature Range
Proven PCB Layout
Fully Assembled and Tested
Windows 10 Compatible Software

Product Details

The MAX22005 evaluation kit (EV kit) provides a proven design to evaluate the MAX22005, 12-Channel factory-calibrated configurable industrial-analog input. The MAX22005 EV kit includes the MAX22005 evaluation board and a graphical user interface (GUI) that provides communication from a PC to the target device through a USB port.

The GUI is compatible with Windows^® 10 for exercising the features of the MAX22005 IC. The EV kit GUI allows the user to read the 24-bit ADC conversion result for any of the input channels through the high-speed SPI interface in single-ended, differential, or multifunctional configurations. The SPI interface is galvanically isolated from the USB port.

The MAX22005 EV kit must be powered from an external +24V power supply through the power jack (J100). The on-board DC-DC converters provide ±15V HVDD/HVSS and +3.3V AVDD/DVDD power rails for the entire board.

The MAX22005 EV kit board comes with a MAX22005ALM+ installed in a 48-pin, 7.5mm x 7.0mm LGA package.
