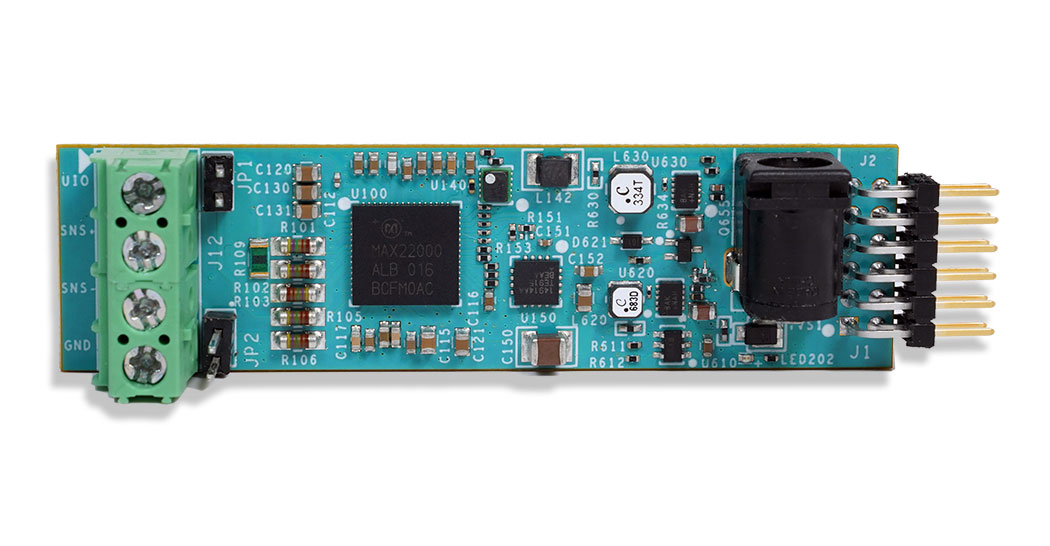

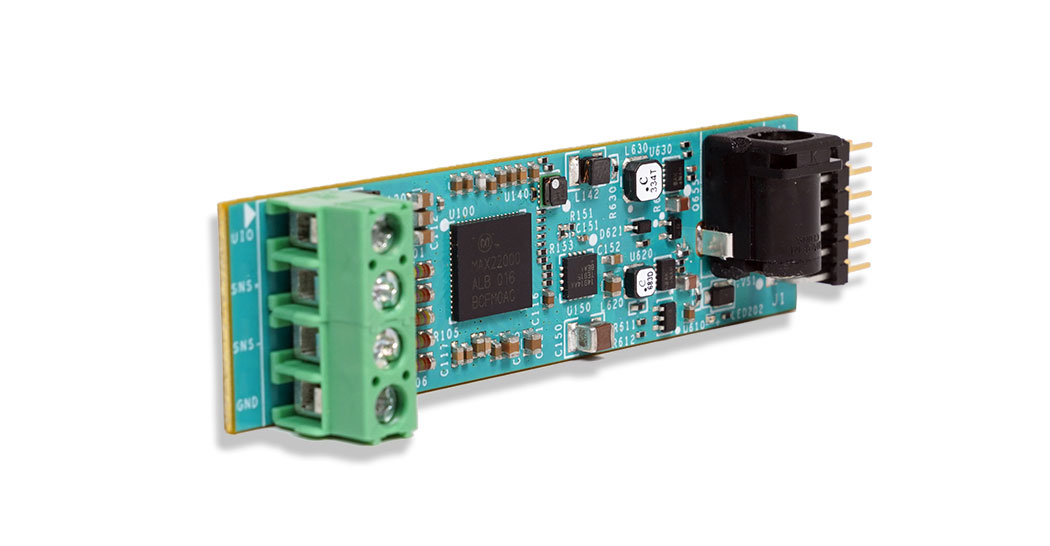

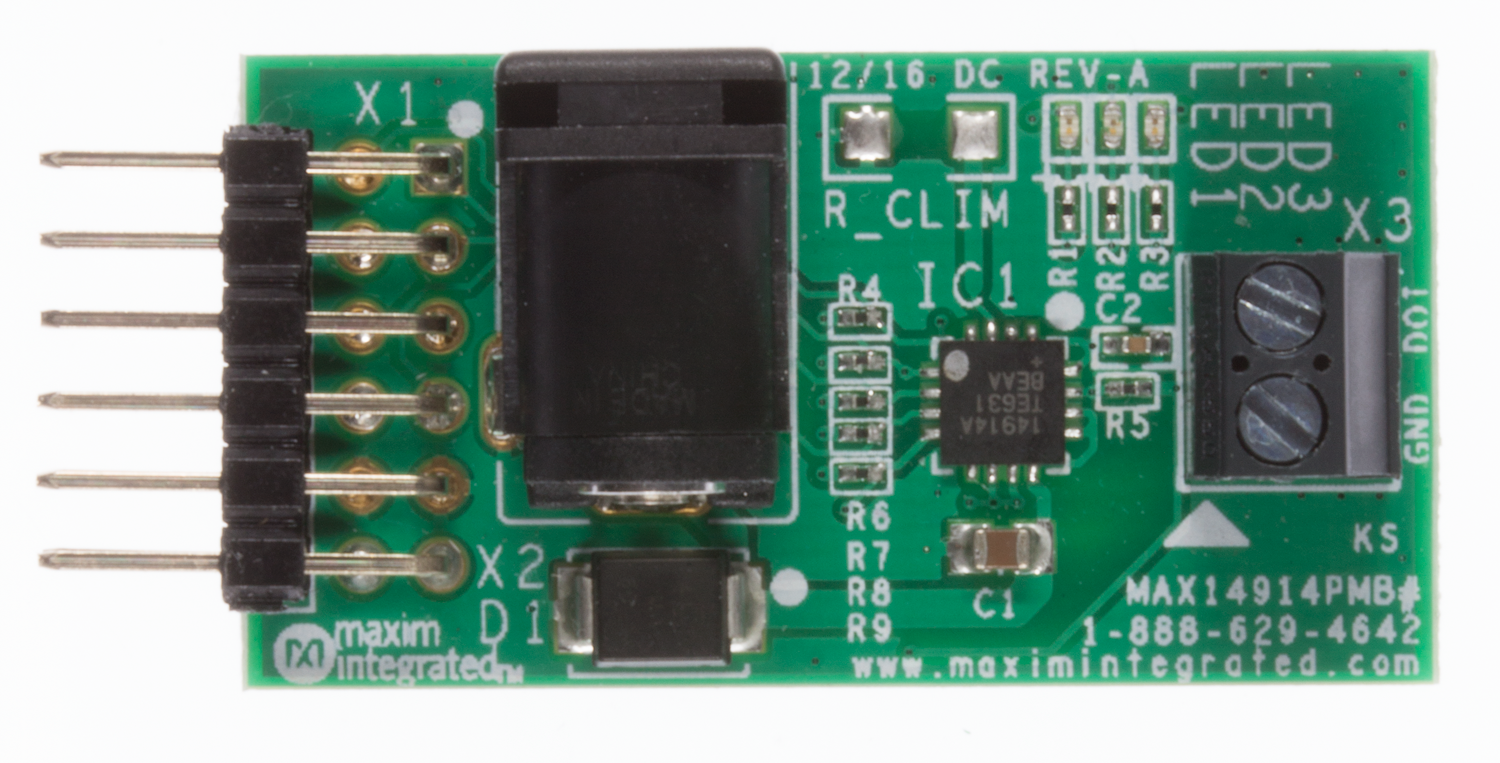

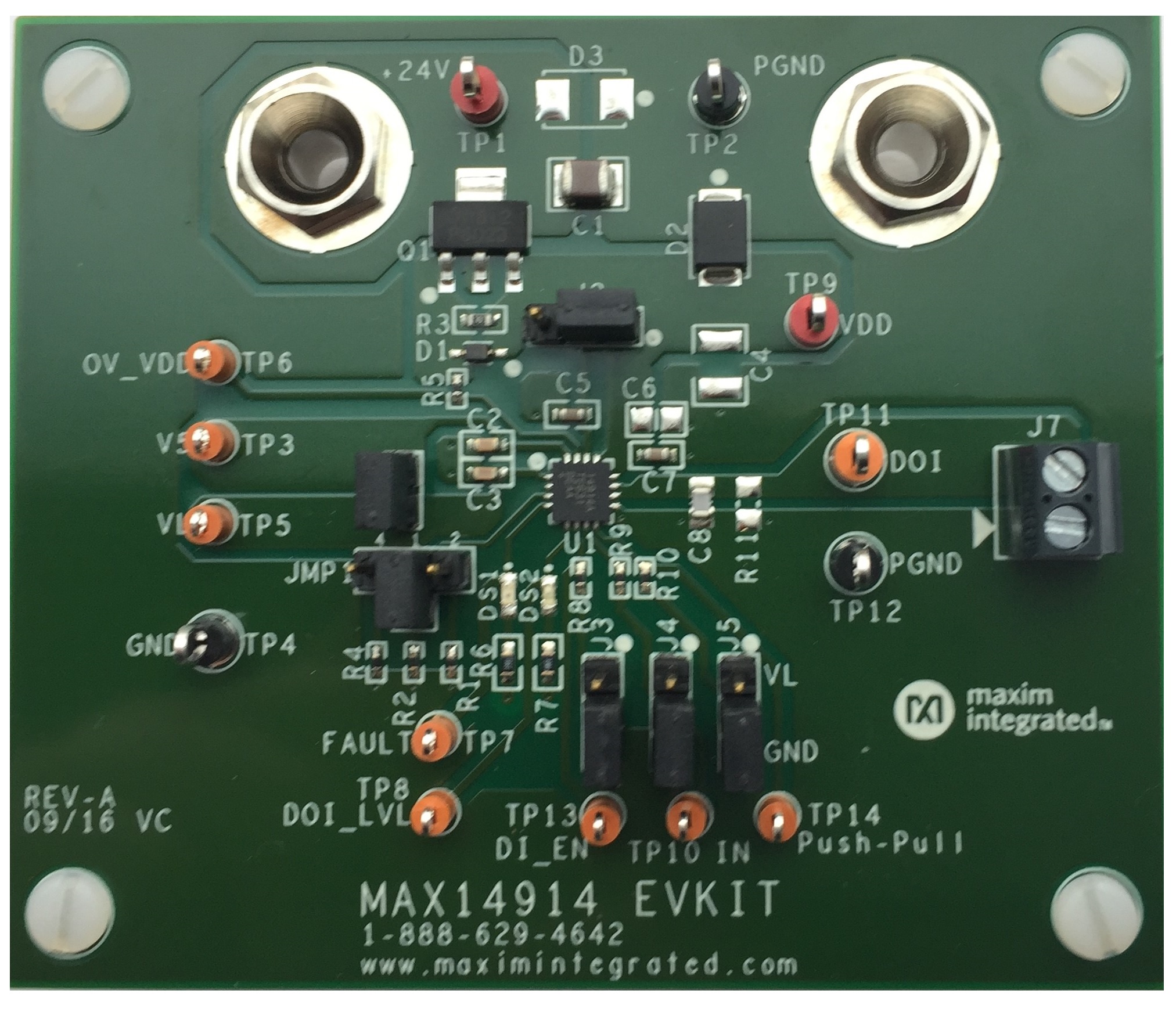

MAX14914A

PRODUCTION

High-Side Switch with Settable Current-Limiting, Push-Pull Driver Option, and Digital Input Configuration

Ultra Robust, Configurable Driver facilitates High Speed and Safety Digital I/O module Designs

Data Sheet (Rev. 5)

Part Models: 2
1ku List Price: Starting From $2.43

Viewing:

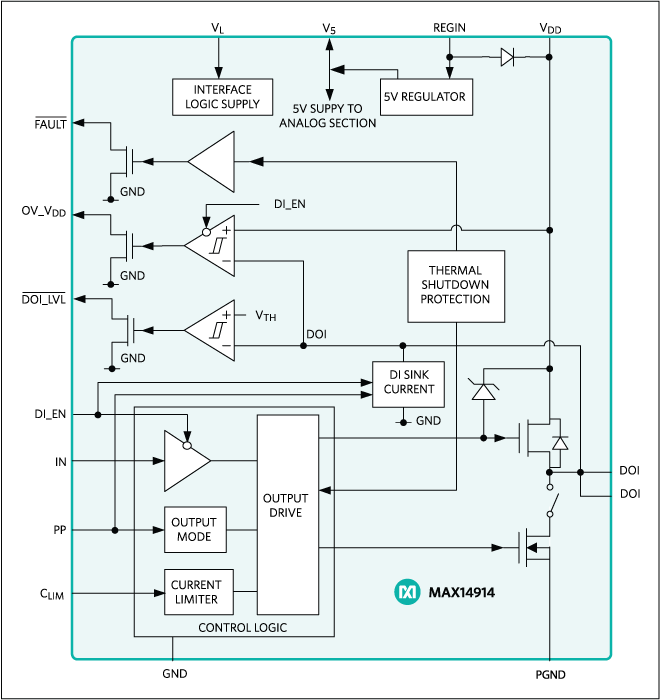

Part Details

Reduces Power and Heat Dissipation
- 240mΩ (max) HS RON at TA = 125°C
- 0.9mA (typ) High-Side DO-Mode Supply Current
- Accurate Internal Current Limiter for Type 1, Type 2, and Type 3 Digital Inputs
Enhances System Robustness
- SafeDemag^™ for Safe Turn-Off of Unlimited Inductance
- 60V Supply Tolerance
- Accurate Short-Circuit DO Mode Current Limiting
- ±2kV IEC 61000-4-5 Surge Protection
- ±20kV IEC 61000-4-2 Air-Gap ESD Protection
- ±7kV IEC 61000-4-2 Contact ESD Protection
- -40°C to +125°C Ambient Operating Temperature
Reduces BOM Count and PCB Space
- Small 4mm x 4mm TQFN Package
- Internal Clamp for Fast Inductive Load Turn-Off
- On-Chip 5V Regulator
Provides Flexibility
- Configurable as a Digital Input, or a High-Side or Push-Pull Digital Output
- Low-Leakage Mode (MAX14914A) Allows High Accuracy AIO/DIO applications
- Resistor Settable Current Limiting for the High-Side Switch (135mA to 1.3A)
- Pin-Selectable Type 1/3 or Type 2 DI Operation
Improves System Speed and Throughput
- Propagation Delay of Less Than 2µs

Part Models: 2
1ku List Price: Starting From $2.43

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14914AATE+	16-LFCSP-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX14914AATE+T	16-LFCSP-4X4X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
