MAX2022

PRODUCTION

High-Dynamic-Range, Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator

Highest Linearity, Lowest Noise 2GHz ZIF Modulator Enables Four-Carrier WCDMA Tx

Data Sheet (Rev. 3)
Part Models
2
1ku List Price
Starting From $7.42
Viewing:
  • Part Details
  • Documentation
  • Software Resources
  • Hardware Ecosystem
  • Latest Discussions
    •

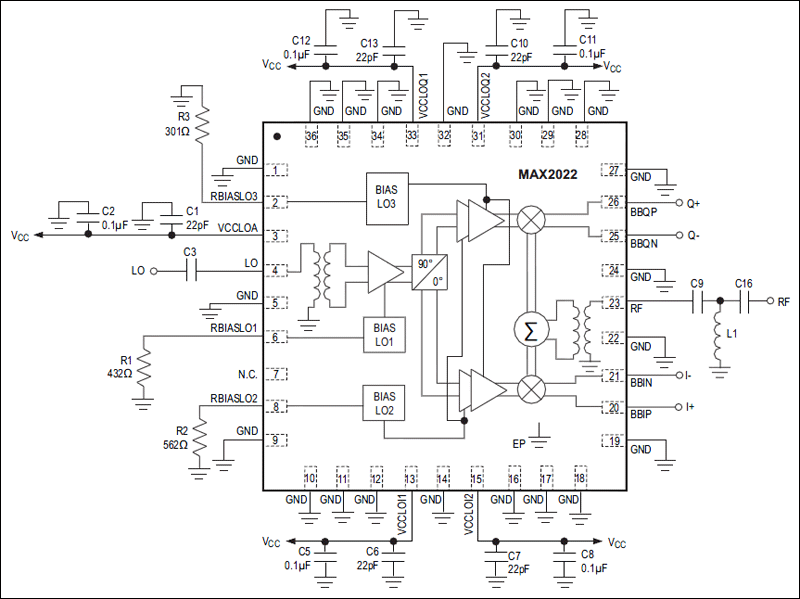

    Part Details

    • 1500MHz to 3000MHz RF Frequency Range
    • 1500MHz to 3000MHz LO Frequency Range
    • Scalable Power: External Current-Setting Resistors Provide Option for Operating Device in Reduced-Power/Reduced-Performance Mode
    • 36-Pin, 6mm x 6mm TQFN Provides High Isolation in a Small Package
    • Modulator Operation: (2140MHz):
      • Meets Four-Carrier WCDMA 65dBc ACLR
      • 23.3dBm Typical OIP3
      • 51.5dBm Typical OIP2
      • 45.7dBc Typical Sideband Suppression
      • -40dBm Typical LO Leakage
      • -173.2dBm/Hz Typical Output Noise, Eliminating the Need for an RF Output Filter
      • Broadband Baseband Input
      • DC-Coupled Input Provides for Direct Launch DAC Interface, Eliminating the Need for Costly I/Q Buffer Amplifiers
    • Demodulator Operation (1890MHz):
      • 39dBm Typical IIP3
      • 58dBm Typical IIP2
      • 9.2dB Typical Conversion Loss
      • 9.4dB Typical NF
    MAX2022
    High-Dynamic-Range, Direct Up/Downconversion 1500MHz to 3000MHz Quadrature Modulator/Demodulator
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    Technical Articles 3

    Learn More

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Hardware Ecosystem

    Parts Product Life Cycle Description
    MAX2057
    		PRODUCTION 1300MHz to 2700MHz Variable-Gain Amplifier with Analog Gain Control
    Digital to Analog Converters 2
    MAX5895
    		PRE-RELEASE 16-Bit, 500Msps Interpolating and Modulating Dual DAC with CMOS Inputs
    MAX5875
    		PRODUCTION 16-Bit, 200Msps, High-Dynamic-Performance, Dual DAC with CMOS Inputs
    RF Power Detectors 2
    MAX2015
    		PRODUCTION 0.1GHz to 3GHz, 75dB Logarithmic Detector/Controller
    MAX2016
    		PRODUCTION LF-to-2.5GHz Dual Logarithmic Detector/Controller for Power, Gain, and VSWR Measurements
