MAX1983

PRODUCTION

Low-Voltage, Low-Dropout Linear Regulators with External Bias Supply

Part Models
2
1ku List Price
Starting From $1.30

Part Details

  • Low-Cost 1.2V, 300mA VID Supply
  • ±3% Output Voltage Accuracy
  • No Minimum Load Current Required
  • 1.25V to 5.5V Input Supply Voltage
  • 5V Input Bias Supply Voltage
  • Power-Good (PGOOD) Open-Drain Output with 1ms Rising Edge Propagation Delay (MAX1982)
  • Adjustable Output Voltage (MAX1983)
  • Low Supply Current (IBIAS + IIN = 165µA typ)
  • 5µA (max) Shutdown Supply Current
  • Tiny 6-Pin SOT23 Package
MAX1983
Low-Voltage, Low-Dropout Linear Regulators with External Bias Supply
Ask a Question

Documentation

Learn More

Reference Designs

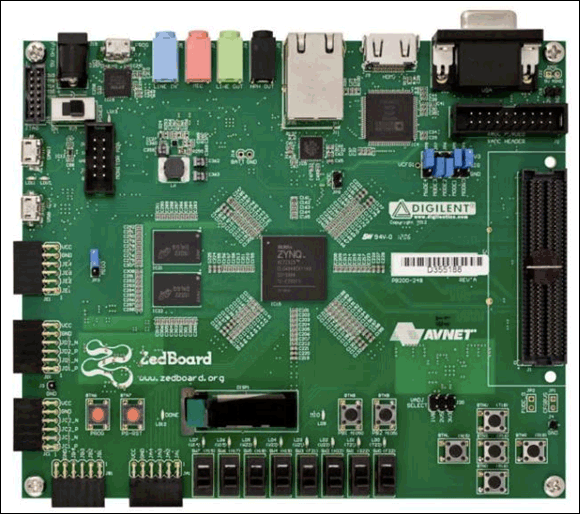

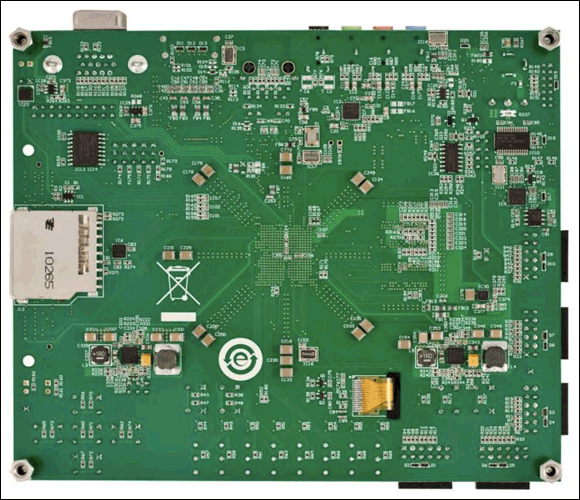

Powering the Zynq Evaluation and Development Board (ZedBoard)
This fully tested reference design provides a complete solution for powering the Xilinx® Zynq® Extensible Processing Platform (EPP).
