LTC3727-1

PRODUCTION

High Efficiency, 2-Phase Synchronous Step-Down Switching Regulators

Part Models: 6
1ku List Price: Starting From $6.41

Viewing:

Part Details

Wide Output Voltage Range:
- 0.8V ≤ V_OUT≤ 14V
Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
OPTI-LOOP^® Compensation Minimizes C_OUT
±1% Output Voltage Accuracy
Power Good Output Voltage Monitor
Phase-Lockable Fixed Frequency 250kHz to 550kHz
Latched Short-Circuit Shutdown (LTC3727 Only)
Dual N-Channel MOSFET Synchronous Drive
Wide V_IN Range: 4V to 36V Operation
Very Low Dropout Operation: 99% Duty Cycle
Adjustable Soft-Start Current Ramping
Foldback Output Current Limiting
Output Overvoltage Protection
Low Shutdown I_Q: 20µA
Selectable Constant Frequency or Burst Mode^® Operation

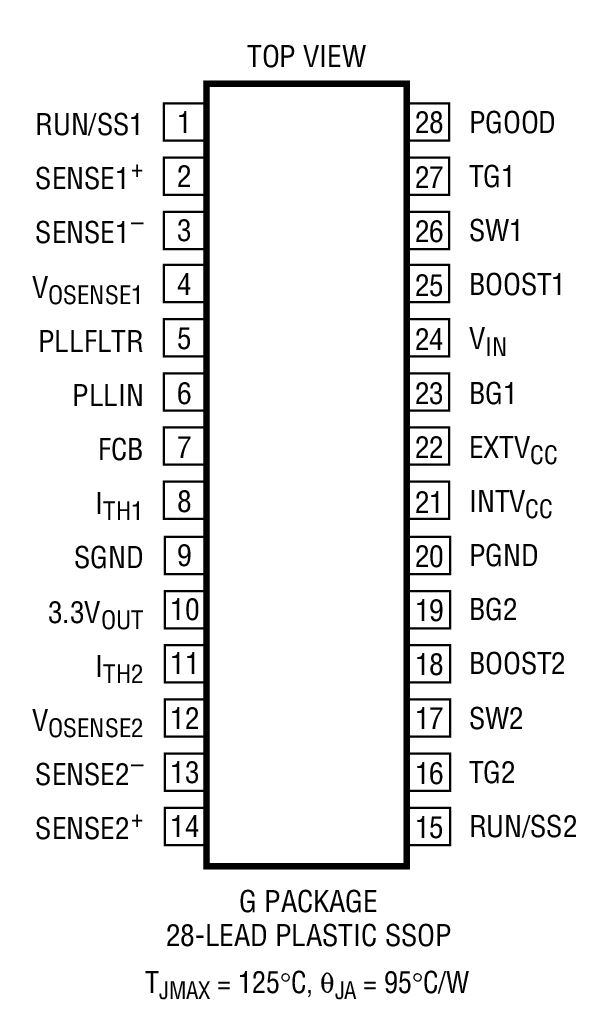

Small 28-Lead SSOP Package

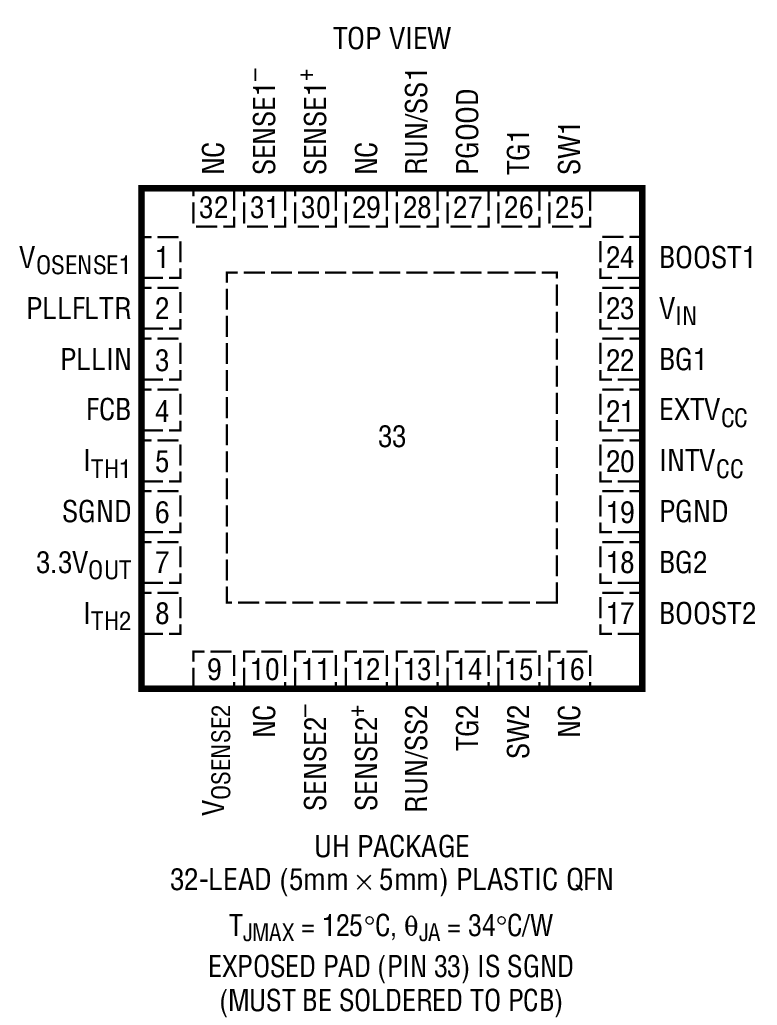

LTC3727-1 Also Available in the 5mm × 5mm QFN Package

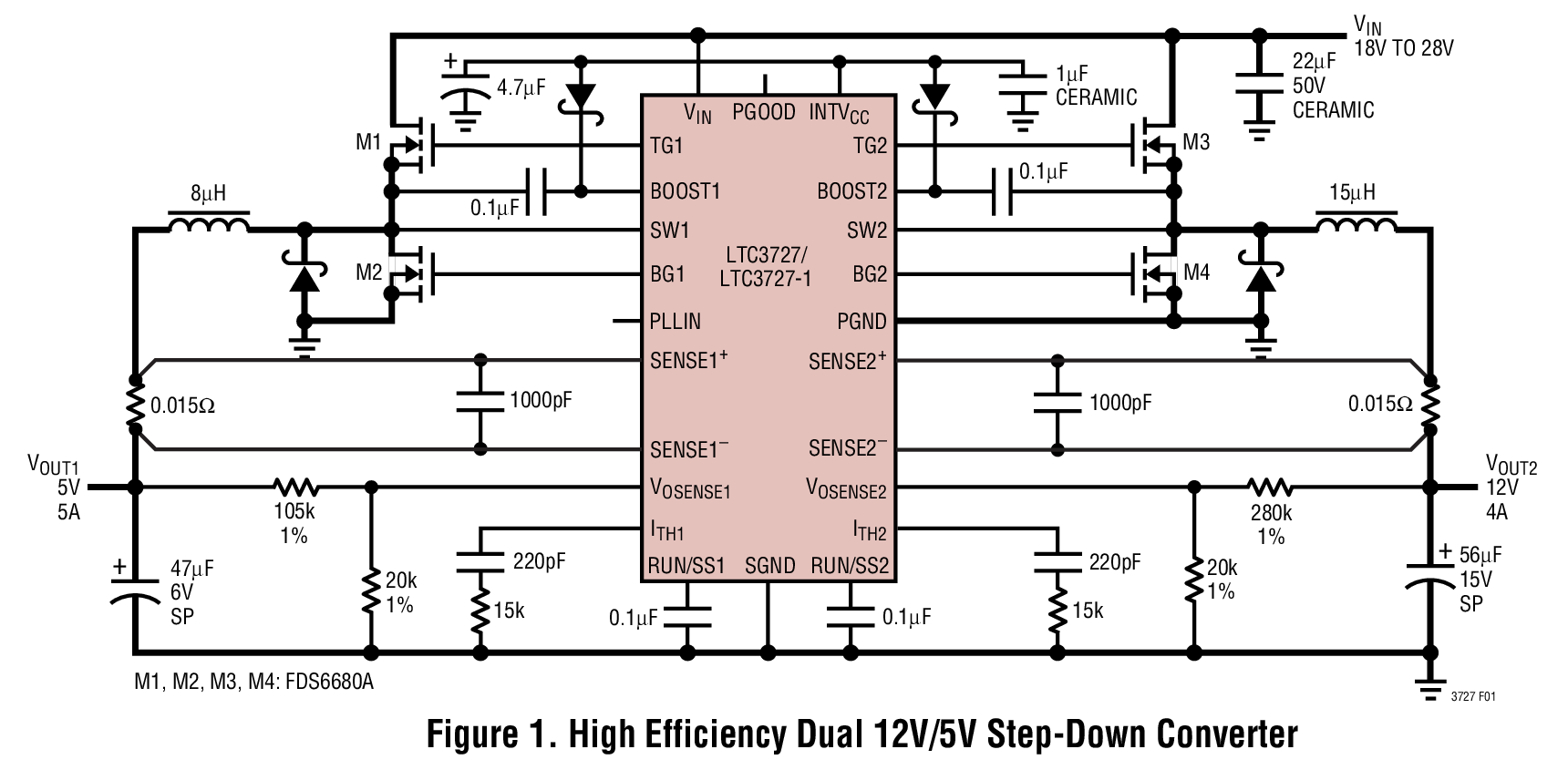

The LTC3727/LTC3727-1 are high performance dual step-down switching regulator controllers that drive all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows phase-lockable frequency of up to 550kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out of phase.

OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. There is a precision 0.8V reference and a power good output indicator. A wide 4V to 30V (36V maximum) input supply range encompasses all battery chemistries.

A RUN/SS pin for each controller provides soft-start, and on the LTC3727GN, optional timed, short-circuit shutdown. Current foldback limits MOSFET heat dissipation during short-circuit conditions when overcurrent latchoff is disabled. Output overvoltage protection circuitry latches on the bottom MOSFET until V_OUT returns to normal. The FCB mode pin can select among Burst Mode, constant frequency mode and continuous inductor current mode or regulate a secondary winding.


	Vin Range	Vref Accuracy Over Temp	Latch-Off	Min On-Time
LTC3727	4V - 36V	±1%	No	180ns
LTC3727-1	4V - 36V	±1%	Yes	180ns
LTC3727A-1	4V - 36V	±1%	No	120ns
LTC3727LX-1	4V - 32V	±1.5%	No	120ns

Applications

Telecom Systems
Automotive Systems
Battery-Operated Digital Devices
