LTC3727LX-1

PRODUCTION

High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator

Part Models: 4
1ku List Price: Starting From $5.24

Viewing:

Part Details

Wide Output Voltage Range: 0.8V ≤ V_OUT ≤ 14V
Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
OPTI-LOOP^® Compensation Minimizes C_OUT
±1.5% Output Voltage Accuracy
Power Good Output Voltage Monitor
Phase-Lockable Fixed Frequency 250kHz to 550kHz
Dual N-Channel MOSFET Synchronous Drive
Wide V_IN Range: 4V to 32V Operation
Very Low Dropout Operation: 99% Duty Cycle
Adjustable Soft-Start Current Ramping
Foldback Output Current Limiting
Output Overvoltage Protection
Low Shutdown I_Q: 20µA
Selectable Constant-Frequency or Burst Mode^® Operation

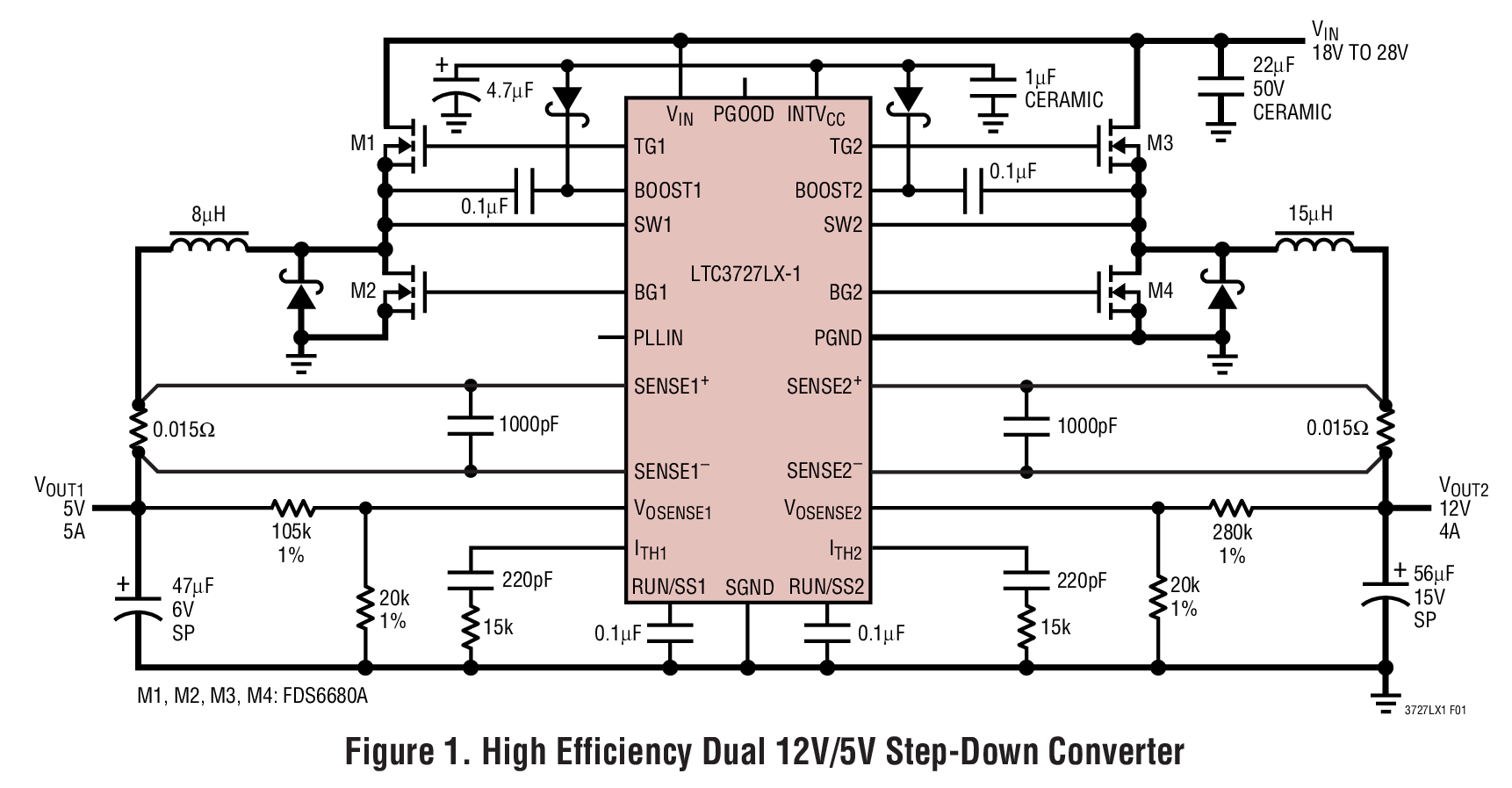

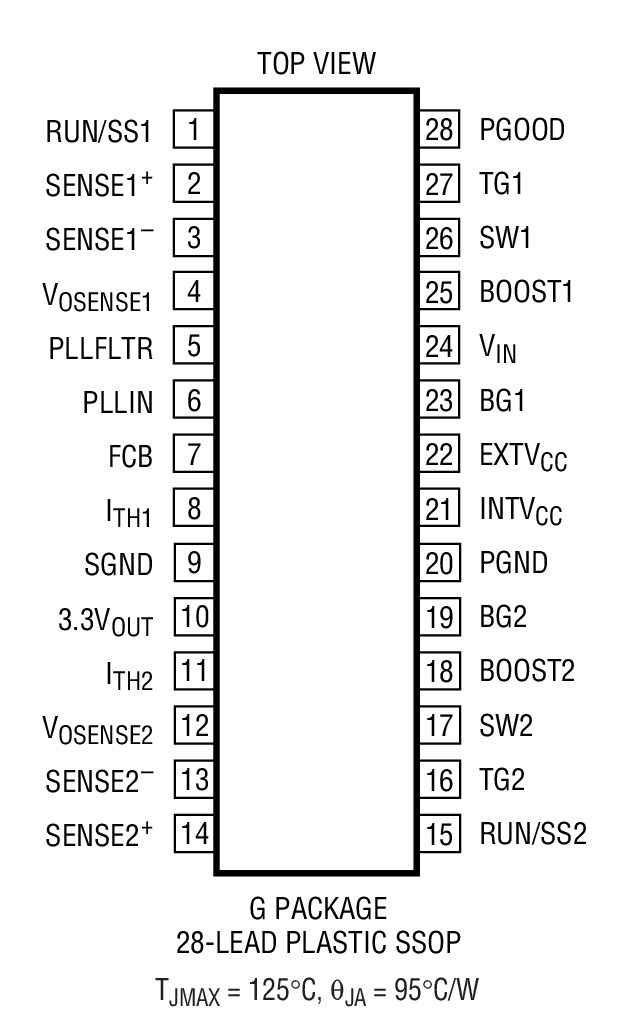

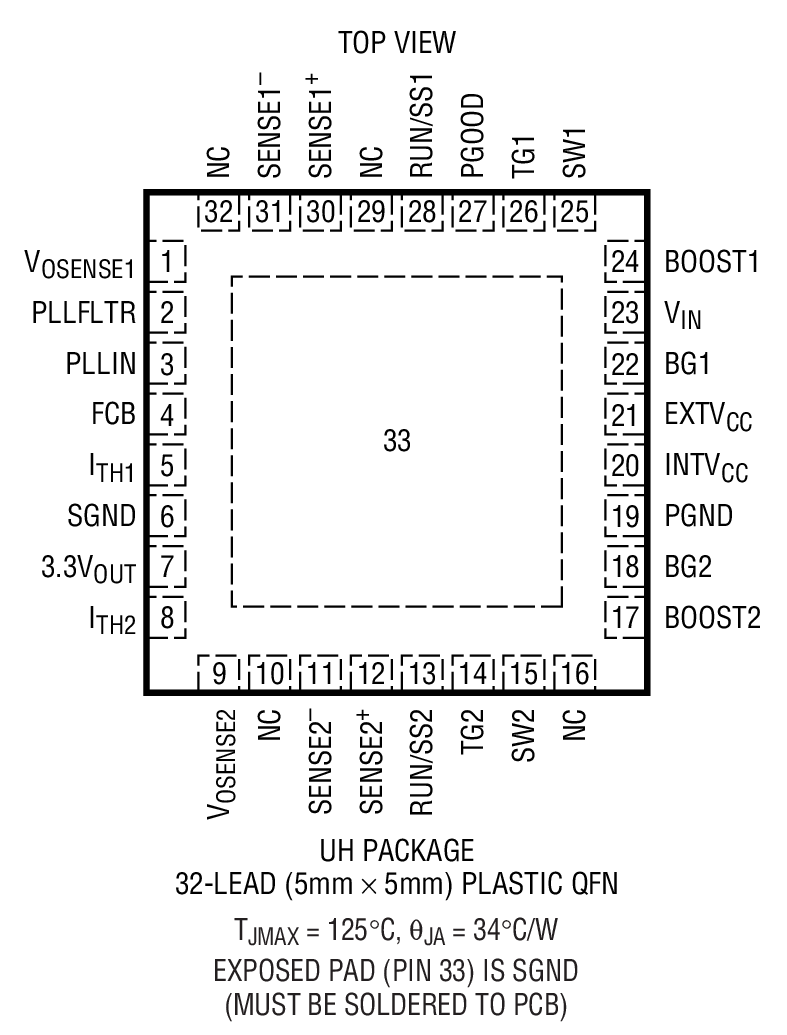

Small 28-Lead SSOP and 5mm × 5mm QFN Packages

The LTC3727LX-1 is a high performance dual step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant-frequency current mode architecture allows phase-lockable frequency of up to 550kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out of phase.

OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. There is a precision 0.8V reference and a power good output indicator. A wide 4V to 28V (32V maximum) input supply range encompasses all battery chemistries.


	V_IN Range	V_REF Accuracy Over Temp	Latch-Off	Min On-Time
LTC3727	4V - 36V	±1%	No	180ns
LTC3727-1	4V - 36V	±1%	Yes	180ns
LTC3727A-1	4V - 36V	±1%	No	120ns
LTC3727LX-1	4V - 32V	±1.5%	No	120ns

Applications

Telecom Systems
Automotive Systems
Distributed DC Power Systems

Part Models: 4
1ku List Price: Starting From $5.24

Documentation

Data Sheet 1

LTC3727LX-1: High Efficiency, 2-Phase Synchronous Step-Down Switching Regulator Data Sheet 11/21/2007

Reliability Data 1

R384 Reliability Data 03/26/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3727LXEG-1#PBF	28-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3727LXEG-1#TRPBF	28-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3727LXEUH-1#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3727LXEUH-1#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Aug 6, 2022 - 22_0171 Laser Top Mark Conversion for SSOP Packages Assembled in PNG
		PCN22_0171_Form Material_Report Delta Qualification Matrix
LTC3727LXEG-1#PBF	PRODUCTION
LTC3727LXEG-1#TRPBF	PRODUCTION
Jan 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
		PCN21_0269_Form Material_Report Detailed Change Description Qualification Results Summary
LTC3727LXEUH-1#PBF	PRODUCTION
LTC3727LXEUH-1#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
