DS1865

Obsolete

PON Triplexer Control and Monitoring Circuit

Complete Control, Calibration, and Monitoring Solution for GPON, BPON, and GEPON Transceivers

Data Sheet (Rev. 1)
Part Models
2
1ku List Price
price unavailable
Viewing:

Part Details

  • Meets GEPON, BPON, and GPON Timing Requirements for Burst-Mode Transmitters
  • Bias Current Control Provided by APC Loop with Tracking-Error Compensation
  • Modulation Current is Controlled by a Temperature-Indexed Lookup Table
  • Laser Power Leveling from -6dB to +0dB
  • Two 8-Bit Analog Outputs, One is Controlled by MON4 Voltage for Video Amplifier Gain Control
  • Internal Direct-to-Digital Temperature Sensor
  • Six Analog Monitor Channels: Temperature, VCC, MON1, MON2, MON3, and MON4
  • Five Digital I/O Pins for Additional Control and Monitoring Functions
  • Comprehensive Fault Management System with Maskable Laser Shutdown Capability
  • Two-Level Password Access to Protect Calibration Data
  • 120 Bytes of Password 1 Protected Nonvolatile Memory
  • 128 Bytes of Password 2 Protected Nonvolatile Memory in Main Device Address
  • 128 Bytes of Nonvolatile Memory Located at A0h Slave Address
  • I²C-Compatible Interface for Calibration and Monitoring
  • Operating Voltage: 2.85V to 3.9V
  • Operating Temperature Range: -40°C to +95°C
  • Packaging: 28-Pin Lead-Free TQFN (5mm x 5mm x 0.8mm)
DS1865
PON Triplexer Control and Monitoring Circuit

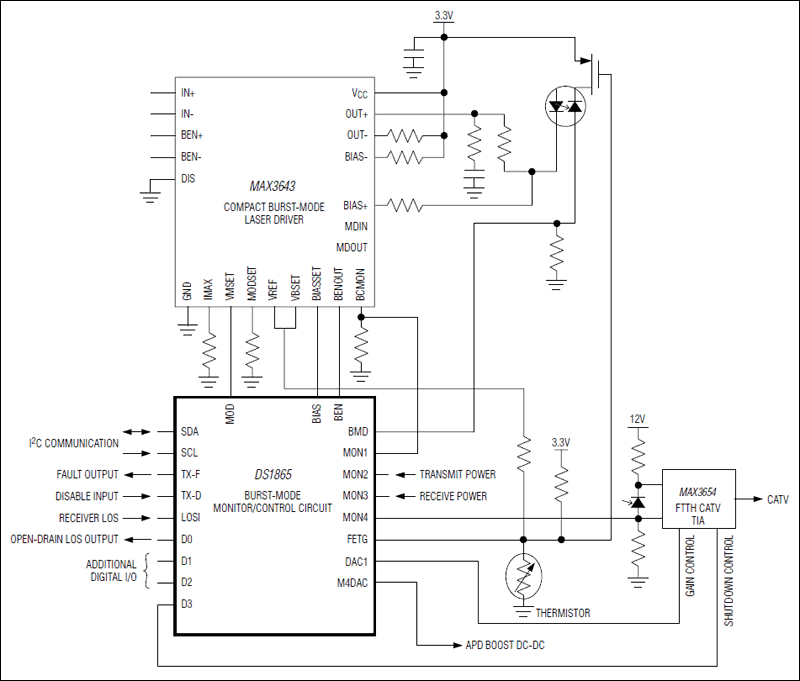

DS1865: Typical Operating Circuit
