DS1859
NOT RECOMMENDED FOR NEW DESIGNSDual, Temperature-Controlled Resistors with Internally Calibrated Monitors
New 20kΩ Option for Popular DS1859 SFP Optical Control/Monitor Provides Higher Control Resolution
- Part Models
- 8
- 1ku List Price
- Starting From $4.51
Part Details
- SFF-8472 Compatible
- Five Monitored Channels (Temperature, VCC, MON1, MON2, MON3)
- Three External Analog Inputs (MON1, MON2, MON3) That Support Internal and External Calibration
- Scalable Dynamic Range for External Analog Inputs
- Internal Direct-to-Digital Temperature Sensor
- Alarm and Warning Flags for All Monitored Channels
- Two 50kΩ or Two 20kΩ, Linear, 256-Position, Nonvolatile Temperature-Controlled Variable Resistors
- Resistor Settings Changeable Every 2°C
- Access to Monitoring and ID Information Configurable with Separate Device Addresses
- 2-Wire Serial Interface
- Two Buffers with TTL/CMOS-Compatible Inputs and Open-Drain Outputs
- Operates from a 3.3V or 5V Supply
- Operating Temperature Range of -40°C to +95°C

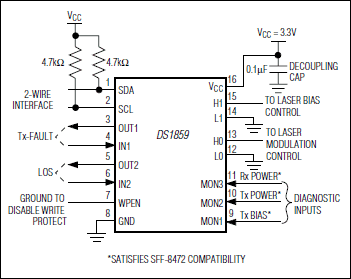

The DS1859 dual, temperature-controlled, nonvolatile (NV) variable resistors with three monitors consists of two 50kΩ or two 20kΩ, 256-position, linear, variable resistors; three analog monitor inputs (MON1, MON2, MON3); and a direct-to-digital temperature sensor. The device provides an ideal method for setting and temperature- compensating bias voltages and currents in control applications using minimal circuitry. The variable resistor settings are stored in EEPROM memory and can be accessed over the 2-wire serial bus.
Applications
- Diagnostic Monitoring
- Instrumentation and Industrial Controls
- Optical Transceivers
- Optical Transponders
- RF Power Amps
Documentation
Data Sheet 1
Reliability Data 1
Application Note 2
Design Note 8
Technical Articles 9
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| DS1859B-020+ | Chip-Scale Ball-Grid Array | ||
| DS1859B-020+T&R | Chip-Scale Ball-Grid Array | ||
| DS1859B-050+ | Chip-Scale Ball-Grid Array | ||
| DS1859B-050+T&R | Chip-Scale Ball-Grid Array | ||
| DS1859E-020+ | Thin Shrink Small-Outline Package | ||
| DS1859E-020+T&R | Thin Shrink Small-Outline Package | ||
| DS1859E-050+ | Thin Shrink Small-Outline Package | ||
| DS1859E-050+T&R | Thin Shrink Small-Outline Package |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Dec 11, 2018 - 1754N ASSEMBLY |
||
| DS1859E-050+ | PRODUCTION | |
| DS1859E-050+T&R | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Current Mirrors & Matched Devices 3 | ||
| DS1847 | NOT RECOMMENDED FOR NEW DESIGNS | Dual Temperature-Controlled NV Variable Resistor |
| DS1848 | NOT RECOMMENDED FOR NEW DESIGNS | Dual Temperature-Controlled NV Variable Resistor & Memory |
| DS1858 | NOT RECOMMENDED FOR NEW DESIGNS | Dual Temperature-Controlled Resistors with Three Monitors |
| Digital to Analog Converters 2 | ||
| DS1845 | NOT RECOMMENDED FOR NEW DESIGNS | Dual NV Potentiometer and Memory |
| DS1855 | NOT RECOMMENDED FOR NEW DESIGNS | Dual Nonvolatile Digital Potentiometer and Secure Memory |
| Interface Transceivers & Isolators 1 | ||
| DS1852 | Optical Transceiver Diagnostic Monitor | |
