DS1856

NOT RECOMMENDED FOR NEW DESIGNS

Dual, Temperature-Controlled Resistors with Internally Calibrated Monitors and Password Protection

Data Sheet (Rev. 1) Product Selection Table
Viewing:
  • Part Details
  • Documentation
  • Software Resources
  • Hardware Ecosystem
  • Tools & Simulations
  • Evaluation Kits
  • Latest Discussions
    •

    Part Details

    • SFF-8472 Compatible
    • Five Monitored Channels (Temperature, VCC, MON1, MON2, MON3)
    • Three External Analog Inputs (MON1, MON2, MON3) That Support Internal and External Calibration
    • Scalable Dynamic Range for External Analog Inputs
    • Internal Direct-to-Digital Temperature Sensor
    • Alarm and Warning Flags for All Monitored Channels
    • Two Linear, 256-Position, Nonvolatile Temperature-Controlled Variable Resistors
    • Resistor Settings Changeable Every 2°C
    • Three Levels of Security
    • Access to Monitoring and ID Information Configurable with Separate Device Addresses
    • 2-Wire Serial Interface
    • Two Buffers with TTL/CMOS-Compatible Inputs and Open-Drain Outputs
    • Operates from a 3.3V or 5V Supply
    • -40°C to +95°C Operating Temperature Range

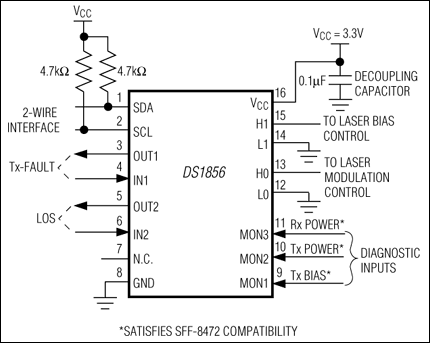

    DS1856
    Dual, Temperature-Controlled Resistors with Internally Calibrated Monitors and Password Protection
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    Application Note 1

    Design Note 2

    Technical Articles 2

    Learn More

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Hardware Ecosystem

    Parts Product Life Cycle Description
    Analog-to-Digital Converters (ADCs) 1
    DS1859
    		NOT RECOMMENDED FOR NEW DESIGNS Dual, Temperature-Controlled Resistors with Internally Calibrated Monitors
    Current Mirrors & Matched Devices 1
    DS1858
    		NOT RECOMMENDED FOR NEW DESIGNS Dual Temperature-Controlled Resistors with Three Monitors
    Modal heading
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Tools & Simulations

    IBIS Model 1

    Evaluation Kits

    eval board

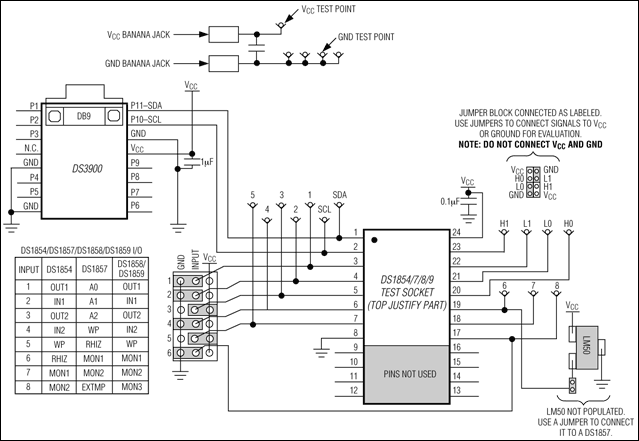

    schematic 1
