ADL6337

RECOMMENDED FOR NEW DESIGNS

35 dB Gain, 500 MHz to 5200 MHz Transmit VGA

Data Sheet (Rev. E)

Viewing:

Part Details

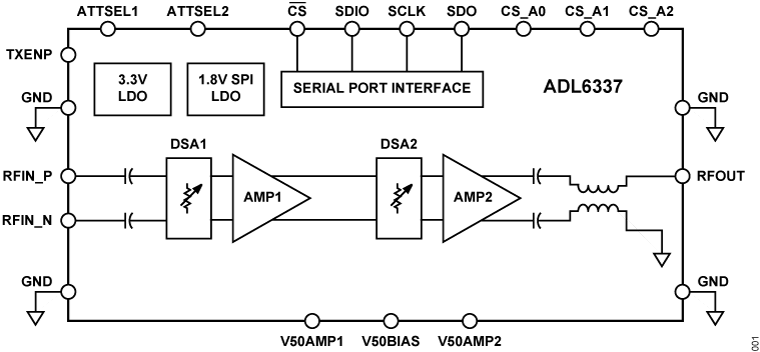

Single-channel, high-linearity transmit VGA for RF DACs, transceivers, and SoCs to power amplifier interface
Single 5 V supply
Multiple versions covering frequencies of 500 MHz to 5200 MHz
Power gain: 37.4 dB (ADL6337-A), 35.5 dB (ADL6337-B), 34 dB (ADL6337-C), 35.5 dB (ADL6337-D)
OIP3: 42.0 dBm (ADL6337-A), 42.5 dBm (ADL6337-B), 38 dBm (ADL6337-C), 40 dBm (ADL6337-D)
OIP2: 50 dBm (ADL6337-A), 55 dBm (ADL6337-B), 68 dBm (ADL6337-C), 74 dBm (ADL6337-D)

Noise figure: 3.7 dB (ADL6337-A), 4.5 dB (ADL6337-B), 5.2 dB (ADL6337-C)
OP1dB: 26.1 dBm (ADL6337-A), 26.0 dBm (ADL6337-B), 25.5 dBm (ADL6337-C)
RF DSA attenuation range: 31.5 dB with 0.5 dB resolution
50 Ω/100 Ω differential inputs and 50 Ω single-ended output
Fully programmable via a 3-/4-wire SPI

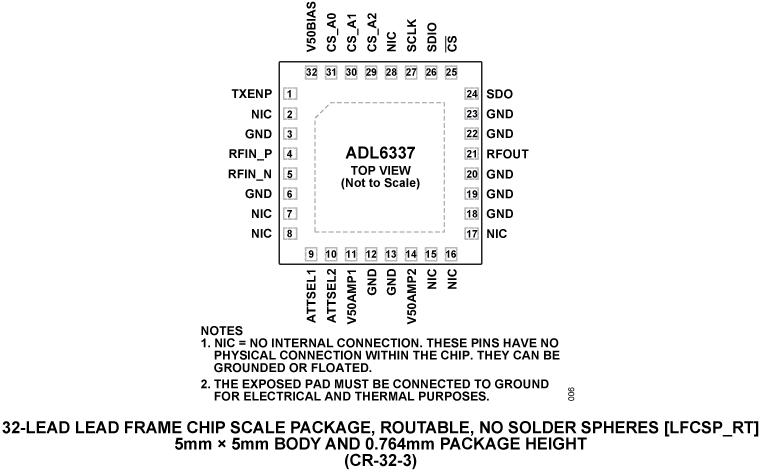

32-lead, 5 mm × 5 mm LFCSP

Documentation

Data Sheet 1

ADL6337: 35 dB Gain, 500 MHz to 5200 MHz Transmit VGA Data Sheet (Rev.E) 10/03/2023

User Guide 1

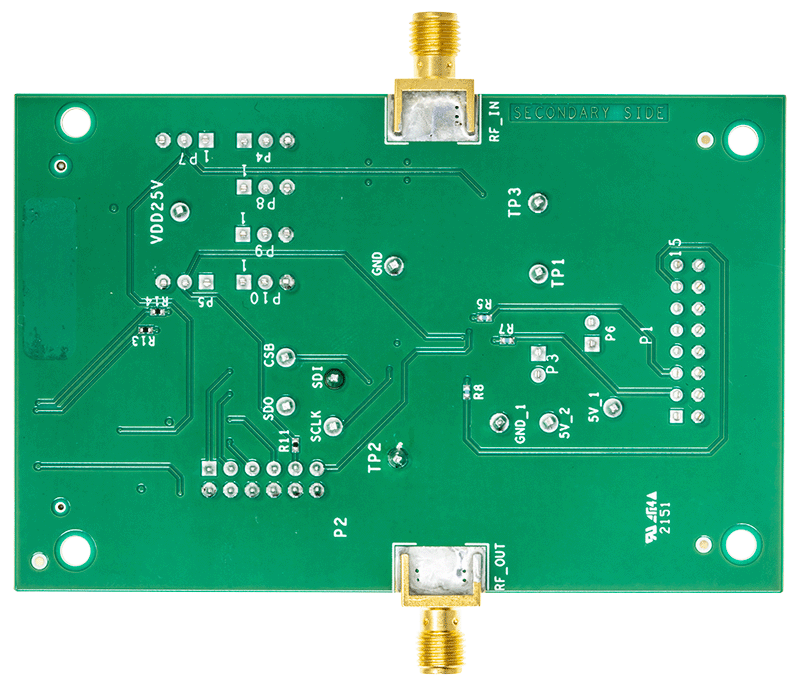

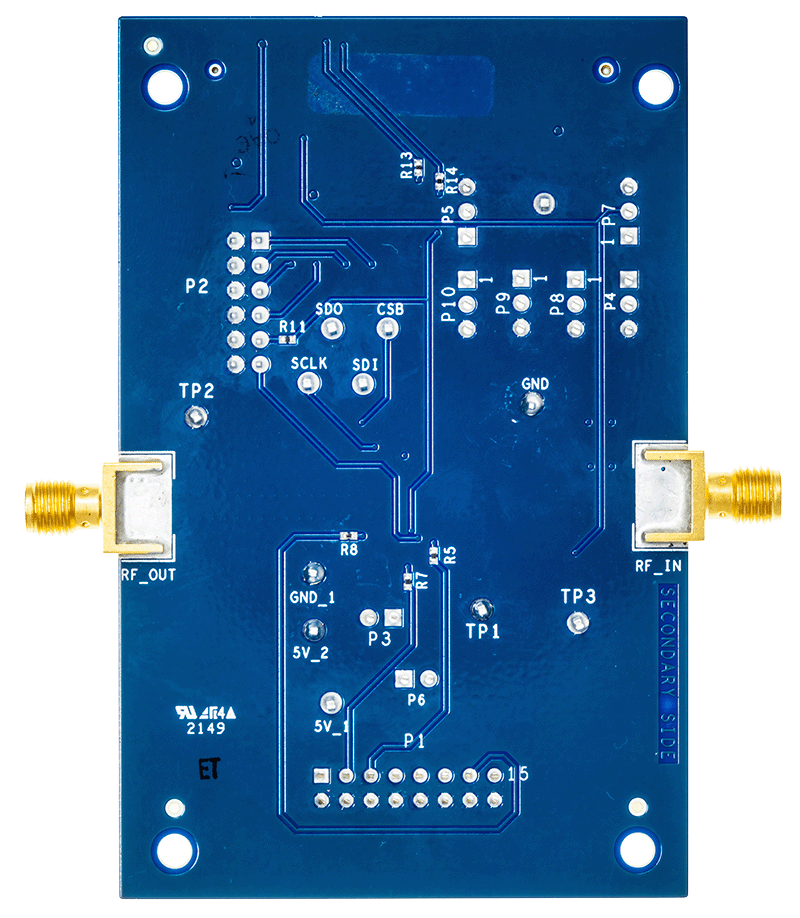

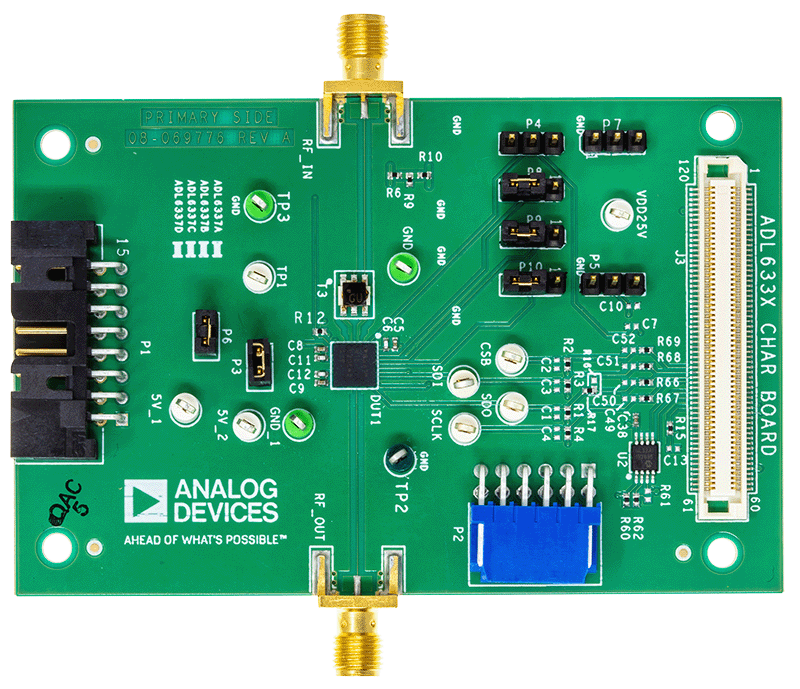

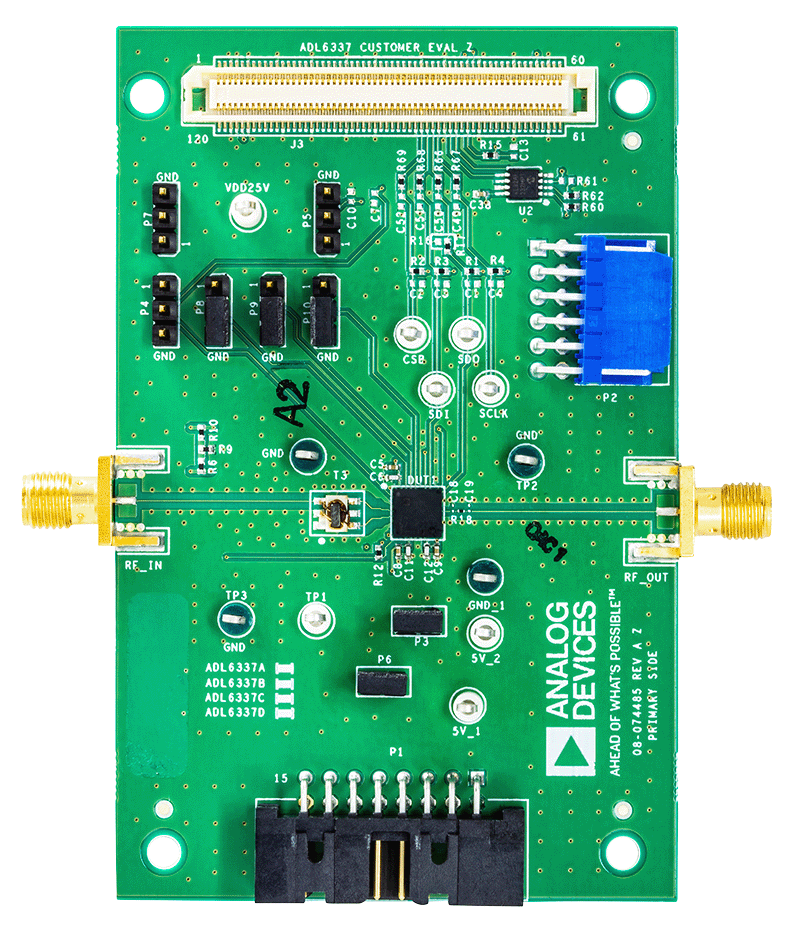

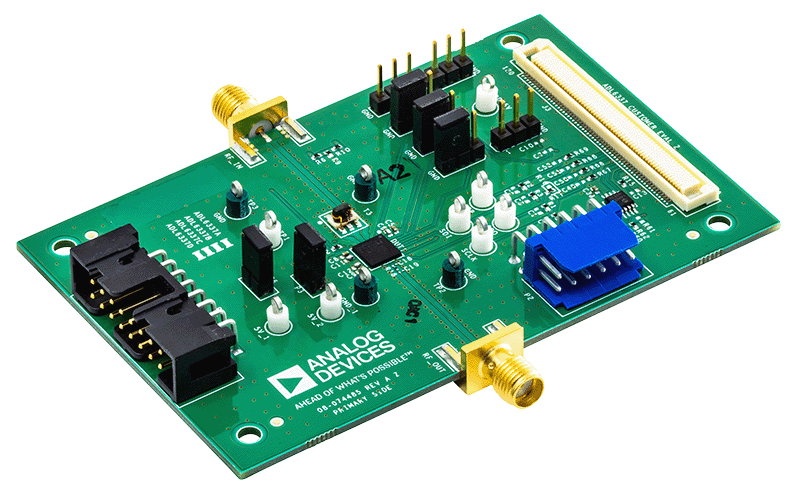

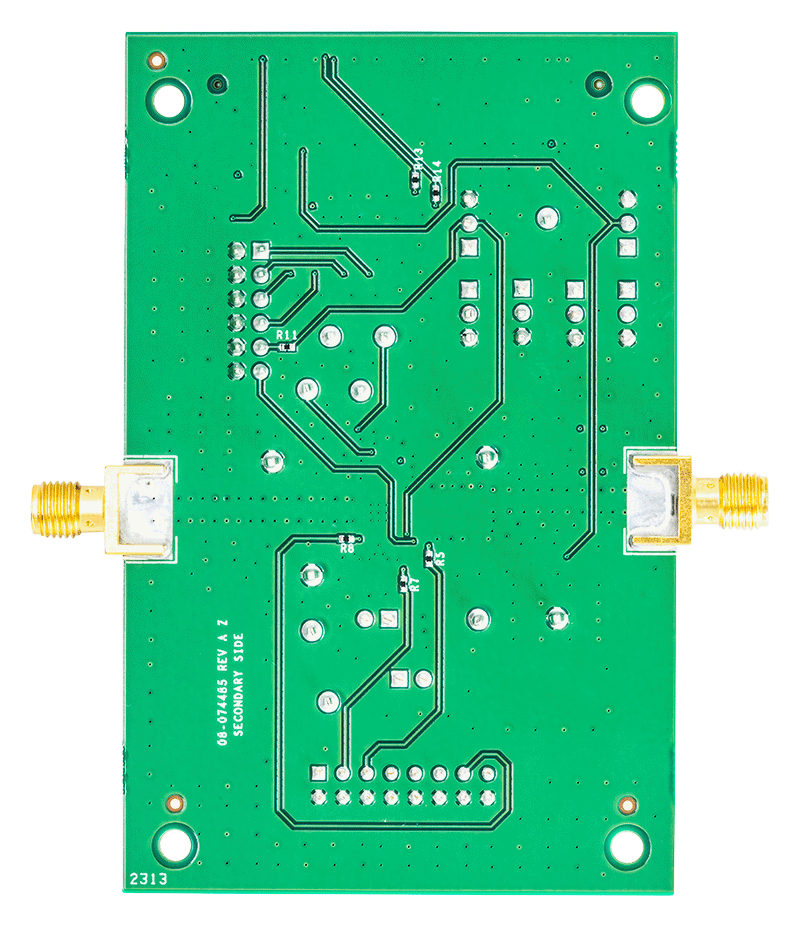

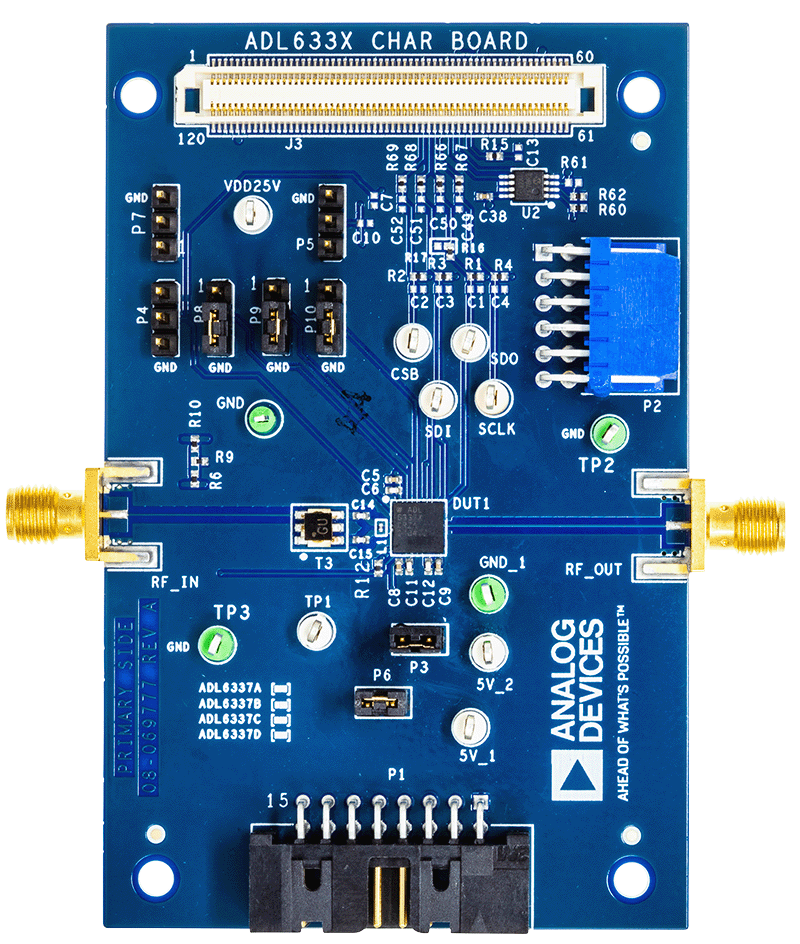

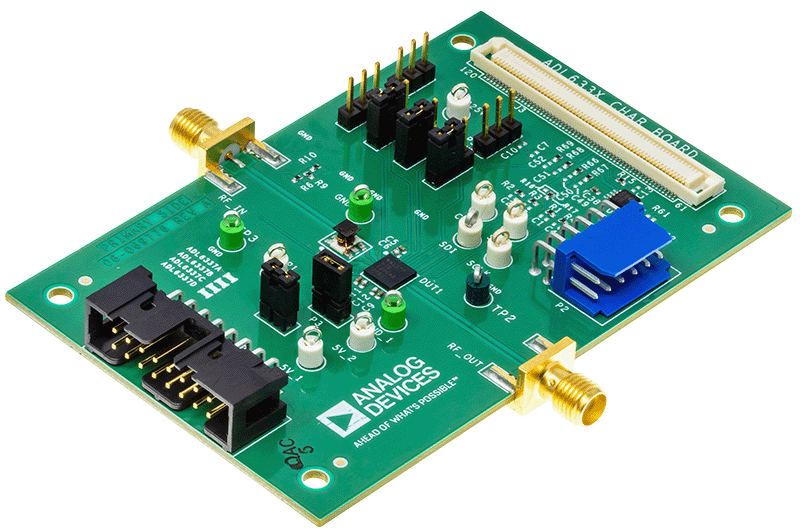

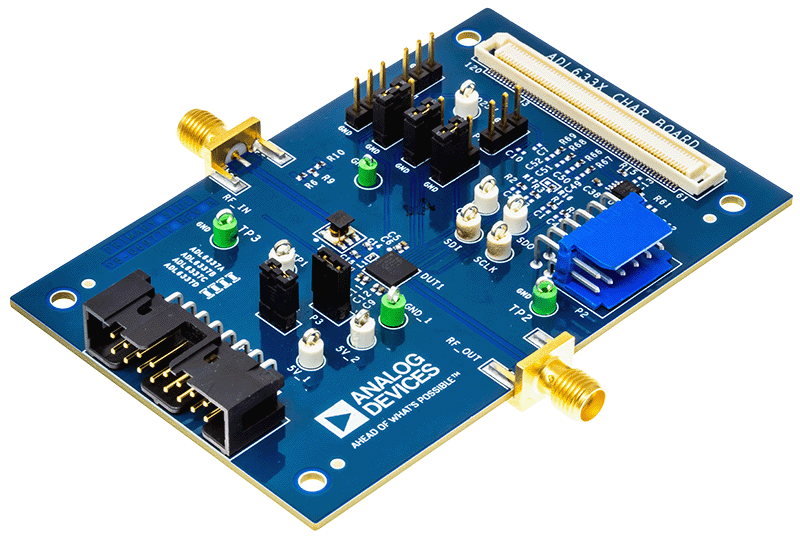

UG-2053: Evaluating the ADL6337, 35 dB Gain, 0.5 GHz to 5.2 GHz Transmitter VGA (Rev.B) 11/28/2023

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter 2

IBIS Model 1

ADL6337 IBIS Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
