ADF5904

RECOMMENDED FOR NEW DESIGNS

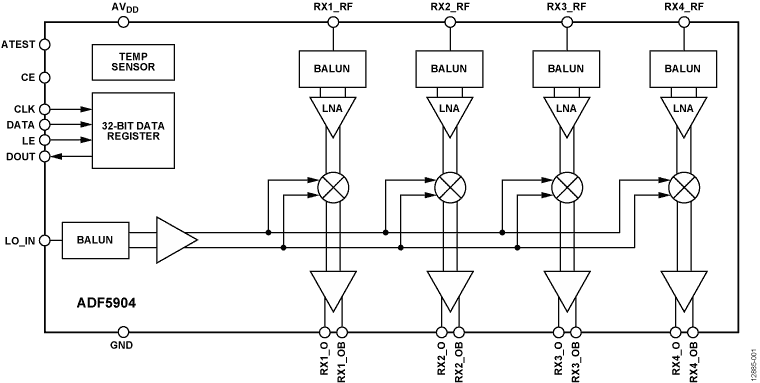

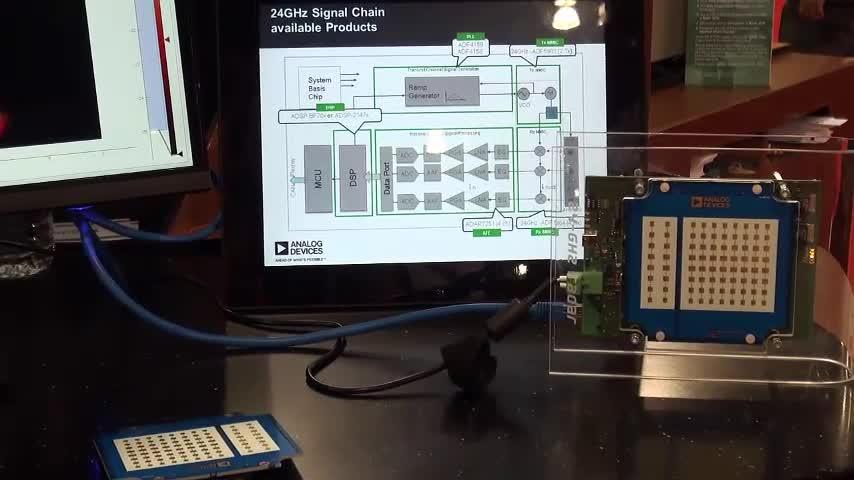

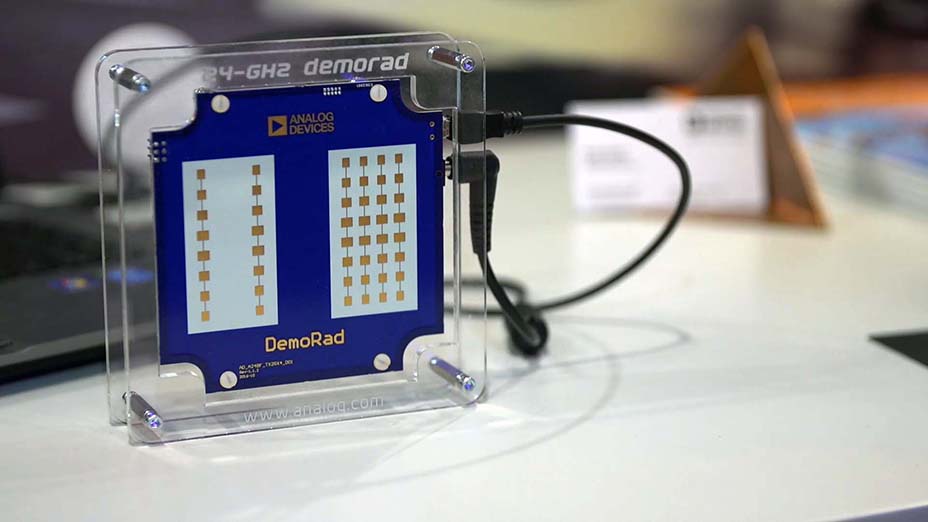

4-Channel, 24 GHz, Receiver Downconverter

Part Models: 4
1ku List Price: Starting From $20.26

Viewing:

Part Details

Integrated baluns for single-ended receiver (Rx) inputs and local oscillator (LO) input
Rx channel gain: 22 dB
Noise figure (NF): 10 dB
P1dB: −10 dBm
LO input range: −8 dBm to +5 dBm
Rx to IF isolation: 30 dB
RF signal bandwidth: 250 MHz
Rx output impedance: 900 Ω differential
LO input buffer: 24 GHz
RF and LO S11 at 50 Ω: −5 dB
Temperature sensor with analog output: ±5°
Electrostatic discharge (ESD) performance
Human body model (HBM): 2000 V
Charged device model (CDM): 500 V
Qualified for automotive applications

Part Models: 4
1ku List Price: Starting From $20.26

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

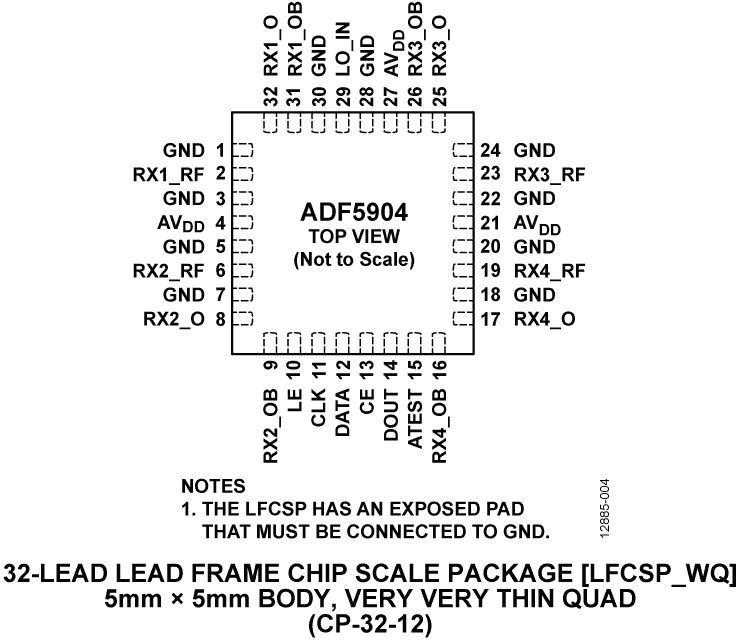

ADF5904ACPZ	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF5904ACPZ-RL7	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF5904WCCPZ	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF5904WCCPZ-RL7	32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

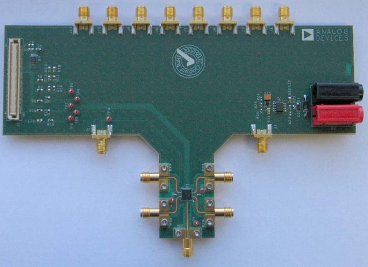

Software Resources

Evaluation Software 1

EV-RADAR-MMIC_.zip (Rev. 0.10.4)

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Analog to Digital Converters 3
AD8285	RECOMMENDED FOR NEW DESIGNS	Radar Receive Path AFE: 4-Channel LNA/PGA/AAF with ADC
AD8283	PRODUCTION	Radar Receive Path AFE: 6-Channel LNA/PGA/AAF with ADC
ADAR7251	NOT RECOMMENDED FOR NEW DESIGNS	4-Channel, 16-Bit, Continuous Time Data Acquisition ADC
Linear Regulators 1
ADP7104	RECOMMENDED FOR NEW DESIGNS	20 V, 500 mA, Low Noise, CMOS LDO
