AD9557

RECOMMENDED FOR NEW DESIGNS

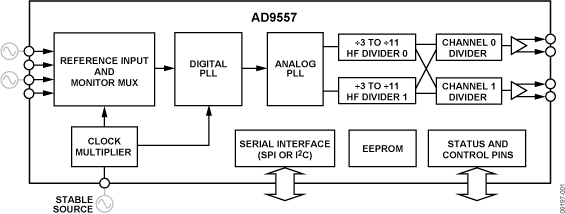

Dual-Input Multiservice Line Card Adaptive Clock Translator

Data Sheet (Rev. C)

Part Models: 2
1ku List Price: Starting From $19.26

Viewing:

Part Details

Supports GR-1244 Stratum 3 stability in holdover mode
Supports smooth reference switchover with virtually no disturbance on output phase
Supports Telcordia GR-253 jitter generation, transfer, and tolerance for SONET/SDH up to OC-192 systems
Supports ITU-T G.8262 synchronous Ethernet slave clocks
Supports ITU-T G.823, G.824, G.825, and G.8261
Auto/manual holdover and reference switchover
2 reference inputs (single-ended or differential)
Input reference frequencies: 2 kHz to 1250 MHz
Reference validation and frequency monitoring (1 ppm)
Programmable input reference switchover priority
20-bit programmable input reference divider
2 pairs of clock output pins, with each pair configurable as a single differential LVDS/HSTL output or as 2 single-ended CMOS outputs
Output frequencies: 360 kHz to 1250 MHz
Programmable 17-bit integer and 23-bit fractional feedback divider in digital PLL
Programmable digital loop filter covering loop bandwidths from 0.1 Hz to 5 kHz (2 kHz maximum for <0.1 dB of peaking)
Low noise system clock multiplier
Frame sync support
Adaptive clocking
Optional crystal resonator for system clock input
On-chip EEPROM to store multiple power-up profiles
Pin program function for easy frequency translation configuration
Software controlled power-down

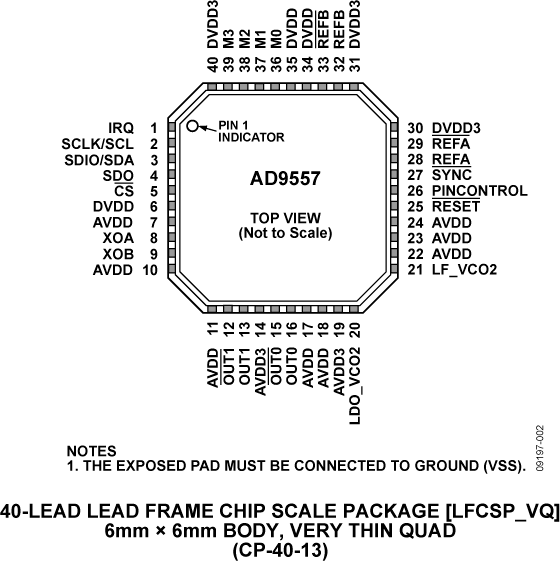

40-lead, 6 mm × 6 mm, LFCSP package

Part Models: 2
1ku List Price: Starting From $19.26

Documentation

Data Sheet 1

AD9557: Dual Input Multiservice Line Card Adaptive Clock Translator Data Sheet (Rev.C) 10/10/2011

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD9557BCPZ	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD9557BCPZ-REEL7	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 1, 2016 - 16_0137 CANCELLED: AD9557 and AD9558 die change
		PCN16_0137_Form Material_Report Qualification Results Summary
AD9557BCPZ	PRODUCTION
AD9557BCPZ-REEL7	PRODUCTION
Apr 11, 2012 - 11_0267 Minor Metal Mask Revision, Datasheet Changes and Test Manufacturing Site Change on the AD9557.
		PCN11_0267_Form Material_Report Test Correlation Report
AD9557BCPZ	PRODUCTION
AD9557BCPZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
