ADCLK854

RECOMMENDED FOR NEW DESIGNS

1.8 V, 12-LVDS/24-CMOS Output, Low Power Clock Fanout Buffer

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $6.10

Viewing:

Part Details

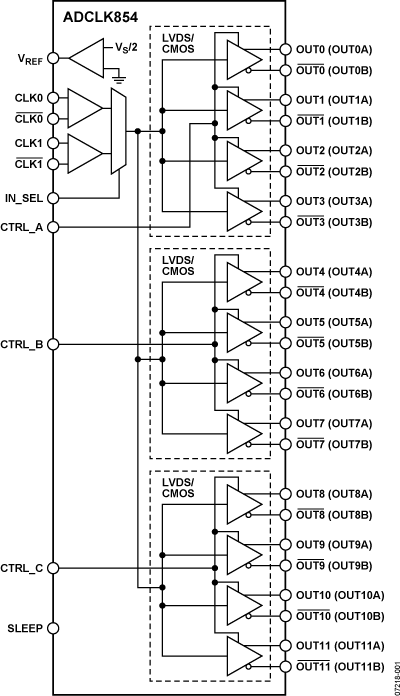

2 selectable differential inputs
Selectable LVDS/CMOS outputs
Up to 12 LVDS (1.2 GHz) or 24 CMOS (250 MHz) outputs
<12 mW per channel (100 MHz operation)
54 fs rms integrated jitter (12 kHz to 20 MHz)
100 fs rms additive broadband jitter

2.0 ns propagation delay (LVDS)
135 ps output rise/fall (LVDS)
70 ps output-to-output skew (LVDS)
Sleep mode
Pin programmable control
1.8 V power supply
