ADL6332

预发布

0.38 GHz to 15 GHz RxVGA

数据手册 (Rev. A) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Broadband RxVGA interfacing LNA and beamformer to RF-ADC
  • Operating frequency range: 0.38 GHz to 15 GHz, 2 product variants
    • ADL6332-A: 0.38 GHz to 8.0 GHz
    • ADL6332-B: 1.0 GHz to 15.0 GHz
  • Differential signal chain optimizes common mode rejection of RF ADC, even order harmonics and intermodulation
  • 50 Ω single-ended input and 50 Ω differential output
  • Integrated broadband RF input balun
  • 70 dB of gain control range in 1 dB step
  • RF DSA range: 24.0 dB with 1.0 dB step
  • Amplifier bypass loss of 12 dB each
  • Asynchronous toggle between multiple pre-defined attenuation values and bypass amplifier stages.
  • Power gain at 4 GHz: 15.0 dB (ADL6332-A), 15.7 dB (ADL6332-B)
  • Noise figure at 4 GHz: 8.5 dB (ADL6332-A), 8.5 dB (ADL6332-B)
  • OIP3 at 4GHz: 32.8 dBm(ADL6332-A), 30.9 dBm (ADL6332-B)
  • OIP2 at 4GHz: 59.6 dBm (ADL6332-A), 55.5 dBm (ADL6332-B)
  • OP1dB at 4GHz: 11.8 dBm (ADL6332-A), 12.6 dBm (ADL6332-B)
  • Fully programmable through a 3-wire/4-wire SPI
  • Single 3.3 V supply
  • 24-terminal, 4.0 mm x 4.0 mm LGA
ADL6332
0.38 GHz to 15 GHz RxVGA

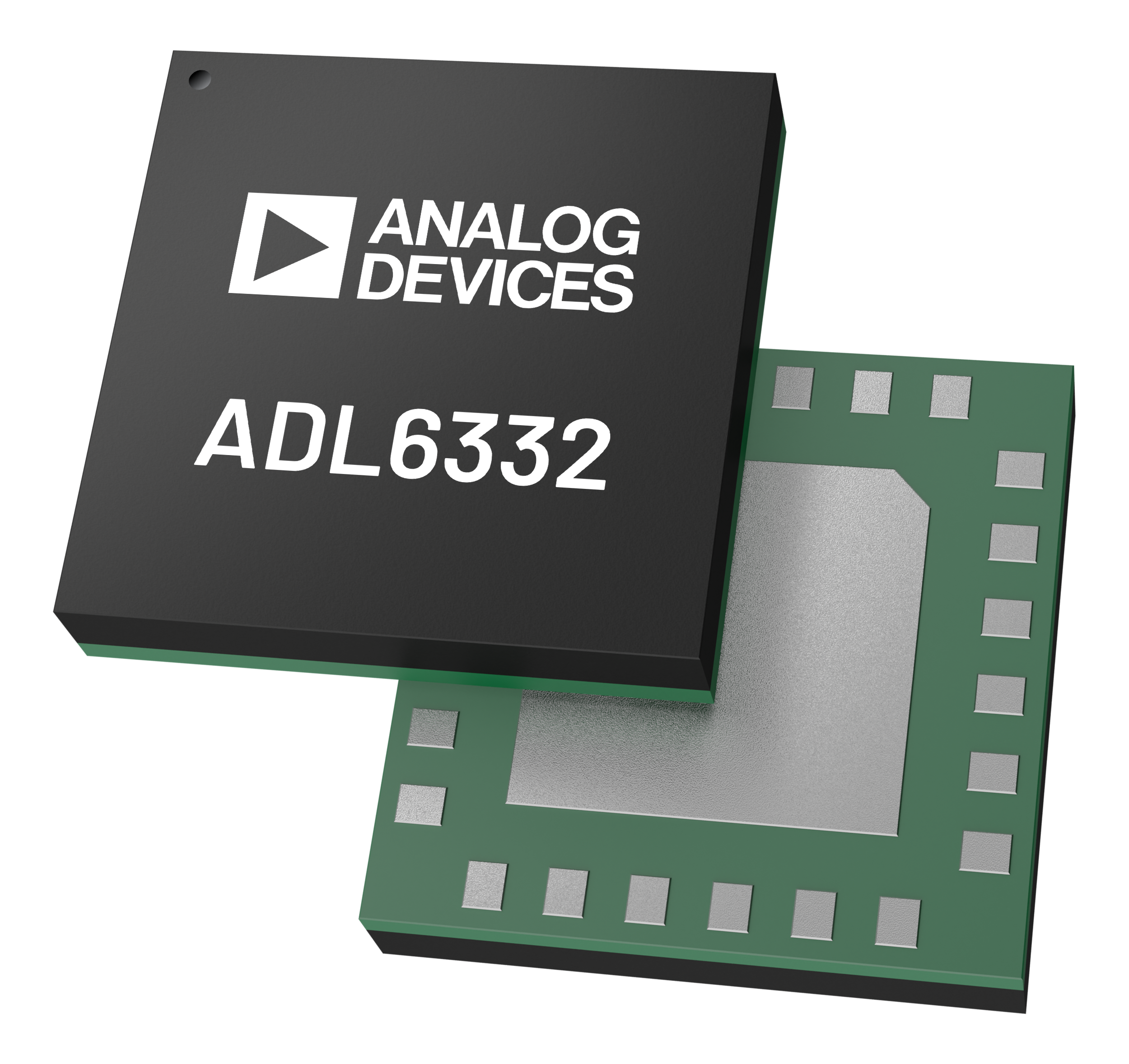

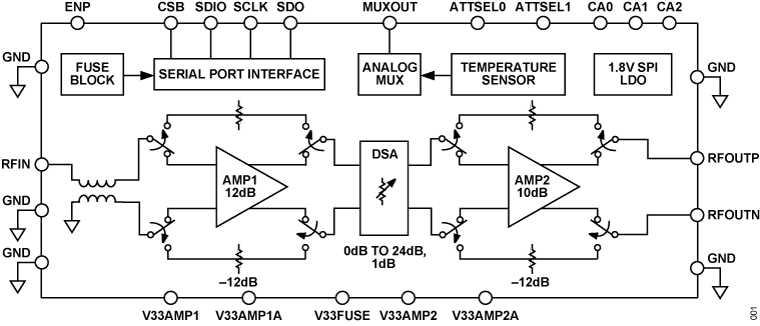

ADL6332 Functional Block Diagram ADL6332 Pin Configuration ADL6332 - Chip Image
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

S-参数 2

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADL6332

Evaluating the ADL6332, 0.38 GHz to 15 GHz RxVGA

立即购买 更多内容

特性和优点

  • Full featured evaluation board for the ADL6332-EVALZA and the ADL6332-EVALZB
  • Single-supply operation
  • Easy to use interface with Analysis | Control | Evaluation (ACE) software

产品详情

The ADL6332-EVALZA and the ADL6332-EVALZB evaluation boards allow the manual control of the ADL6332 through the USB port on a Microsoft® Windows® PC through an SDP-S interface board.

The ADL6332 data sheet provides additional information on the ADL6332. Consult the data sheet in conjunction with this user guide when using the ADL6332-EVALZA and the ADL6332-EVALZB evaluation boards.
EVAL-ADL6332
Evaluating the ADL6332, 0.38 GHz to 15 GHz RxVGA

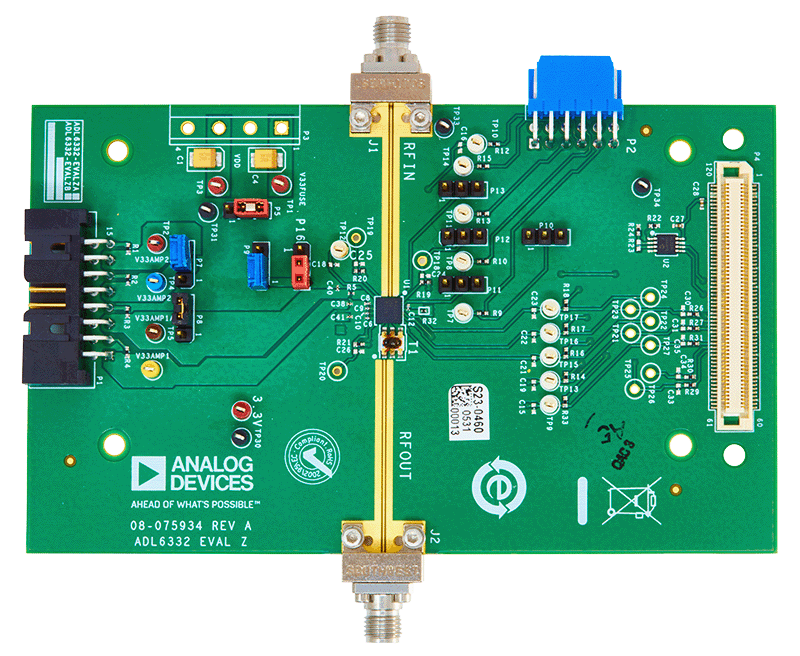

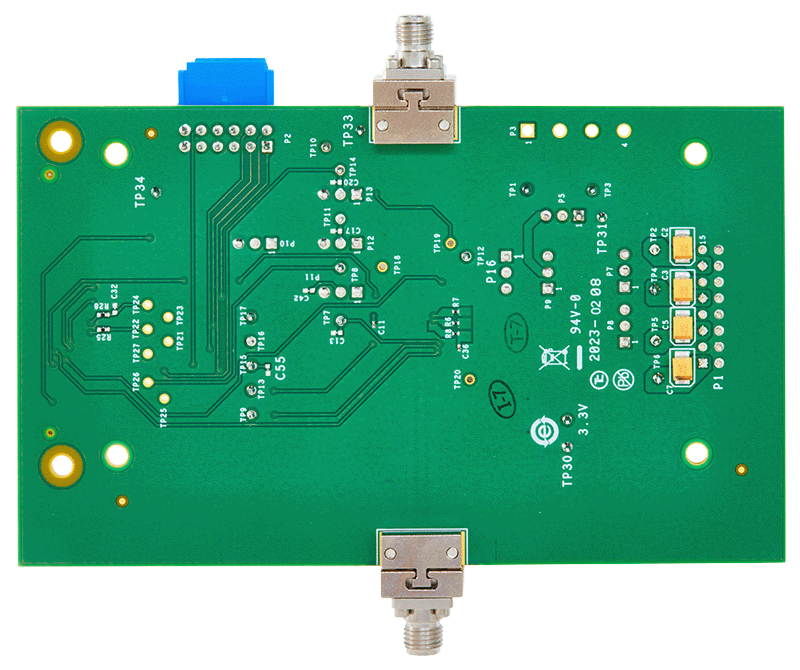

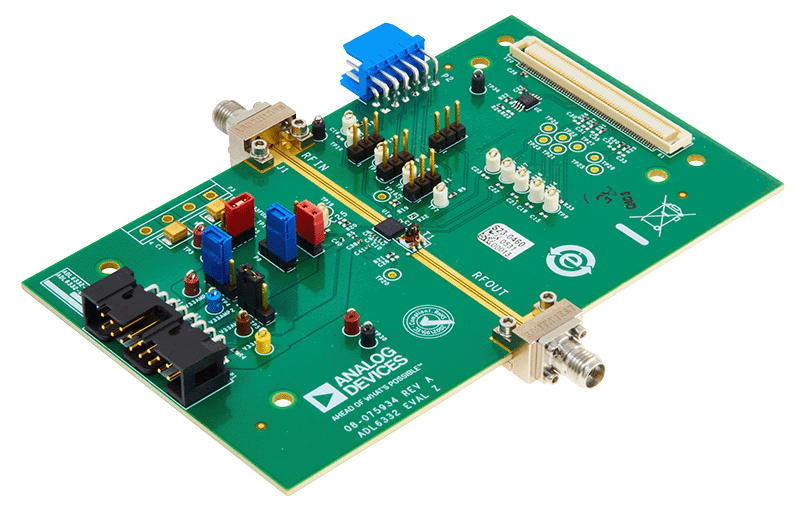

EVAL-ADL6332 Board Photo Angle View EVAL-ADL6332 Board Photo Top View EVAL-ADL6332 Board Photo Bottom View
