ADH-APH634S
81 GHz to 86 GHz, Medium Power Amplifier
Viewing:
产品详情
- Gain: 12 dB
- Output P1dB: +19 dBm
- Bias Supply: +4V
- 50 Ohm Matched Input/Output
- Die Size: 2.57 mm x 1.70 mm x 0.05 mm
- Screened in accordance with MIL-PRF-38534, Class K

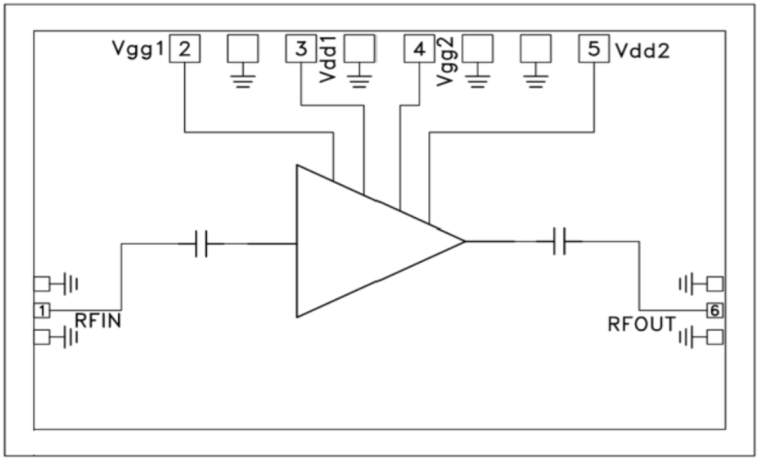

The ADH-APH634S is a two stage GaAs HEMT MMIC Medium Power Amplifier which operates between 81 GHz and 86 GHz. The ADH-APH634S provides 12 dB of gain, and +19 dBm Output P1dB from a +4V supply. All bond pads and the die backside are Ti/Au metallized. The ADH-APH634S GaAs HEMT MMIC Medium Power Amplifier is compatible with conventional die attach methods, as well as thermocompression and thermosonic wire bonding, making it ideal for MCM and hybrid microcircuit applications.
Applications
- Short Haul / High-Capacity Links
- Test & Measurement
- E-Band Communication Systems
- Military & Space
