LTC4365

新規設計に推奨

低電圧、過電圧および逆電源保護コントローラ

データシート (Rev. B)
製品モデル
32
1Ku当たりの価格
最低価格：$1.81
利用上の注意

アナログ・デバイセズ社は、提供する情報が正確で信頼できるものであることを期していますが、その情報の利用に関して、あるいはその利用によって生じる第三者の特許やその他の権利の侵害に関して一切の責任を負いません。また、アナログ･デバイセズ社の特許または特許の権利の使用を明示的または暗示的に許諾するものでもありません。仕様は予告なしに変更する場合があります。本紙記載の商標および登録商標は、各社の所有に属します。


本データシートの英語以外の言語への翻訳はユーザの便宜のために提供されるものであり、リビジョンが古い場合があります。最新の内容については、必ず最新の英語版をご参照ください。

なお、日本語版のデータシートは基本的に「Rev.0」（リビジョン0）で作成されています。そのため、英語版が後に改訂され、複数製品のデータシートがひとつに統一された場合、同じ「Rev.0」の日本語版のデータシートが異なる製品のデータシートとして表示されることがあります。たとえば、「ADM3307E」の場合、日本語データシートをクリックすると「ADM3311E」が表示されます。これは、英語版のデータシートが複数の製品で共有できるように1本化され、「ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E」（Rev.G）と改訂されたからで、決して誤ってリンクが張られているわけではありません。和文化されたデータシートを少しでも有効に活用していただくためにこのような方法をとっておりますので、ご了解ください。
Viewing:

製品の詳細

  • 広い動作電圧範囲：2.5V～34V
  • 60Vまでの過電圧保護
  • –40Vまでの逆電源保護
  • LTC4365：50Hzおよび60HzのAC電源を遮断
  • LTC4365-1：フォルトからの迅速な（1ms）回復
  • ほとんどのアプリケーションで入力コンデンサやTVSが不要
  • 調整可能な低電圧および過電圧保護範囲
  • チャージポンプで外付けNチャネルMOSFETを導通
  • 低動作電流：125µA
  • 低シャットダウン電流：10μA
  • 小型8ピン3mm × 2mm DFNパッケージおよびTSOT-23 (ThinSOT™)パッケージ
  • AEC-Q100準拠により、自動車用アプリケーションに対応
LTC4365
低電圧、過電圧および逆電源保護コントローラ

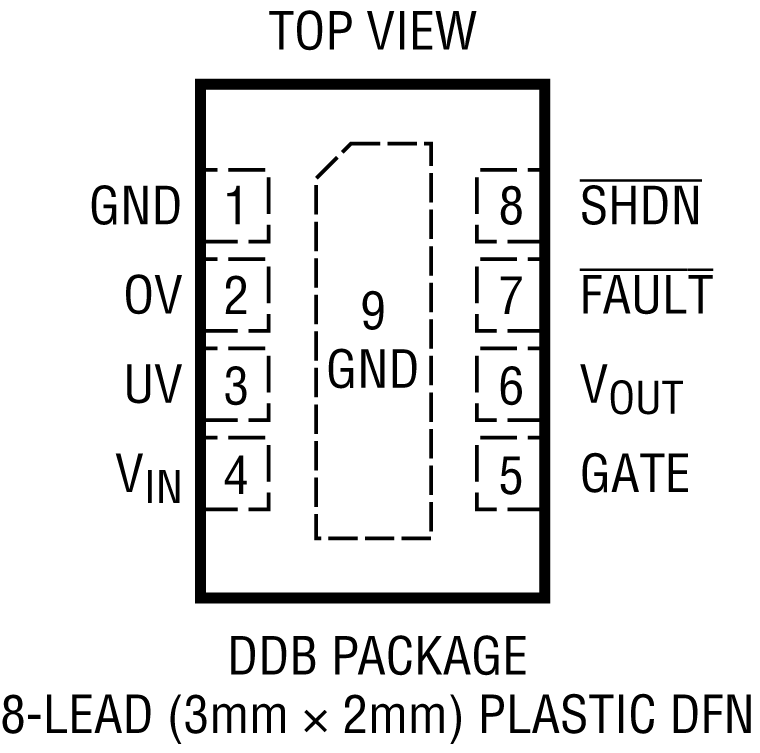

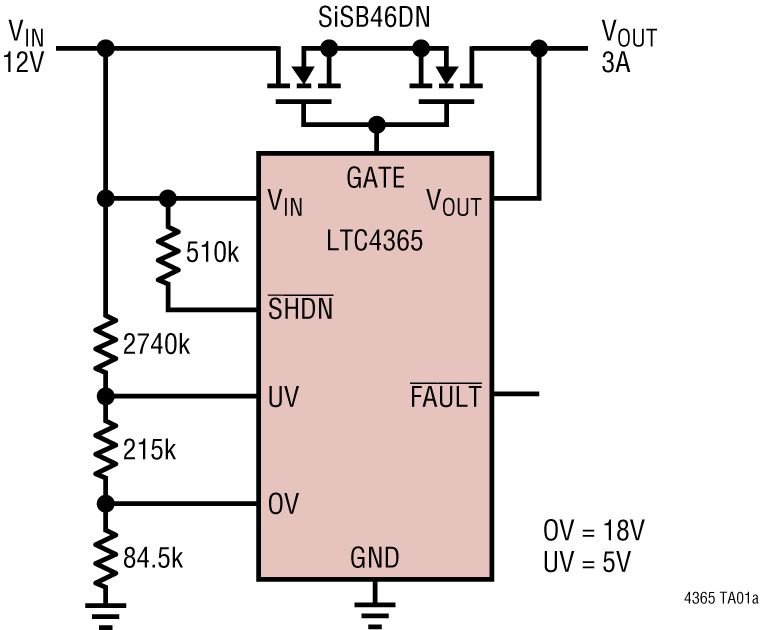

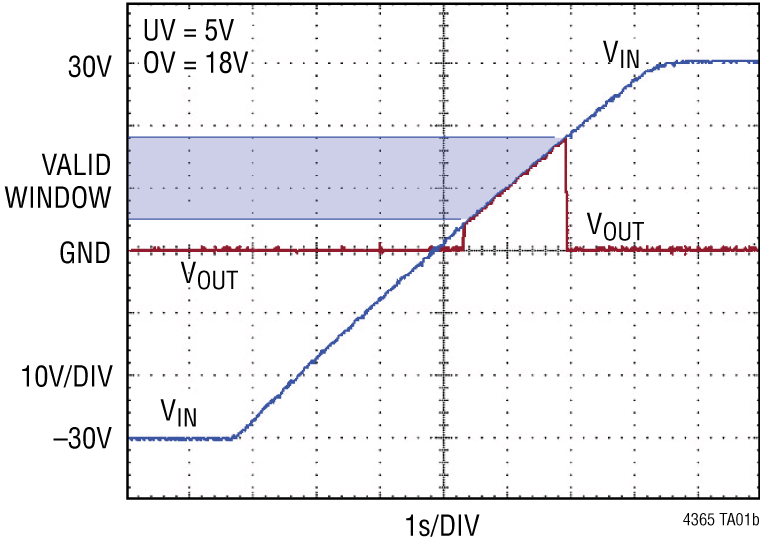

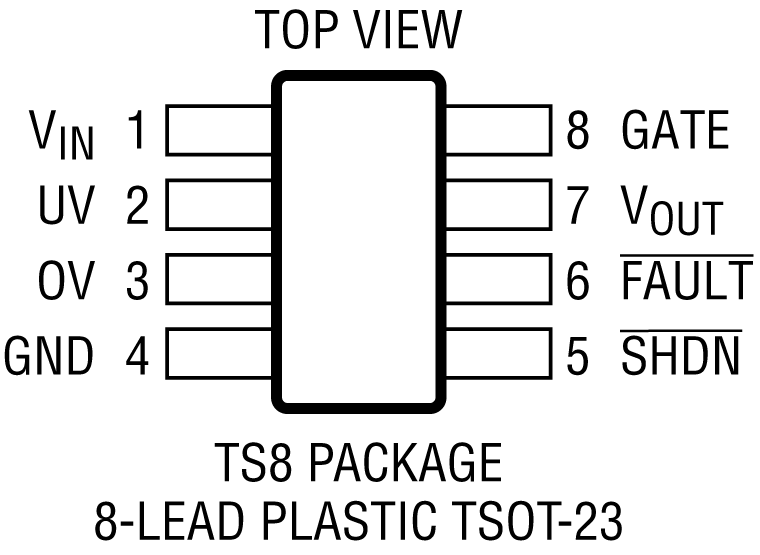

LTC4365 Application Circuit LTC4365 Pin Configuration LTC4365 Pin Configuration LTC4365 Perofrmance GRaph
myAnalogに追加

myAnalogの製品セクション（通知受け取り）、既存／新規プロジェクトに製品を追加する。

新規プロジェクトを作成
質問する
サポート

アナログ・デバイセズのサポート・ページはアナログ・デバイセズへのあらゆるご質問にお答えするワンストップ・ポータルです。

ドキュメント

データシート 2

信頼性データ 1

ユーザ・ガイド 2

デザイン・ノート 2

技術記事 3

さらに詳しく
myAnalogに追加

Add media to the Resources section of myAnalog, to an existing project or to a new project.

新規プロジェクトを作成

ハードウェア・エコシステム

製品モデル 製品ライフサイクル 詳細
Circuit Monitors 1
LT4363
新規設計に推奨 電流制限付き高電圧サージ・ストッパー
Protection Switches & Controllers 2
LTC4359
新規設計に推奨 逆入力保護機能を備えた理想ダイオード・コントローラ
LTC4231
新規設計に推奨 マイクロパワーHot Swapコントローラ
Modal heading
myAnalogに追加

myAnalogの製品セクション（通知受け取り）、既存／新規プロジェクトに製品を追加する。

新規プロジェクトを作成

ツールおよびシミュレーション

LTspice 3

下記製品はLTspiceで使用することが出来ます。:

  • LTC4365
  • LTC4365-1

LTpowerCAD

次のデバイス用の設計ツールがLTpowerCADでご使用になれます。

LTspice

LTspice®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。



評価用キット

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
DC1555C-B

LTC4365CTS8-1 Demo Board | High Voltage NFET Driver for UV, OV and Reverse Supply Protection with 1ms Fault Recovery

今すぐ購入 詳細を表示

製品詳細

Demonstration circuit DC1555C is intended to demonstrate the performance of the LTC4365 and LTC4365-1 Undervoltage, Overvoltage and Reverse Supply Protection Controllers. The LTC4365/LTC4365-1 protect circuits from input voltages that may be too high, too low or negative. It operates by controlling the gates of two back-to-back connected MOSFETs to keep the output in a safe range. The OV and UV protection levels are adjusted by resistive dividers at the OV and UV pins. Asserting the SHDN pin disables the MOSFETs and places the controller in a low-current shutdown state. The FAULT pin is asserted when the Controller is in shutdown mode or when the input voltage is outside of the UV or OV level.





eval board
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
DC1555B

LTC4365CTS8 Demo Board: High Voltage NFET Driver for UV, OV and Reverse Supply Protection

今すぐ購入 詳細を表示

製品詳細

DC1555B: Demo Board for the LTC4365 Overvoltage, Undervoltage and Reverse Supply Protection Controller.

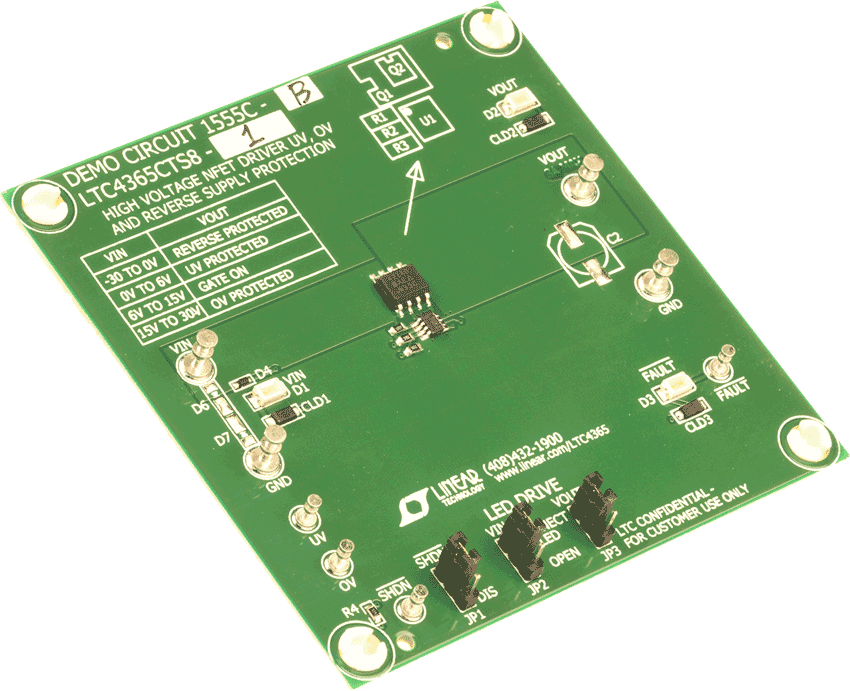

DC1555C-B
LTC4365CTS8-1 Demo Board | High Voltage NFET Driver for UV, OV and Reverse Supply Protection with 1ms Fault Recovery
DC1555C-B Demo Board DC1555C-B Demo Board DC1555C-B Demo Board DC1555C-B Demo Board DC1555C - Schematic
DC1555B
LTC4365CTS8 Demo Board: High Voltage NFET Driver for UV, OV and Reverse Supply Protection
DC1555B Demo Board DC1555B Demo Board DC1555B Demo Board DC1555B Demo Board DC1555B - Schematic

リファレンス・デザイン

agilex7 alternative umodule
agilex7 alternative umodule
Intel Agilex 7 FPGA F-series Development Kit (Alternative µModule) Circuits from the Lab®

Altera FPGA

詳細なリファレンス・デザインを表示

機能と利点

  • Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • Our reference designs are supported by an intuitive design tool set and IP.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
  • For a complete list power designs and use cases, please contact your local FAE.
Intel Agilex 7 FPGA F-series Development Kit (Alternative Monolithic) Power Tree
Intel Agilex 7 FPGA F-series Development Kit (Alternative Monolithic) Power Tree
Intel Agilex 7 FPGA F-series Development Kit (Alternative Monolithic) Circuits from the Lab®

Altera FPGA

詳細なリファレンス・デザインを表示

機能と利点

  • Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • Our reference designs are supported by an intuitive design tool set and IP.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
  • For a complete list power designs and use cases, please contact your local FAE.

使用製品

ビデオ

  • lazy blur
    VIDEO · 0001-01-01
    设计、分析并验证您的ADI电源解决方案
Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile) Power Tree
Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile) Power Tree
Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile) Circuits from the Lab®

Altera FPGA

詳細なリファレンス・デザインを表示

機能と利点

  • Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • Our reference designs are supported by an intuitive design tool set and IP.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
  • For a complete list power designs and use cases, please contact your local FAE.
Knightrider Zynq Ultrascale +MPSOC Automotive Power Delivery Board​ - Top View
Knightrider Zynq Ultrascale +MPSOC Automotive Power Delivery Board​ - Top View
Knightrider Zynq Ultrascale +MPSOC Automotive Power Delivery Board​ - Bottom View

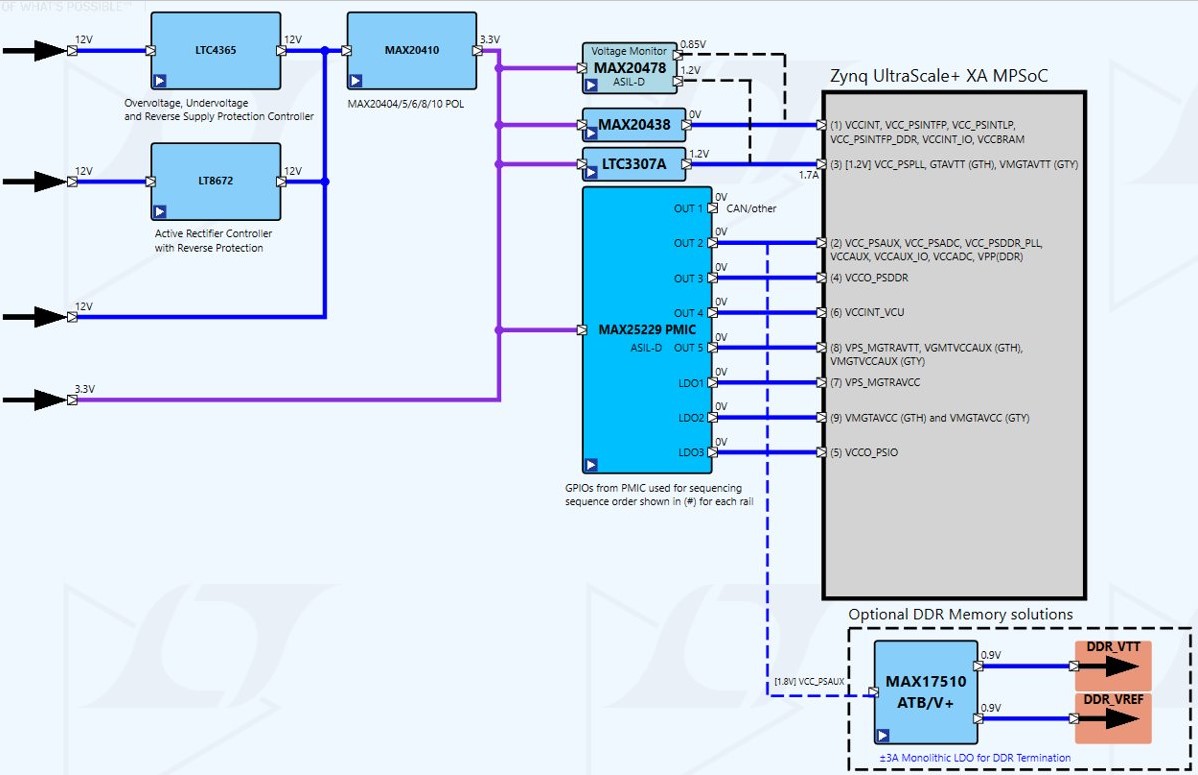

Knightrider Zynq Ultrascale +MPSOC Power Tree
Knightrider Zynq Ultrascale+ MPSOC Circuits from the Lab®

Automotive ASIL-D Compliant Power Delivery Board

詳細なリファレンス・デザインを表示

機能と利点

Xilinx Zynq® UltraScale+™ devices are the industry’s only cost-optimized FPGAs based on an advanced, production-proven 16nm architecture for best-in-class performance/watt.

Analog Devices, Inc. supports ASIL-D compliant automotive power delivery solutions for the Xilinx Zynq UltraScale+ MPSOC. The Knightrider board demonstrates the best-in-class power management supporting ASIL-D compliant solutions for functional safety.

Monolithic solutions are used to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated discrete solutions optimized for cost, efficiency and foot print.

ADI provides supporting documentation including power schematics, layout, LTpowerPlanner® and applicable LTpowerPlay® configuration files to enable you to validate the power solution for your application seamlessly.

For a complete list power designs and use cases, please contact your local FAE.

Key Power for full management devices are used as follows:

  • LT8672
  • LTC4365
  • MAX20410
  • MAX20478
  • MAX20438
  • LTC3307
  • MAX25229
  • MAX17510
Stratix 10 GX PCIE FPGA Development Kit
Stratix 10 GX PCIE FPGA Development Kit
Stratix 10 GX PCIE FPGA Development Kit Block Diagram

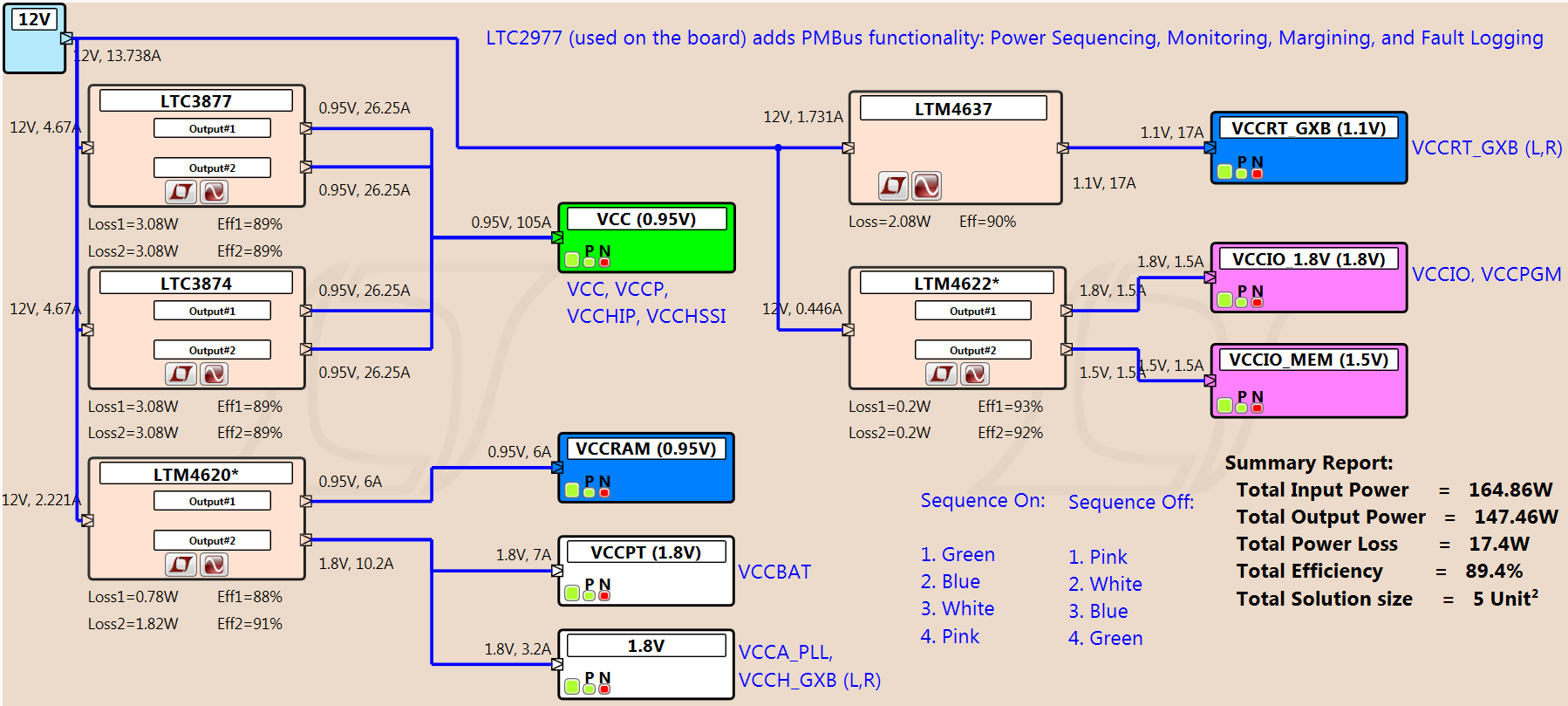

Stratix 10 GX PCIE FPGA Development Kit (Recommended Simplified Power Tree: 12Vin to required I/O voltages)
Stratix 10 GX PCIE FPGA Development Kit (Actual Power Tree representative of components used on board)
Intel Stratix 10 FPGA PCIe Development Kit Circuits from the Lab®

詳細なリファレンス・デザインを表示

機能と利点

  • Analog Devices has worked closely with Intel PSG to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • The validated power solutions include uModules power products that address time and space constraints while delivering high efficiency, reliability, and low noise.
  • The actual power tree represents the best solution at time of design.
  • A recommended power tree has also been included to present the ideal solution at time of Stratix 10 GX PCIe development kit release. An updated alternate version of the power tree represents the latest solutions available from Analog Devices. For many applications, an intermediate rail is not ideal, so recommendations an alternate power tree that allow for direct power conversion from 12V input is provided below.

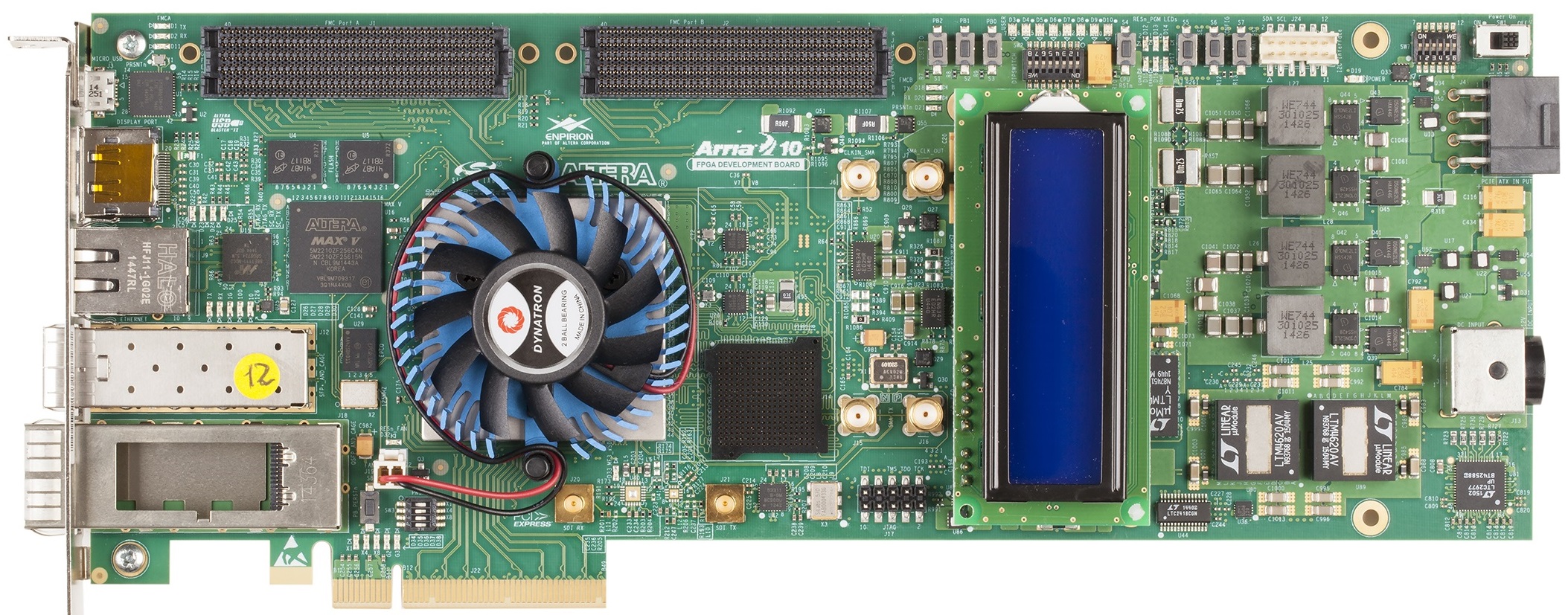

Arria 10 (Rev E3- Linear Technology) Dev Kit
