発売前Isolated Amplifier with Adjustable Gain and Single-Ended Output
- 製品モデル
- 4
- 1Ku当たりの価格
- 価格は未定
Viewing:
製品の詳細
- High-Impedance input for isolated voltage measurement
- Low offset error and drift (output offset voltage): ±6 mV (Max) at 25°C and −22 μV/°C (Typ)
- Low gain error and drift: ±0.5% (max) and ±27 ppm/°C (max)
- Voltage-supply range
- VDD1: 4.5 V to 5.5 V
- VDD2: 4.5 V to 5.5 V
- Bandwidth: 210 kHz
- Isolation voltage
- 3000 V rms for ADuM3195
- 5000 V rms for ADuM4195
- Safety and regulatory approvals (pending)
- UL recognition (pending)
- ADuM3195: 3000 V rms for 1 minute per UL 1577
- ADuM4195: 5000 V rms for 1 minute per UL 1577
- UL recognition (pending)
- CSA (pending)
- VDE certificate of conformity (pending)
- DIN EN IEC 60747-17
- ADuM3195: VIORM = 849 V peak (reinforced)
- ADuM4195: VIORM = 1401 V peak (reinforced)
- Wide temperature range
- −40°C to +125°C ambient operation
- 150°C maximum junction temperature
- AEC-Q100 qualified for automotive applications
The ADuM3195/ADuM41951 are isolation amplifiers based on Analog Devices, Inc., iCoupler® technology. The ADuM3195/ADuM4195 have very low offset and gain error, making them ideal for many isolated voltage sensing applications.
Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over lifetime and at high temperatures, the ADuM3195/ ADuM4195 transfer functions do not change over lifetime, and are stable over a wide temperature range of −40°C to +125°C.
Included in the ADuM3195/ADuM4195 are wideband operational amplifiers useful for a variety of commonly used applications, and two high accuracy 2.5 V references outputs.
The ADuM3195 is packaged in a 16-lead quarter small outline package (QSOP) for a 3000 V rms isolation voltage rating according to UL1577. The ADuM4195 is packaged in a 16-lead wide-body SOIC package with increased creepage for a 5000 V rms isolation voltage rating according to UL1577.
APPLICATIONS
- Inverters
- DC to DC converters
- On-board chargers
Protected by U.S. Patents 5,952,849, 6,873,065 and 7,075,329. Other patents pending.
ドキュメント
データシート 2
ユーザ・ガイド 1
安全性および規制遵守 1
安全性および規制遵守 1
ウェブキャスト 1
Analog Dialogue 1
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
ADUM4195BRIZ | 16-Lead SOIC (Increased Creepage) | ||
ADUM4195BRIZ-RL | 16-Lead SOIC (Increased Creepage) | ||
ADUM4195WBRIZ | 16-Lead SOIC (Increased Creepage) | ||
ADUM4195WBRIZ-RL | 16-Lead SOIC (Increased Creepage) |
これは最新改訂バージョンのデータシートです。

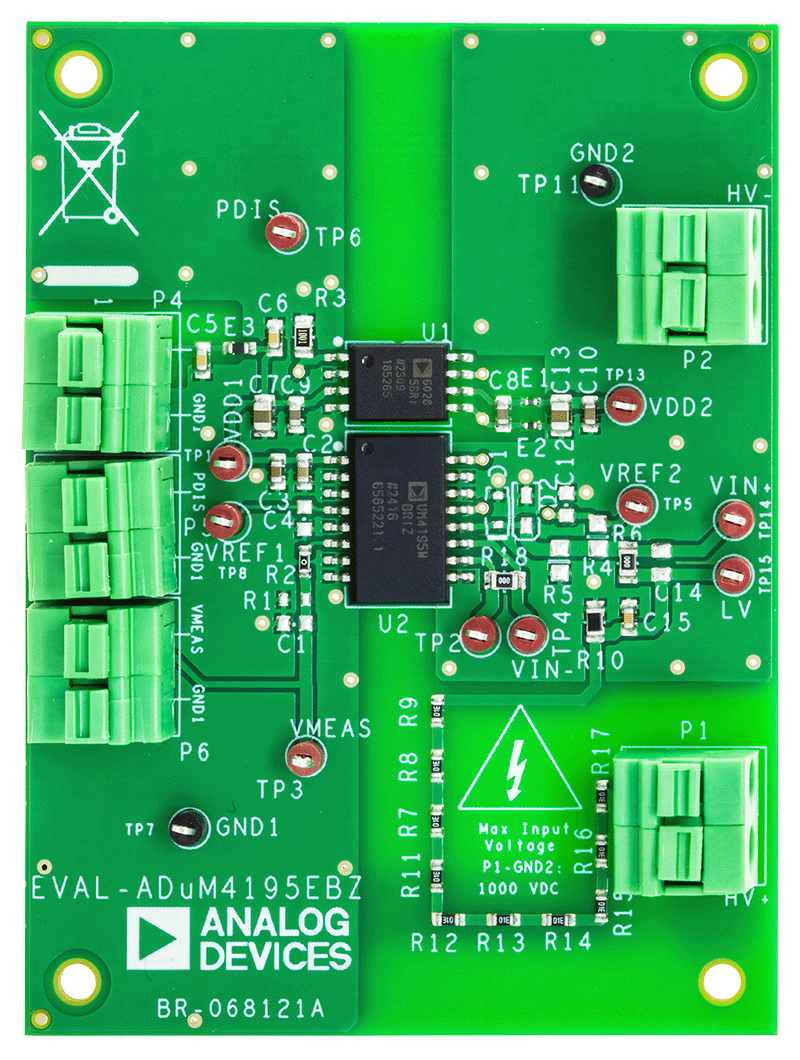

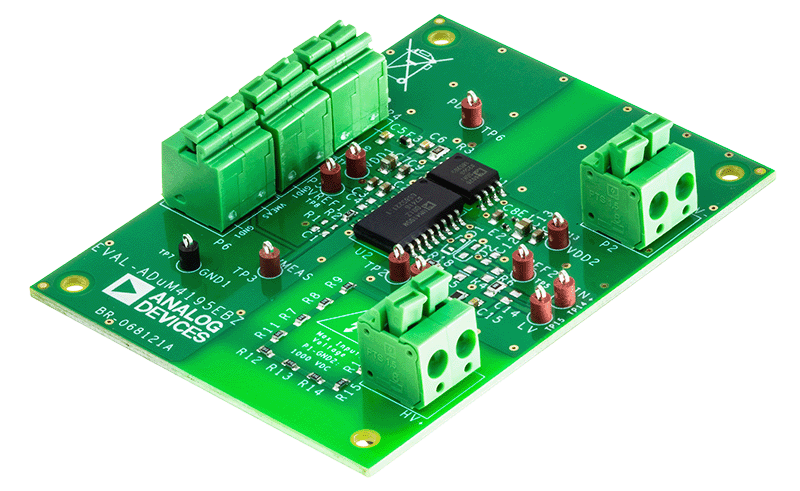

評価用キット
