MAXM15064

RECOMMENDED FOR NEW DESIGNS

4.5V to 60V, 300mA Himalaya uSLIC Step-Down Power Module

Save Space and Reduce Heat, 300mA Synchronous Buck, Highly Efficient, Power Module in our uSLIC Package

Data Sheet (Rev. 2)

Part Models: 2
1ku List Price: Starting From $3.65

Viewing:

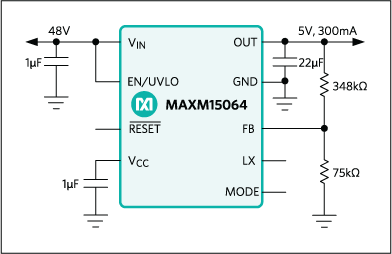

Part Details

Easy to use
- Wide 4.5V to 60V Input Range
- Adjustable 0.9V to 5V Output
- Fixed 3.3V and 5V Output (MAXM15062 and MAXM15063)
- ±1.5% Feedback Accuracy
- Up to 300mA Output-Current
- Internally Compensated
- All Ceramic Capacitors
High Efficiency
- Selectable PWM- or PFM-Mode of Operation
- Shutdown Current as Low as 2.2µA (typ)
Flexible Design
- Internal Soft-Start and Prebias Startup
- Open-Drain Power Good Output (Active-low RESET Pin)
- Programmable EN/UVLO Threshold
Robust Operation
- Hiccup Overcurrent Protection
- Overtemperature Protection
- -40°C to +125°C Ambient Operating Temperature/-40°C to +150°C Junction Temperature
Rugged
- Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions
- Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111

Part Models: 2
1ku List Price: Starting From $3.65

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAXM15064AMB+	Embedded Maxim Grid Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAXM15064AMB+T	Embedded Maxim Grid Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 22, 2020 - 2092 ASSEMBLY
		pcn_2092
MAXM15064AMB+	PRODUCTION
MAXM15064AMB+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

EE-Sim Power® Tools 1

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

SIMPLIS Models 1

MAXM15064 SIMPLIS Schematic
