MAX96717F

RECOMMENDED FOR NEW DESIGNS

CSI-2 to GMSL2 Serializer

Industry Leading Automotive Grade 2 SerDes for Low to Mid Resolution Cameras (Up to 4MP)

Data Sheet (Rev. 7)

Part Models: 4
1ku List Price: Starting From $5.01

Viewing:

Part Details

Automotive Grade High Speed Link
- -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
- Auto Adapt for Changes in Channel Conditions
- Operates at -40°C to +105°C Ambient
Four-Lane D-PHY MIPI CSI-2 v1.3 Input Port
- 16 Virtual Channels
- Supports any CSI-2 Data Type in Tunneling Mode
Advanced MIPI D-PHY v1.2 Receivers Rated at 2.5Gbps per Lane
- Polarity Flip and Data Lane Reassignment
Full-Duplex Capability Over a Single Wire
- 3Gbps Forward-Link Rate
- 187.5Mbps Reverse-Link Rate
CSI-2 ECC, Checksum Local, Remote Error Detection, and Flagging

ASIL-B Compliant
- End-to-End Data Integrity through CRC in Tunneling Mode
- R-S FEC for Protection of Forward Video and Control-Channel Data
- CRC Protection of Side-Channel and Video Data
Concurrent Side Channel for Device Configuration and Communication with Peripherals
- I²C/UART, Pass-Through I2C/UART, SPI, GPIO, and Register-Programmable GPIO
Reference Over Reverse (RoR) Clocking Supports Crystal-Free Operation
Generates Reference Clock for Image Sensor
Die Temperature Monitor, Internal and External Supply Voltage Monitor

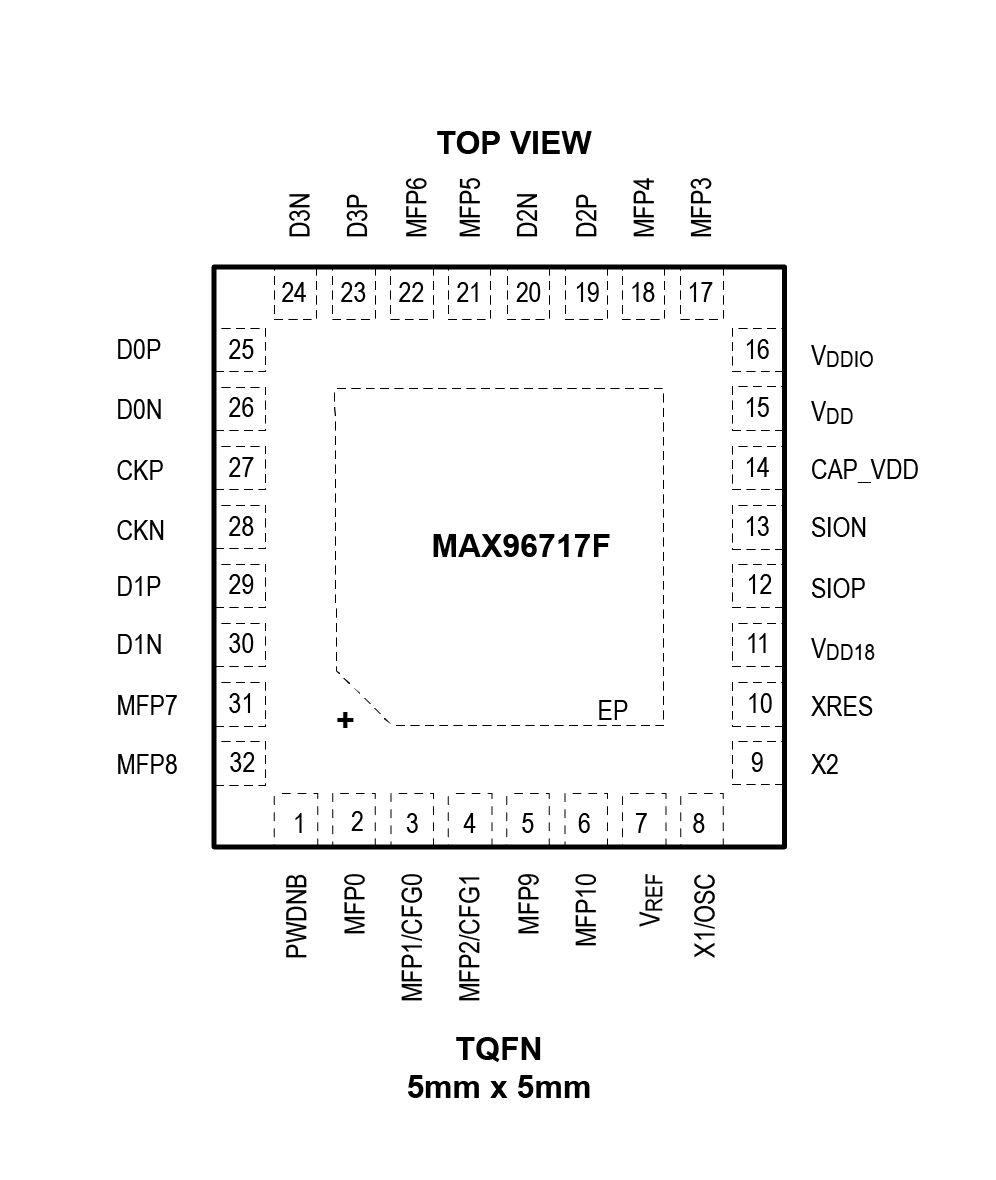

Compact 5mm x 5mm TQFN Side-Wettable Package with 0.5mm Pitch

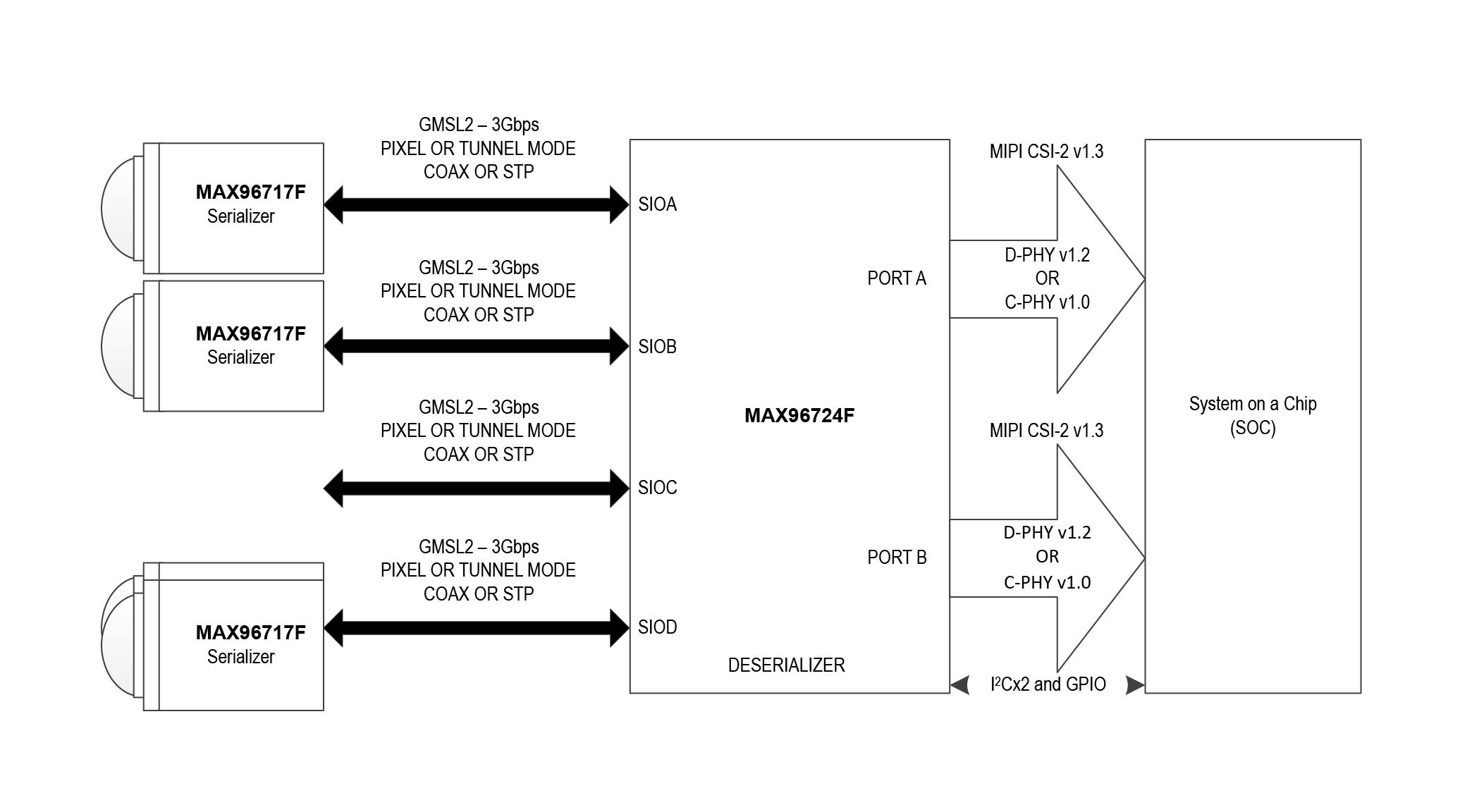

The MAX96717F GMSL^™ serializer receives video on a MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. GMSL2 data can be transported over Coaxial or Shielded-Twisted Pair (STP) cables. It operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction. The device is programmed through a local I²C/UART interface or across the link from a matching deserializer. The MAX96717F includes two I²C/UART pass-through channels, flexible GPIO, SPI tunnel, a built-in ADC, temperature sensor, and an extensive set of diagnostics for functional safety. Operation is specified over the automotive temperature range of -40°C to +105°C. The device is AEC-Q100 Grade 2 qualified.

Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification. Table 1 in the data sheet provides guidance to typical maximum lengths of commonly used automotive cables. Contact the factory for the GMSL2 channel specification.

Table 1. Typical Maximum Cable Length vs. Attenuation
	3.2mm Ø 50Ω Coax, Foam Dielectric	2.7mm Ø 50Ω Coax, Solid Dielectric	100Ω Shielded Twisted Pair, AWG26
Attenuation at 3GHz (Typ, Room Temp)	0.9dB/m	1.6dB/m	1.8dB/m
Attenuation at 3GHz (Max, Aged, +105°C)	1.1dB/m	2.0dB/m	2.2dB/m
GMSL Fwd/Rev Data Rate	Typical Maximum Cable Length at +105°C (m)
3Gbps/187.5Mbps	20	10	11

Applications

Advanced Driver Assistance Systems (ADAS)
- LiDAR Systems
- RADAR Systems
4Mp 40fps Forward-Vision Camera (FVC) Systems
Surround View Systems (SVS)
Driver Monitor Systems (DMS)
Rear-View Camera (RVC)
Systems with Multiple Synchronized Cameras

Part Models: 4
1ku List Price: Starting From $5.01

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX96717FGTJ/V+	32-TQFN-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96717FGTJ/V+T	32-TQFN-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96717FGTJ/VY+	32-TQFN_SW-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX96717FGTJ/VY+T	32-TQFN_SW-5X5X0.75	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 10, 2020 - 1950 ASSEMBLY
		pcn_1950
MAX96717FGTJ/VY+	PRODUCTION	pcn_1950

This is the most up-to-date revision of the Data Sheet.
