MAX77818

PRODUCTION

Dual Input, Power Path, 3A Switching Mode Charger with Fuel Gauge

Industry's Highest Efficiency Switching Mode Charger in a Smaller Solution Size in 3.87mm x 3.61mm WLP

Data Sheet (Rev. 4)

Part Models: 2
1ku List Price: Starting From $2.56

Viewing:

Part Details

Smart Power Path, Dual Input Switching Charger
- Up to 13.4V Operating/16V Withstand/4A (CHGIN)
- Up to 6V Operating/1.26A (WCIN)
- Reverse Leakage Blocking
- Reverse Boost with up to 5.1V/1.5A (OTG)
- Integrated Low-Loss FETs for 3A Charging/4.5A Discharging
- 95.6% Peak Efficiency at 5V/4.35V
- Full Feature Charger with Protection
- Thermal Regulation and JEITA Compliance
ModelGauge m5 Fuel Gauge
- Time-to-Empty and Time-to-Full Prediction
- Accurate Battery Capacity (SOC) and Time-to-Empty Readings
  - Temperature, Age, and Discharge Rate Compensated
  - No Calibration
  - Integrated FET Current Sensing
  - Maintains Accuracy without Empty, Full, or Idle States
- Low Quiescent Current (I_Q)
Two High Voltage Input LDOs
I²C Serial Interface
72-Bump, 3.867mm x 3.608mm, 0.4mm Pitch WLP

Part Models: 2
1ku List Price: Starting From $2.56

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX77818EWZ+	Wafer-Level Package 9x8 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX77818EWZ+T	Wafer-Level Package 9x8 Bump, Full Array	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Mar 1, 2022 - 2259 TEST
		pcn_2259
MAX77818EWZ+	PRODUCTION
MAX77818EWZ+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

Software Development 2

Evaluation Kits

Evaluation System for MAX77818

Buy Now View Details

Features and Benefits

Demonstrates 12V_CHGIN, 3A Charge
Demonstrates m5 Fuel Gauge Performance
Demonstrates Dual Input Charge
Demonstrates OTG Mode
Evaluates MAX77818 Detail Performances

Product Details

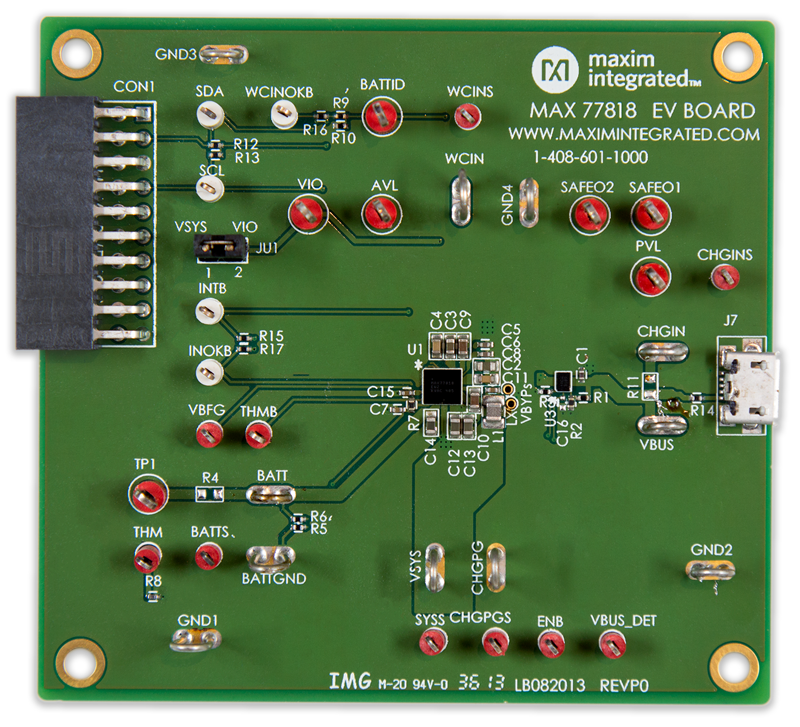

The MAX77818 evaluation system (EV system) consists of a MAX77818 evaluation kit (EV kit) and a companion Maxim MINIQUSB interface board.

The MAX77818 EV kit is an assembled and tested PC board that demonstrates the MAX77818. The IC contains 12V input and 3A output switching mode charger.

The Maxim MINIQUSB interface board allows an IBM- compatible PC to use its USB port to emulate an I²C 2-wire interface. Windows XP^®/Windows^® 7 software provides a user-friendly interface to exercise the features of the MAX77818. The menu-driven program offers a graphical user interface with control buttons.
