MAX44285

PRODUCTION

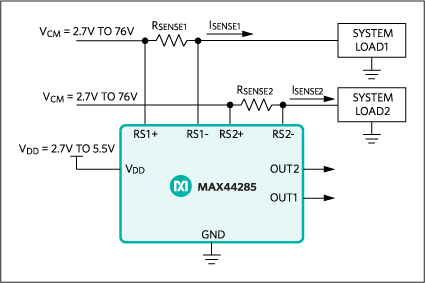

Dual-Channel, High-Precision, High-Voltage, Current-Sense Amplifier

Unique Combination of High-Accuracy and High-Voltage Operation at 76V

Data Sheet (Rev. 4)
Part Models
14
1ku List Price
Starting From $2.74
Viewing:
  • Part Details
  • Documentation
  • Software Resources
  • Tools & Simulations
  • Reference Designs
  • Latest Discussions
    •

    Part Details

    • 2.7V to 76V Input Common Mode
    • Low 12µV (max) Input Offset Voltage
    • Low 0.1% (max) Gain Error
    • Gain Options
      • G = 12.5V/V (MAX44285L)
      • G = 20V/V (MAX44285T)
      • G = 50V/V (MAX44285F)
      • G = 100V/V (MAX44285H)
    • 1mm x 2mm 8-Bump WLP and 8-Pin µMAX Packages
    MAX44285
    Dual-Channel, High-Precision, High-Voltage, Current-Sense Amplifier
    Ask a Question

    Documentation

    Data Sheet 1

    Reliability Data 1

    Learn More

    Software Resources

    Can't find the software or driver you need?

    Request a Driver/Software

    Tools & Simulations

    SPICE Model 1

    Reference Designs

    MAXREFDES77 Connected to Munich Board
    MAXREFDES77 Connected to Munich Board
    MAXREFDES77
    MAXREFDES77 Circuits from the lab

    Dual-Channel Current Sense Peripheral Module

    View Detailed Reference Design

    Features and Benefits

    • 2.7V to 76V Input Common Mode
    • Low 12μV (max) Input Offset Voltage
    • Low 0.1% (max) Gain Error
    • Gain = 20V/V and 100V/V
    • RoHS Compliant
    • Proven PCB Layout
    • Fully Assembled and Tested
    MAXREFDES39

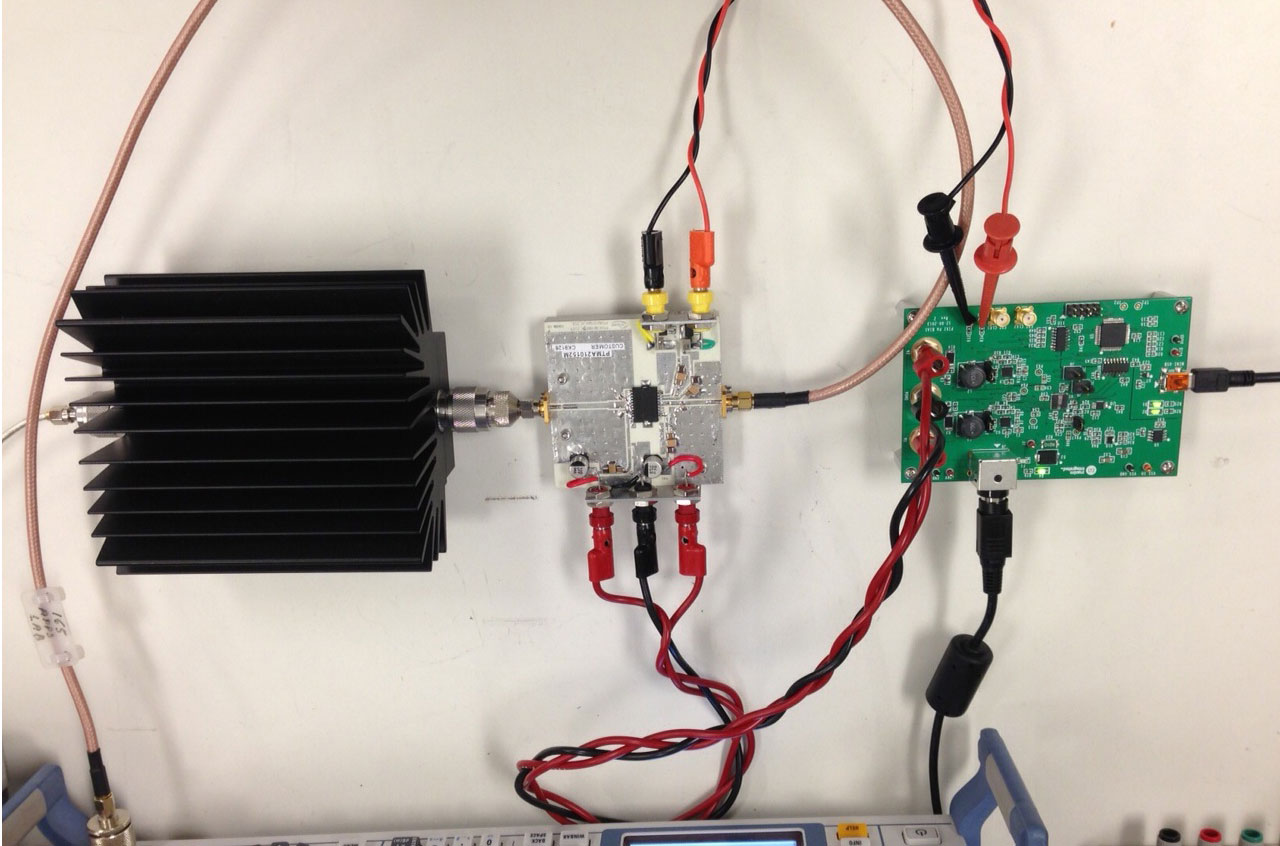

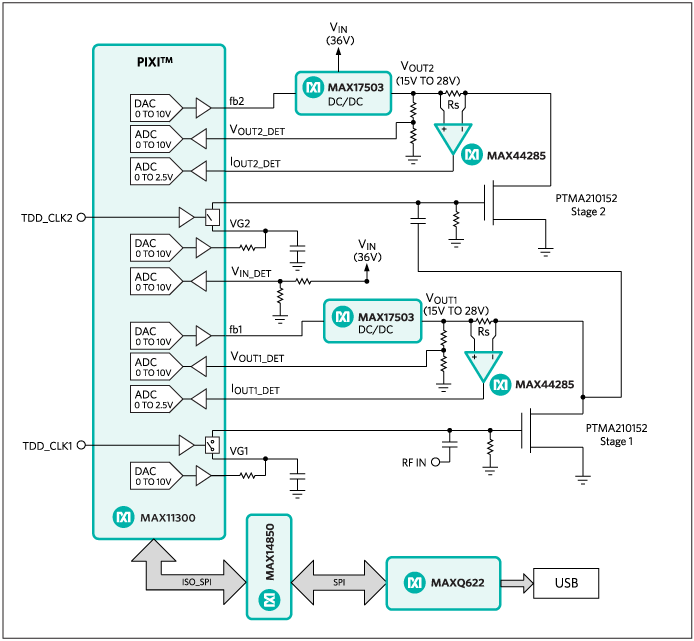

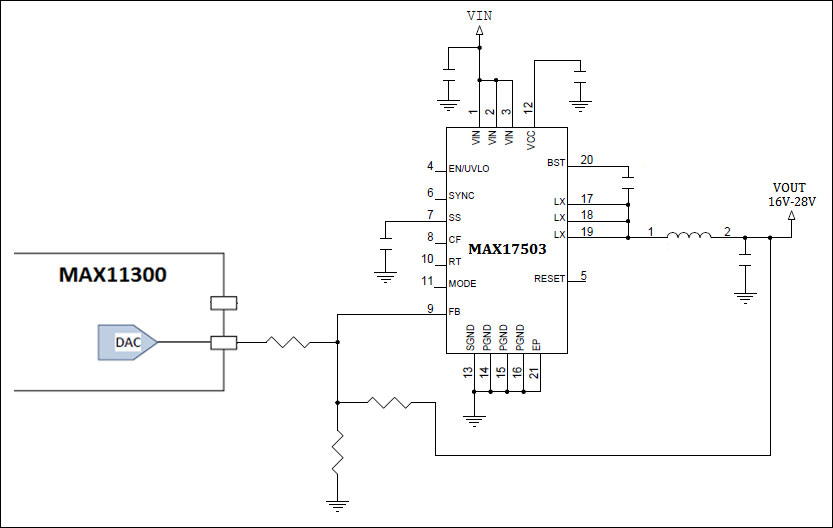

    MAXREFDES39#: Power Amplifier Biasing through MAX11300 PIXI IC
    MAXREFDES77
    Dual-Channel Current Sense Peripheral Module

    Latest Discussions

    No discussions on MAX44285 yet. Have something to say?

    Start a Discussion on EngineerZone®
