MAX4004

PRODUCTION

High-Accuracy, High-Side Current Monitors in SOT23

Precision, High-Side 10:1 Current Monitor Senses Currents from 10nA to 10mA

Part Details

  • Wide Reference Current Dynamic Range
    • Guaranteed 250nA to 2.5mA with 5% Accuracy
    • Extended 10nA to 10mA with 10% Monitor Accuracy

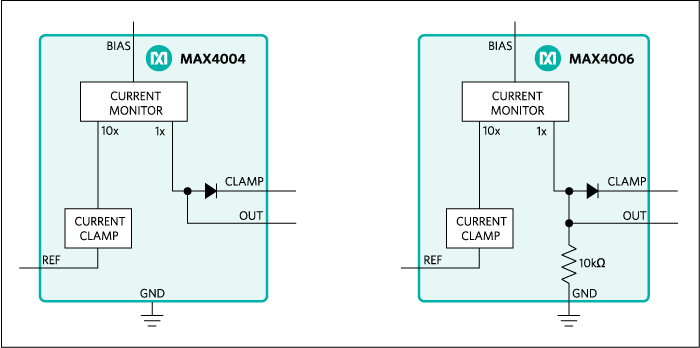

  • Current (MAX4004) or Voltage (MAX4006) Monitor Output
  • Reference Current-Limit Protection (20mA, typ)
  • Voltage Clamp Protects Subsequent Output Circuitry
  • +2.7V to +22V Wide Voltage Range Operation
  • 6-Pin SOT23 Packages
MAX4004
High-Accuracy, High-Side Current Monitors in SOT23
