MAX3232

PRODUCTION

3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers

Data Sheet (Rev. 10)
Part Models
16
1ku List Price
Starting From $3.05
Viewing:

Part Details

  • Integrated Features Saves Board Space and Simplifies Design
    • Charge Pump Circuitry Eliminates the Need for a Bipolar ±12V Supply
    • Wide Single-Supply Operation From +3V to +5.5V Supply
    • Always-On Extra Outputs Enable Monitoring of External Devices
  • Power Saving Extends Battery Life
    • 1µA Supply Current in Shutdown Mode While Receiver is Active (MAX3222, MAX3237, MAX3241)
MAX3232
3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers

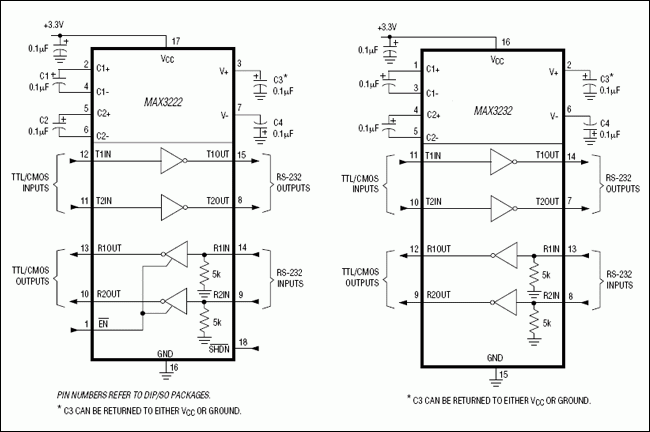

MAX3222, MAX3232, MAX3237, MAX3241: Typical Operating Circuits
