MAX2553
Band Class 0, 1, and 10 cdma2000 Femtocell Transceiver
Accelerate Deployment with Worldwide Field-Proven Performance and the Most Compact Radio Design
Part Details
- Single-Chip Femtocell Radio Transceiver
- cdma2000/1xEVDO Band Class 0, 1, and 10 Operation
- 3GPP2 C.S0010-D Femtocell Standard Compliant
- Multiple LNA Inputs for PCS and CELL Macrocell Monitoring
- High Level of Integration
- On-Chip Fractional-N Frequency Synthesizers for LO Generation
- No Tx or SAW Filters Required
- Integrated PA Drivers for Lower Cost Power Amplifier Designs
- 12-Bit AFC DAC to Control TCXO
- On-Chip Temperature Sensor
- Three General-Purpose Outputs
- Reference Clock with Selectable CMOS and Low Swing Output
- PLL Lock Detect Output Through GPO3
- Optimized Receiver Performance
- Exceptional Receive Sensitivity
- High Dynamic Range Sigma-Delta ADCs Allow Simple AGC Implementation with Switched Gain States
- Optimized Transmitter Performance
- Factory Calibrated for Gain, Carrier Leakage, and Sideband Suppression
- 10-Bit Gain Control Resolution for Better Power Accuracy
- 60dB Gain Control Range
- ACPR and EVM Compliance at 0dBm Output Power
- Loopback Operating Mode from Tx Baseband Input to Rx Baseband Output
- MAX-PHY Serial Digital Interface with Single-Bit I and Q Streams
- SPI™ Read-Write Functionality
- Operation Controlled by 4-Wire Serial Interface
- Low-Cost, 7mm x 7mm TQFN Package

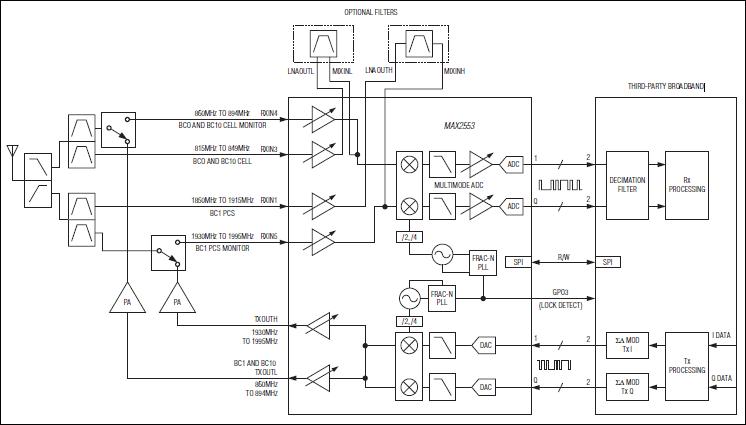

The MAX2553 is a complete single-chip RF-to-bits and bits-to-RF radio transceiver. The device is compliant with the 3GPP2 C.S0010-D femtocell standard for Band Class 0, 1, and 10. It is equipped with multiple receive inputs and transmit outputs for low band, high band, and macrocell monitoring (see Table 1 in the full data sheet).
This fully integrated transceiver facilitates compact radio designs for dongle and stand-alone femtocell products by minimizing external component count. Maxim's MAX-PHY serial interface is used to drastically reduce IC pin count, while worldwide field-proven architecture accelerates time to product deployment.
The MAX2553 features unparalleled receive blocker performance and industry's lowest noise figure for higher data rates and range. Low-power operational modes are available to minimize power consumption. The transmitter is designed to deliver EVM far exceeding the standard requirement at 0dBm.
The MAX2550–MAX2553 is a family of pin-compatible transceivers to cover all major WCDMA and cdma2000® bands. All parts are controlled through a 4-wire interface. The MAX2553 is packaged in a compact 7mm x 7mm TQFN and covers the -40°C to +85°C extended temperature range. A complete radio reference design is available to facilitate custom designs.
Applications
- cdma2000/1xEVDO Band Class 0, 1, and 10 Femtocells
