MAX190
PRODUCTION75ksps, 5V, 12-Bit ADC with Track/Hold and Reference
See MAX129X or MAX191 For New Designs
- Part Models
- 5
- 1ku List Price
- Starting From $22.32
Part Details
Documentation
Data Sheet 1
Design Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

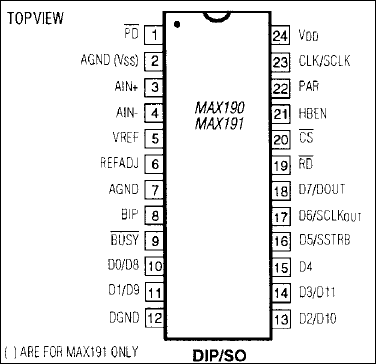

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX190ACNG+ | Plastic Dual-In-Line, Narrow (0.3in) | ||
| MAX190BCNG+ | Plastic Dual-In-Line, Narrow (0.3in) | ||
| MAX190BENG+ | Plastic Dual-In-Line, Narrow (0.3in) | ||
| MAX190BEWG+ | Small-Outline IC, Wide (0.3in) | ||
| MAX190BEWG+T | Small-Outline IC, Wide (0.3in) |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Analog to Digital Converters 5 | ||
| MAX191 | PRODUCTION | Low-Power, 12-Bit Sampling ADC with Internal Reference and Power-Down |
| MAX185 | PRODUCTION | 3µs, 12-Bit ADC |
| MX674A | PRODUCTION | Industry-Standard, Complete 12-Bit ADCs |
| MAX178 | PRODUCTION | Calibrated, 12-Bit ADC with Track/Hold and Reference |
| MX7578 | PRODUCTION | Calibrated 12-Bit ADC |
