MAX17563

PRODUCTION

Adjustable Overvoltage and Overcurrent Protectors with High Accuracy

Industry's Most Integrated OCP and OVP Solution with More Robust Reverse Current Blocking Capability

Data Sheet (Rev. 2)
Part Models
2
1ku List Price
Starting From $4.26
Viewing:

Part Details

  • Industrial Power Protection Increases Robustness
    • Wide Input Supply Range: +4.5V to +36V
    • Negative Input Tolerance to -36V
    • Low RON 100mΩ (typ)
    • Reverse Current Flow Control Input
    • Thermal Overload Protection
    • Extended -40°C to +125°C Temperature Range
  • Flexible Design Options Eases Designs
    • Adjustable OVLO and UVLO Thresholds
    • Programmable Forward-Current Limit: 0.7A to 4.2A with ±15% Accuracy
    • Dual Enable Inputs: EN and High Voltage Active-Low HVEN
  • Saves Space
    • 14-Pin, 5mm x 6.5mm, TSSOP Package
MAX17563
Adjustable Overvoltage and Overcurrent Protectors with High Accuracy

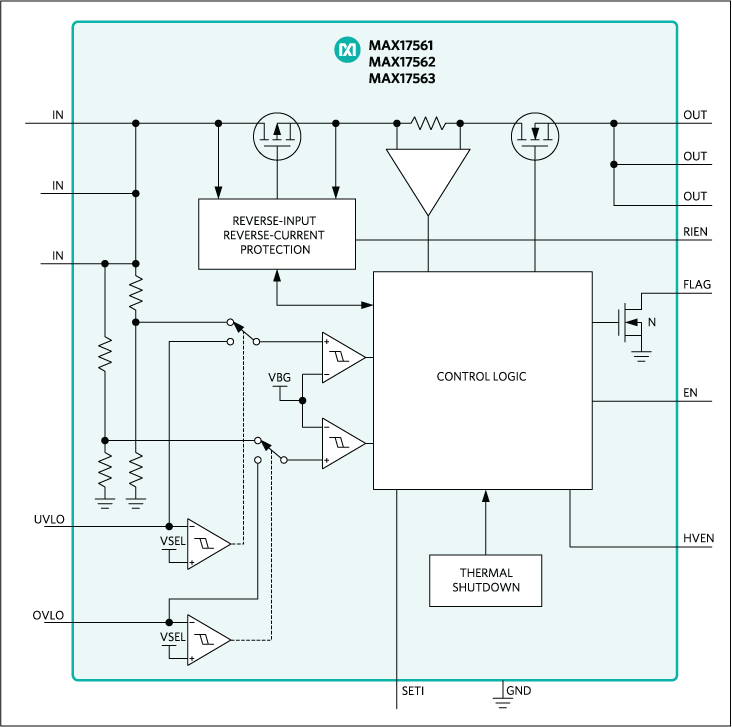

MAX17561, MAX17562, MAX17563: Functional Diagram
