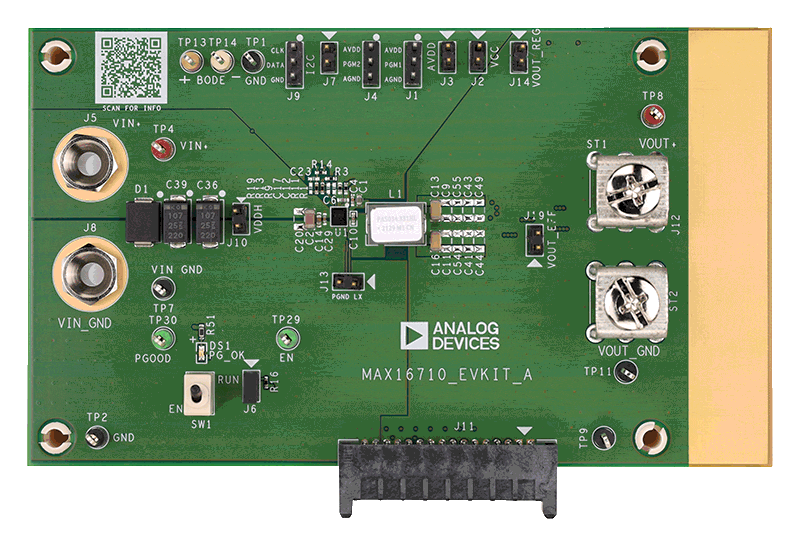

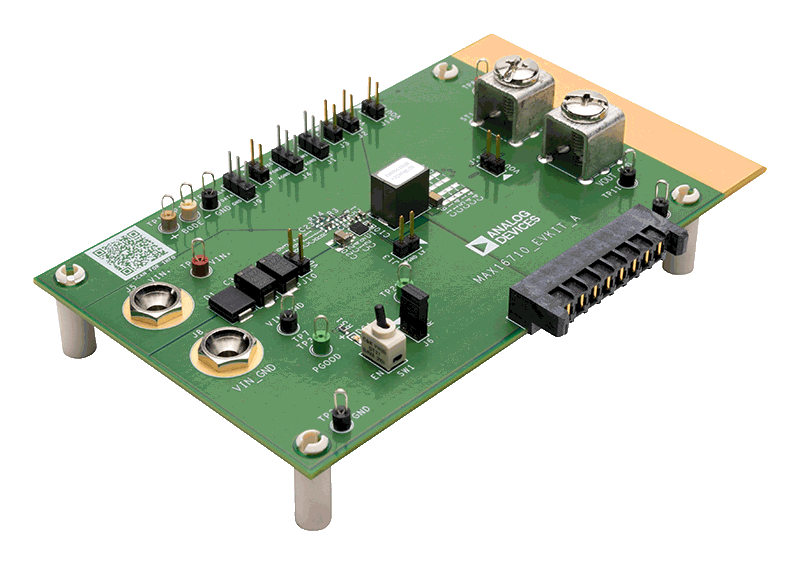

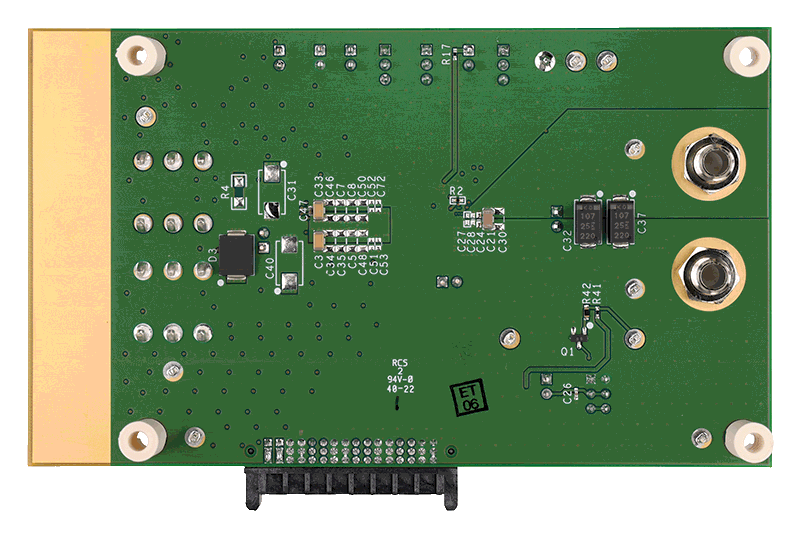

MAX16710

RECOMMENDED FOR NEW DESIGNS

10A, 1.5MHz, 2.7V to 16V Integrated Step-Down Switching Regulator

Shrink your power designs with industry’s smallest and fastest 10A step down switching regulator

Data Sheet (Rev. 0)

Part Models: 2
1ku List Price: Starting From $1.98

Viewing:

Part Details

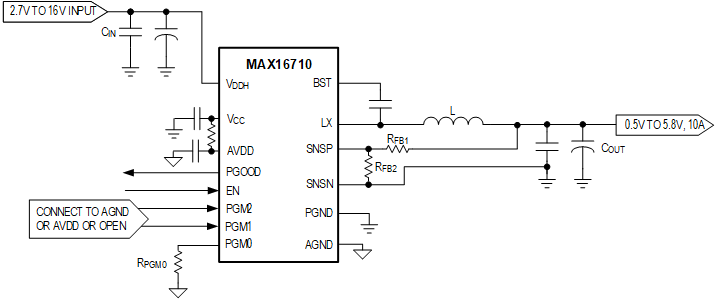

High Power Density with Low Component Count

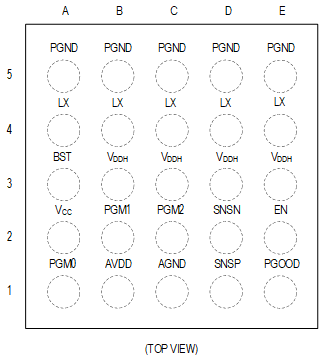

- Compact 2.52mm x 2.93mm, 25-Bump WLP
- Internal Compensation
- Single-Supply Operation with Integrated LDO for Bias Generation
Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.5V to 5.8V Output Voltage Range
- 500kHz to 1.5MHz Configurable Switching Frequency
- -40°C to +125°C Junction Temperature Range
- Three Programming Pins to Select Different Configurations

Optimized Performance and Efficiency
- 93.1% Peak Efficiency with V_DDH = 12V, V_OUT = 1.8V, and f_SW = 500kHz
- AMS to Improve Load Transient
- Selectable DCM to Improve Light Load Efficiency
- Differential Remote Sense

Part Models: 2
1ku List Price: Starting From $1.98

Documentation

Data Sheet 1

MAX16710: 10A, 1.5MHz, 2.7V to 16V Integrated Step-Down Switching Regulator Data Sheet (Rev.0) 04/24/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX16710AWA+	25-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX16710AWA+T	25-WLCSP-N/A	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
