MAX11905
PRODUCTION20-Bit, 1.6Msps, Low-Power, Fully Differential SAR ADC
Fastest and Lowest Power 20-Bit SAR ADC
- Part Models
- 2
- 1ku List Price
- Starting From $39.17
Part Details
- High DC/AC Accuracy Provides Better Measurement Quality
- 20-Bit Resolution with No Missing Codes
- ±6 LSB INL and ±1 LSB DNL Maximum at 20 Bits
- 98.3dB SNR and 98.1dB SINAD at fIN = 10kHz
- -123dB THD at fIN = 10kHz
- High Sampling Rate SAR Architecture Enables Fast Settling and Acquisition
- 1.6Msps Throughput with No Pipeline Delay
- Integration Simplifies Design
- Integrated Reference Buffers, VREF = 2.5V to 3.6V
- ±VREF Unipolar Differential Analog Input Range
- Scalable Ultra-Low Power Supply Reduces Power Consumption
- 9mW at 1.6Msps
- Flexible Low-Voltage Supplies Save Cost
- 1.8V Analog and Digital Core Supply
- 1.5V to 3.6V Digital Interface Supply
- 3.3V REFVDD Reference Buffer Supply
- Flexible, Industry-Standard Serial Interface and Small Package Reduce Size
- SPI-/QSPI™-/MICROWIRE®/DSP-Compatible
- 20-Pin, 4mm x 4mm, TQFN Package
The MAX11905 is a 20-bit, 1.6Msps, single-channel, fully differential SAR ADC with internal reference buffers. The MAX11905 provides excellent static and dynamic performance with best-in-class power consumption that directly scales with throughput. The device has a unipolar differential ±VREF input range. Supplies include a 3.3V supply for the reference buffers, a 1.8V analog supply, a 1.8V digital supply, and a 1.5V to 3.6V digital interface supply.
This ADC achieves 98.3dB SNR and -123dB THD, guarantees 20-bit resolution with no-missing codes and 6 LSB INL (max).
The MAX11905 communicates data using a SPI-compatible serial interface. The MAX11905 is offered in a 20-pin, 4mm x 4mm, TQFN package and is specified over the -40°C to +85°C operating temperature range.
Applications
- Automatic Test Equipment
- Battery-Powered Equipment
- Data Acquisition Systems
- Medical Instrumentation
- Process Control and Industrial Automation
- Telecommunications
- Test and Measurement
Documentation
Data Sheet 1
Reliability Data 1
Application Note 1
Design Note 2
Technical Articles 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX11905ETP+ | Thin Quad Flatpack, No Leads | ||
| MAX11905ETP+T | Thin Quad Flatpack, No Leads |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Sep 13, 2018 - 1806 ELECTRICAL DATASHEET |
||
| MAX11905ETP+ | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
Software Development 2
IBIS Model 1
Evaluation Kits
Evaluation Kit for the MAX11900, MAX11901, MAX11902, MAX11903, MAX11904, and MAX11905
Resources

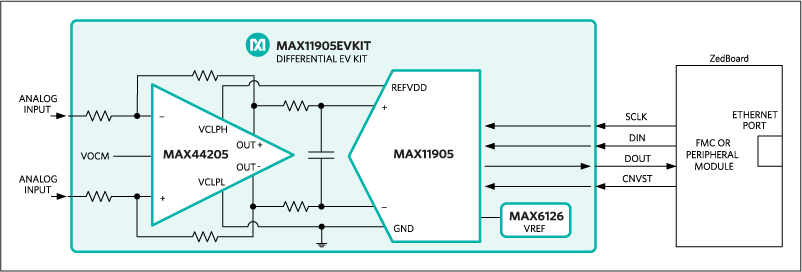

Evaluation Kit for the MAX11905
