LTC6804-1

PRODUCTION

12 Channel Multicell Battery Monitor with Daisy Chain Interface, Generation 3

Data Sheet Product Selection Table

Part Models: 8
1ku List Price: Starting From $14.72

Viewing:

Part Details

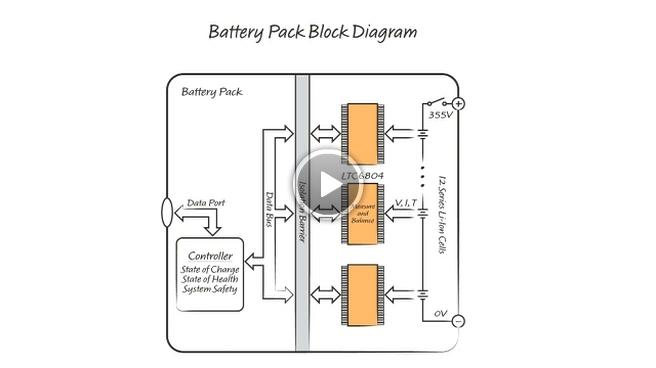

Measures Up to 12 Battery Cells in Series
Stackable Architecture Supports 100s of Cells

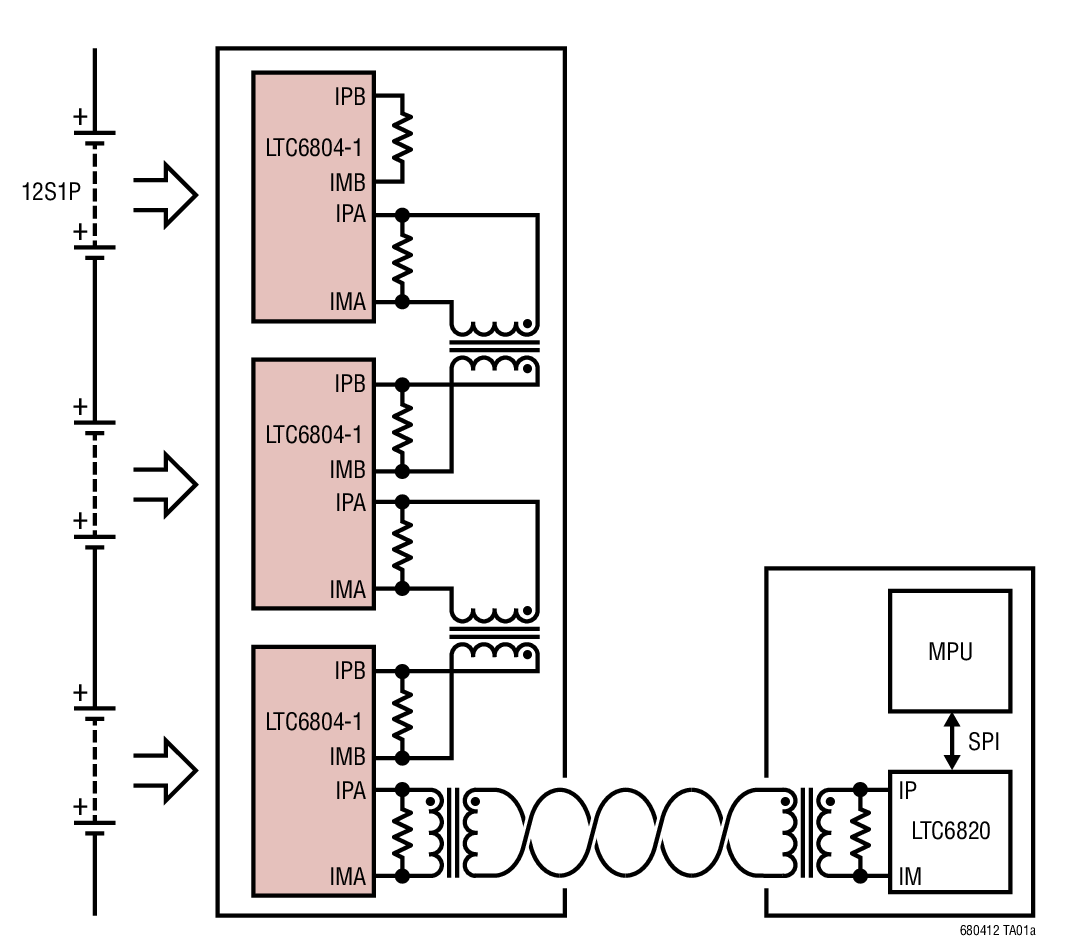

Built-In isoSPI^™ Interface:

1Mbps Isolated Serial Communications
Uses a Single Twisted Pair, Up to 100 Meters
Low EMI Susceptibility and Emissions

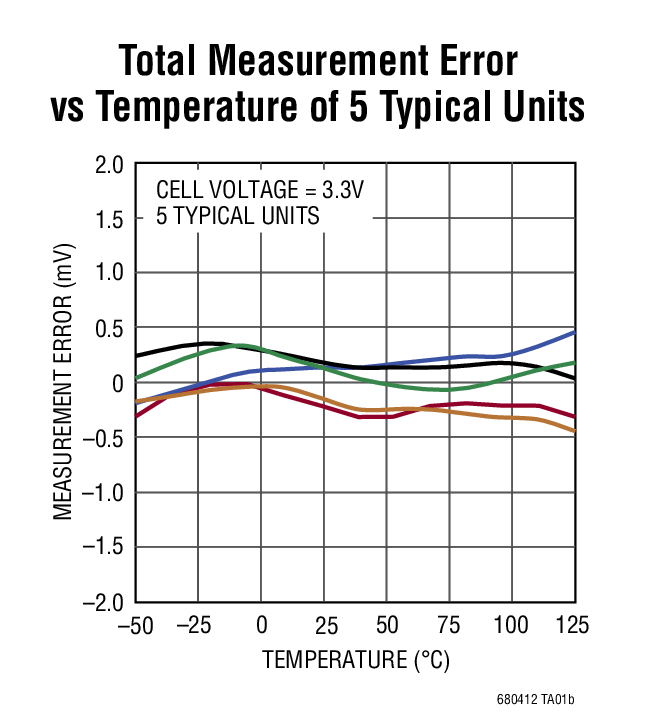

1.2mV Maximum Total Measurement Error
290μs to Measure All Cells in a System

Synchronized Voltage and Current Measurement
16-Bit Delta-Sigma ADC with Frequency Programmable 3rd Order Noise Filter
Engineered for ISO26262 Compliant Systems
Passive Cell Balancing with Programmable Timer
5 General Purpose Digital I/O or Analog Inputs:

Temperature or other Sensor Inputs
Configurable as an I²C or SPI Master

4μA Sleep Mode Supply Current

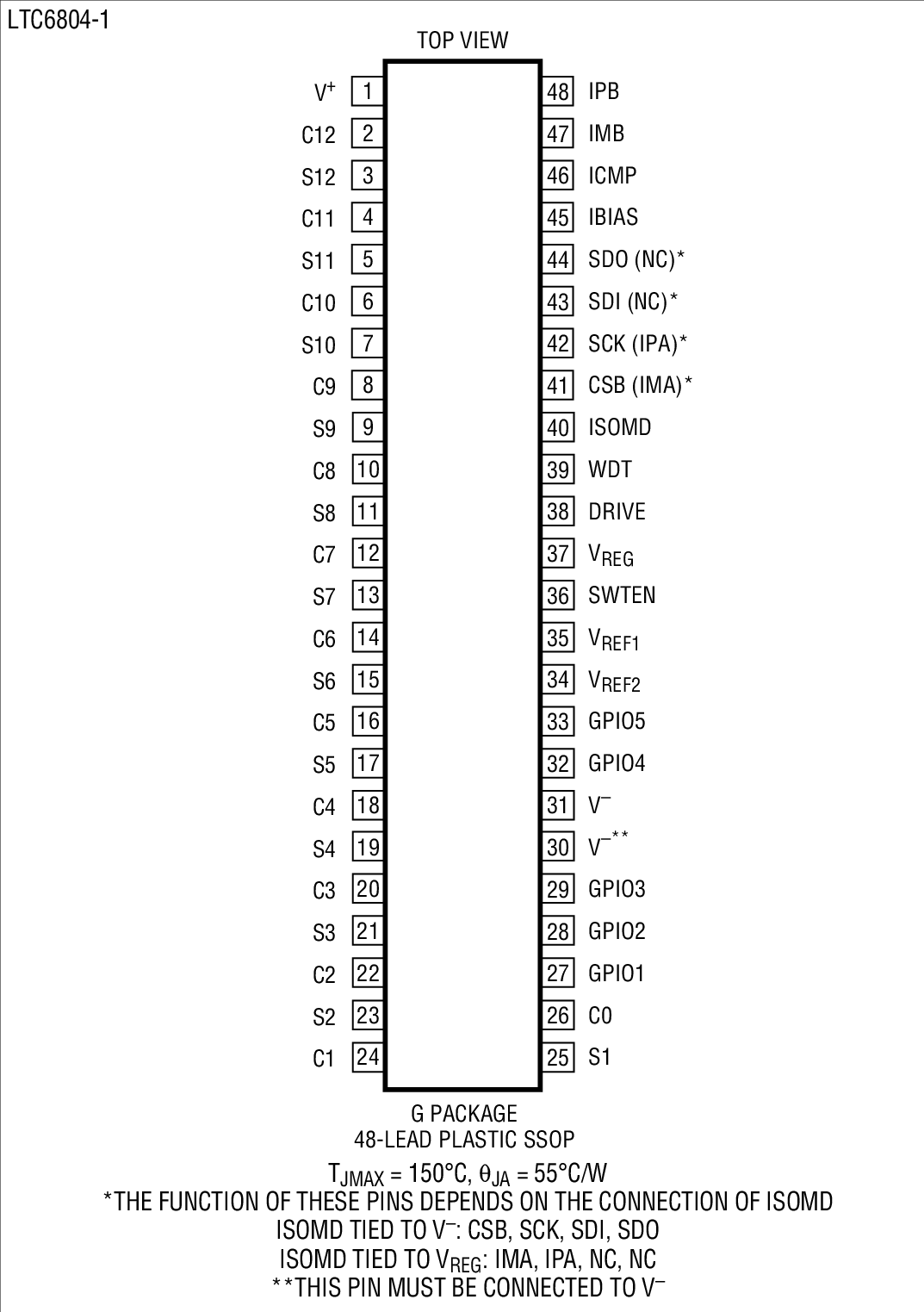

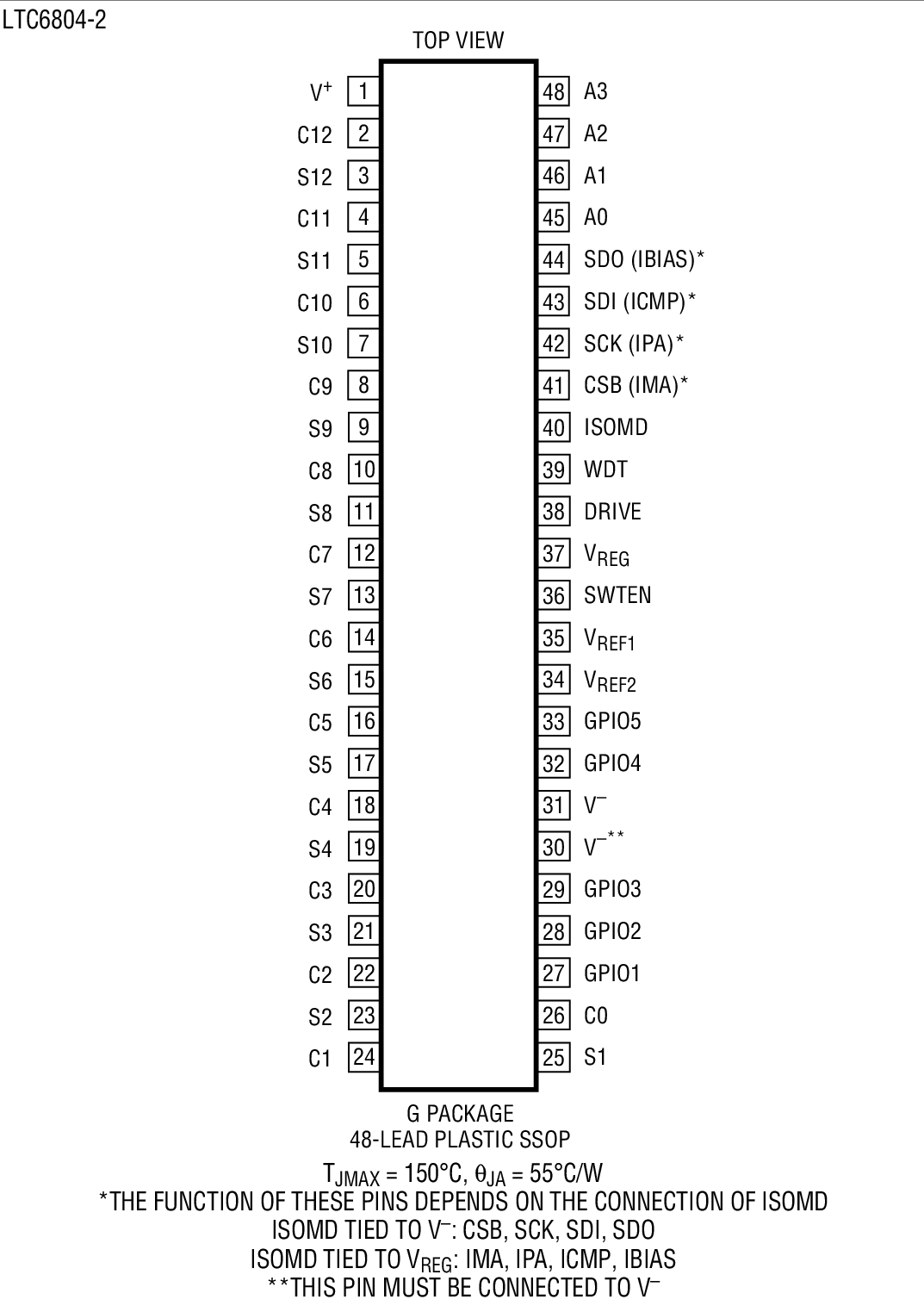

48-Lead SSOP Package

Part Models: 8
1ku List Price: Starting From $14.72

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC6804HG-1#3ZZPBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804HG-1#3ZZTRPBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804HG-1#PBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804HG-1#TRPBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804IG-1#3ZZPBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804IG-1#3ZZTRPBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804IG-1#PBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC6804IG-1#TRPBF	48-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 31, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC6804HG-1#3ZZPBF	PRODUCTION
LTC6804HG-1#3ZZTRPBF	PRODUCTION
LTC6804HG-1#PBF	PRODUCTION
LTC6804HG-1#TRPBF	PRODUCTION
LTC6804IG-1#3ZZPBF	PRODUCTION
LTC6804IG-1#3ZZTRPBF	PRODUCTION
LTC6804IG-1#PBF	PRODUCTION
LTC6804IG-1#TRPBF	PRODUCTION
Nov 18, 2019 - 19_0266 Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC
		PCN19_0266_Form Material_Report Detailed Parts List
LTC6804HG-1#3ZZPBF	PRODUCTION
LTC6804HG-1#3ZZTRPBF	PRODUCTION
LTC6804HG-1#PBF	PRODUCTION
LTC6804HG-1#TRPBF	PRODUCTION
LTC6804IG-1#3ZZPBF	PRODUCTION
LTC6804IG-1#3ZZTRPBF	PRODUCTION
LTC6804IG-1#PBF	PRODUCTION
LTC6804IG-1#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Evaluation Software 1

LTC6804_GUI_V052_20121127.zip (Rev. )

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Analog-to-Digital Converters (ADCs) 1
LTC2983	RECOMMENDED FOR NEW DESIGNS	Multi-Sensor High Accuracy Digital Temperature Measurement System
Battery Monitors & Fuel Gauges 2
LT8584	RECOMMENDED FOR NEW DESIGNS	2.5A Monolithic Active Cell Balancer with Telemetry Interface
LTC3300-1	RECOMMENDED FOR NEW DESIGNS	High Efficiency Bidirectional Multicell Battery Balancer
Interface Transceivers & Isolators 1
LTC6820	PRODUCTION	isoSPI Isolated Communications Interface

Protection Switches & Controllers 1
LTM9100	PRODUCTION	Anyside^™ High Voltage Isolated Switch Controller with I²C Command and Telemetry

Parts	Product Life Cycle	Description
LTC6811-1	PRODUCTION	12 Channel Multicell Battery Monitor with Daisy Chain Interface, Generation 4

Tools & Simulations

Linduino 6

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

Evaluation Kits

LTC6820 isoSPI Demoboard (DC590B required)

Buy Now View Details

Product Details

Demonstration circuit 1941 is an isoSPI™ transceiver board, based on Linear Technology’s LTC6820. The LTC6820 provides a method of interconnecting standard serial peripheral interface (SPI) devices using a single twisted pair connection. This proprietary 2-wire interface is called isoSPI. The LTC6820 encodes SPI signals, up to 1Mbps, into a differential isoSPI signal which is transmitted via a simple pulse transformer through a twisted pair. At the other end of the twisted pair, the isoSPI signal can be translated back to SPI (using another LTC6820).

Resources

DC1941D - Schematic
6/15/2016

DC1941D - Demo Manual
6/15/2016

DC1941D - Design Files
6/15/2016

LTC6804-1 Demo Board | 12-Channel Battery Stack Monitor with Daisy-chain Interface

Buy Now View Details

Product Details

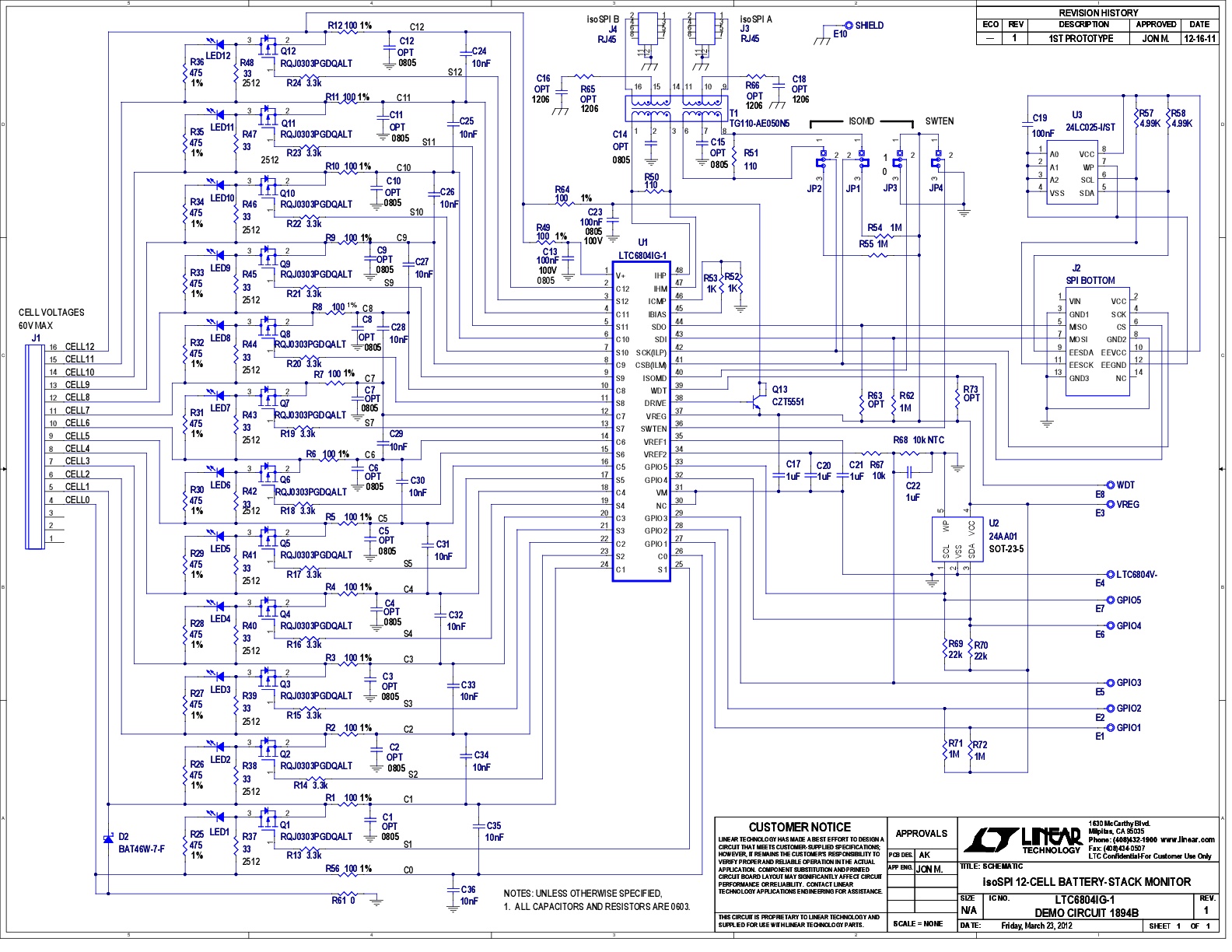

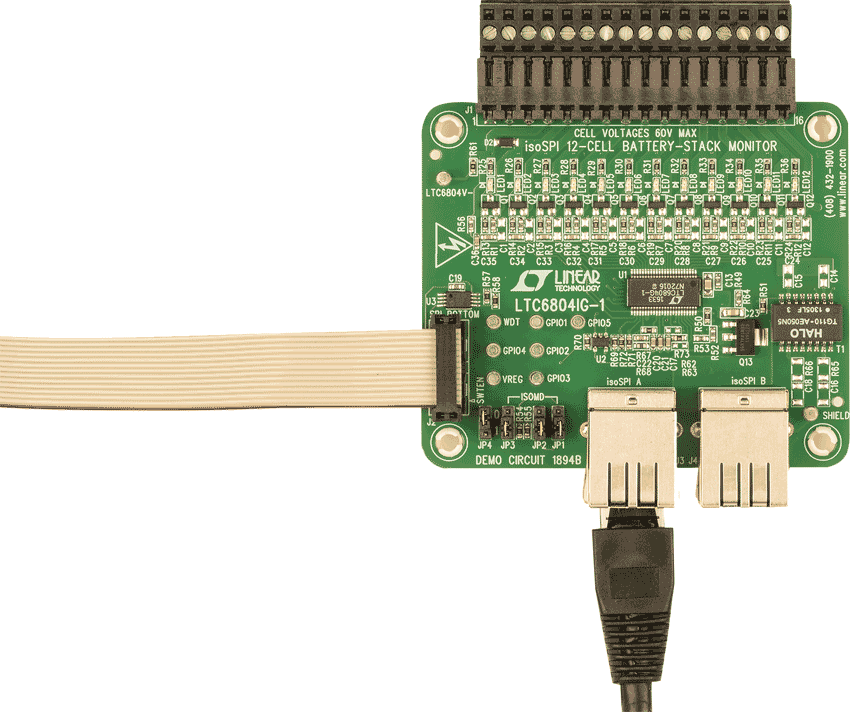

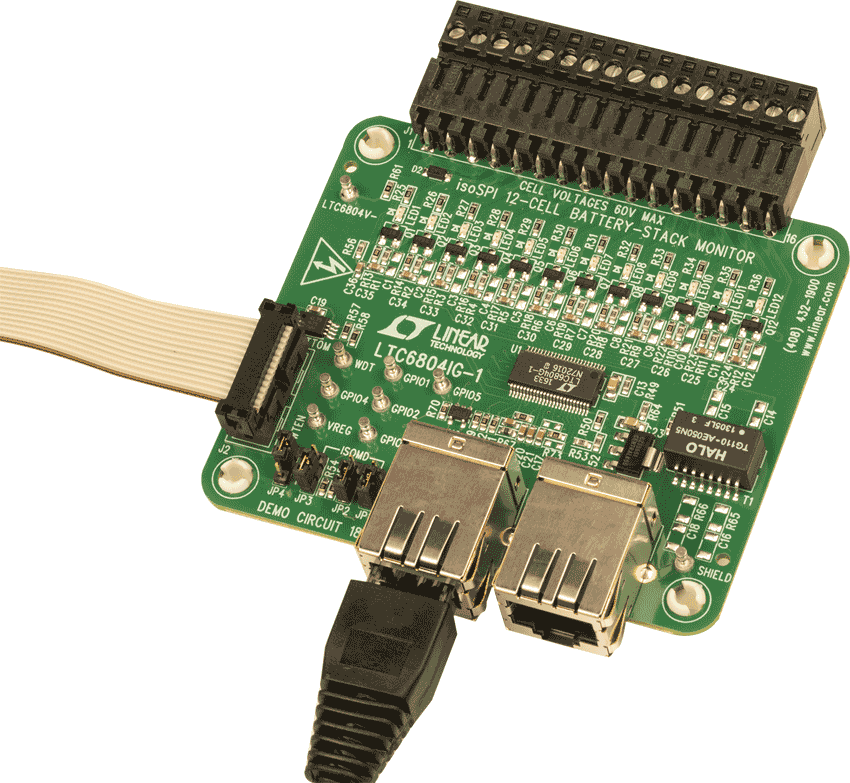

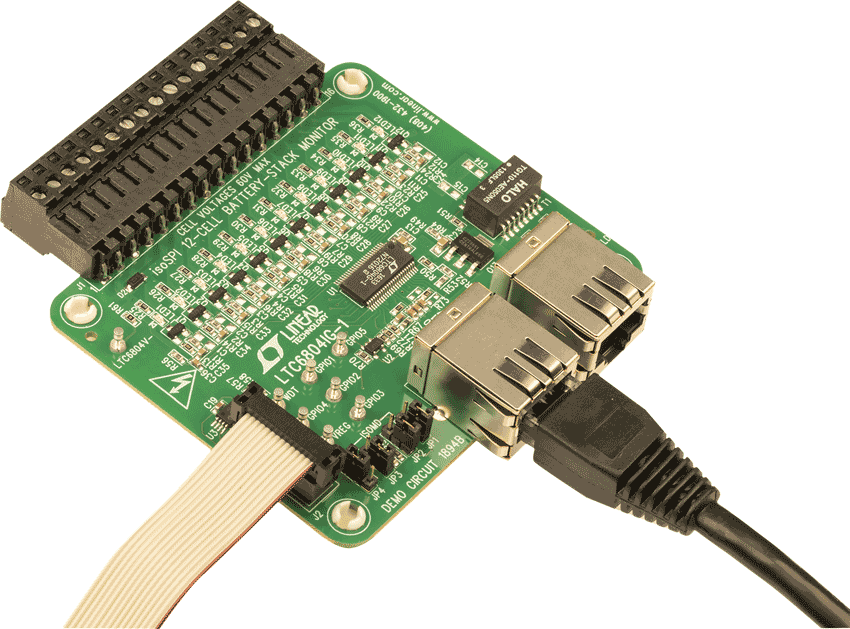

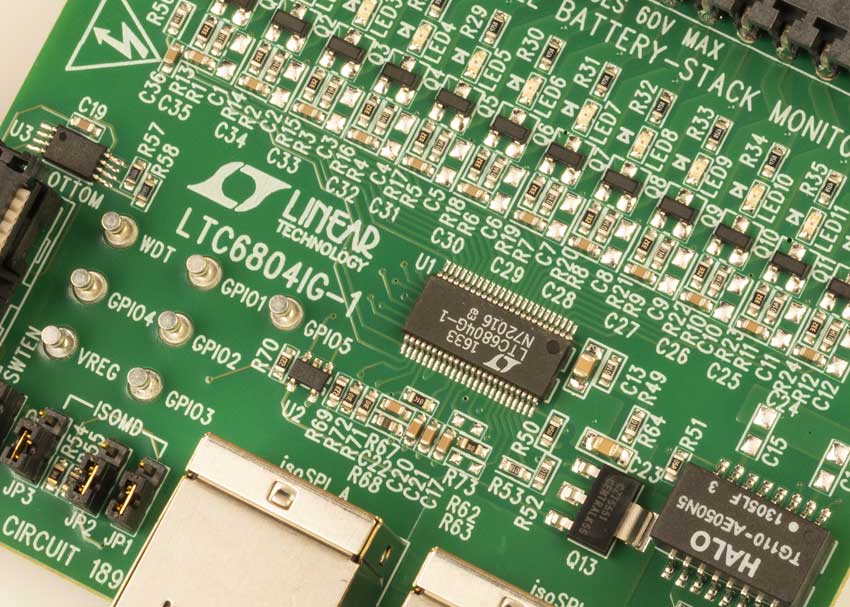

Demonstration circuit 1894B is a daisy-chainable isoSPI battery-stack monitor featuring the LTC6804-1. These boards can be linked through a 2-wire isolated serial interface to monitor any number of cells on a stack.
