LTC6811-1

PRODUCTION

12 Channel Multicell Battery Monitor with Daisy Chain Interface, Generation 4

Data Sheet (Rev. C)
Part Models
8
1ku List Price
Starting From $9.72
Viewing:

Part Details

  • Pin-Compatible Upgrade from the LTC6804
  • Measures Up to 12 Battery Cells in Series
  • 1.2mV Maximum Total Measurement Error
  • Stackable Architecture for High Voltage Systems
  • Built-in isoSPI™ Interface
  • 1Mb Isolated Serial Communications
  • Uses a Single Twisted Pair, up to 100 Meters
  • Low EMI Susceptibility and Emissions
  • 290µs to Measure All Cells in a System
  • Synchronized Voltage and Current Measurement
  • 16-Bit ADC with Programmable Noise Filter
  • Engineered for ISO 26262-Compliant Systems
  • Passive Cell Balancing with Programmable Timer
  • 5 General Purpose Digital I/O or Analog Inputs
  • Temperature or other Sensor Inputs
  • Configurable as an I2C or SPI master
  • 4μA Sleep Mode Supply Current

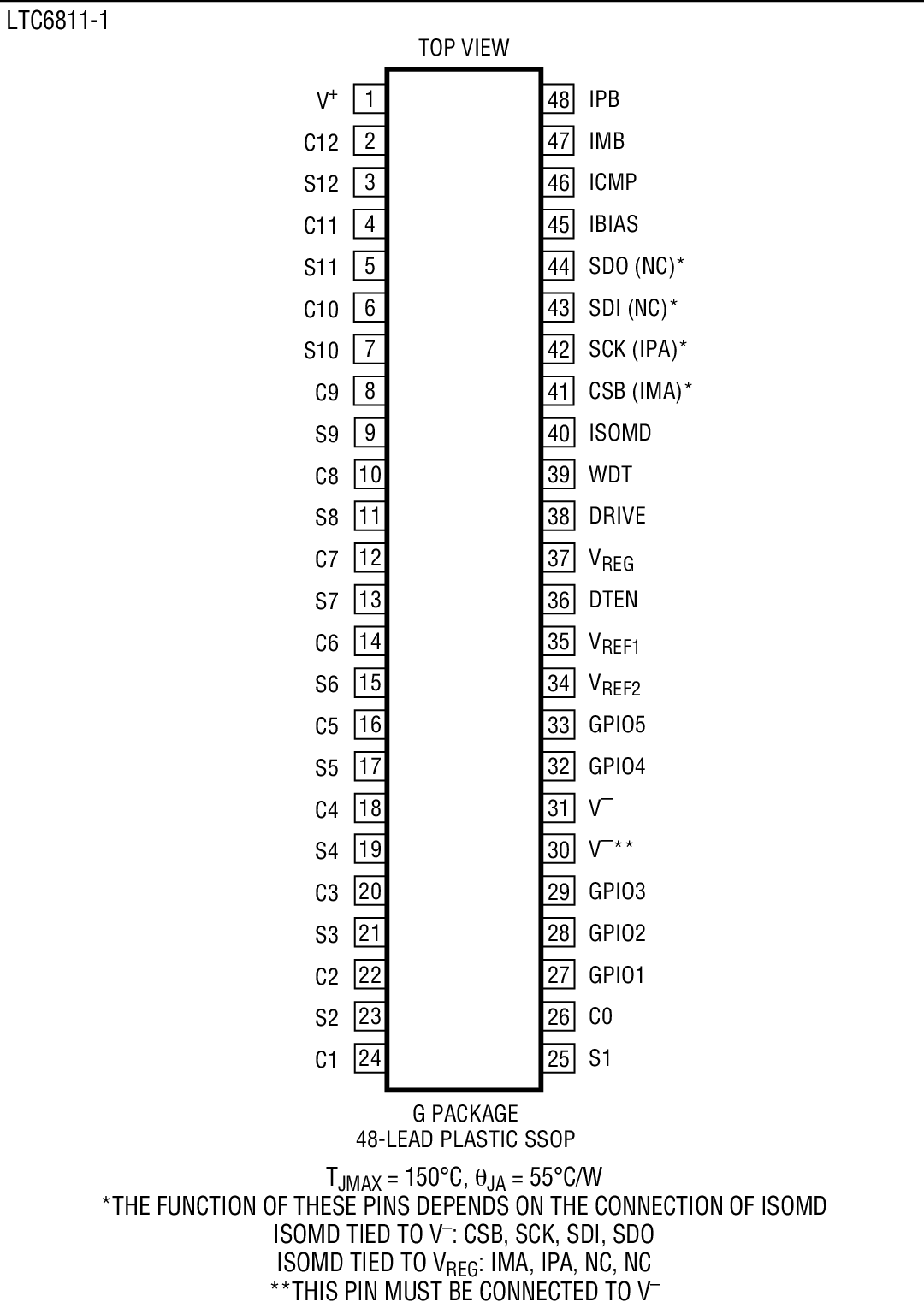

  • 48-Lead SSOP Package
  • AEC-Q100 Qualified for Automotive Applications
LTC6811-1
12 Channel Multicell Battery Monitor with Daisy Chain Interface, Generation 4
Product Package 1 Product Package 2
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 2

Technical Articles 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Digital Temperature Sensors 1
LTC2983
RECOMMENDED FOR NEW DESIGNS Multi-Sensor High Accuracy Digital Temperature Measurement System
Interface Transceivers & Isolators 1
LTC6820
PRODUCTION isoSPI Isolated Communications Interface
Switching Regulators & Controllers 1
LTM9100
PRODUCTION Anyside™ High Voltage Isolated Switch Controller with I2C Command and Telemetry
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

Linduino 1

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
DC2259A

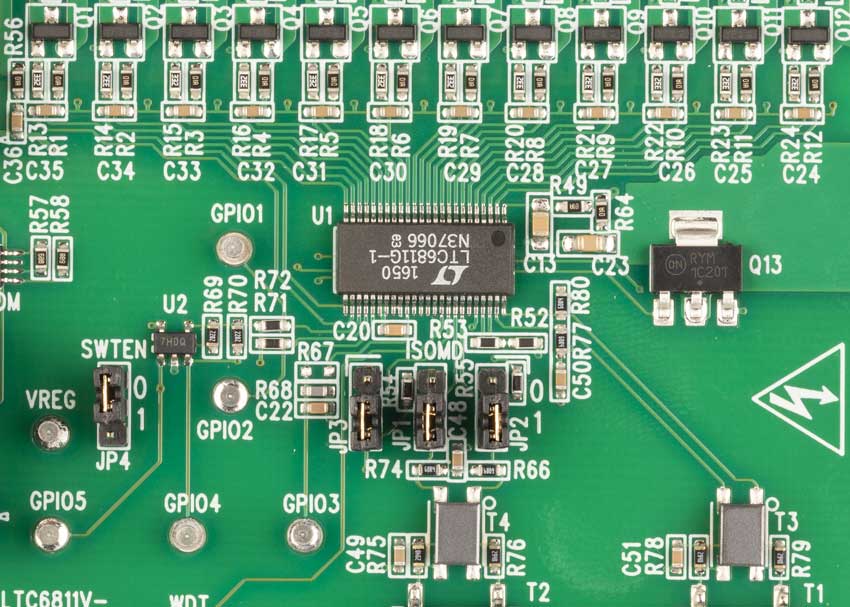

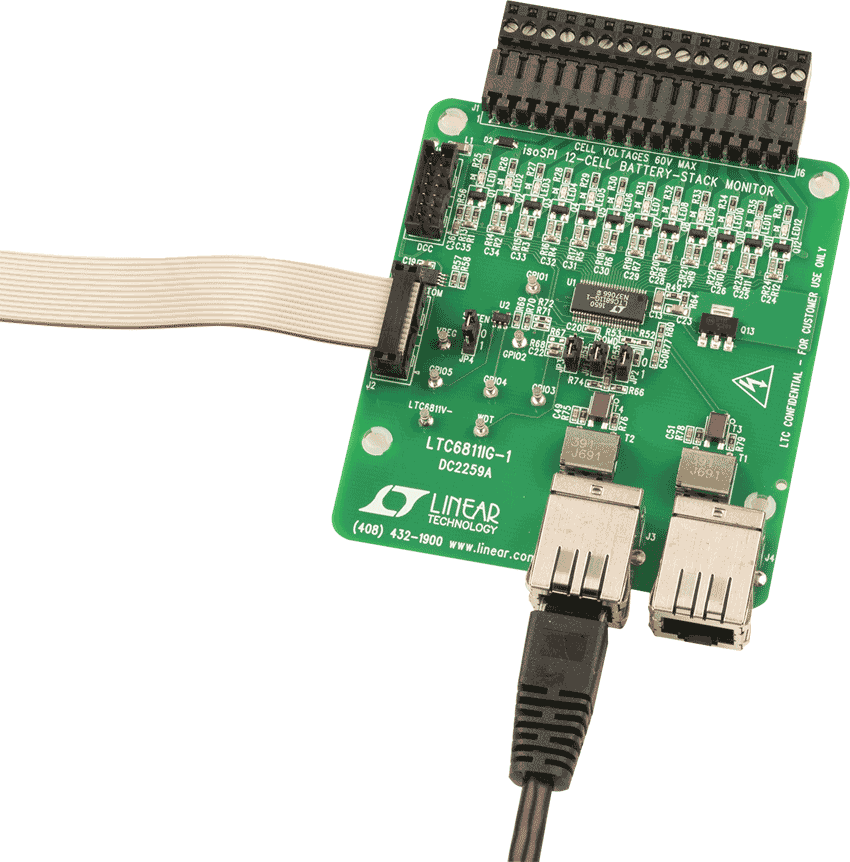

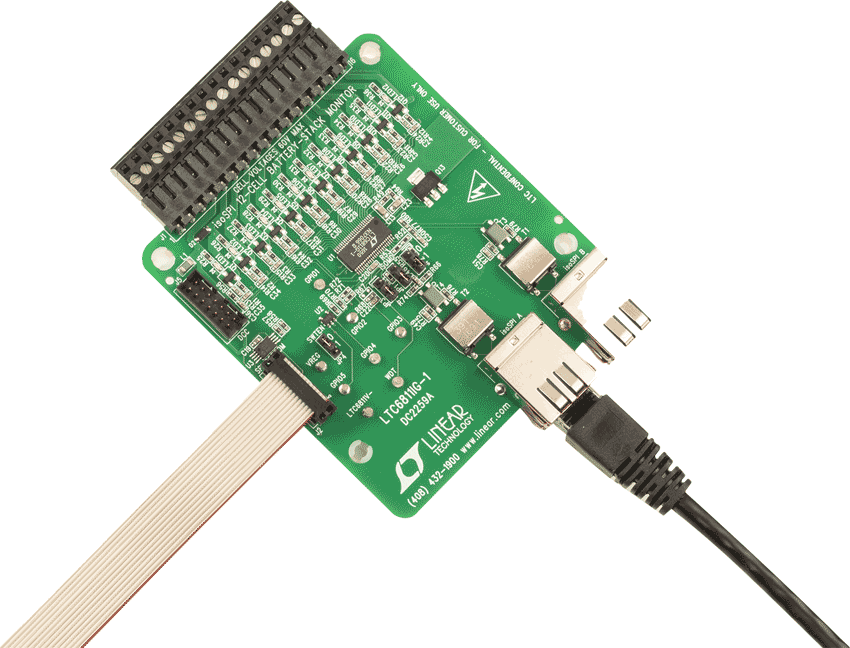

LTC6811-1 Demo Board | 12-Channel Battery Stack Monitor with Daisy-chain Interface

Buy Now View Details

Product Details

Demonstration circuit 2259A is a Daisy Chain isoSPI Battery-Stack Monitor featuring the LTC6811-1. Multiple boards can be linked through a 2-wire isolated serial interface to monitor any number of cells on a stack.

eval board
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
DC1941D

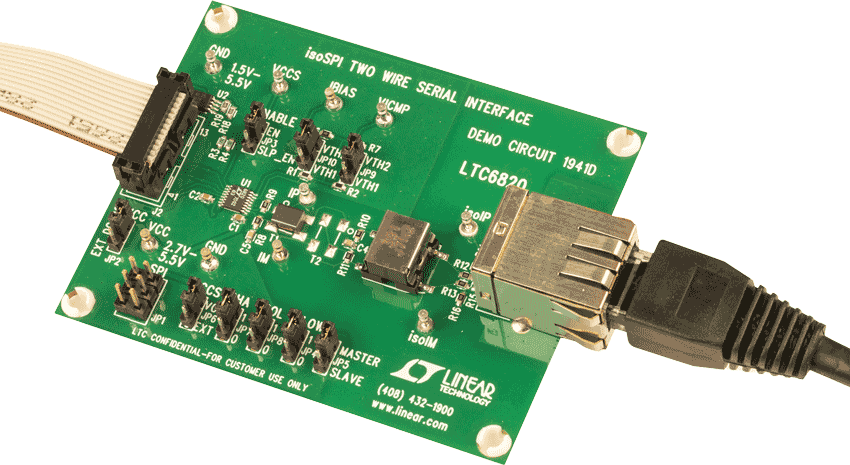

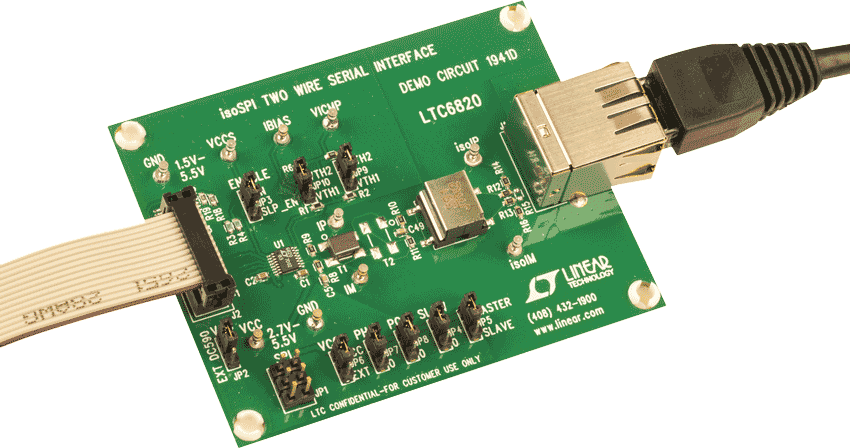

LTC6820 isoSPI Demoboard (DC590B required)

Buy Now View Details

Product Details

Demonstration circuit 1941 is an isoSPI™ transceiver board, based on Linear Technology’s LTC6820. The LTC6820 provides a method of interconnecting standard serial peripheral interface (SPI) devices using a single twisted pair connection. This proprietary 2-wire interface is called isoSPI. The LTC6820 encodes SPI signals, up to 1Mbps, into a differential isoSPI signal which is transmitted via a simple pulse transformer through a twisted pair. At the other end of the twisted pair, the isoSPI signal can be translated back to SPI (using another LTC6820).



DC2259A
LTC6811-1 Demo Board | 12-Channel Battery Stack Monitor with Daisy-chain Interface

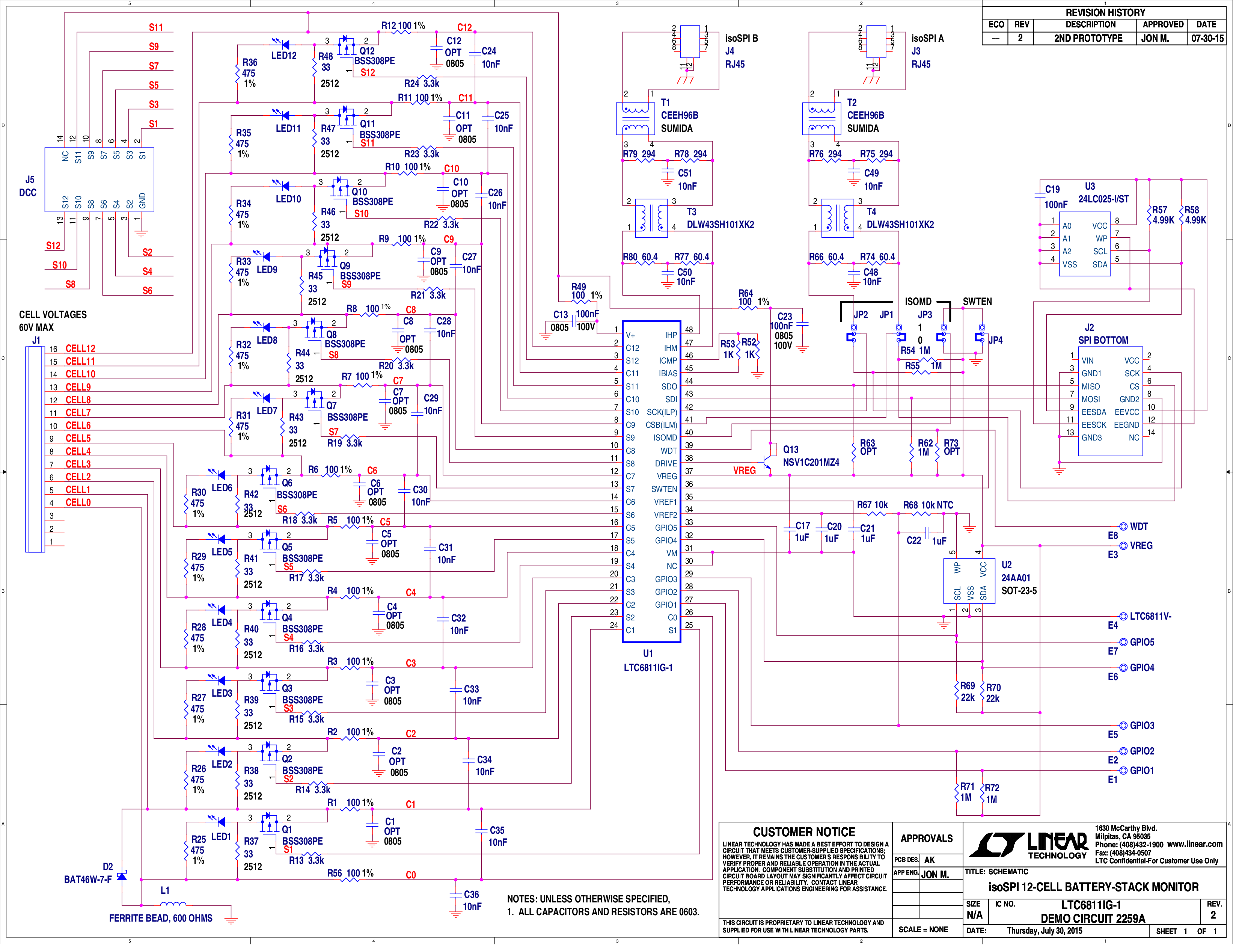

DC2259A Demo Board DC2259A Demo Board DC2259A Demo Board DC2259A Demo Board DC2259A - Schematic

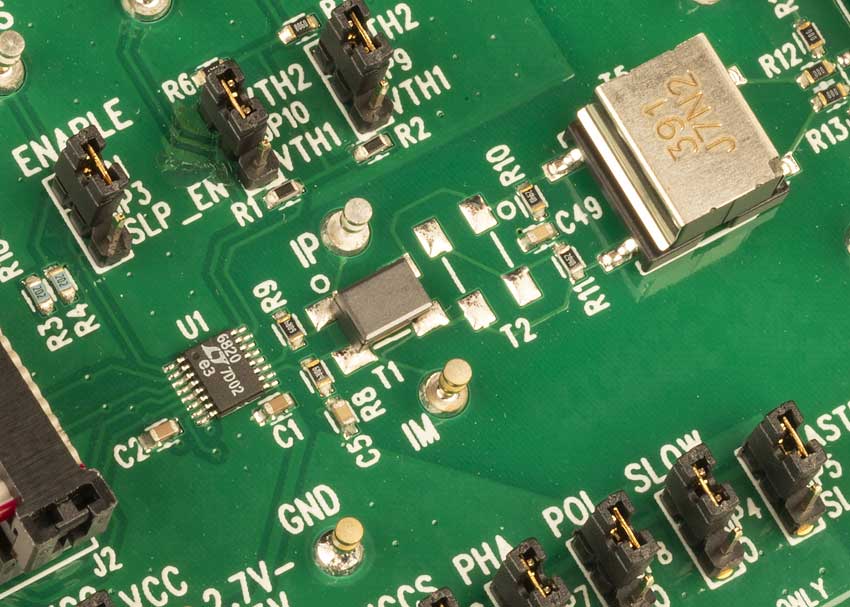

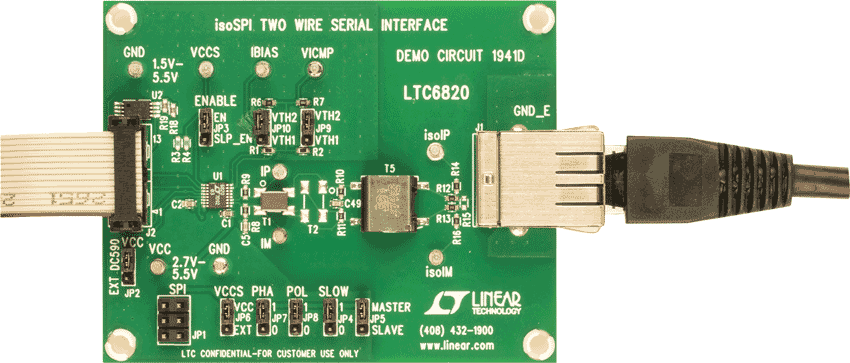

DC1941D
LTC6820 isoSPI Demoboard (DC590B required)

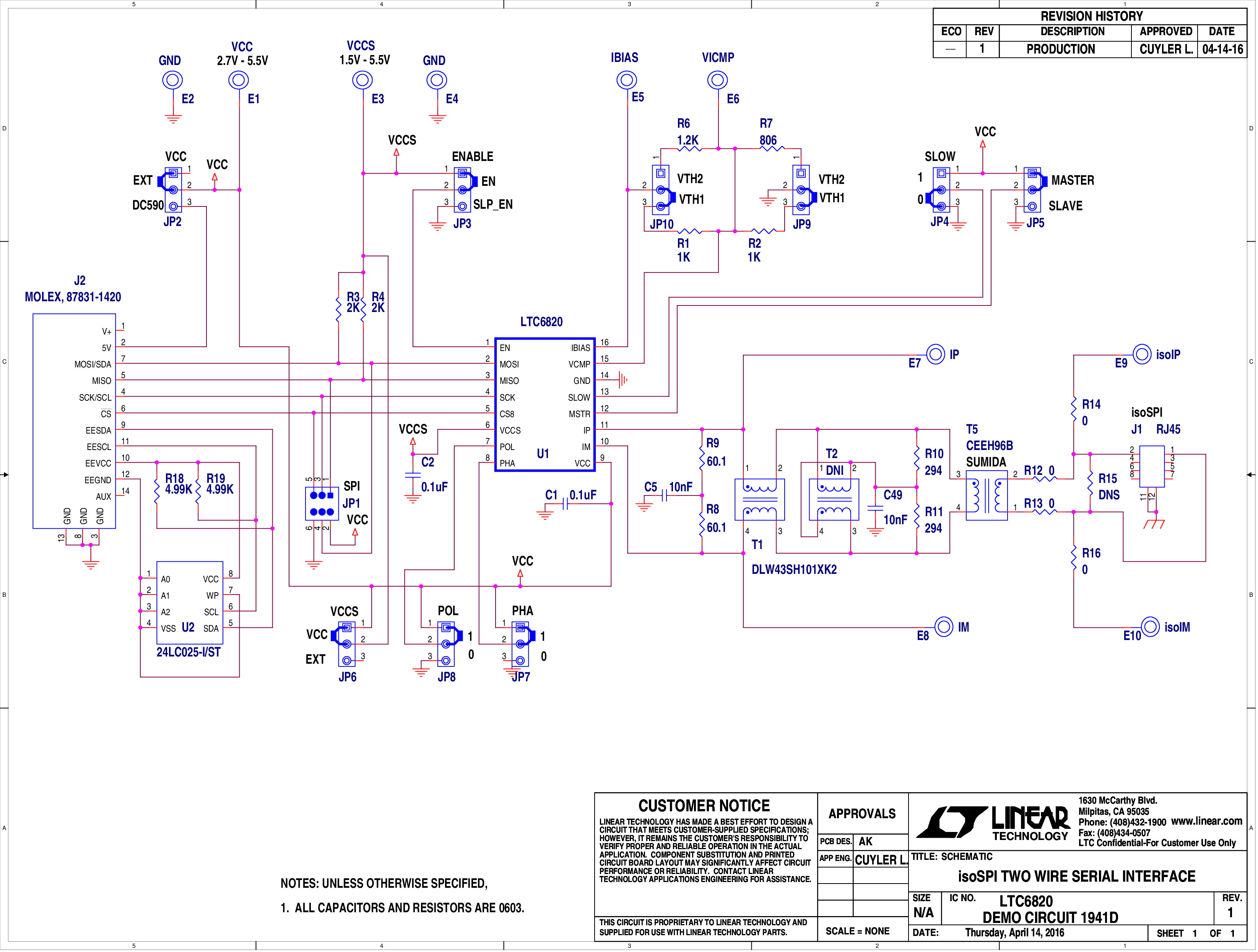

DC1941D Demo Board DC1941D Demo Board DC1941D Demo Board DC1941D Demo Board DC1941D - Schematic
