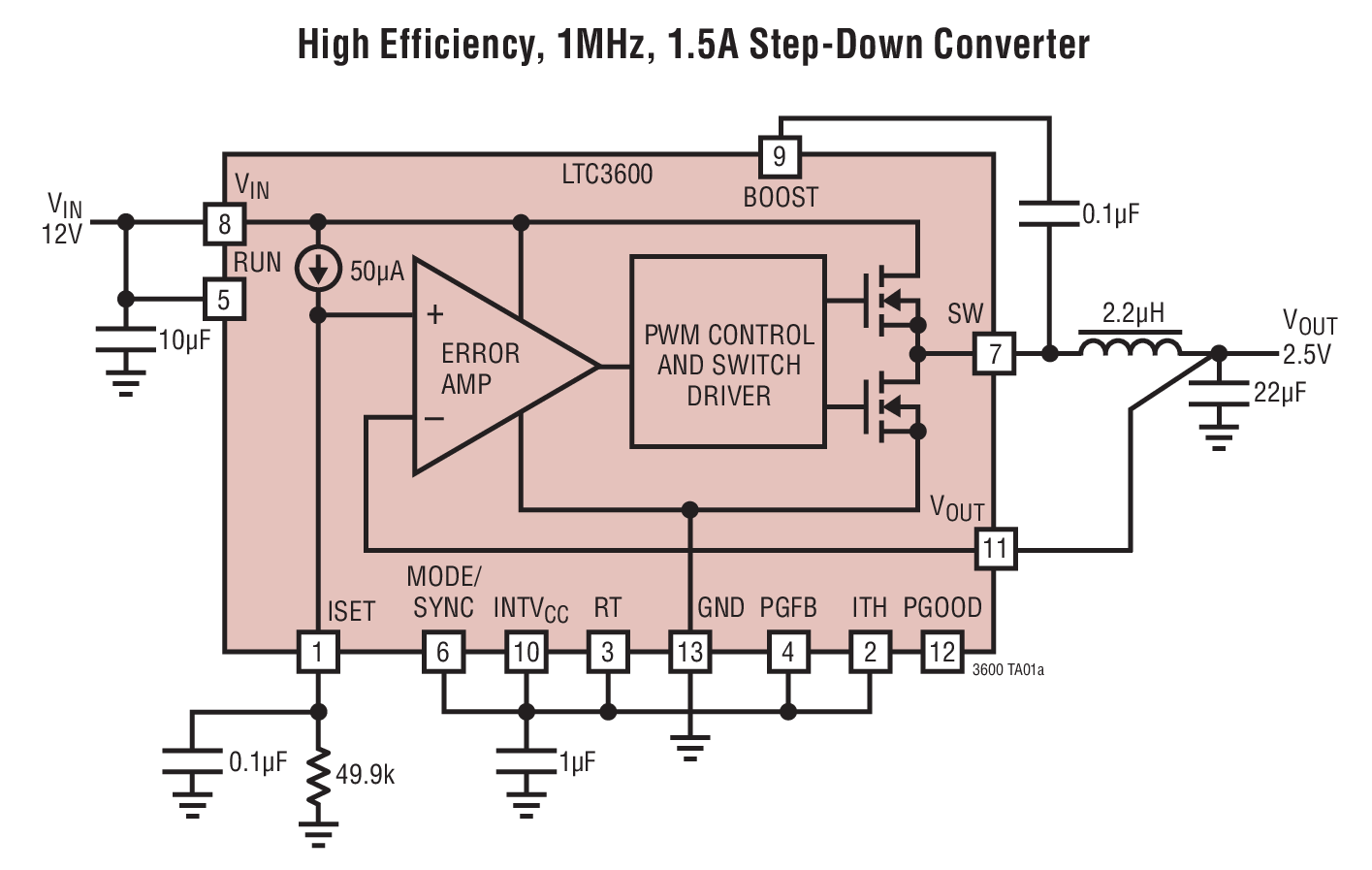

LTC3600

RECOMMENDED FOR NEW DESIGNS

15V, 1.5A Synchronous Rail-to-Rail Single Resistor Step-Down Regulator

Data Sheet Product Selection Table

Part Models: 8
1ku List Price: Starting From $3.37

Viewing:

Part Details

Single Resistor Programmable V_OUT
±1% I_SET Accuracy
Tight V_OUT Regulation Independent of V_OUT Voltage
Easy to Parallel for Higher Current and Heat Spreading
Wide V_OUT Range 0V to V_IN – 0.5V

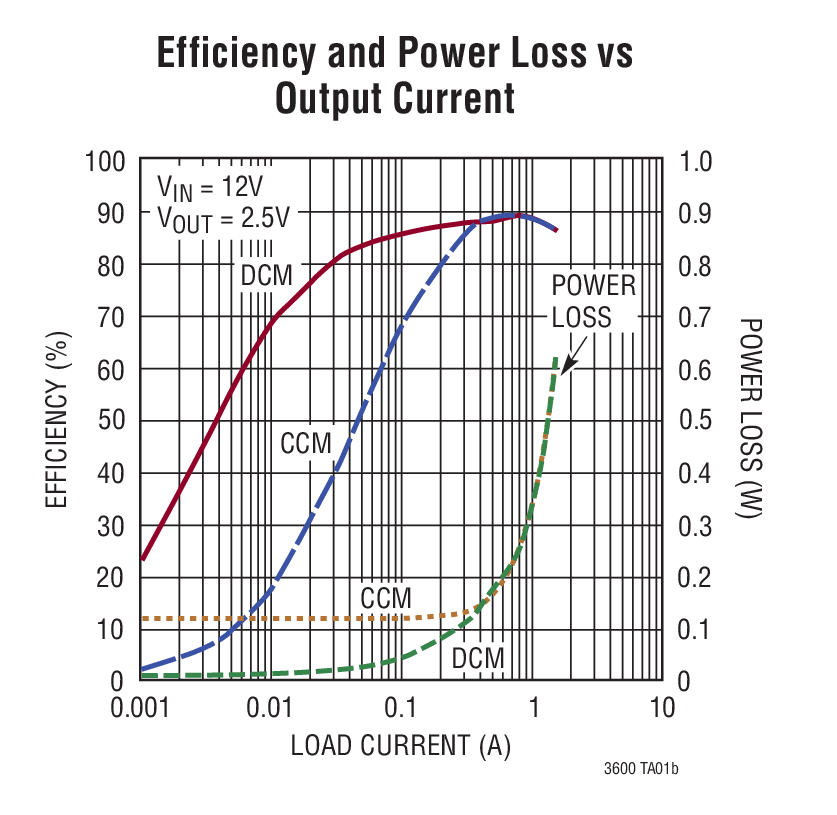

High Efficiency: Up to 96%
1.5A Output Current
Adjustable Frequency: 200kHz to 4MHz
4V to 15V V_IN Range
Current Mode Operation for Excellent Line and Load Transient Response
Zero Supply Current in Shutdown

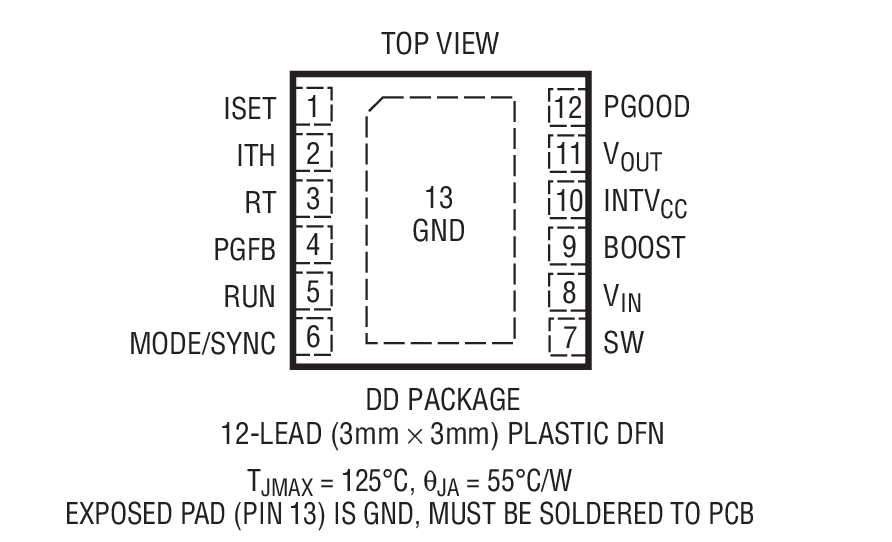

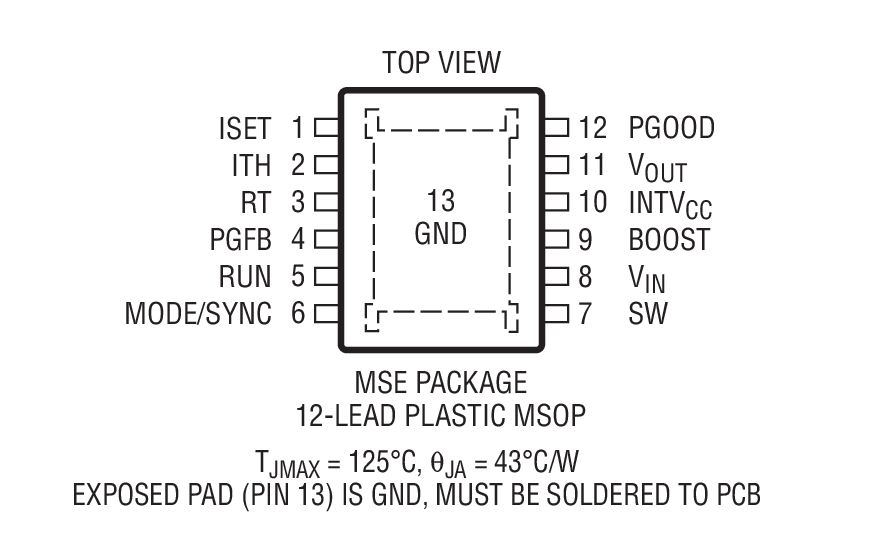

Available in Thermally Enhanced 12-Pin (3mm × 3mm) DFN and MSOP Packages

Part Models: 8
1ku List Price: Starting From $3.37

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3600EDD#PBF	12-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600EDD#TRPBF	12-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600EMSE#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600EMSE#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600IDD#PBF	12-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600IDD#TRPBF	12-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600IMSE#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3600IMSE#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2020 - 20_0129 Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0129_Form Material_Report
LTC3600EMSE#PBF	PRODUCTION
LTC3600EMSE#TRPBF	PRODUCTION
LTC3600IMSE#PBF	PRODUCTION
LTC3600IMSE#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Analog-to-Digital Converters (ADCs) 1
LTC2990	RECOMMENDED FOR NEW DESIGNS	Quad I²C Voltage, Current and Temperature Monitor
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit

Parts	Product Life Cycle	Description
LTC3623	RECOMMENDED FOR NEW DESIGNS	15V, ±5A Rail-to-Rail Synchronous Buck Regulator

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTC3600

LTpowerCAD 1

LTC3600 Project - 15V, 1.5A Rail-to-Rail Buck Regulator (4.5-12V to 1.8V @ 1.5A)

Design tools for the following parts are available in LTpowerCAD:

LTC3600

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

LTC3600EDD Demo Board | 4.5V to 15V Input, Adjustable Output with 1.5A IOUT

Buy Now View Details

Product Details

Demonstration circuit DC1667A is a step-down DC/DC converter using LTC3600 monolithic synchronous buck regulator. DC1667A has an input voltage range of 4.5V to 15V, and is capable of delivering up to 1.5A of output current. The output voltage of the DC1667 can be set by a single resistor from 0V to (V_IN – 0.5)V. At light load conditions, DC1667 can operate in discontinuous mode to improve the efficiency.

Resources

DC1667A - Demo Manual
12/1/2014

DC1667A - Design Files
12/21/2011

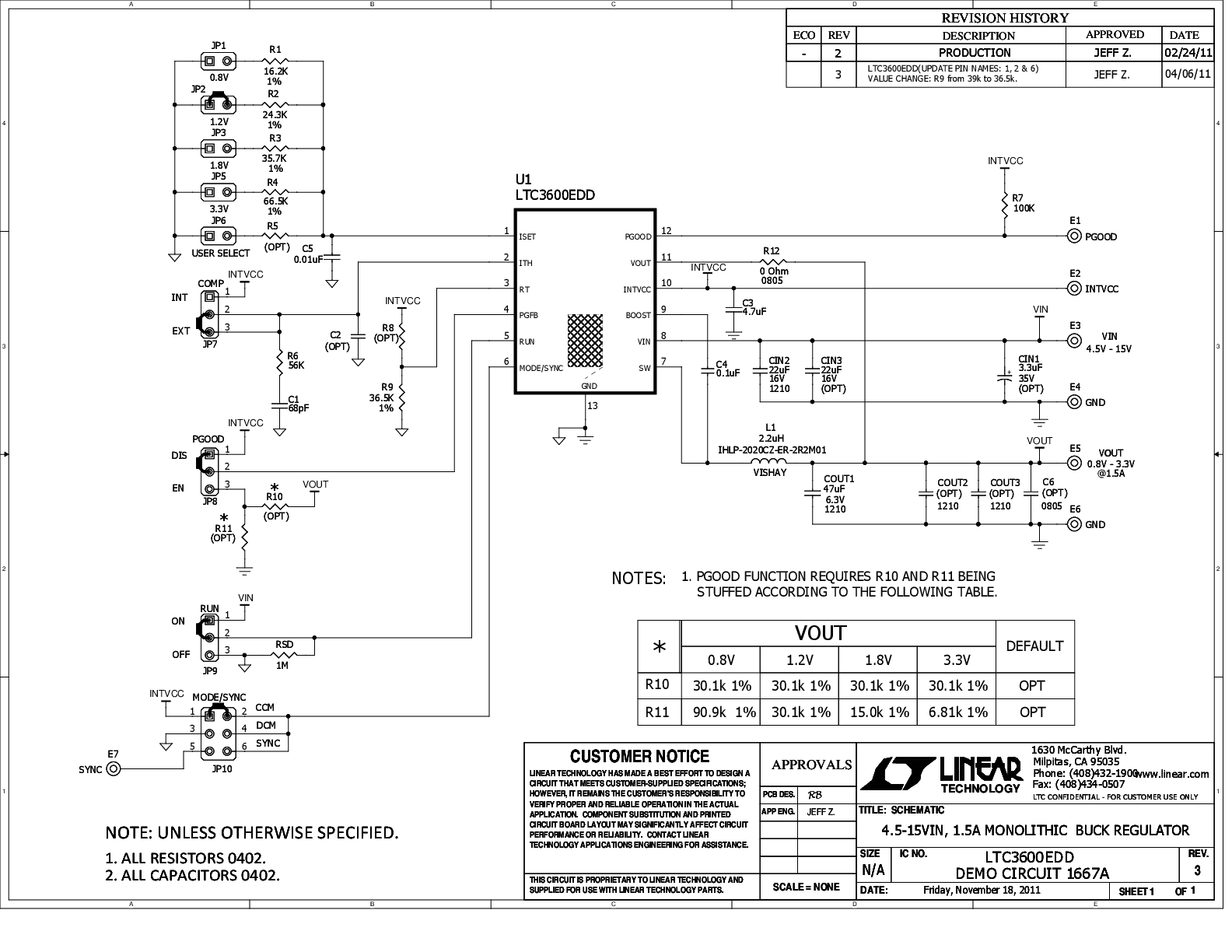

DC1667A - Schematic
12/21/2011

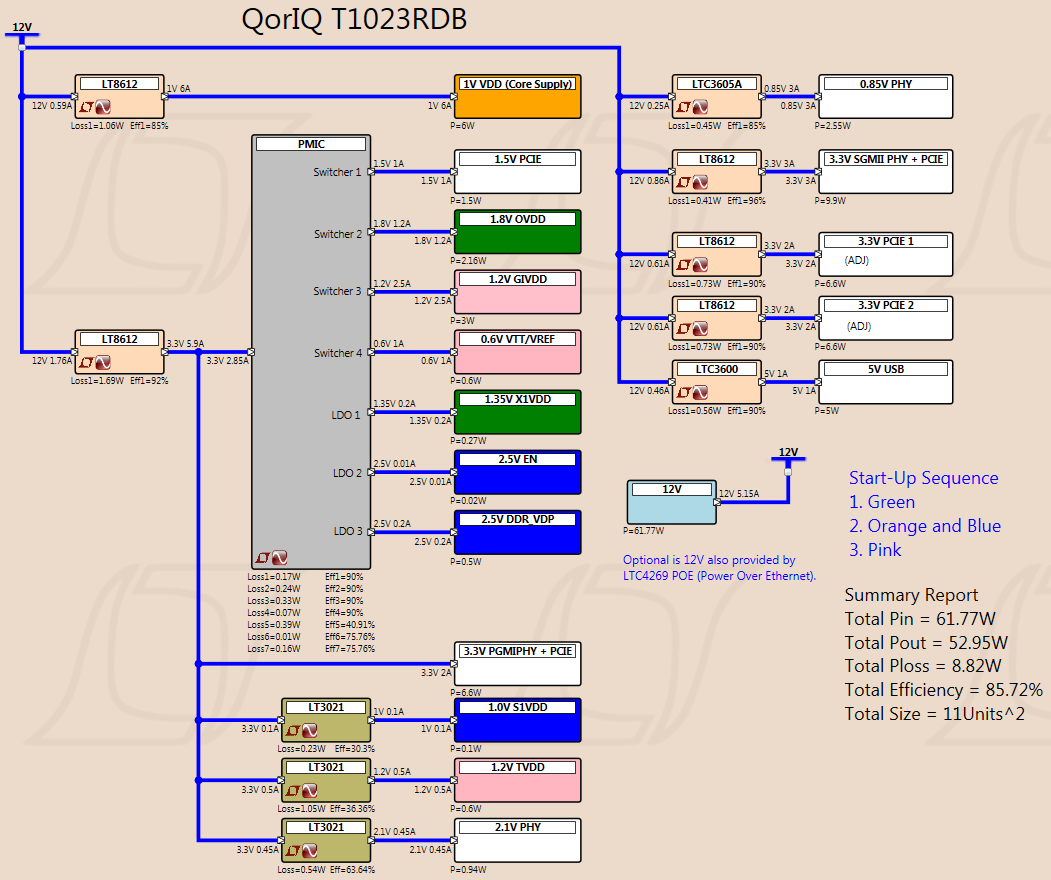

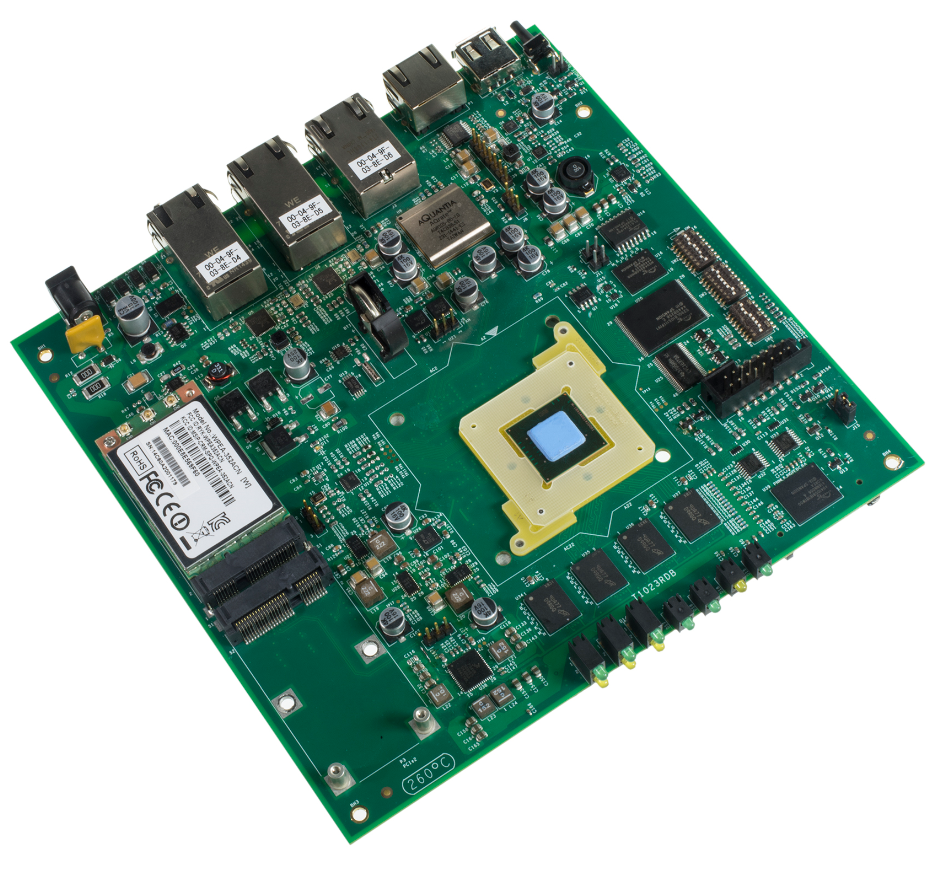

Reference Designs

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

LTC3600

LTC3605A

LT8612

LT3021
LT3021-1.2
LT3021-1.5
LT3021-1.8

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

LTC3026-1

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

LT3080

LTC3026

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

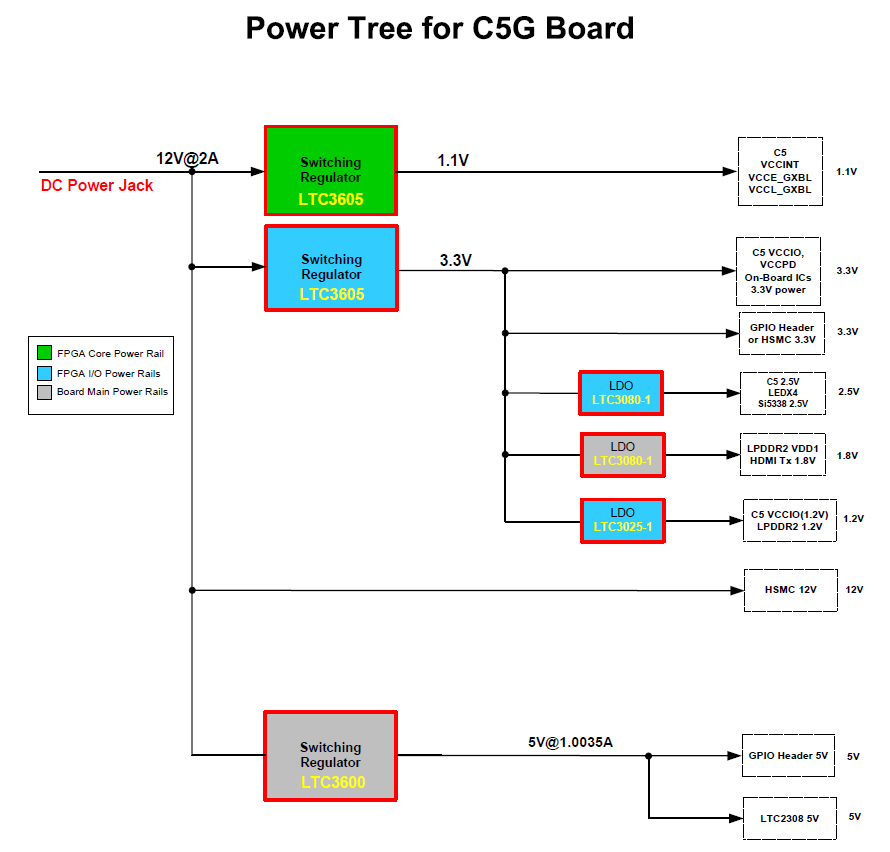

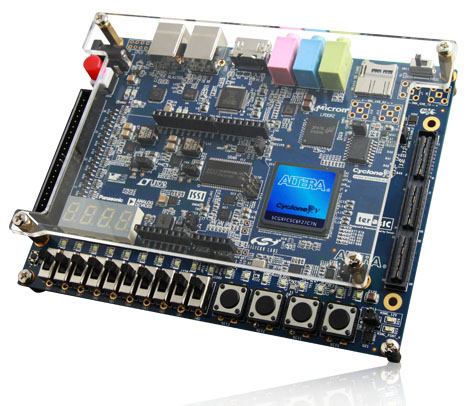

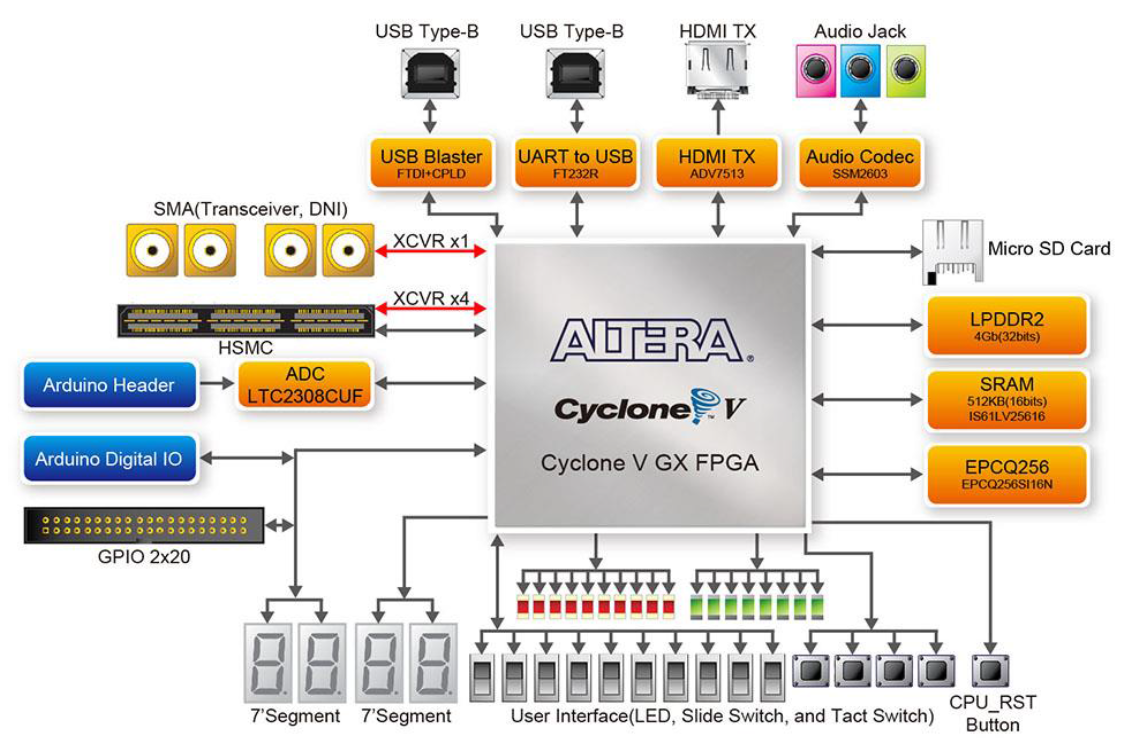

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

LTC2308

LTC3600

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

LT3080-1

LTC3605
