LT3029

RECOMMENDED FOR NEW DESIGNS

Dual 500mA/500mA Low Dropout, Low Noise, Micropower Linear Regulator

Part Models
14
1ku List Price
Starting From $3.45

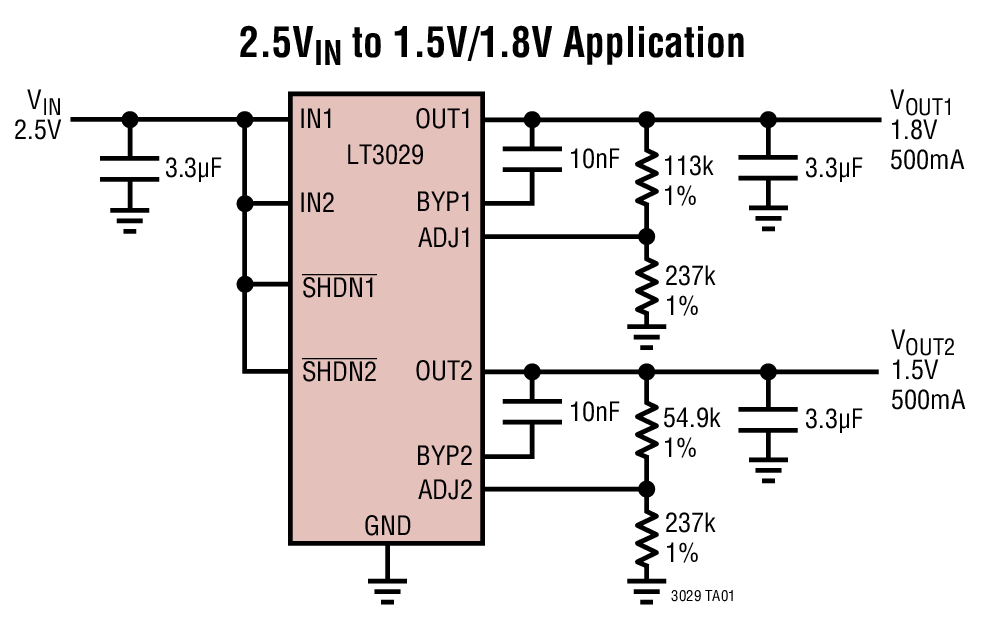

Part Details

  • Output Current: 500mA per Channel

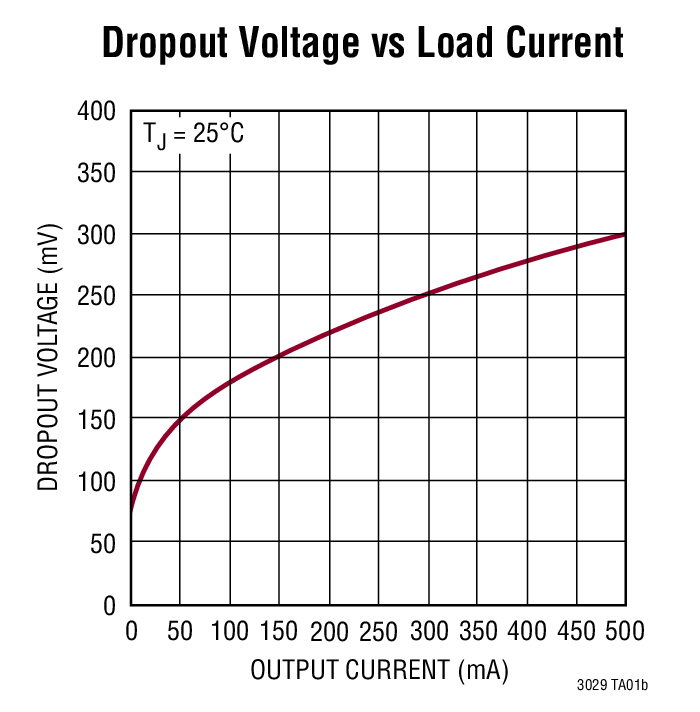

  • Low Dropout Voltage: 300mV
  • Low Noise: 20μVRMS (10Hz to 100kHz)
  • Low Quiescent Current: 55μA per Channel
  • Wide Input Voltage Range: 1.8V to 20V (Common or Independent Input Supply)
  • Adjustable Output: 1.215V Reference Voltage
  • Very Low Quiescent Current in Shutdown: <1μA per Channel
  • Stable with 3.3μF Minimum Output Capacitor
  • Stable with Ceramic, Tantalum or Aluminum Electrolytic Capacitors
  • Reverse-Battery and Reverse Output-to-Input Protection
  • Current Limit with Foldback and Thermal Shutdown
  • Tracking/Sequencing Capability: Compatible with LTC292X Power Supply Tracking ICs

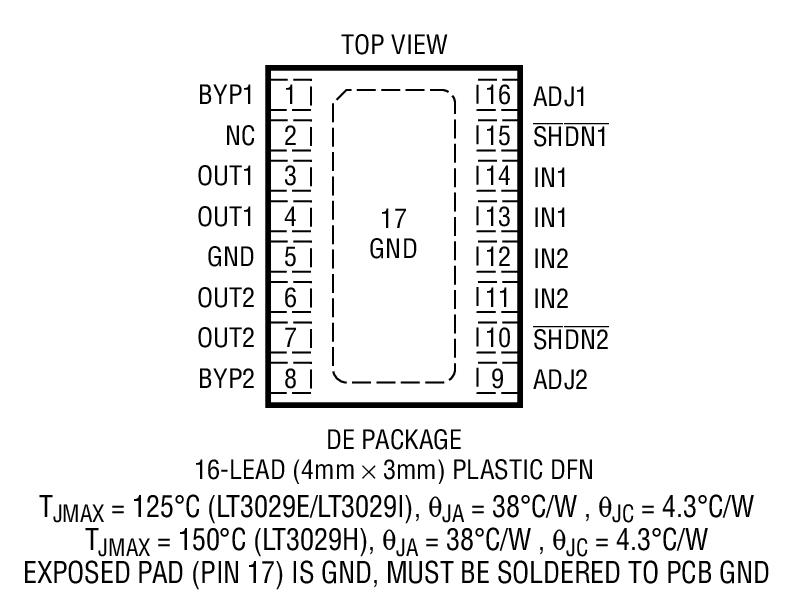

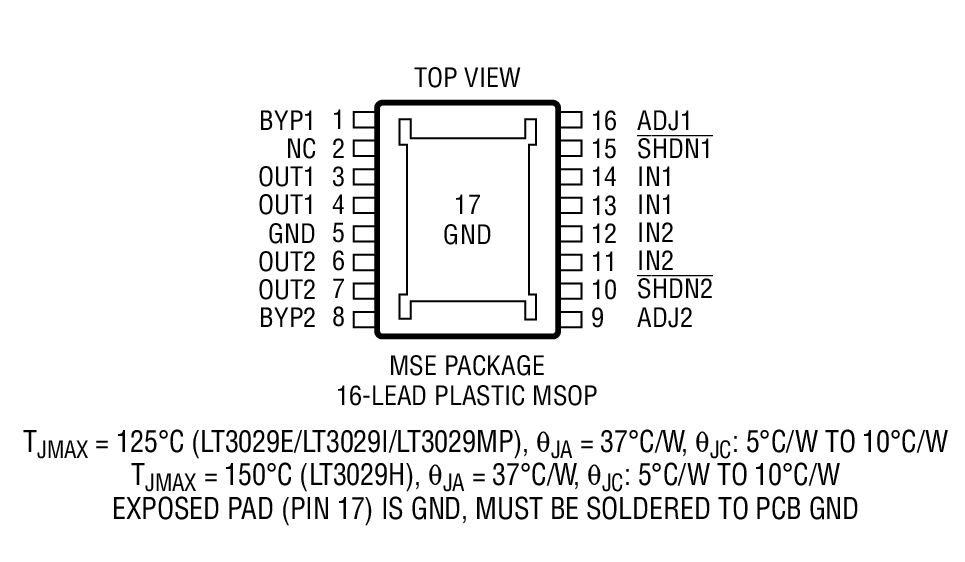

  • Thermally Enhanced 16-Lead MSOP and 16-Lead (4mm × 3mm) DFN Packages
LT3029
Dual 500mA/500mA Low Dropout, Low Noise, Micropower Linear Regulator
Ask a Question

Documentation

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More

Hardware Ecosystem

Parts Product Life Cycle Description
Linear Regulators 1
LT3030 RECOMMENDED FOR NEW DESIGNS Dual 750mA/250mA Low Dropout, Low Noise, Micropower Linear Regulator
Power System Managers & Sequencers 1
LTC2977 RECOMMENDED FOR NEW DESIGNS 8-Channel PMBus Power System Manager Featuring Accurate Output Voltage Measurement
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Evaluation Kits

eval board
DC1408A

LT3029EDE Demo Board | Dual Input, Dual Low Dropout, Low Noise, Micropower Linear Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 1.5V/1.8V/2.5V/3.3V/5V/Adjustable @ 500mA

Product Details

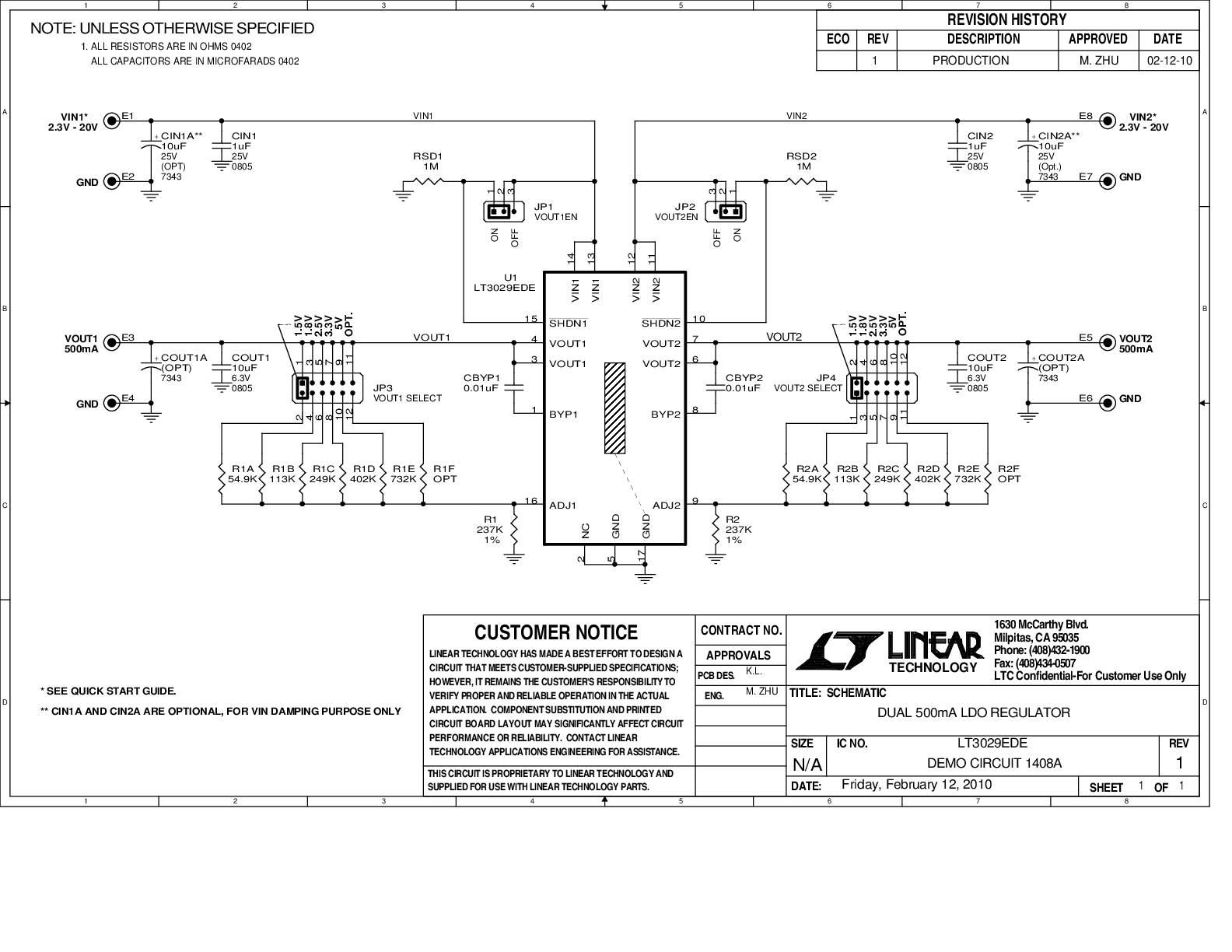

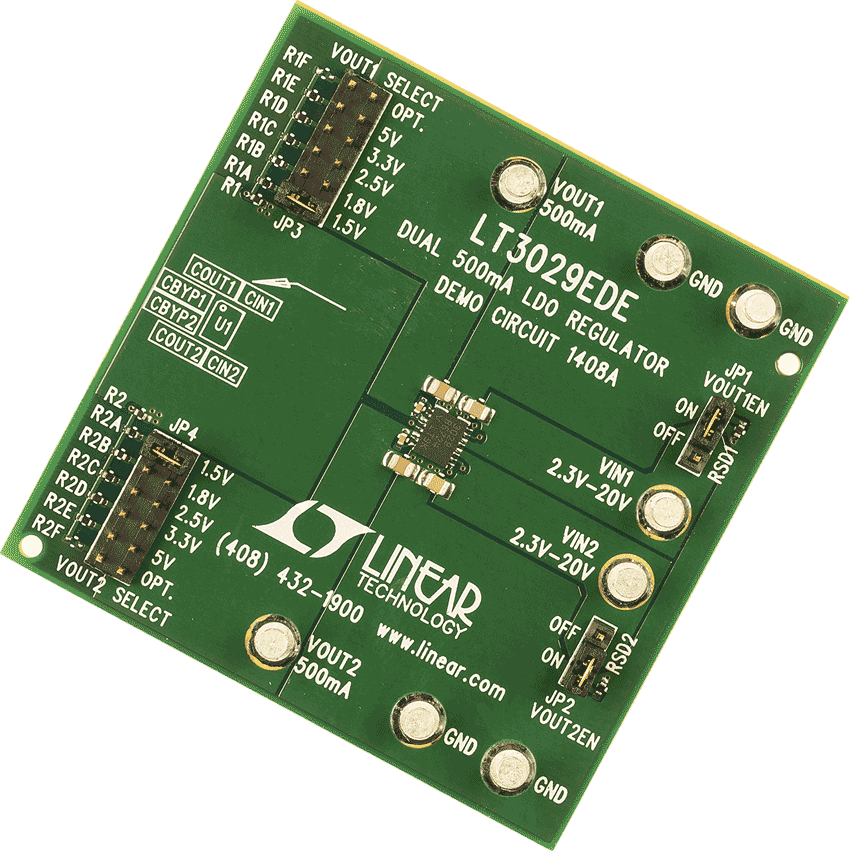

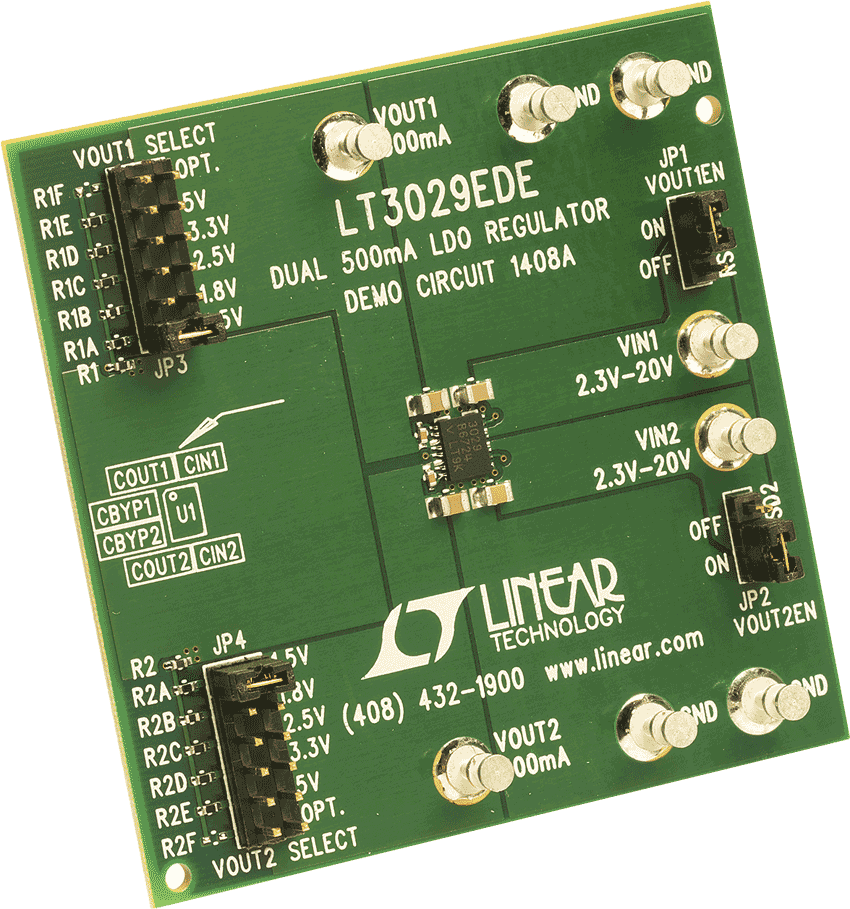

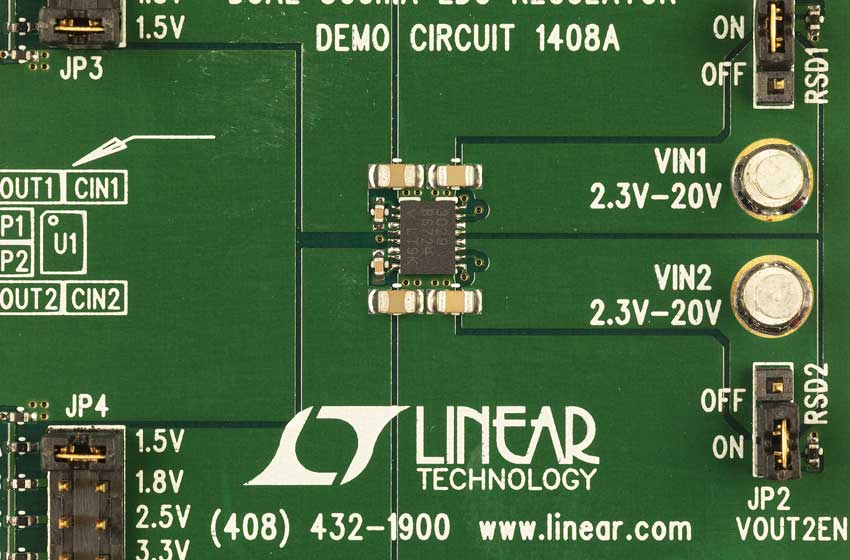

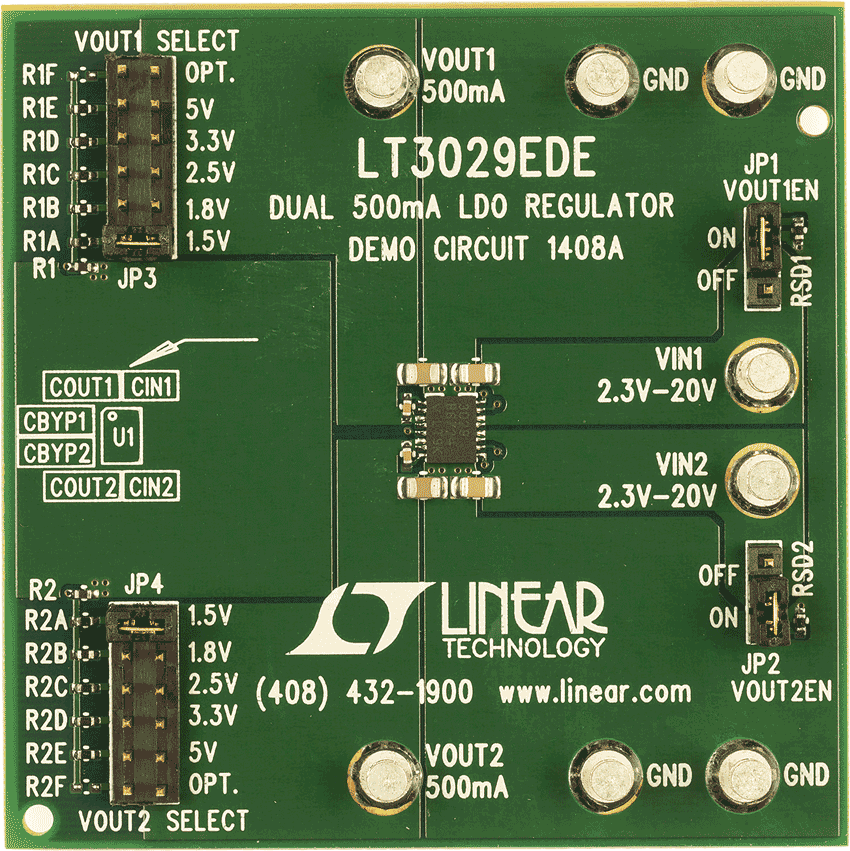

Demonstration circuit 1408 is a dual input, 500mA/500mA linear regulator featuring the LT3029. The LT3029 is a dual, micro-power, low noise and low dropout voltage linear regulator. The device operates either with a common input supply or independent input supplies for each channel, over an input range of 1.8V to 20V; the demo board has a minimum input voltage of 2.3V. Each output supplies up to 500mA of output current with a typical dropout voltage of 300mV. The output voltage is jumper-selectable for each channel and can be set to 1.5V, 1.8V, 2.5V, 3.3V, 5V or a user-defined value.


A 10nF bypass capacitor reduces output noise to 20μVRMS (10Hz to 100kHz bandwidth). The low 55μA quiescent current per channel makes it an idea choice for battery-powered systems. Shutdown control is independent for each channel, allowing flexible power management.



DC1408A
LT3029EDE Demo Board | Dual Input, Dual Low Dropout, Low Noise, Micropower Linear Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 1.5V/1.8V/2.5V/3.3V/5V/Adjustable @ 500mA
