HMC8342

RECOMMENDED FOR NEW DESIGNS

GaAs MMIC ×2 Active Frequency Multiplier, 22 GHz to 42 GHz Output

Data Sheet (Rev. A)

Part Models: 2
1ku List Price: Starting From $83.67

Viewing:

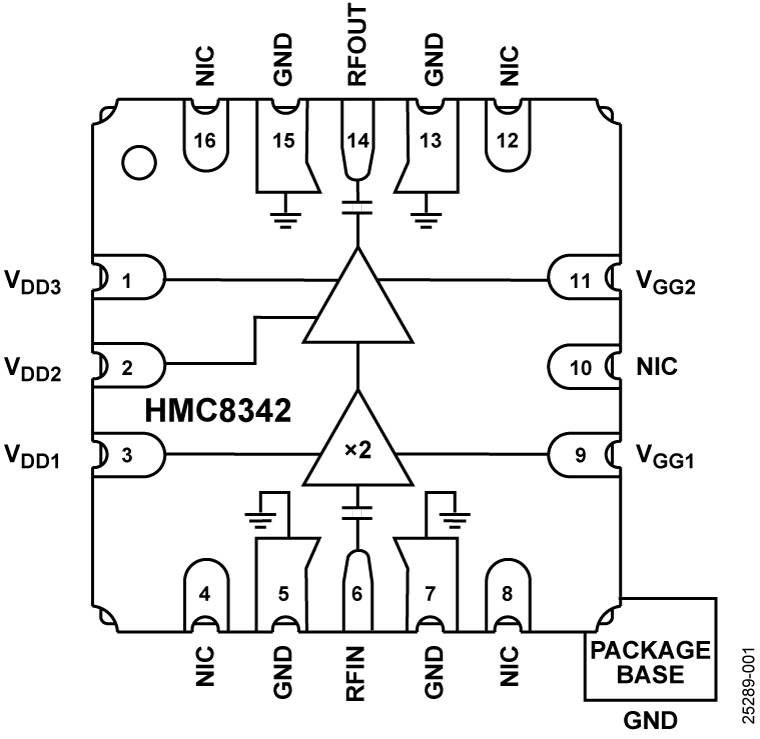

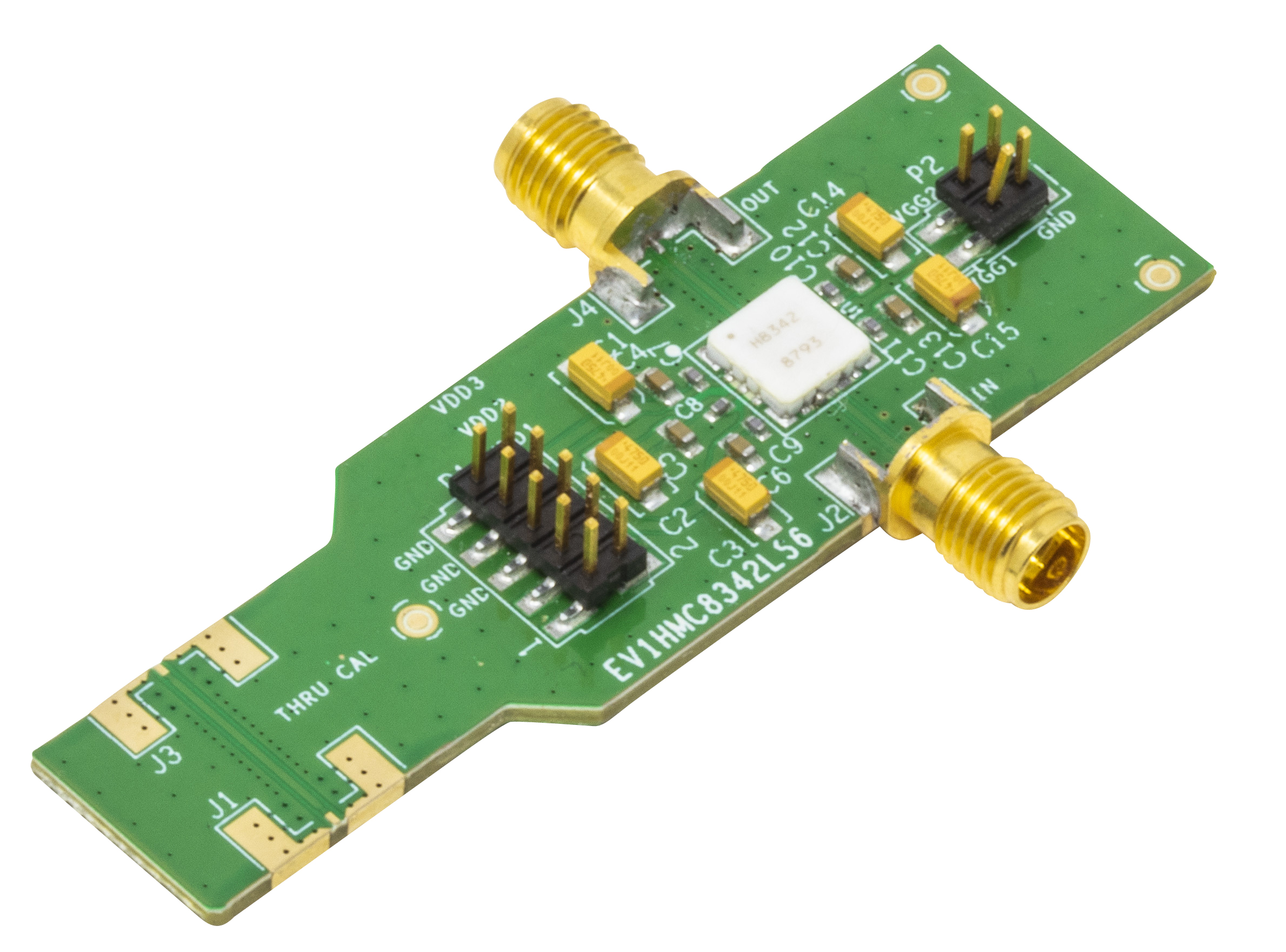

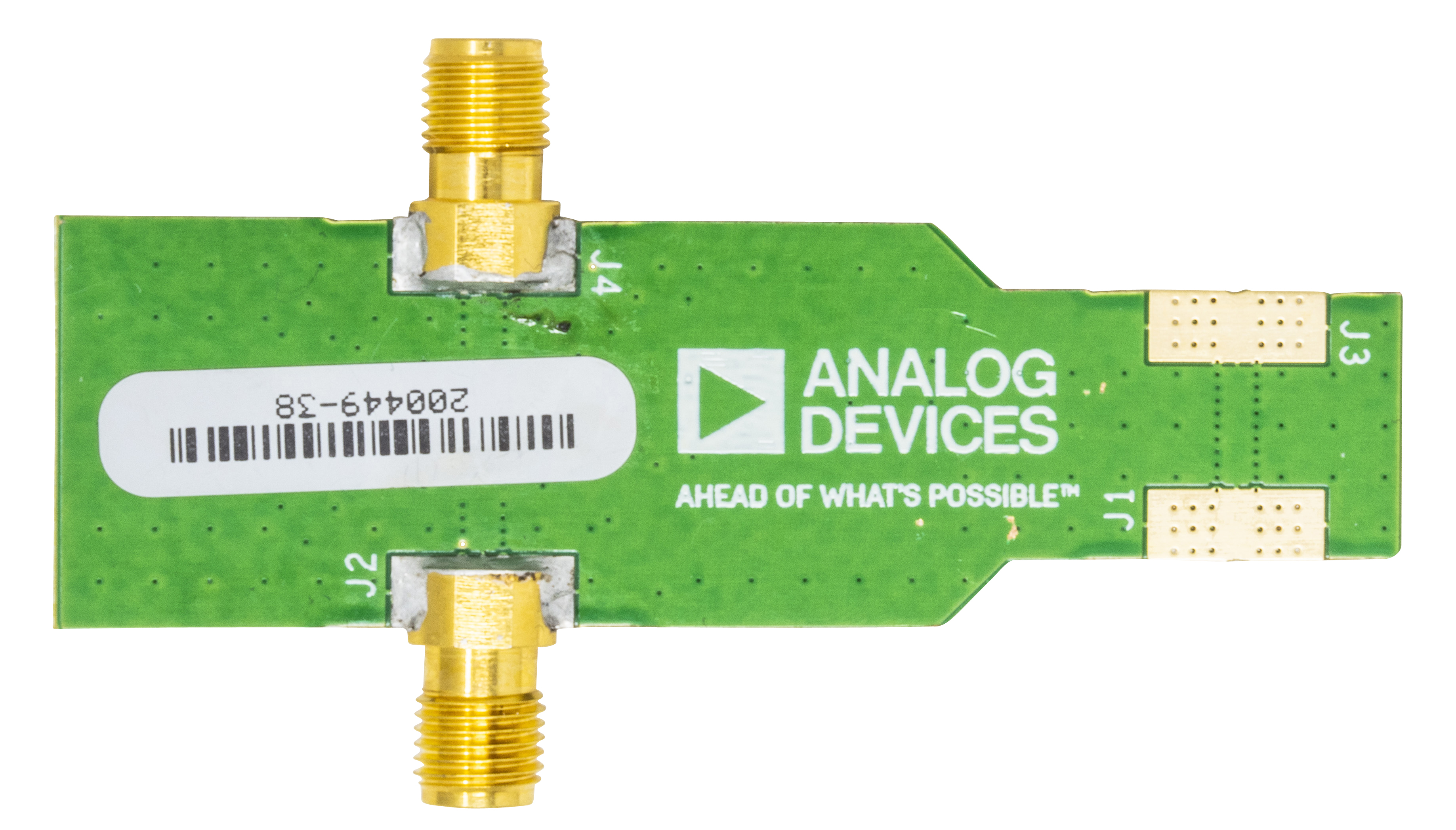

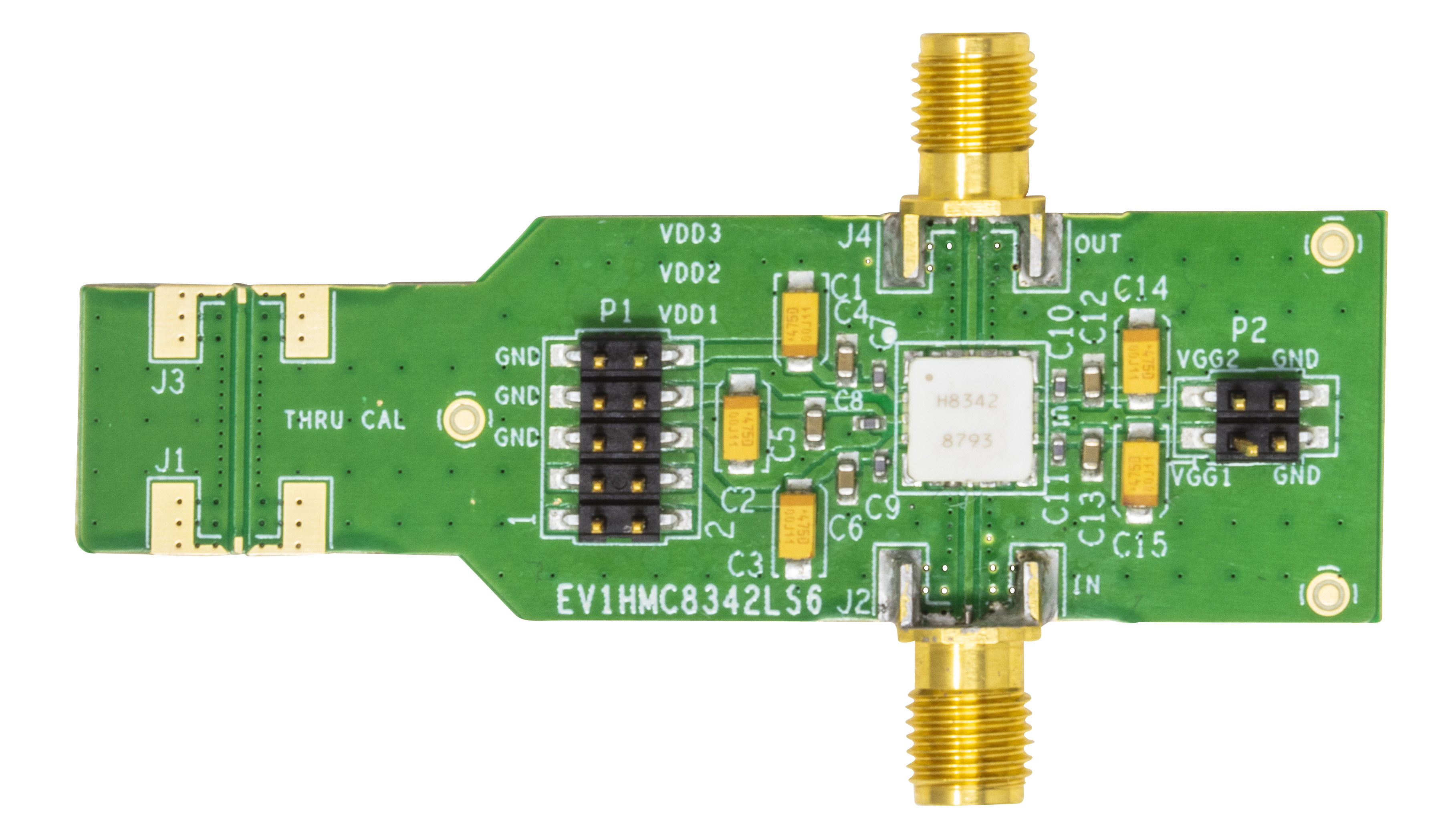

Part Details

High output power: 15 dBm (typical) at RFIN = 16 GHz
Low input power drive: 5 dBm (typical)

Fundamental RF input isolation at RF output: −23 dBc at RFOUT = 30 GHz
16-terminal, 6 mm × 6 mm LCC_HS package, 36 mm²

Part Models: 2
1ku List Price: Starting From $83.67

Documentation

Data Sheet 1

HMC8342: GaAs MMIC ×2 Active Frequency Multiplier, 22 GHz to 42 GHz Output Data Sheet (Rev.A) 06/11/2021

Application Note 2

MMIC Amplifier Biasing Procedure Application Note 11/11/2015

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC8342LS6	16-Lead LCC (6mm x 6mm x 1.32mm w/EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC8342LS6TR	16-Lead LCC (6mm x 6mm x 1.32mm w/EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
