HMC558

Obsolete

HMC558 / HMC558LC3B

GaAs monolithic microwave integrated circuit (MMIC) double-balanced mixer chip and surface mount technology (SMT), 5.5 GHz to 14.0 GHz

Data Sheet

Part Models: 4
1ku List Price: price unavailable

Viewing:

Part Details

High local oscillator (LO) radio frequency (RF) isolation: 45 dBm
Passive double-balanced topology
Low conversion loss: 7 dB
Wide intermediate frequency (IF) bandwidth: dc to 6 GHz

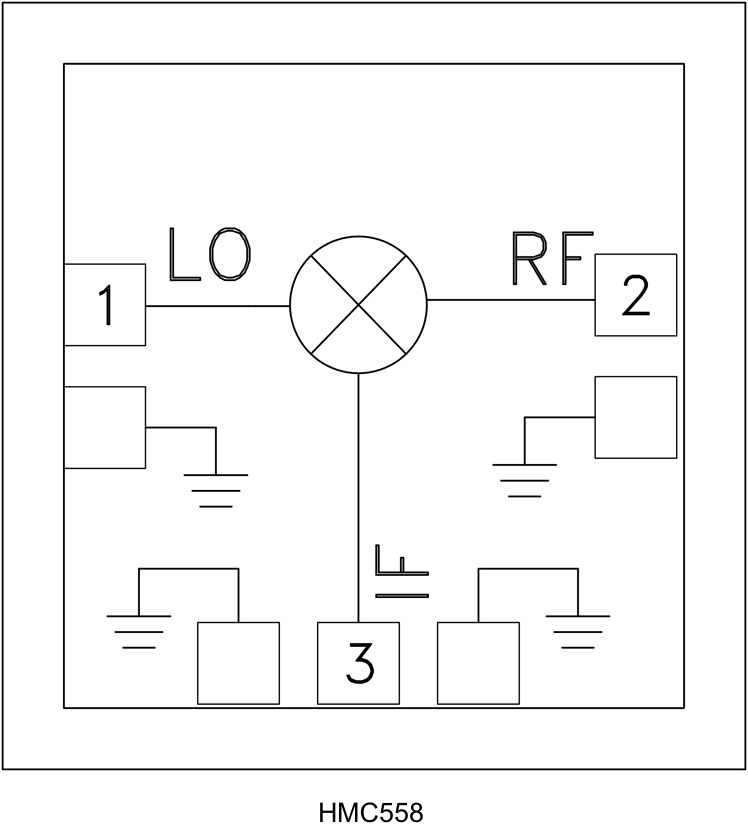

Small size (HMC558): 0.91 mm × 0.94 mm × 0.1 mm

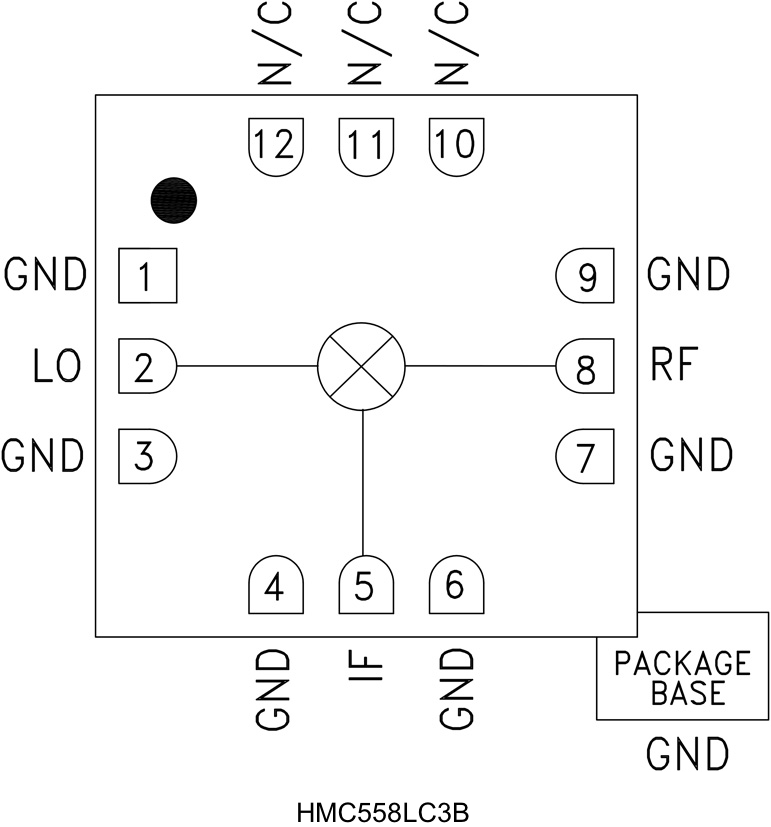

12-Lead ceramic 3 mm × 3 mm SMT package (HMC558LC3B): 9 mm²

Part Models: 4
1ku List Price: price unavailable

Documentation

Data Sheet 2

HMC558LC3B Data Sheet 04/14/2015

HMC558 Die Data Sheet 04/14/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC558	CHIPS OR DIE	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC558LC3B	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC558LC3BTR	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC558LC3BTR-R5	12-Lead LCC (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 3, 2016 - 16_0010 Discontinuance of Select RF and Microwave Products
		PDN16_0010_Form Material_Report
HMC558	LAST TIME BUY
HMC558LC3B	LAST TIME BUY
HMC558LC3BTR	LAST TIME BUY
HMC558LC3BTR-R5	LAST TIME BUY
