HMC547
ObsoleteHMC547LC3 / HMC547LP3
GaAs MMIC, High Isolation SPDT Nonreflective Switch SMT, DC to 28.0 GHz
- Part Models
- 7
- 1ku List Price
- price unavailable
Part Details
- High isolation: 45 dB @ 10 GHz; 40 dB @ 20 GHz; >50 dB up to 5 GHz; >45 dB up to 15 GHz
- Low insertion loss: 1.6 dB @ 10 GHz; 1.9 dB to 2 dB @ 20 GHz
- Fast switching: 6 ns
- Nonreflective topology
- 16-lead ceramic 3 mm x 3 mm SMT package: 9 mm²; QFN SMT package: 9 mm²
The HMC547 is a general-purpose broadband high isolation nonreflective GaAs MESFET SPDT switch in a ceramic 3 mm x 3 mm leadless surface-mount package or a low cost leadless QFN surface-mount plastic package. Covering DC to 28.0 GHz, the switch offers more than 40 dB isolation and less than 2 dB insertion loss at midband and features >50 dB isolation up to 5 GHz and >45 dB isolation up to 15 GHz. The wide bandwidth, fast switching, and compact size make this absorptive SPDT ideal for military EW/ECM and test equipment applications. The switch operates using complementary negative control voltage logic lines of −5/0 V and requires no bias supply.
Applications
- Fiber optics and broadband telecom
- Microwave radios and VSAT
- Military, radar, and ECM
- Test instrumentation
- Basestation infrastructure
Documentation
Data Sheet 2
Technical Articles 1
Video 1
Quality Documentation 5
Tape & Reel Specification 1
Circuit Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|

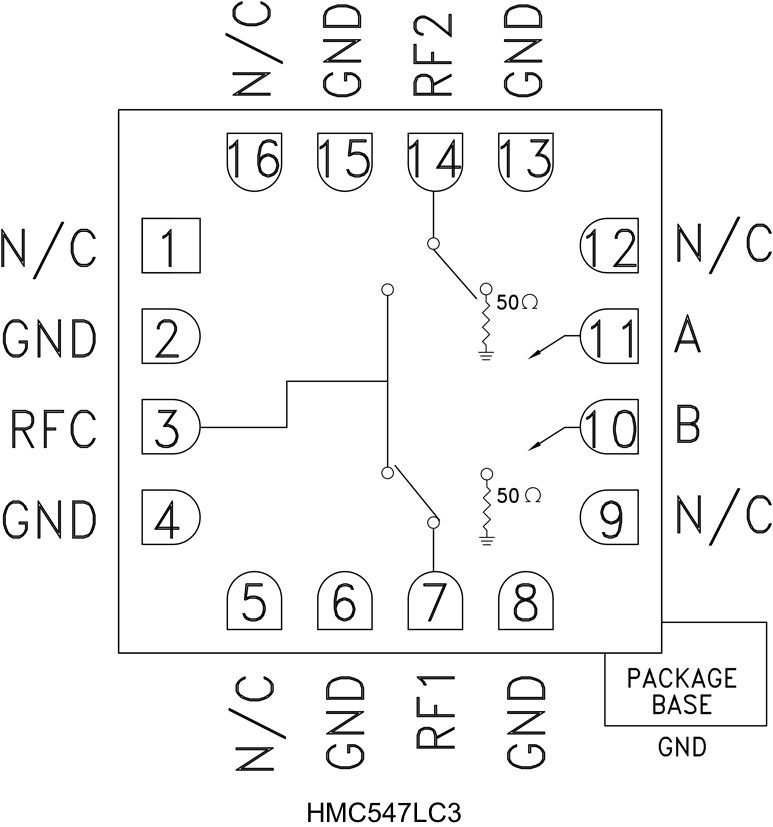

| HMC547LC3 | 16-Lead LCC (3mm x 3mm w/ EP) | ||
| HMC547LC3TR | 16-Lead LCC (3mm x 3mm w/ EP) | ||
| HMC547LC3TR-R5 | 16-Lead LCC (3mm x 3mm w/ EP) | ||

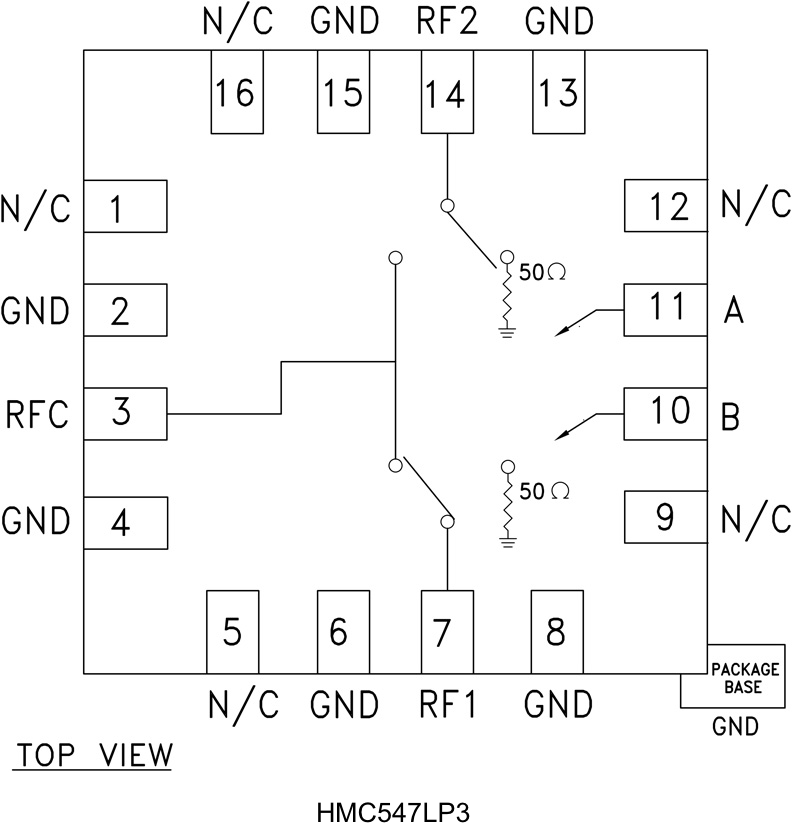

| HMC547LP3 | 16-Lead QFN (3mm x 3mm w/ EP) | ||
| HMC547LP3E | 16-Lead QFN (3mm x 3mm w/ EP) | ||
| HMC547LP3ETR | 16-Lead QFN (3mm x 3mm w/ EP) | ||
| HMC547LP3TR | 16-Lead QFN (3mm x 3mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jan 11, 2017 - 16_0010 Discontinuance of Select RF and Microwave Products |
||
| HMC547LC3 | LAST TIME BUY | |
| HMC547LC3TR | LAST TIME BUY | |
| HMC547LC3TR-R5 | Obsolete | |
|
Mar 3, 2016 - 16_0010 Discontinuance of Select RF and Microwave Products |
||
| HMC547LP3 | LAST TIME BUY | |
| HMC547LP3E | LAST TIME BUY | |
| HMC547LP3ETR | LAST TIME BUY | |
| HMC547LP3TR | LAST TIME BUY | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
S-Parameter 1
Evaluation Kits
HMC547LC3 Evaluation Board
Resources
HMC547LP3 Evaluation Board
Resources
Reference Designs

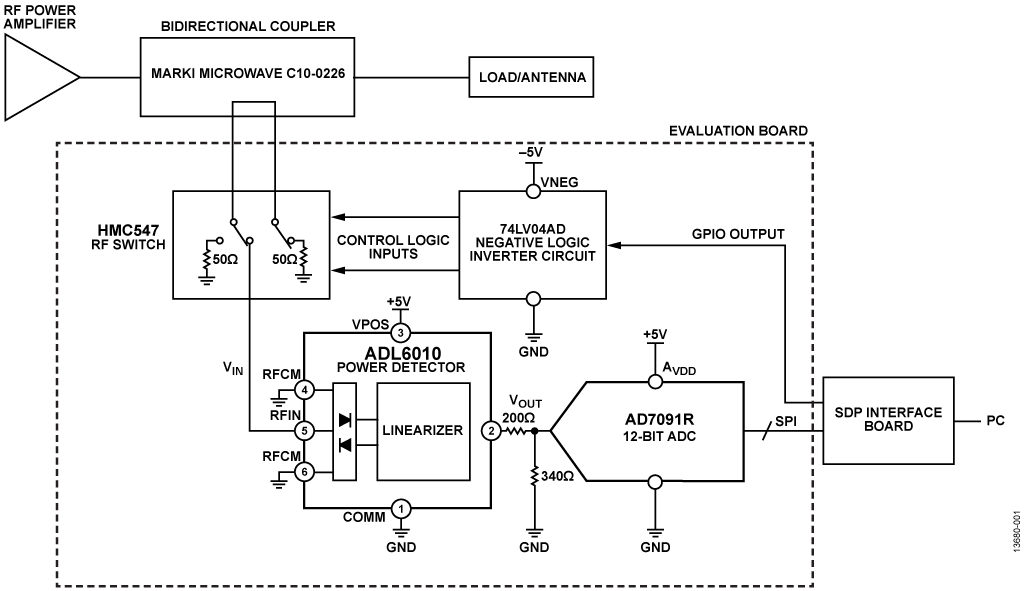

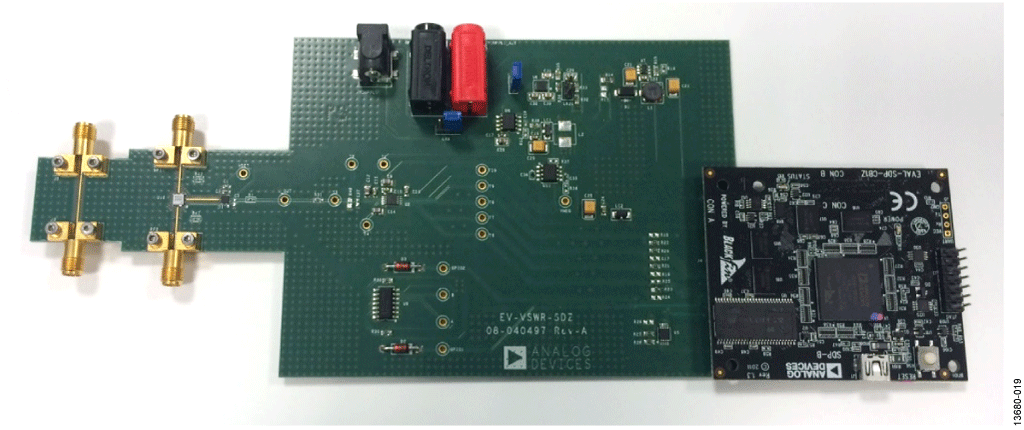

Calibration-Free Return Loss Measurement System
Part Used
