DS7505

PRODUCTION

High-Precision Digital Thermometer and Thermostat

Improved LM75/DS75 Software-Compatible Temperature Sensor Is ±0.5°C Accurate and Has Nonvolatile Thermostat Thresholds

Data Sheet (Rev. 3)
Part Models
4
1ku List Price
Starting From $2.14
Viewing:

Part Details

  • Extends Performance Range with a Low-Voltage, 1.7V to 3.7V Operating Range
  • Maximizes System Accuracy in Broad Range of Thermal Management Applications
    • Measures Temperature from -55°C to +125°C (-67°F to +257°F)
    • ±0.5°C Accuracy Over a 0°C to +70°C Range
    • User-Configurable Resolution from 9 Bits (Default) to 12 Bits (0.5°C to 0.0625°C Resolution)
  • Reduces Cost with No External Components and Stand Alone Thermostat Capability
  • Increases Reliability and System Robustness
    • Internally Filtered Data Lines for Noise Immunity (50ns Deglitch)
    • Bus Timeout Feature Prevents Lockup on a 2-Wire Interface
  • Simplifies Distributed Temperature-Sensing Applications with Multidrop Capability
    • Up to Eight Devices Can Operate on a 2-Wire Bus
  • Fast 25ms (max) 9-Bit Conversion Time
  • Flexible and Nonvolatile (NV) User-Defined Thermostatic Modes
DS7505
High-Precision Digital Thermometer and Thermostat

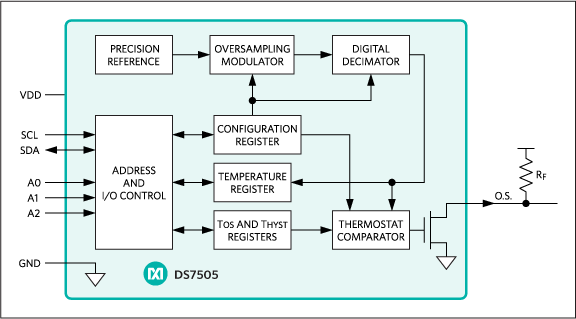

DS7505: Block Diagram
