ADUM320N

RECOMMENDED FOR NEW DESIGNS

5.7 kV RMS/3.0 kV RMS Dual Digital Isolators

Data Sheet (Rev. D)

Part Models: 16
1ku List Price: Starting From $1.00

Viewing:

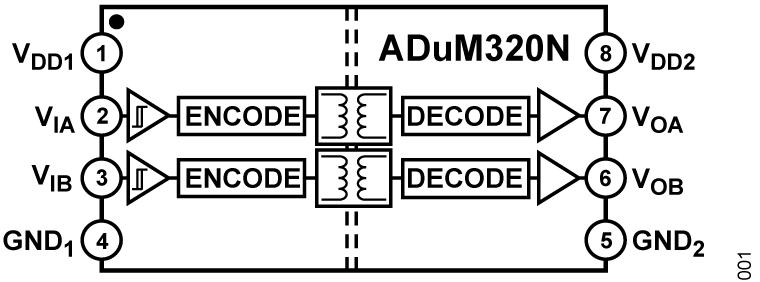

Part Details

High common-mode transient immunity: 180 kV/µs typical
High robustness to radiated and conducted noise
Low propagation delay
- 2 ns typical (10 ns maximum) for 5 V operation
Low dynamic power consumption, <1.65 mA/ch at 1 Mbps
25 V to 5.5 V level translation
150 Mbps maximum guaranteed data rate
High temperature operation: 125°C
Safety and regulatory approvals

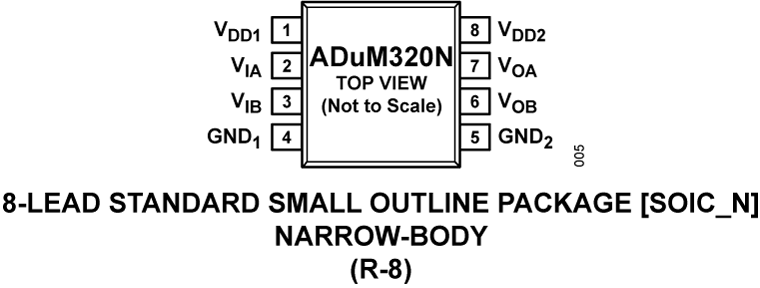

- R-8 (8-Lead SOIC_N):
  - UL 1577, V_ISO = 3000 Vrms for 1 minute
  - IEC / EN / CSA 62368-1
  - IEC / CSA 61010-1
  - CQC 1 (pending)
  - DIN EN IEC 60747-17 (VDE 0884-17) (pending)
    - V_IORM = 636 V_PEAK

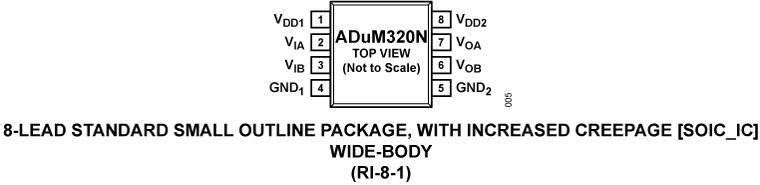

  - RI-8-1 (8-Lead SOIC_IC):
    - UL 1577, V_ISO = 5700 Vrms for 1 minute
    - IEC / EN / CSA 62368-1
    - IEC / CSA 61010-1
    - CQC 1 (pending)
    - DIN EN IEC 60747-17 (VDE 0884-17) (pending)

V_IORM = 1173 V_PEAK

±8 kV IEC 61000-4-2 ESD protection across isolation barrier

±4 kV HBM ESD protection on input/output pins

Fail-safe high (N1) or low (N0) options

SOIC_N Backward compatibility with

AEC-Q100 qualified for automotive applications

Operating temperature range: −40°C to +125°C

Part Models: 16
1ku List Price: Starting From $1.00

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM320N0BRIZ	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0BRIZ-RL	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0BRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0BRZ-RL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0WBRIZ	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0WBRIZ-RL	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0WBRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N0WBRZ-RL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1BRIZ	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1BRIZ-RL	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1BRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1BRZ-RL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1WBRIZ	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1WBRIZ-RL	8-Lead SOIC (Increased Creepage)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1WBRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADUM320N1WBRZ-RL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 1

ADUM320N - IBIS Model

Evaluation Kits

Evaluating the ADuM320N/ADuM321N, 5.7 kV RMS/3.0 kV RMS Dual Digital Isolators

Buy Now View Details

Features and Benefits

Simplified evaluation of the ADuM320N/ADuM321N digital isolator family
U3 not inserted to allow evaluation of other supported iCoupler digital isolator in 8-lead SOIC_N package
Small, easy configuration optimized for rapid evaluation on breadboards/prototype boards
Test points can be fitted to measure signals

Product Details

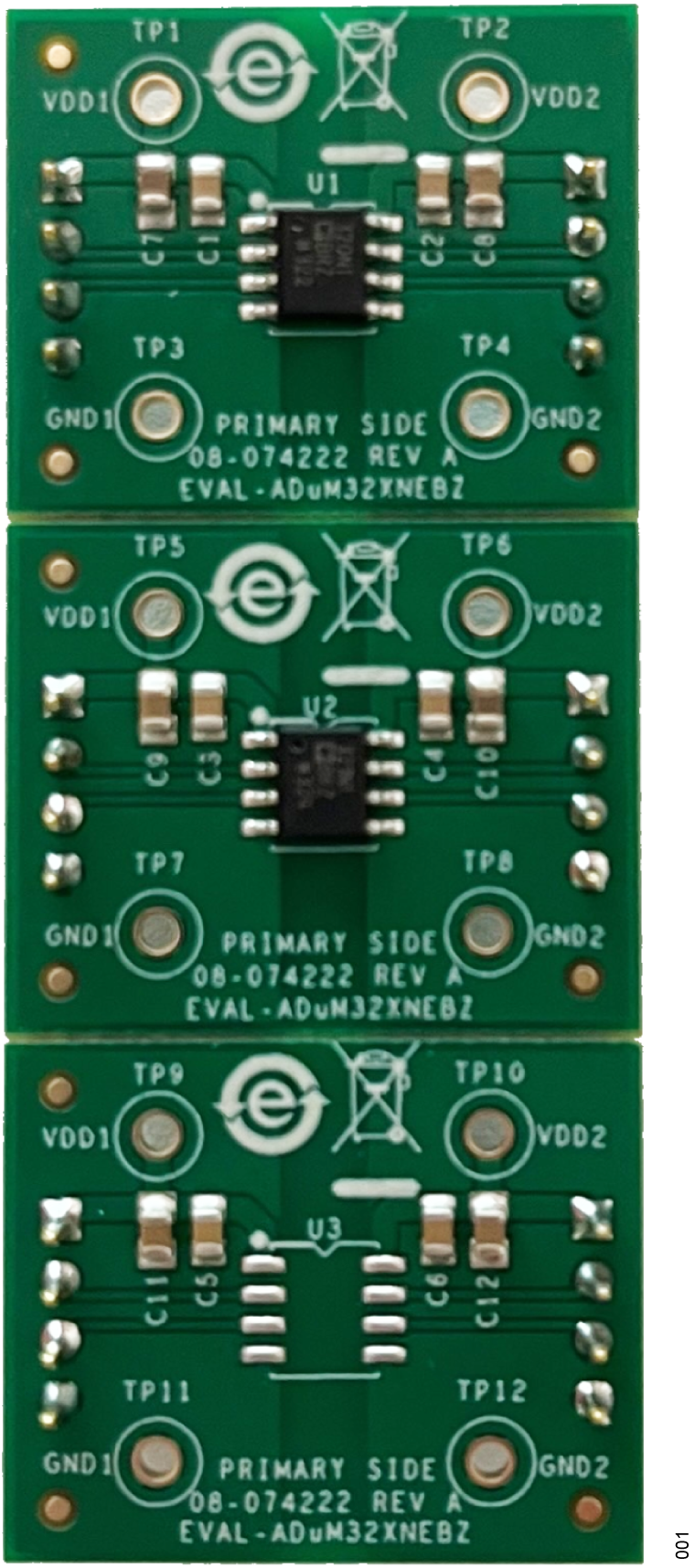

The EVAL-ADuM32XNEBZ evaluation board supports simplified, efficient evaluation of the 3 kV RMS ADuM320N/ADuM321N family of iCoupler^® digital isolators. The EVAL-ADuM32XNEBZ evaluation board also grants the ability to examine multiple other 8-lead SOIC_N iCoupler digital isolators through the unpopulated U3, which provides the user a JEDEC standard 8-Lead SOIC_N pad layout and routing appropriate for the evaluation of supported devices.

The EVAL-ADuM32XNEBZ evaluation board features V shaped grooves between each component (U1 to U3) that allow the user to split the PCB into sections and examine a specific device of their choice on a breadboard or similar prototyping board for ease of use. If U3 is populated with a different supported device, refer to the appropriate device data sheet.

Power and the inputs/outputs can be connected either directly to the pin header connectors or onto a prototyping board.

The EVAL-ADuM32XNEBZ evaluation board follows printed circuit board (PCB) design practices, including a ground plane on each side of the isolation barrier. No other electromagnetic interference (EMI) or noise mitigation design features are included on this board.

Full specifications for the device under test (DUT) are available in the ADuM320N/ADuM321N data sheet available from Analog Devices, Inc., and must be consulted with the user guide when using the EVAL-ADuM32XNEBZ evaluation board.
