ADM2563E

RECOMMENDED FOR NEW DESIGNS

3 kV RMS Signal and Power Isolated RS-485 Transceiver with ±15 kV IEC ESD

Data Sheet (Rev. B)
Part Models
2
1ku List Price
Starting From $6.12
Viewing:
  • Part Details
  • Documentation
  • Hardware Ecosystem
  • Tools & Simulations
  • Latest Discussions
    •

    Part Details

    • 3 kV rms isolated RS-485/RS-422 transceiver
    • Low radiated emissions, integrated, isolated dc-to-dc converter
    • Passes EN 55032 Class B with margin on a 2-layer PCB
    • Cable invert smart feature
      • Correct reversed cable connection on A, B, Y, and Z bus pins while maintaining full receiver fail-safe feature
    • ESD protection on RS-485 A, B, Y and Z pins
      • ≥±12 kV IEC61000-4-2 contact discharge
      • ≥±15 kV IEC61000-4-2 air discharge
    • High speed 25 Mbps data rate (ADM2565E/ADM2567E)
    • Low speed 500 kbps data rate for EMI control (ADM2561E/ADM2563E)
    • Flexible power supplies
      • Input VCC supply of 3 V to 5.5 V
      • Logic VIO supply of 1.7 V to 5.5 V
      • VSEL pin to select VISO supply of 5 V (VCC > 4.5 V) or 3.3 V
    • PROFIBUS compliant for 5 V VISO
    • Wide operating temperature range: −40°C to +105°C
    • High common-mode transient immunity: 250 kV/µs
    • Short-circuit, open-circuit, and floating input receiver fail-safe
    • Supports 196 bus nodes (72 kΩ receiver input impedance)
    • Full hot swap support (glitch free power-up/power-down)
    • Safety and regulatory approvals (pending)
    • CSA Component Acceptance Notice 5A, DIN V VDE V 0884-11, UL 1577, CQC11-471543-2012, IEC 61010-1
    • Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)

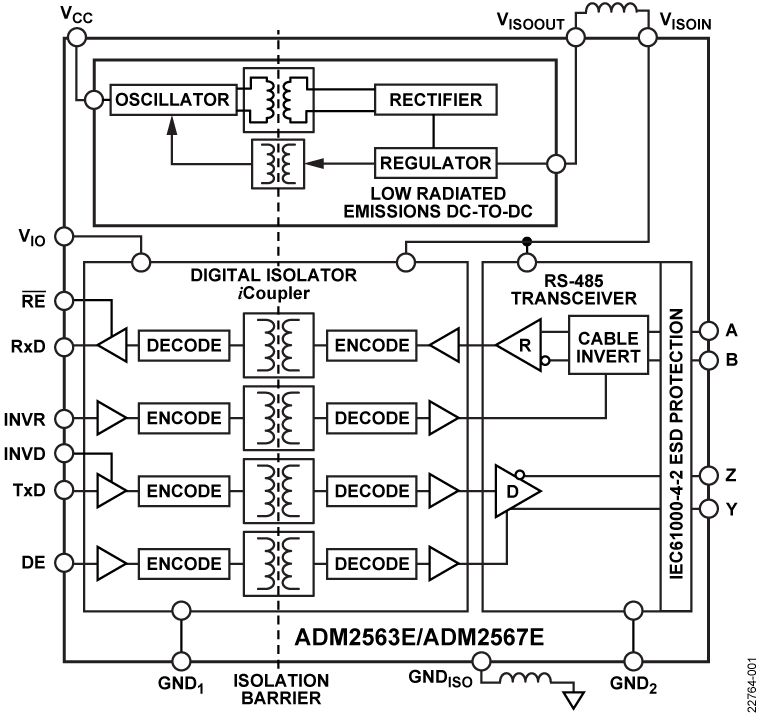

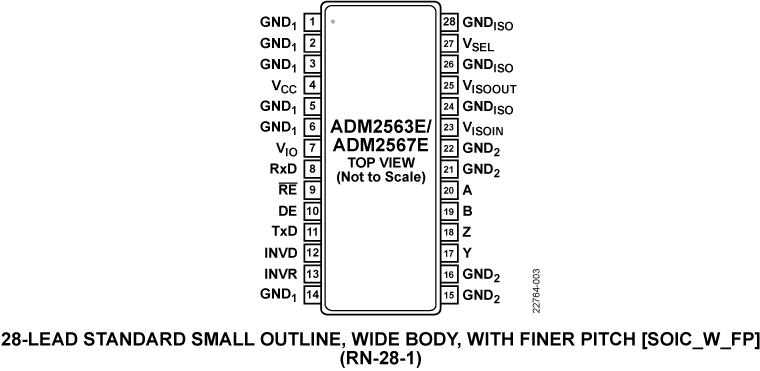

    • 28-lead, fine pitch SOIC_W package (10.15 mm × 10.05 mm) with >8.0 mm creepage and clearance
    ADM2563E
    3 kV RMS Signal and Power Isolated RS-485 Transceiver with ±15 kV IEC ESD
    Ask a Question

    Documentation

    Data Sheet 1

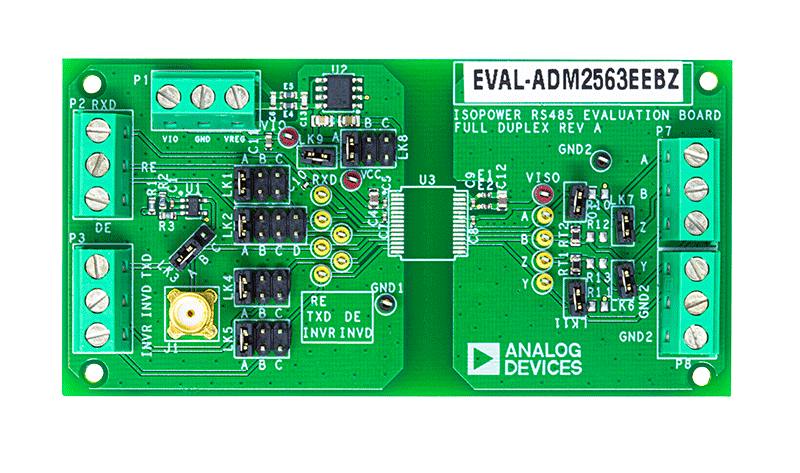

    User Guide 1

    Safety and Regulatory Compliance 1
