ADF4377

RECOMMENDED FOR NEW DESIGNS

Microwave Wideband Synthesizer with Integrated VCO

Data Sheet (Rev. 0)
Part Models
2
1ku List Price
Starting From $116.63
Viewing:
  • Part Details
  • Documentation
  • Software Resources
  • Hardware Ecosystem
  • Tools & Simulations
  • Evaluation Kits
  • Latest Discussions
    •

    Part Details

    • Output frequency range: 800 MHz to 12.8 GHz
    • Jitter = 18 fsRMS (integration bandwidth: 100 Hz to 100 MHz)
    • Jitter = 27 fsRMS (ADC SNR method)
    • Wideband noise floor: −160 dBc/Hz at 12 GHz
    • PLL specifications
      • −239 dBc/Hz: normalized in-band phase noise floor
      • −147 dBc/Hz: normalized in-band 1/f noise
      • Phase detector frequency up to 500 MHz
      • Reference input frequency up to 1000 MHz
      • Typical spurious fPFD: −95 dBc at fOUT = 12 GHz
    • Reference input to output delay specifications
      • Device-to-device standard deviation: 3 ps
      • Temperature coefficient: 0.03 ps/°C
      • Adjustment step size: < ±0.1 ps
    • Multichip output phase alignment
    • 3.3 V and 5 V power supplies

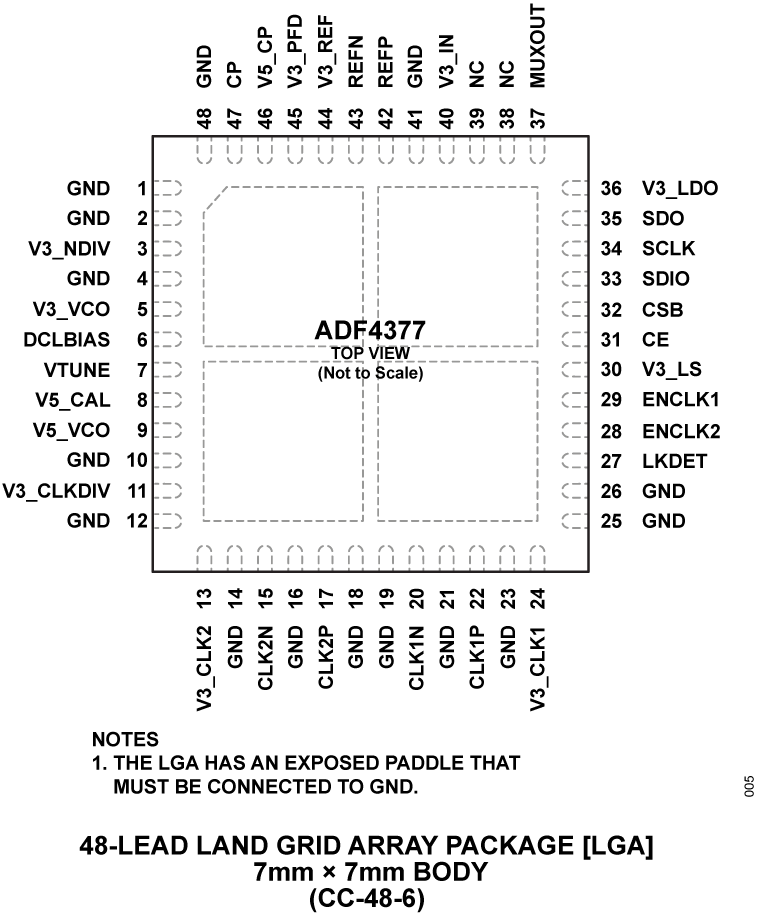

    • 7 mm × 7 mm 48-lead LGA
    ADF4377

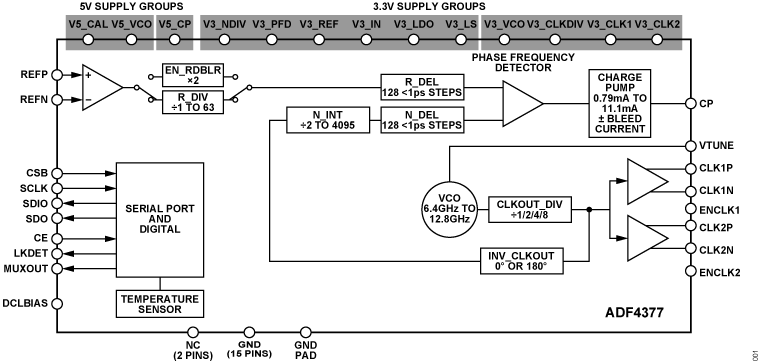

    Microwave Wideband Synthesizer with Integrated VCO
    Ask a Question

    Documentation

    Data Sheet 1

    User Guide 1

    Learn More

    Software Resources

    Device Drivers 2

    Hardware Ecosystem

    Parts Product Life Cycle Description
    ADC/DAC Combo Converters 2
    AD9081
    		RECOMMENDED FOR NEW DESIGNS MxFE™ Quad, 16-Bit, 12GSPS RFDAC and Quad, 12-Bit, 4GSPS RFADC
    AD9082
    		RECOMMENDED FOR NEW DESIGNS MxFE Quad, 16-Bit, 12 GSPS RF DAC and Dual, 12-Bit, 6 GSPS RF ADC
    Analog-to-Digital Converters (ADCs) 2
    AD9213
    		RECOMMENDED FOR NEW DESIGNS 12-Bit, 10.25 GSPS, JESD204B, RF Analog-to-Digital Converter
    AD9083
    		RECOMMENDED FOR NEW DESIGNS 16-Channel, 125 MHz Bandwidth, JESD204B Analog-to-Digital Converter
    Modal heading
    Add to myAnalog

    Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

    Create New Project

    Tools & Simulations

    IBIS Model 1

    ADIsimPLL™

    ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

    Open Tool
    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    Evaluation Kits

    eval board
    schematic 1
    schematic 2
    schematic 3
    EVAL-ADF4377

    Evaluating the ADF4377 Microwave Wideband Synthesizer with Integrated VCO

    Buy Now View Details

    Features and Benefits

    • Self-contained board, including ADF4377 frequency synthesizer with integrated VCO, loop filter, USB interface, on-board reference oscillator, propagation delay calibration paths, and voltage regulators
    • Windows®-based software allows control of synthesizer functions from a PC
    • Externally powered by 6 V

    Product Details

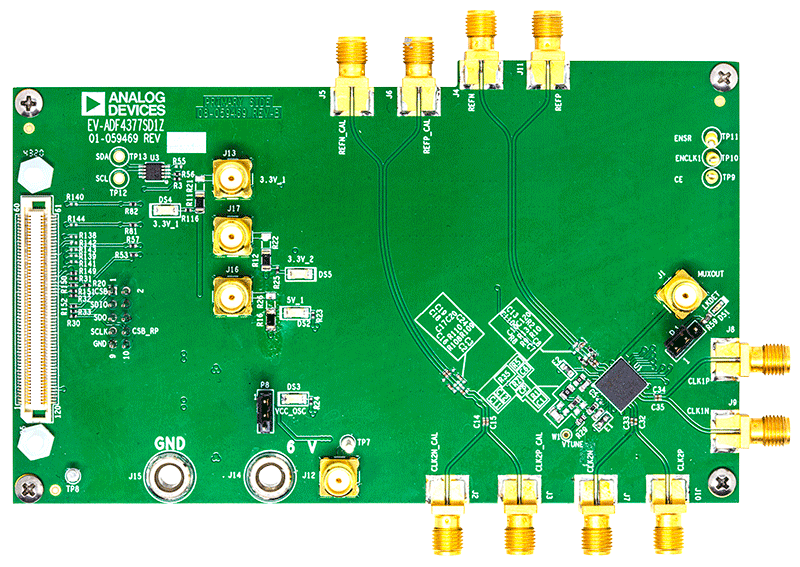

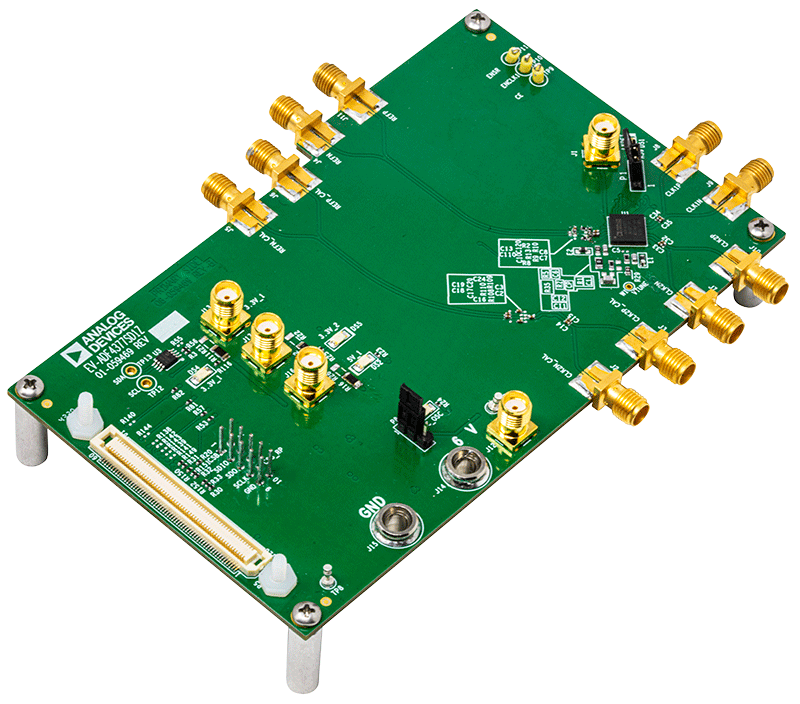

    The EV-ADF4377SD1Z evaluates the performance of the ADF4377 frequency synthesizer with an integrated voltage controlled oscillator (VCO) for phase-locked loops (PLLs). A photograph of the EV-ADF4377SD1Z is shown in Figure 1 of the user guide. The EV-ADF4377SD1Z contains the ADF4377 frequency synthesizer with an integrated VCO, a USB interface, power supply connectors, on-board reference oscillator, propagation delay calibration paths, and Subminiature Version A (SMA) connectors. The outputs are ac-coupled with 50 Ω transmission lines making the outputs suitable to drive 50 Ω impedance instruments. The EV-ADF4377SD1Z requires an SDP-S board (not supplied with the kit). The SDP-S allows software programming of the EV-ADF4377SD1Z with ACE software. Full specifications for the ADF4377 frequency synthesizer are available in the ADF4377 data sheet, which must be consulted with the user guide when working with the EV-ADF4377SD1Z.

    eval board
    schematic 4
    schematic 5
    schematic 6
    EVAL-AD9213-DUAL-EBZ

    Wideband Direct RF Sampling 20GSPS Digitizer Platform

    Buy Now View Details

    Features and Benefits

    • Up to 9GHz RF Direct sampling platform using two AD9213.
    • 20Gsps digitizer platform
    • Configurable to support I/Q sampling at 10Gsps
    • Multichip synchronization capable with 1 sample accuracy (ADF4377)
    • Software and FPGA RTL reference designs
    • Mates with Stratix10 (DK-SOC-1SSX-H-D)

    Product Details

    This dual AD9213 evaluation board is a wideband direct RF sampling 20GSPS digitizer platform which includes the two 12bit 10 GSPS RF ADCs. The RFADCs are time interleaved by 180 degrees, thus supporting a 20 GSPS sampling system. Synchronization performance is obtained to within 1 sample accuracy using the built-in multichip synchronization capabilities. The clock input interleaving is achieved by using the ADF4377, which is a low jitter microwave wideband synthesizer with an integrated VCO. This dual AD9213 reference design platform provides a path to scale up the bandwidth of interest or be used to enable end user algorithm development.
    EVAL-ADF4377
    Evaluating the ADF4377 Microwave Wideband Synthesizer with Integrated VCO
    EVAL-AD9213-DUAL-EBZ
    Wideband Direct RF Sampling 20GSPS Digitizer Platform

    Latest Discussions

    No discussions on ADF4377 yet. Have something to say?

    Start a Discussion on EngineerZone®
