ADF4252

PRODUCTION

Dual Fractional-N/
Integer-N Frequency Synthesizer

Data Sheet (Rev. E)

Part Models: 3
1ku List Price: Starting From $3.61

Viewing:

Part Details

3.0 GHz fractional-N/1.2 GHz integer-N
2.7 V to 3.3 V power supply
Separate V_P allows extended tuning voltage to 5 V
Programmable dual modulus prescaler
- RF: 4/5, 8/9
- IF: 8/9, 16/17, 32/33, 64/65

Programmable charge pump currents
3-wire serial interface
Digital lock detect
Power-down mode
Programmable modulus on fractional-N synthesizer
Trade off noise vs. spurious performance

Part Models: 3
1ku List Price: Starting From $3.61

Documentation

Data Sheet 1

ADF4252: Dual Fractional-N/Integer-N Frequency Synthesizer Data Sheet (Rev.E) 06/20/2002

Application Note 2

AN-30: Ask the Applications Engineer - PLL Synthesizers 12/06/2004

AN-873: Lock Detect on the ADF4xxx Family of PLL Synthesizers (Rev.0) 12/06/2006

Frequently Asked Question 1

FAQ 02/05/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4252BCPZ	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4252BCPZ-R7	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADF4252BCPZ-RL	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
May 5, 2014 - 14_0020 Conversion of 4x4mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
		PCN14_0020_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADF4252BCPZ	PRODUCTION
ADF4252BCPZ-R7	PRODUCTION
ADF4252BCPZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Evaluation Software 1

ADF4252 Evaluation Board Software (Rev. )

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer
Boost Regulators & Controllers 1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit
Frequency Dividers & Multipliers 1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
Linear Regulators 3
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator

ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
Modulators & Demodulators 2
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
Operational Amplifiers 1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
RF Mixers 1
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer

Tools & Simulations

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

Evaluation Kits

ADF4252 Evaluation Boards

Buy Now View Details

Product Details

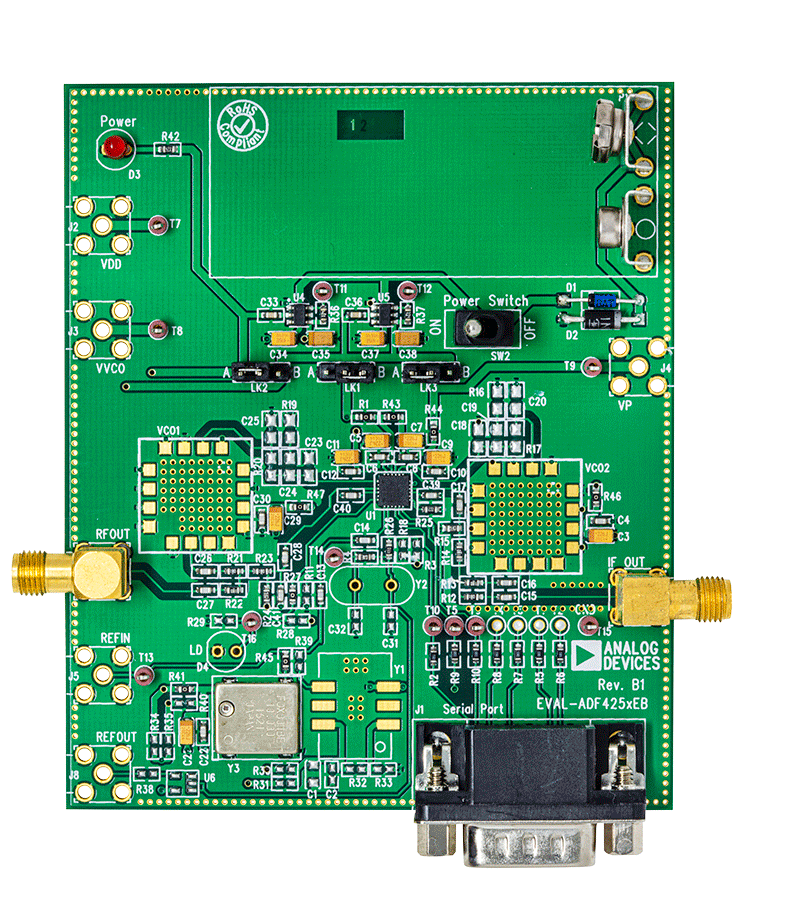

This page contains ordering information for the evaluation board used to evaluate the ADF4252 Lowest Phase Noise PLL Synthesizer using Fractional-N Technology.
