AD7156

PRODUCTION

Ultralow Power, 1.8 V, 3 mm × 3 mm, 2-Channel Capacitance Converter

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.66

Viewing:

Part Details

Ultralow power
Power supply voltage: 1.8 V to 3.6 V
Operation power supply current: 70 μA typical
Power-down current: 2 μA typical
Fast response time
Conversion time: 10 ms per channel
Wake-up time from serial interface: 300 μs
Adaptive environmental compensation
2 capacitance input channels
Sensor capacitance (C_SENS): 0 pF up to 13 pF
Sensitivity up to 3 fF

2 modes of operation
Standalone with fixed settings
Interfaced to a microcontroller for user-defined settings
2 detection output flags
2-wire serial interface (I²C-compatible)
Operating temperature: −40°C to +85°C

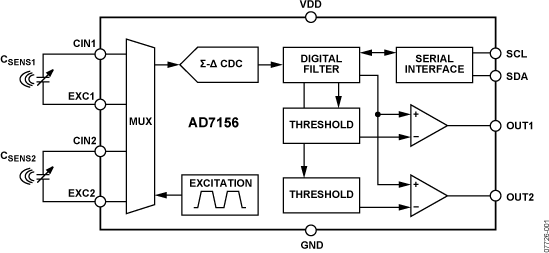

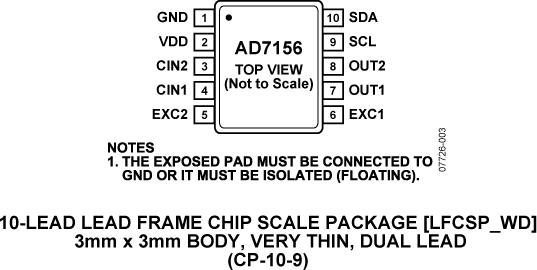

10-lead LFCSP package (3 mm × 3 mm × 0.8 mm)

Part Models: 2
1ku List Price: Starting From $1.66

Documentation

Frequently Asked Question 1

FAQ 03/20/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD7156BCPZ-REEL	10-Lead LFCSP (3mm x 3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD7156BCPZ-REEL7	10-Lead LFCSP (3mm x 3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

Can't find the software or driver you need?

Evaluation Kits

AD7156 Evaluation Board

Buy Now View Details

Product Details

The EVAL-AD7156EBZ is a fully featured evaluation board for the AD7156. The evaluation board can be operated in complete standalone, battery-powered mode or connected to a PC via a standard USB interface. When operated with a PC, software is provided enabling the user to perform detailed analysis of the CDC's performance. This software includes the technical note describing the operation and set up of the evaluation board.

Resources

EVAL-AD7156EBZ: Evaluation Kit for AD7156 Ultralow Power Capacitance Converter
6/10/2009

AD7150 IIO Capacitance to Digital Converter GitHub Linux Driver Source Code
11/9/2011
