AD5700-1

PRODUCTION

Low Power HART Modem with Precision Internal Oscillator

Data Sheet (Rev. F)

Part Models: 3
1ku List Price: Starting From $5.23

Viewing:

Part Details

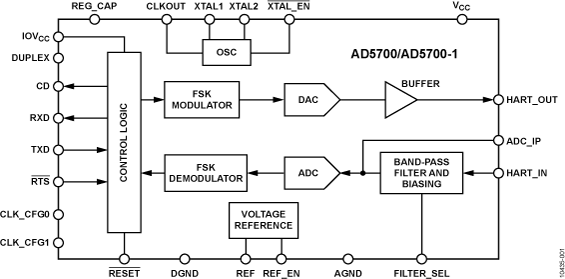

HART-compliant fully integrated FSK modem
1200 Hz and 2200 Hz sinusoidal shift frequencies
115 µA maximum supply current in receive mode
Suitable for intrinsically safe applications
Integrated receive band-pass filter
- Minimal external components required
Clocking optimized for various system configurations
- Ultralow power crystal oscillator (60 µA maximum)
- External CMOS clock source
- Precision internal oscillator
Buffered HART output—extra drive capability
8 kV HBM ESD rating
1.71 V to 5.5 V power supply
1.71 V to 5.5 V interface
−40°C to +125°C operation
4 mm × 4 mm LFCSP package
HART physical layer compliant
UART interface

Part Models: 3
1ku List Price: Starting From $5.23

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5700-1ACPZ-RL7	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5700-1BCPZ-R5	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD5700-1BCPZ-RL7	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Aug 6, 2014 - 13_0230 Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China
		PCN13_0230_Form Material_Report Detailed Change Description Qualification Results Summary Test Correlation Report
AD5700-1ACPZ-RL7	PRODUCTION
AD5700-1BCPZ-R5	PRODUCTION
AD5700-1BCPZ-RL7	PRODUCTION
Jan 28, 2013 - 12_0143 AD5700/AD5700-1 Metal Mask Edit Resulting in updated Datasheet to reflect Extended Supply Range.
		PCN12_0143_Form Material_Report Qualification Report Summary
AD5700-1ACPZ-RL7	PRODUCTION
AD5700-1BCPZ-R5	PRODUCTION
AD5700-1BCPZ-RL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
AD5412	PRODUCTION	Single Channel, 12-Bit, Current Source & Voltage Output DAC, HART Connectivity
Digital to Analog Converters 5
AD5422	PRODUCTION	Single Channel, 16-Bit, Current Source & Voltage Output DAC, HART Connectivity
AD5410	PRODUCTION	Single-Channel, 12-/16-Bit, Serial Input, 4 mA to 20 mA, Current Source DAC, HART Connectivity
AD5420	PRODUCTION	Single-Channel, 12-/16-Bit, Serial Input, 4 mA to 20 mA, Current Source DAC, HART Connectivity

AD5421	PRODUCTION	16-Bit, Serial Input, Loop-Powered, 4mA to 20mA DAC
AD5755-1	PRODUCTION	Quad Channel, 16-Bit, Serial Input, 4 mA to 20 mA and Voltage Output DAC, Dynamic Power Control, HART Connectivity

Tools & Simulations

IBIS Model 1

AD5700/AD5700-1 IBIS Model

Evaluation Kits

AD5700/AD5700-1 Evaluation Board

Buy Now View Details

Product Details

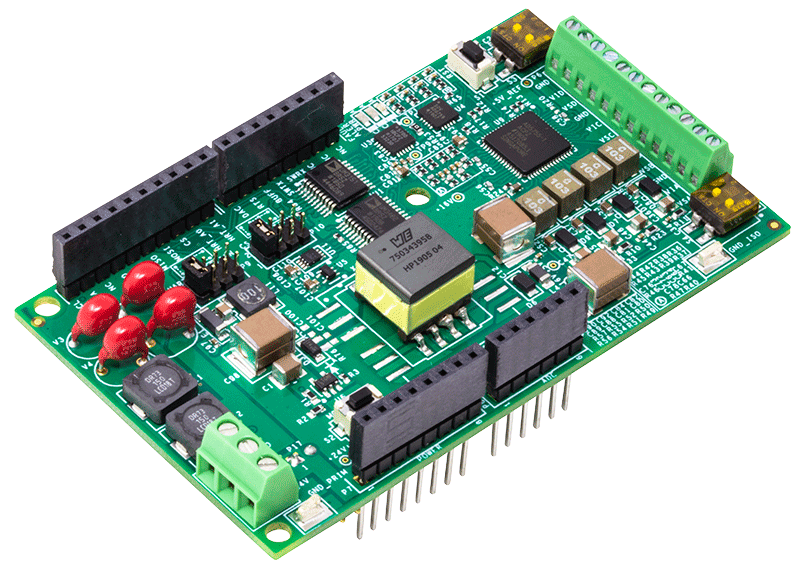

Both the AD5700 and the AD5700-1 products can be evaluated using the EVAL-AD5700-1EBZ Evaluation board. If evaluating the AD5700 product, simply disable the internal oscillator (i.e. configure the part to use either a CMOS clock or a crystal oscillator). No SDP board is required for this Evaluation board.
