AD5758
RECOMMENDED FOR NEW DESIGNSSingle-Channel, 16-Bit Current and Voltage Output DAC with Dynamic Power Control and HART Connectivity
- Part Models
- 2
- 1ku List Price
- Starting From $7.39
Part Details
- 16-bit resolution and monotonicity
- DPC for thermal management
- Current/voltage output available on a single terminal
- Current output ranges: 0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 24 mA, ±20 mA, ±24 mA, −1 mA to +22 mA
- Voltage output ranges (with 20% overrange): 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V
- User-programmable offset and gain
- Advanced on-chip diagnostics, including a 12-bit ADC
- On-chip reference
- Robust architecture, including output fault protection
- EMC test standards:
- IEC 61000-4-6 conducted immunity (10 V, Class A)
- IEC 61000-4-3 radiated immunity (20 V/m, Class A)
- IEC 61000-4-2 ESD (±6 kV contact, Class B)
- IEC 61000-4-4 electrical fast transient (EFT) (±4 kV, Class B)
- IEC 61000-4-5 surge (±4 kV, Class B)
- 32-lead, 5 mm × 5 mm LFCSP
- −40°C to +115°C temperature range

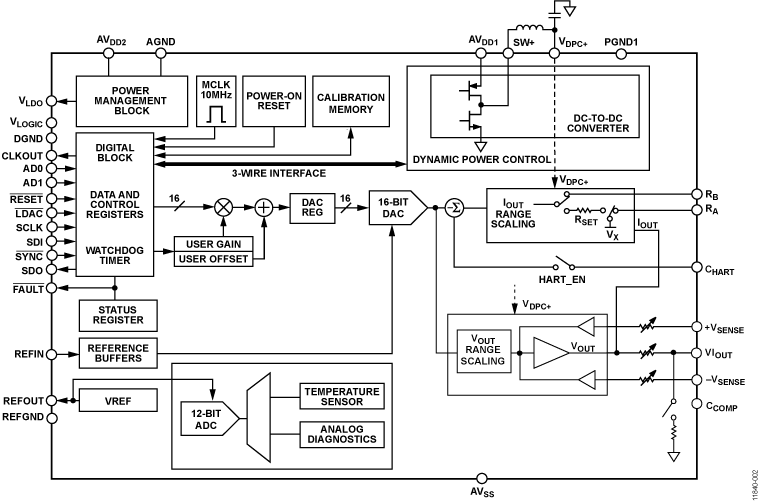

The AD5758 is a single-channel, voltage and current output digital-to-analog converter (DAC) that operates with a power supply range from −33 V (minimum) on AVSS to +33 V (maximum) on AVDD1 with a maximum operating voltage between the two rails of 60 V. On-chip dynamic power control (DPC) minimizes package power dissipation, which is achieved by regulating the supply voltage (VDPC+) to the VIOUT output driver circuitry from 5 V to 27 V using a buck dc-to-dc converter, optimized for minimum on-chip power dissipation. The CHART pin enables a HART® signal to be coupled onto the current output.
The device uses a versatile 4-wire serial peripheral interface (SPI) that operates at clock rates of up to 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, DSP, and microcontroller interface standards. The interface also features an optional SPI cyclic redundancy check (CRC) and a watchdog timer (WDT). The AD5758 offers improved diagnostic features from its predecessors, such as an integrated 12-bit diagnostic analog-to-digital converter (ADC). Additional robustness is provided by the inclusion of a line protector on the VIOUT, +VSENSE, and −VSENSE pins. When used with its companion power management unit (PMU)/isolator (ADP1031), the AD5758 is capable of enabling customers to develop an eight channel to channel isolated analog output module with less than 2 W power dissipation, while meeting CISPR 11 Class B.
Product Highlights
- DPC, using an integrated buck dc-to-dc converter for thermal management. When used with the ADP1031, the AD5758 enables eight channel to channel isolated outputs at <2 W dissipated power.
- Range of advanced diagnostic features, including an integrated ADC for high reliability.
- Highly robust with output protection from miswire events (±38 V).
- HART compliant.
Applications
- Process control
- Actuator control
- Channel isolated analog outputs
- Programmable logic controller (PLC) and distributed control systems (DCS) applications
- HART network connectivity
Documentation
Data Sheet 1
User Guide 2
Application Note 2
Design Note 1
Technical Articles 1
Video 5
Solutions Bulletin & Brochure 1
Device Drivers 2
Webcast 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5758BCPZ | 32-Lead LFCSP (5mm x 5mm x 0.95mm w/ EP) | ||
| AD5758BCPZ-RL7 | 32-Lead LFCSP (5mm x 5mm x 0.95mm w/ EP) |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Device Drivers 2
Evaluation Software 0
Hardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| ADC/DAC Combo Converters 2 | ||
| AD5700 | PRODUCTION | Low Power HART Modem |
| AD5700-1 | PRODUCTION | Low Power HART Modem with Precision Internal Oscillator |
| Buck Regulators & Controllers 1 | ||
| ADP2360 | RECOMMENDED FOR NEW DESIGNS | 50 mA, 60 V, High Efficiency Buck Regulator |
| Circuit Monitors 1 | ||
| ADM6339 | PRODUCTION | Quad Voltage Microprocessor Supervisory Circuit |
| Interface Transceivers & Isolators 3 | ||
| ADP1031 | RECOMMENDED FOR NEW DESIGNS | Three-Channel, Isolated Micropower Management Unit with Seven Digital Isolators |
| ADUM142D | RECOMMENDED FOR NEW DESIGNS |
Robust, Quad Channel Isolator W/ Input Disable & 2 Reverse Channels |
| ADUM141D | RECOMMENDED FOR NEW DESIGNS |
Robust, Quad Channel Isolator W/ Input Disable & 1 Reverse Channel |
| Switching Regulators & Controllers 1 | ||
| LT8300 | RECOMMENDED FOR NEW DESIGNS | 100VIN Micropower Isolated Flyback Converter with 150V/260mA Switch |
| Voltage References 3 | ||
| ADR431 | PRODUCTION | Ultralow Noise XFET® Voltage References with Current Sink and Source Capability |
| ADR3425 | PRODUCTION | Micro-Power, High-Accuracy 2.5V Voltage Reference |
| ADR4525 | RECOMMENDED FOR NEW DESIGNS | Ultra-Low-Noise, High-Accuracy 2.5V Voltage Reference |
Tools & Simulations
IBIS Model 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits
AD5758 + ADP1031 Eight Channel Analog Output Module - Demonstration Platform
Resources

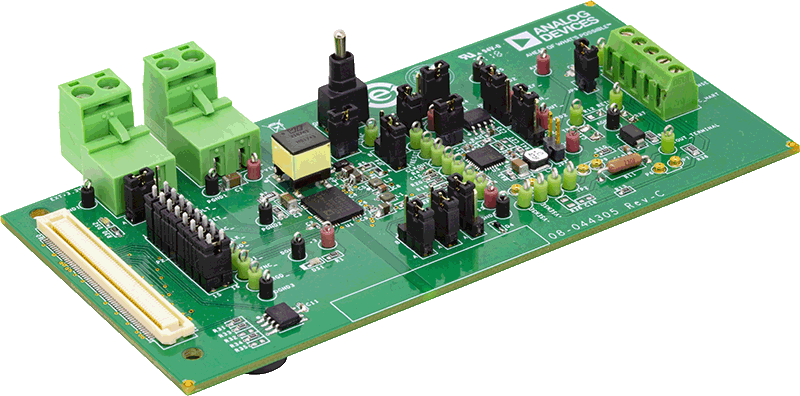

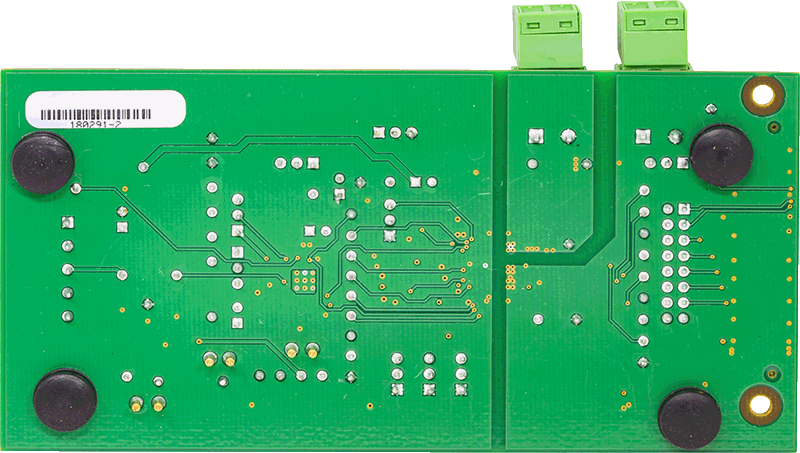

AD5758 Evaluation Board
Resources
