TMC6200
推荐新设计使用Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current, Inline current sense

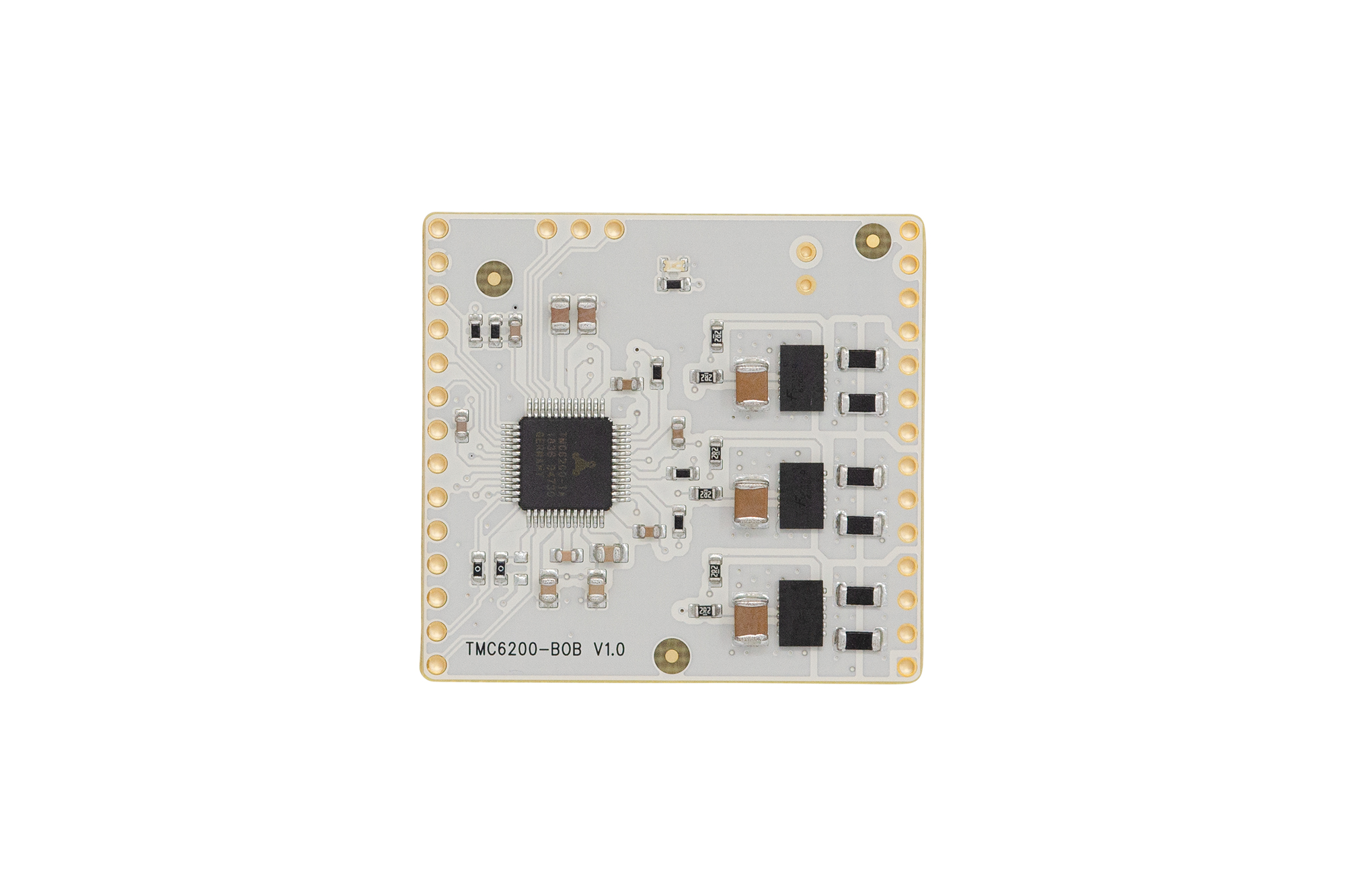

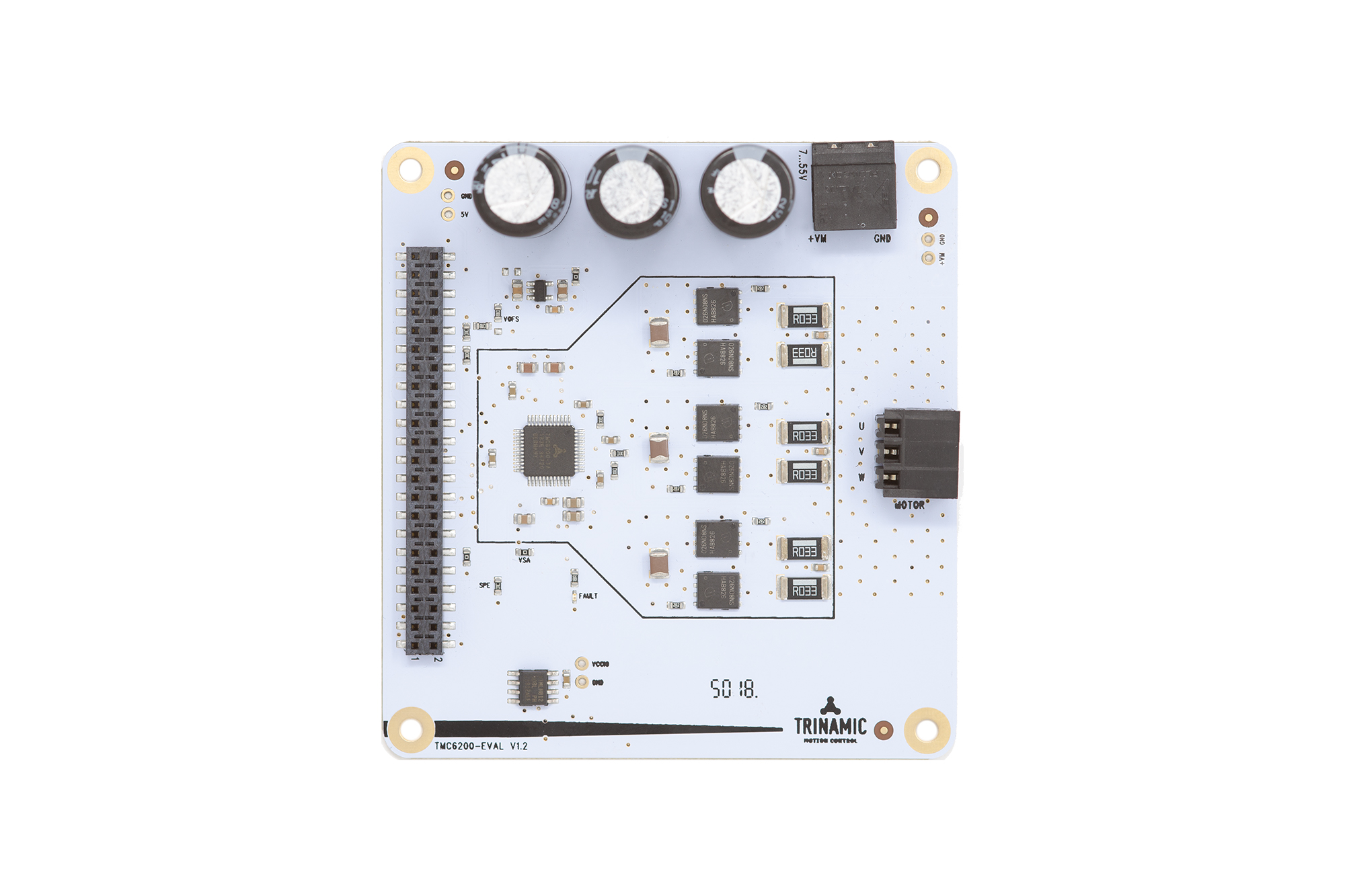

- 产品模型
- 2
产品详情
- 3-phase motors up to 100A coil current (external MOSFETs)
- Voltage Range 8 to 60V DC
- Gate Drive Programmable 0.5A / 1A / 1.5A
- Full Protection and Diagnostics via SPI interface
- 3 Floating Sense Amplifiers with programmable gain (5, 10, 20)
- Gate Off Drive with 1Ω (LS) / 1.3Ω (HS) safe hold off resistance
- SPI & Stand-Alone operation
- Charge Pump for 100% Duty Cycle operation
- Optional BBM break-before-make logic for single line control
- Programmable Short and Overload current threshold and retry
- Programmable Control Interface with 3-line or 6-line drive
- Full Protection & Diagnostics
- Compact Size TQFP48 package
- Double Pin Distance for safe operation at high voltage
The TMC6200 is a high-power gate driver for PMSM servo or BLDC motors.
Using six external MOSFETs and two or three sense resistors, it integrates the full high voltage part of a FOC drive system for 12V, 24V or 48V, including in-line current sense amplifiers with programmable amplification.
It can drive a wide range of motors from Watt to Kilowatt. Software controlled drive strength allows in-system EME optimization. Programmable safety features like short detection and overtemperature thresholds together with an SPI interface for diagnostics allow robust and reliable designs. With the TMC6200, a minimum number of external components is required to build a rugged drive with full protection and diagnostics.
APPLICATIONS:
- PMSM FOC drives and BLDC motors
- Industrial Drives
- Factory Automation
- Lab Automation
- Robotics
- CNC machines
- Textile Machines
- Pumps
- Surveillance Cameras
- Home Automation
- Printers
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|

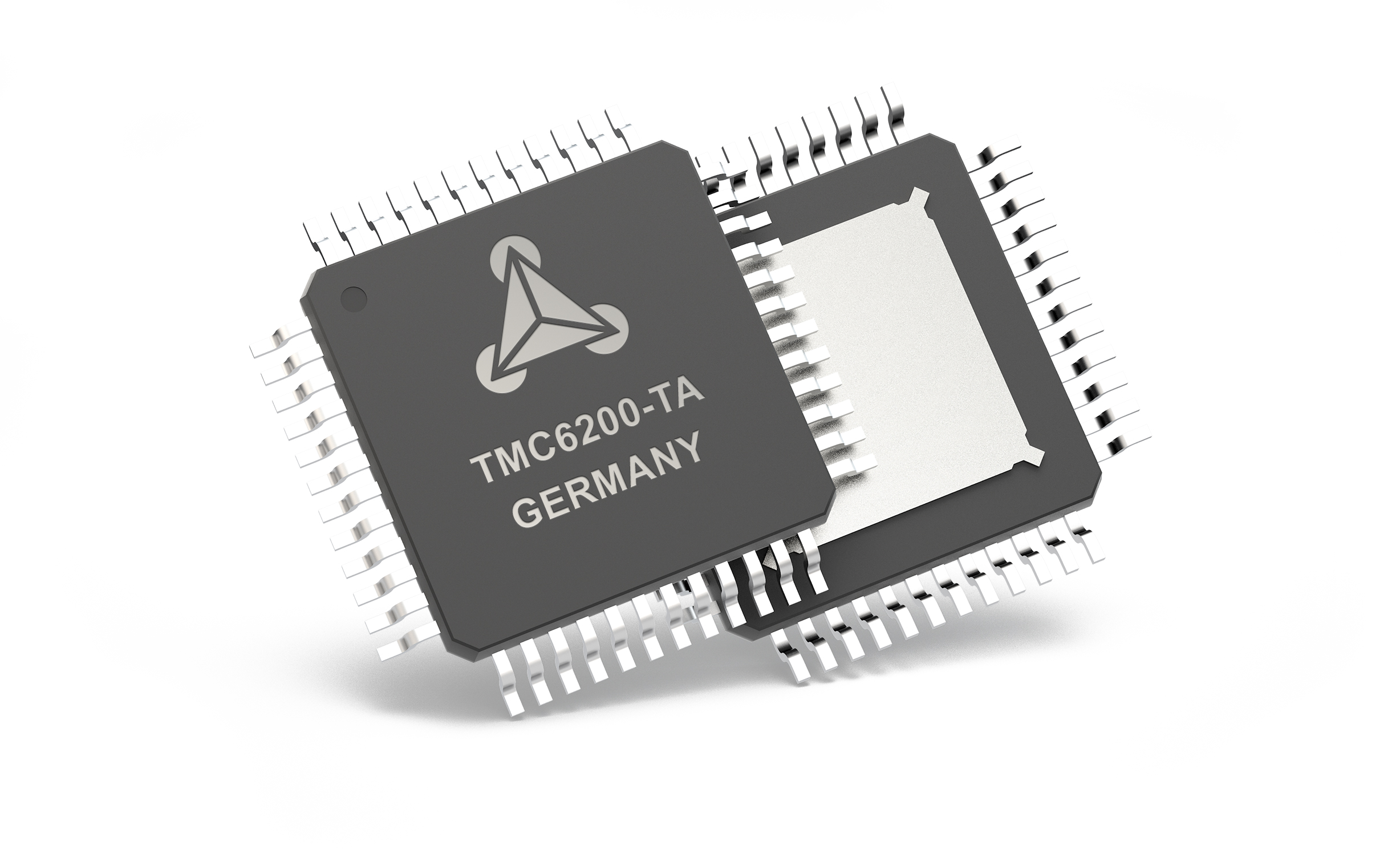

| TMC6200-TA | 48-TQFP-7X7X1.0 | ||
| TMC6200-TA-T | 48-TQFP-7X7X1.0 |
