LTC2000

量产

16 / 14 / 11 位、2.5Gsps DAC

数据手册
产品模型
6
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 在 70MHz fOUT 具有 80dBc SFDR
  • 在 DC 至 1000MHz fOUT 范围内具有 >68dBc SFDR
  • 40mA 标称全标度、兼容 ±1V 输出
  • 10mA 至 60mA 可调全标度电流范围
  • 单或双端口 DDR LVDS 和 DHSTL 接口
  • 低延迟 (对于单端口为 7.5 个周期，对于双端口为 11 个周期)
  • 在 DC 至 1000MHz fOUT 范围内具有 >78dBc 双音调互调失真 (IMD)
  • 在用于 65MHz fOUT 的 1MHz 偏移频率下具有 –165dBc/Hz 附加相位噪声
  • 170 引脚 (9mm x 15mm) BGA 封装

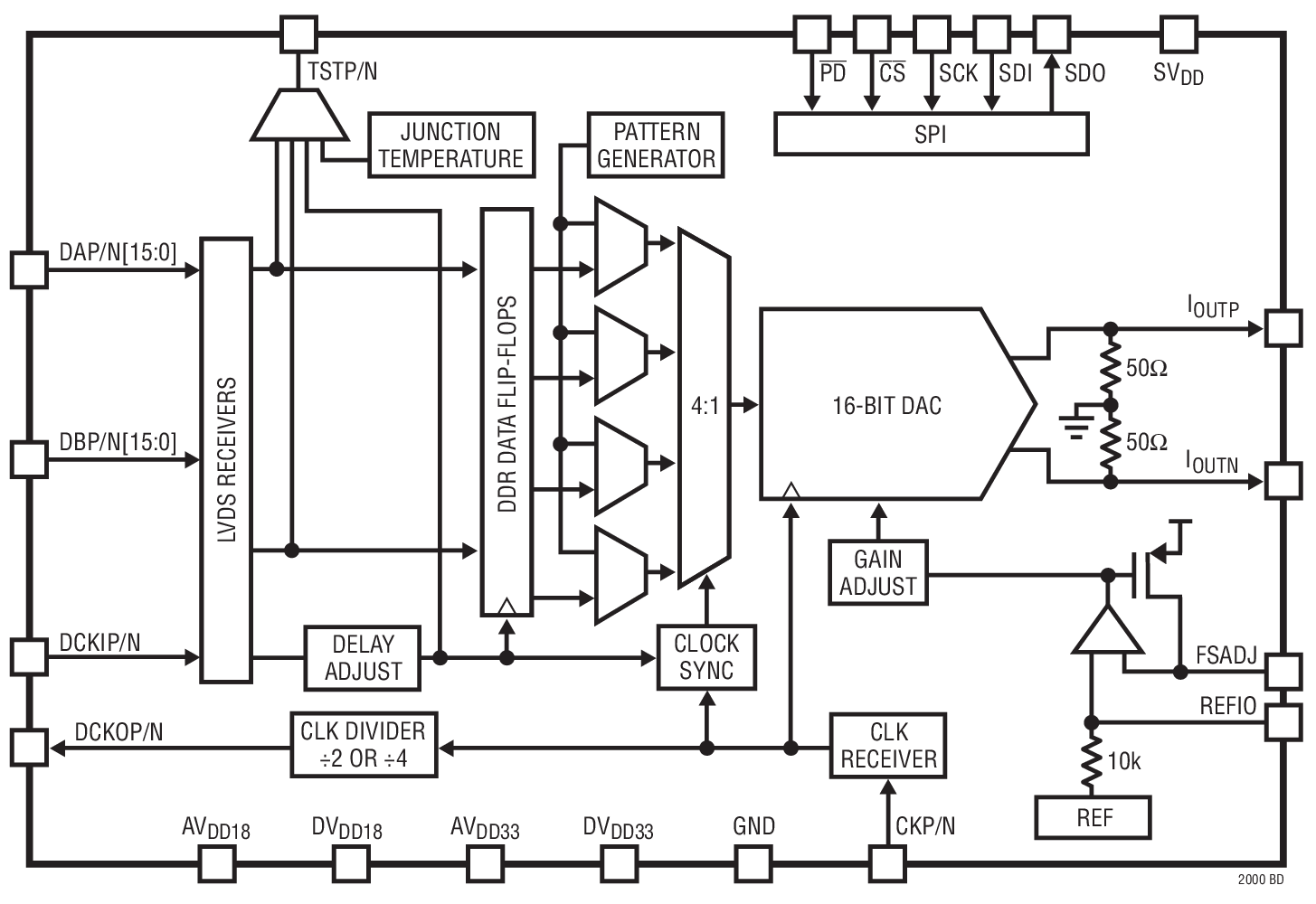

LTC2000
16 / 14 / 11 位、2.5Gsps DAC

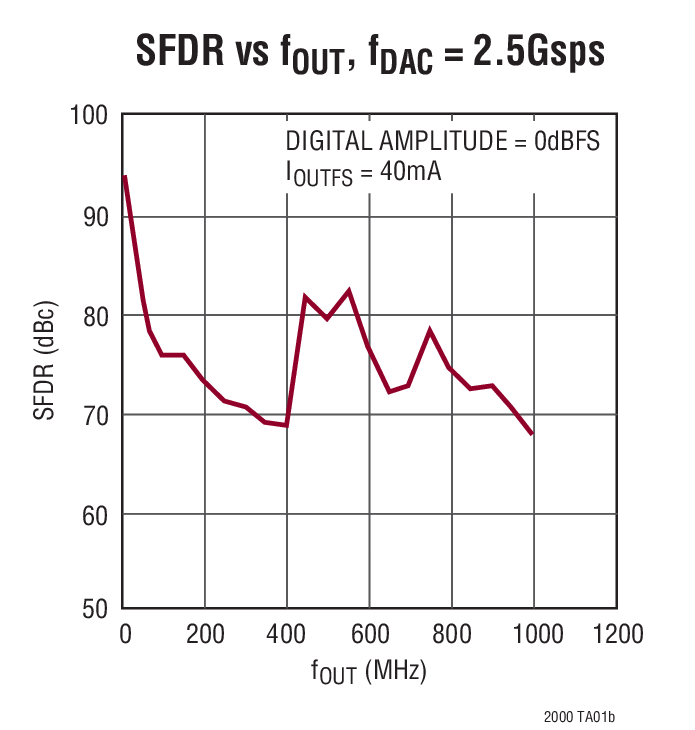

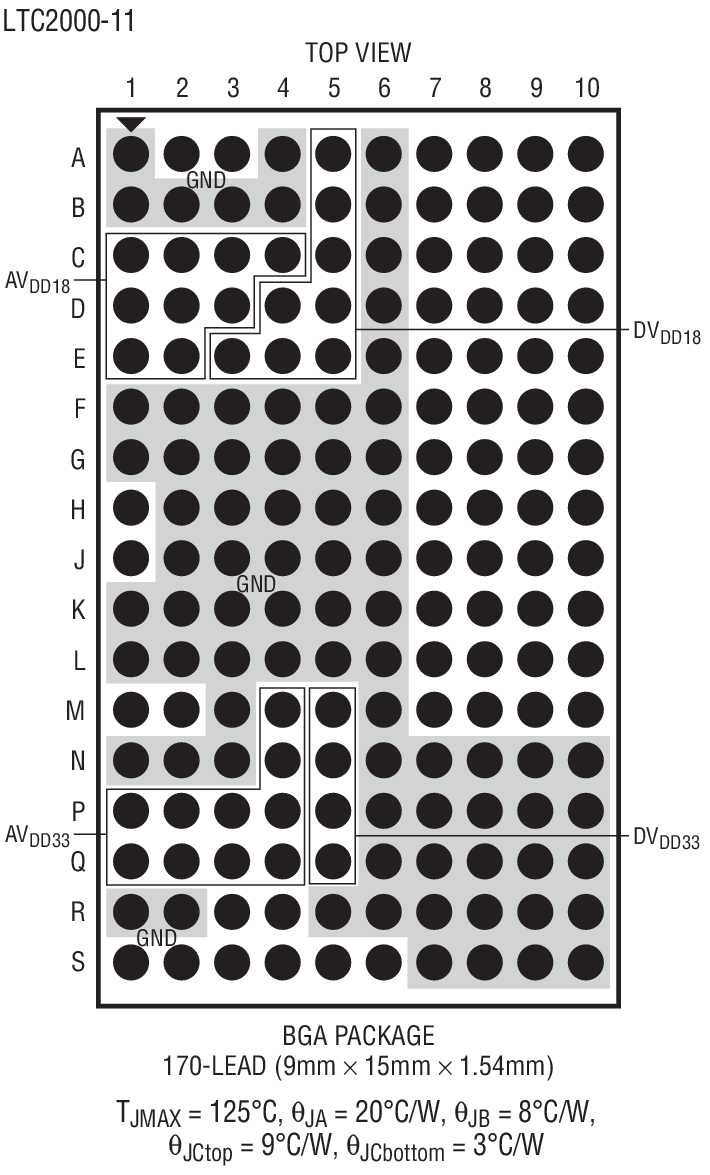

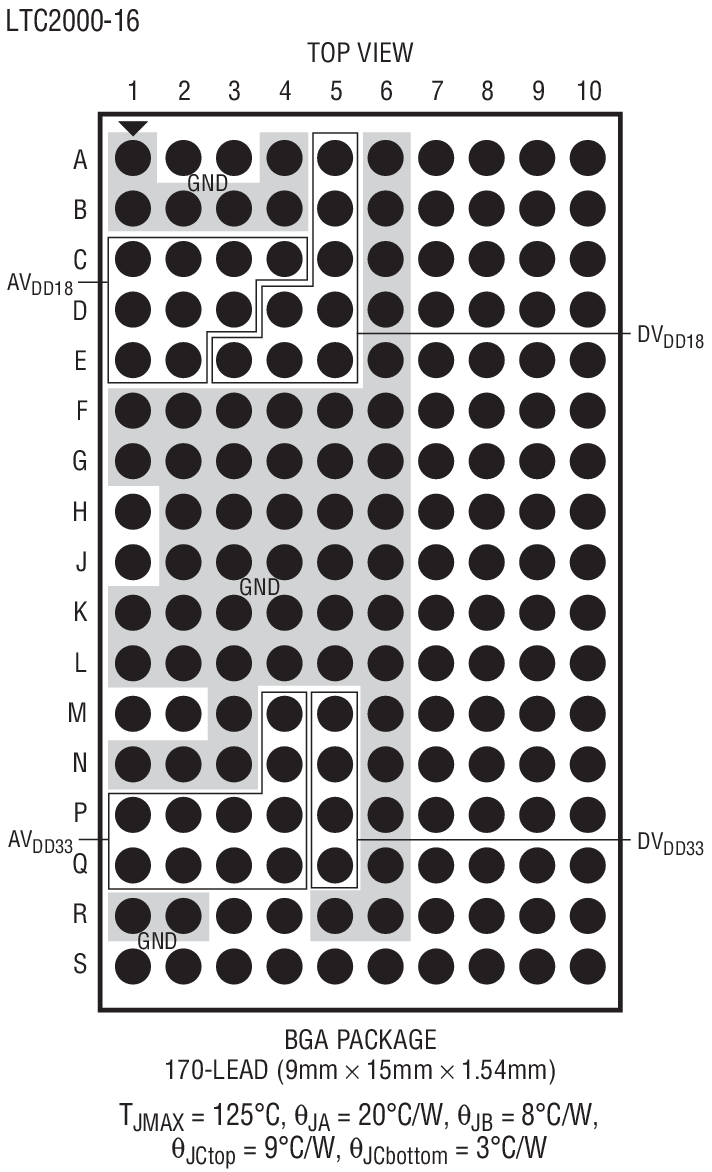

SFDR vs fOUT, fDAC = 2.5Gsps Product Package 1 Product Package 2 Product Package 3
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 3

设计笔记 1

技术文章 3

配置指南 1

规范通知 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

Evaluation Software 4

LTDACGen

The LTDACGen System is designed to demonstrate and support the evaluation of high speed, high performance DACs.

LinearLab Tools

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

硬件生态系统

部分模型 产品周期 描述
PLL Synthesizers 1
LTC6946
最后购买期限 具集成型 VCO 的超低噪声及杂散 0.37GHz 至 6.39GHz 整数 N 合成器
RF混频器 1
LT5579
量产 1.5GHz 至 3.8GHz 高线性度上变频混频器
模数转换器 2
LTC2107
量产 16位、210Msps、高性能ADC
LTC2123
量产 具有JESD204B串行输出的双通道、14位、250Msps ADC
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

IBIS 模型 1

评估套件

eval board
schematic 1
DC2303A-A

LTC2000-16 Demo Board (FMC) | 16-Bit 2.5Gsps DAC with DDR LVDS Interface

立即购买 更多内容

产品详情

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.

Companion Board: Kintex Board

eval board
schematic 2
DC2303A-B

LTC2000-14 Demo Board (FMC) | 14-Bit 2.5Gsps DAC with DDR LVDS Interface

立即购买 更多内容

产品详情

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.

Companion Board: Kintex Board

eval board
schematic 3
DC2303A-C

LTC2000-11 Demo Board (FMC) | 11-Bit 2.5Gsps DAC with DDR LVDS Interface

立即购买 更多内容

产品详情

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.

Companion Board: Kintex Board

eval board
schematic 4

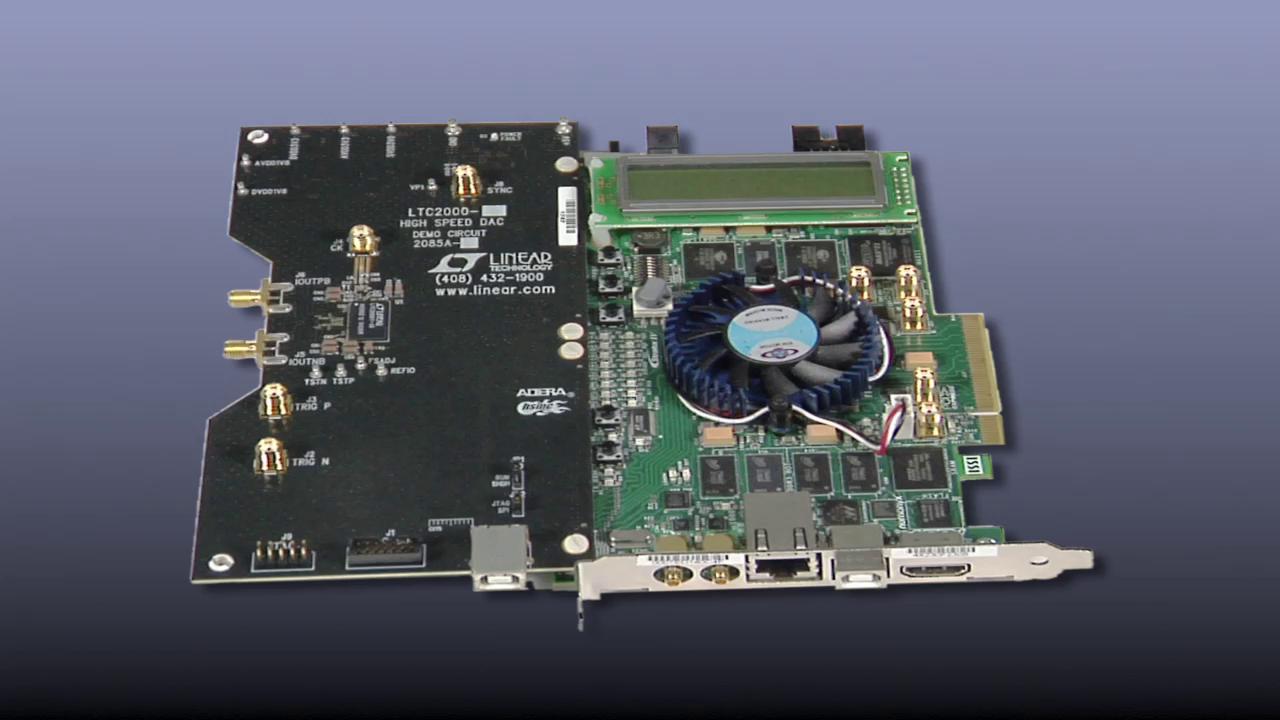

DC2085A-A

LTC2000-16 Demo Board | 16-Bit 2.5Gsps DAC with DDR LVDS Interface

立即购买 更多内容

产品详情

Demonstration circuit 2085 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2085 supports the complete family of the LTC2000 including 16, 14 and 11 bit parts.


Companion Board : Stratix board

eval board
schematic 5
DC2085A-B

LTC2000-14 Demo Board | 14-Bit 2.5Gsps DAC with DDR LVDS Interface

立即购买 更多内容

产品详情

Demonstration circuit 2085 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2085 supports the complete family of the LTC2000 including 16, 14 and 11 bit parts.


Companion Board : Stratix board

eval board
schematic 6
DC2085A-C

LTC2000-11 Demo Board | 11-Bit 2.5Gsps DAC with DDR LVDS Interface

立即购买 更多内容

产品详情

Demonstration circuit 2085 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2085 supports the complete family of the LTC2000 including 16, 14 and 11 bit parts.


Companion Board : Stratix board

eval board
schematic 7
DC2191A-A

LTC2000 + LT5579 Combo Board | 16-Bit 2.5Gsps DAC with Upconverting Mixer

立即购买 更多内容

产品详情

Demonstration circuit 2191A supports the LTC2000, a high speed, high dynamic range DAC driving the LT5579 upconverting mixer.


The circuitry on the DAC IF output is optimized for analog frequencies from DC to 500MHz. The circuitry on the LO input is optimized for frequencies from 1000MHz to 4300MHz.


Companion Board : Stratix board



DC2303A-A
LTC2000-16 Demo Board (FMC) | 16-Bit 2.5Gsps DAC with DDR LVDS Interface
DC2303A
DC2303A-B
LTC2000-14 Demo Board (FMC) | 14-Bit 2.5Gsps DAC with DDR LVDS Interface
DC2303A
DC2303A-C
LTC2000-11 Demo Board (FMC) | 11-Bit 2.5Gsps DAC with DDR LVDS Interface
DC2303A
DC2085A-A
LTC2000-16 Demo Board | 16-Bit 2.5Gsps DAC with DDR LVDS Interface

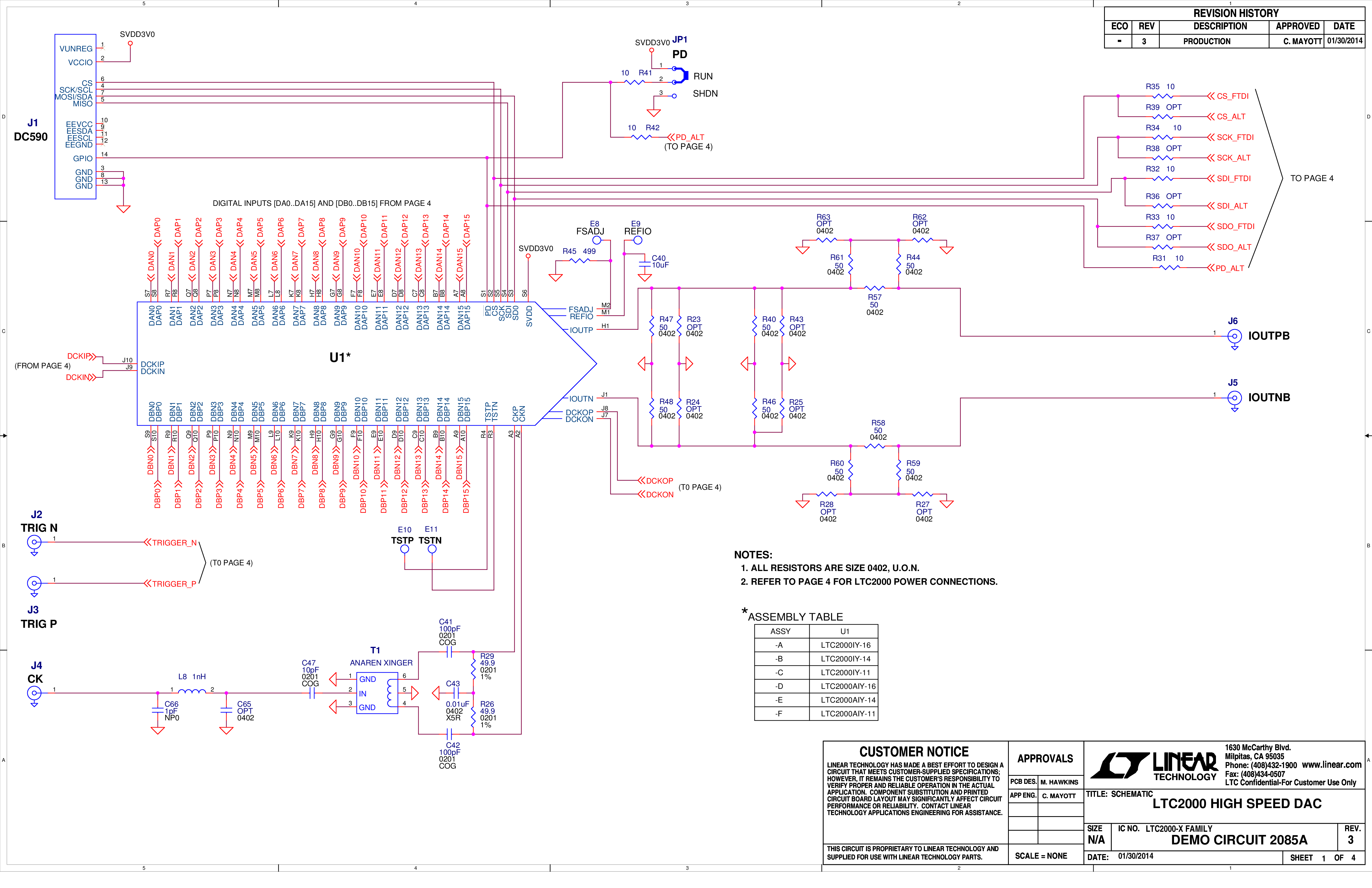

DC2085A - Schematic
DC2085A-B
LTC2000-14 Demo Board | 14-Bit 2.5Gsps DAC with DDR LVDS Interface
DC2085A - Schematic
DC2085A-C
LTC2000-11 Demo Board | 11-Bit 2.5Gsps DAC with DDR LVDS Interface
DC2085A - Schematic
DC2191A-A
LTC2000 + LT5579 Combo Board | 16-Bit 2.5Gsps DAC with Upconverting Mixer

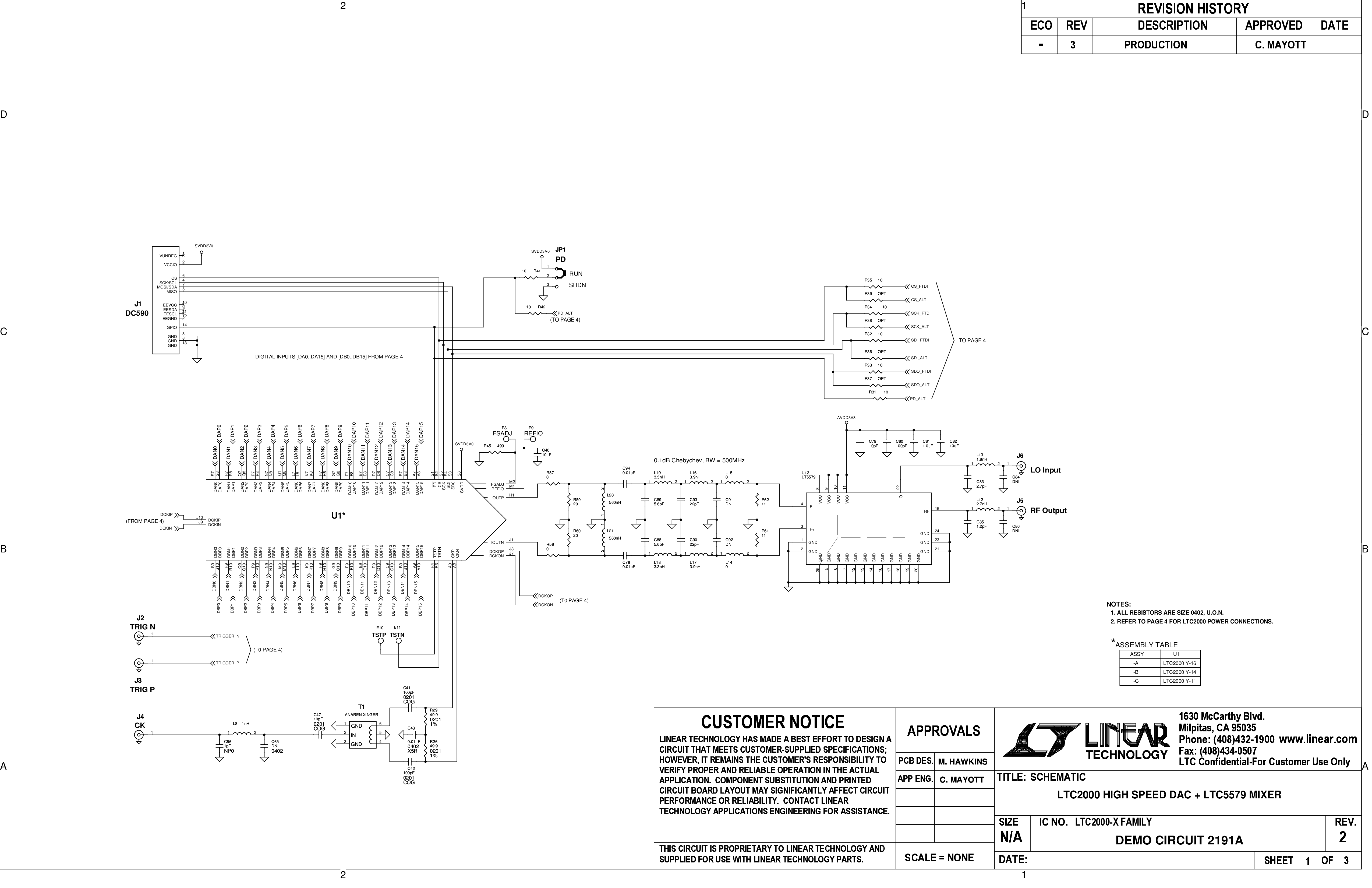

DC2191A - Schematic
