ADV7125

量产

330MHz、三通道、8位高速视频DAC

数据手册 (Rev. D)

产品模型: 10

Viewing:

产品详情

吞吐量：330 MSPS

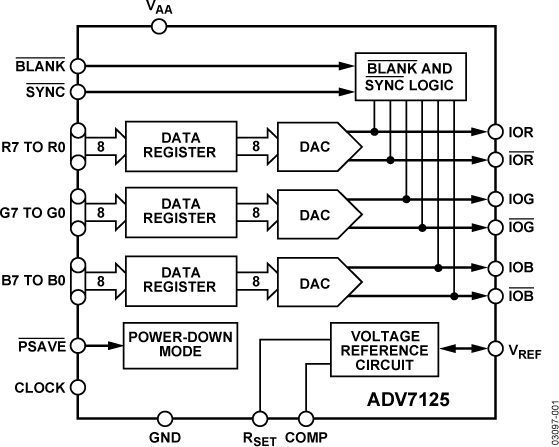

三个8位DAC
RS-343A/RS-170兼容输出
互补输出
DAC输出电流范围：2.0 mA至26.5 mA
TTL兼容输入
内部基准电压源(1.235 V)
采用+5 V/+3.3 V单电源供电
48引脚LQFP和LFCSP封装
低功耗：30 mW（最小值，3 V）
低功耗（待机模式）：6 mW（典型值，3 V）
工业温度范围：−40°C至+85°C
符合RoHS标准的封装
通过汽车应用认证

参考资料

数据手册 1

ADV7125: CMOS, 330 MHz Triple 8-Bit High Speed Video DAC Data Sheet (Rev.D) 02/15/2011

应用笔记 3

AN-349: 延长CMOS寿命的关键因素 03/26/2010

AN-1180：针对生产后自测优化视频平台 07/07/2020

Design and Layout of a Video Graphics System for Reduced EMI (Rev.AN-333) 08/09/2014

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
ADV7125BCPZ170	48-Lead LFCSP (7mm x 7mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125BCPZ170-RL	48-Lead LFCSP (7mm x 7mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125JSTZ240	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125JSTZ330	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125KSTZ140	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125KSTZ50	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125KSTZ50-REEL	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125WBCPZ170	48-Lead LFCSP (7mm x 7mm x 0.85mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125WBSTZ170	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADV7125WBSTZ170-RL	48-Lead LQFP (7mm x 7mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN
未找到匹配项目
6月 9, 2021 - 20_0126 Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
		PCN20_0126_Form Qualification Results Summary Material_Report Detailed Change Description Package Outline Drawing Package Outline Drawing Qualification Results Summary Qualification Results Summary Qualification Results Summary Qualification Results Summary
ADV7125BCPZ170	量产
ADV7125BCPZ170-RL	量产
9月 13, 2017 - 16_0077 CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.
		PCN16_0077_Form Material_Report Detailed Parts List Detailed Parts List Package Outline Drawing Detailed Change Description Qualification Results Summary
ADV7125BCPZ170	量产
ADV7125BCPZ170-RL	量产
12月 10, 2014 - 14_0049 Conversion of 6x6mm and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
		PCN14_0049_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
ADV7125BCPZ170	量产
ADV7125BCPZ170-RL	量产
12月 7, 2016 - 16_0033 Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select QFP Products
		PCN16_0033_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report
ADV7125JSTZ240	量产
ADV7125JSTZ330	量产
ADV7125KSTZ140	量产
ADV7125KSTZ50	量产
ADV7125KSTZ50-REEL	量产
ADV7125WBSTZ170	量产
ADV7125WBSTZ170-RL	量产
9月 22, 2010 - 10_0164 ADV7123 & ADV7125 Additional Wafer Fab Location
		PCN10_0164_Form Material_Report Reliability Report
ADV7125JSTZ240	量产
ADV7125JSTZ330	量产
ADV7125KSTZ140	量产
ADV7125KSTZ50	量产
ADV7125KSTZ50-REEL	量产
2月 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
ADV7125JSTZ240	量产
ADV7125KSTZ140	量产
ADV7125KSTZ50	量产
1月 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
		07_0077Rev D_LQFP_Dec17 07_0077Rev D_MQFP_Dec15 07_0077Rev D_Obsolesence_Dec15 07_0077Rev D_TQFP_Dec15 Material_Report PCN07_0077_Form QFP Transfer Qualification Results-tests_DEC12CL
ADV7125JSTZ240	量产
ADV7125JSTZ330	量产
ADV7125KSTZ140	量产
ADV7125KSTZ50	量产
ADV7125KSTZ50-REEL	量产
4月 29, 2015 - 14_0049 Conversion of 6x6mm and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
		PCN14_0049_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Results Summary
ADV7125WBCPZ170	量产
