MX7536
PRODUCTIONµP-Compatible, 14-Bit DAC
- Part Models
- 1
- 1ku List Price
- Starting From $17.58
Part Details
- 14-Bit Monotonic over Full Temperature Range
- Full 4-Quadrant Multiplication
- µP Compatible Double Buffered Inputs
- Exceptionally Low Gain Tempco (2ppm/°C)
- Low Output Leakage (< 20nA) over the Full Temperature Range
- Low Power Consumption
- TTL and CMOS Compatible

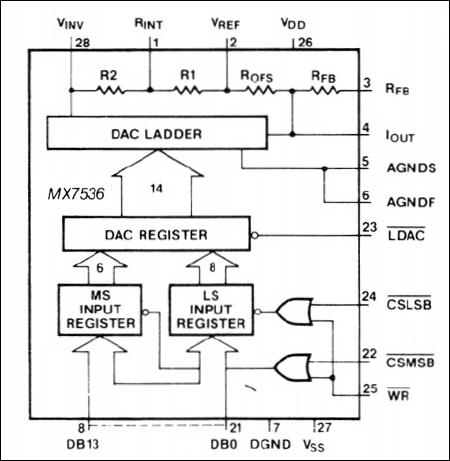

The MX7536 is a high performance CMOS monolithic 14-bit digital-to-analog converter (DAC) that is optimized and specified to operate as a bipolar output part. Since the resistors required for 4-quadrant multiplying operation are included in the MX7536, only two op amps and a voltage reference are required externally. Wafer level trimmed thin-film resistors and temperature compensated NMOS switches assure specified performance over the full operating temperature ranges with exceptional linearity and gain stability.
The MX7536 is configured to operate with an 8- or 16-bit data bus with separate Most Significant (MS) and Least Significant (LS) byte chip select controls. In addition, all digital inputs are compatible with both TTL and 5V CMOS logic levels. The device is protected against CMOS "latchup" and does not require external Schottky protection diodes. The MX7536 is available in 28-pin 600 mil wide DIP. PLCC or Small Outline (SO) packages.
Applications
- µP-Controlled Calibration Circuitry
- Automatic Test Equipment
- Digital Audio
- Digitally Controlled Filters
- Machine and Motion Control Systems
- Programmable Gain Amplifiers
- Programmable Power Supplies
